XU8TEW820-821Wireless AC Easy-Upgrader / AC433 Wireless Access Point

TRENDnet User’s Guide Cover Page TRENDnet User’s Guide TEW-820AP Table of Contents Table of Contents ............................................................................ 1 Product Overview ........................................................................... 2 Package Contents .......................................................................................................... 2 Features ......................................................................................................................... 2 Product Hardware Features........................................................................................... 3 Basic Access Point Setup ................................................................. 4 Expanding a Home Network .......................................................................................... 4 Basic Installation ............................................................................................................ 5 Access your access point management page .................................... 8 Choosing your device mode ............................................................. 9 Access Point (AP) Mode ................................................................................................. 9 Set the device to access point mode ................................................................... 9 Using access point mode ..................................................................................... 9 Wireless Networking and Security ..................................................................... 10 How to choose the type of security for your wireless network ......................... 10 Secure your wireless network............................................................................ 11 Connect wireless devices to your access point .................................................. 13 Connect wireless devices using WPS ................................................................. 14 Steps to improve wireless connectivity ............................................................. 15 Multiple SSID...................................................................................................... 16 Advanced wireless settings ................................................................................ 16 Wireless Bridge ............................................................................................................ 17 Access Point Mode with Wireless Bridge (WDS) ......................................................... 19 Planning for Wireless Bridging (WDS) ................................................................ 21 Creating a Wireless Bridge (WDS) ...................................................................... 23 Bridging additional WDS supported devices ...................................................... 27 Client ............................................................................................................................ 28 Set the device to client bridge mode ................................................................. 29 Configure Client mode ....................................................................................... 29 Link Status .......................................................................................................... 29 Advanced Access Point Setup ........................................................ 30 MAC Address Filters .................................................................................................... 30 User Limit..................................................................................................................... 30 Change your access point login password ................................................................... 31 Change your device name ........................................................................................... 31 IPv6 Connection Settings ............................................................................................. 31 Change your access point IP address ........................................................................... 32 Set your date and time ................................................................................................ 33 Create schedules ......................................................................................................... 34 Access Point Maintenance & Monitoring ....................................... 34 Reset your Access Point to factory defaults ................................................................ 34 Access Point Default Settings ...................................................................................... 35 Backup and restore your access point configuration settings ..................................... 35 Reboot your access point ............................................................................................ 35 Upgrade your access point firmware .......................................................................... 36 Ping test ....................................................................................................................... 36 View your access point log .......................................................................................... 37 Email logs ..................................................................................................................... 37 Wireless Client List ...................................................................................................... 38 Check the access point system information ................................................................ 38 View your access point statistics ................................................................................. 39 Access Point Management Page Structure ..................................... 41 Technical Specifications ................................................................ 42 Troublesh…

Text truncated - open the document above for the full version.

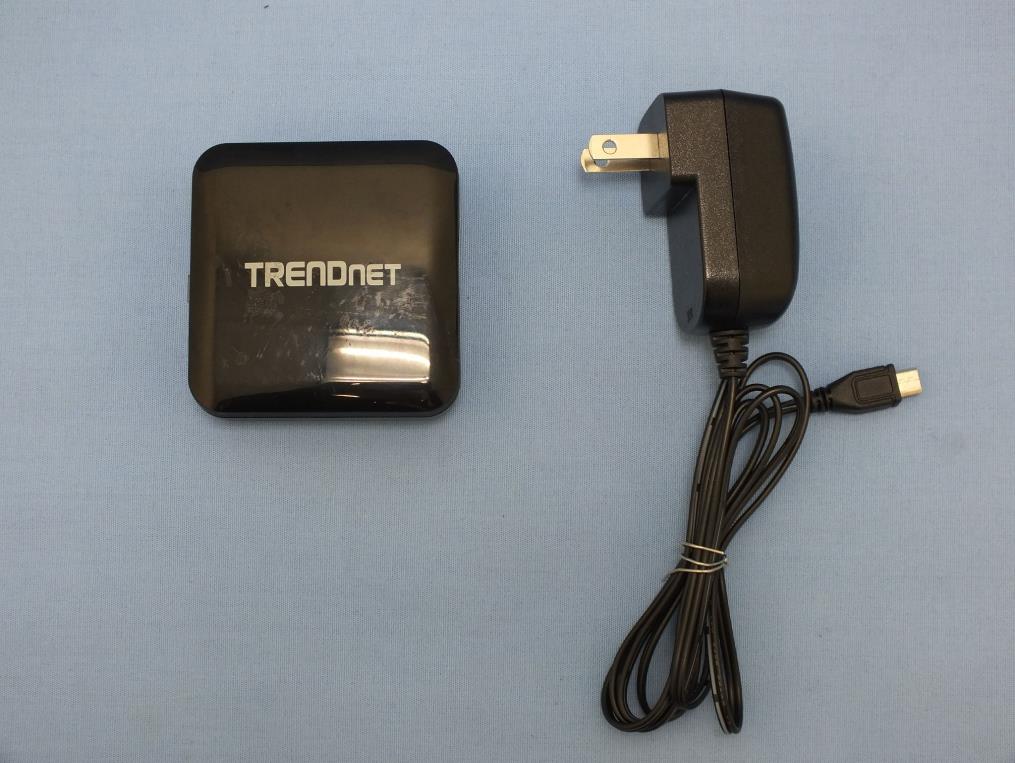

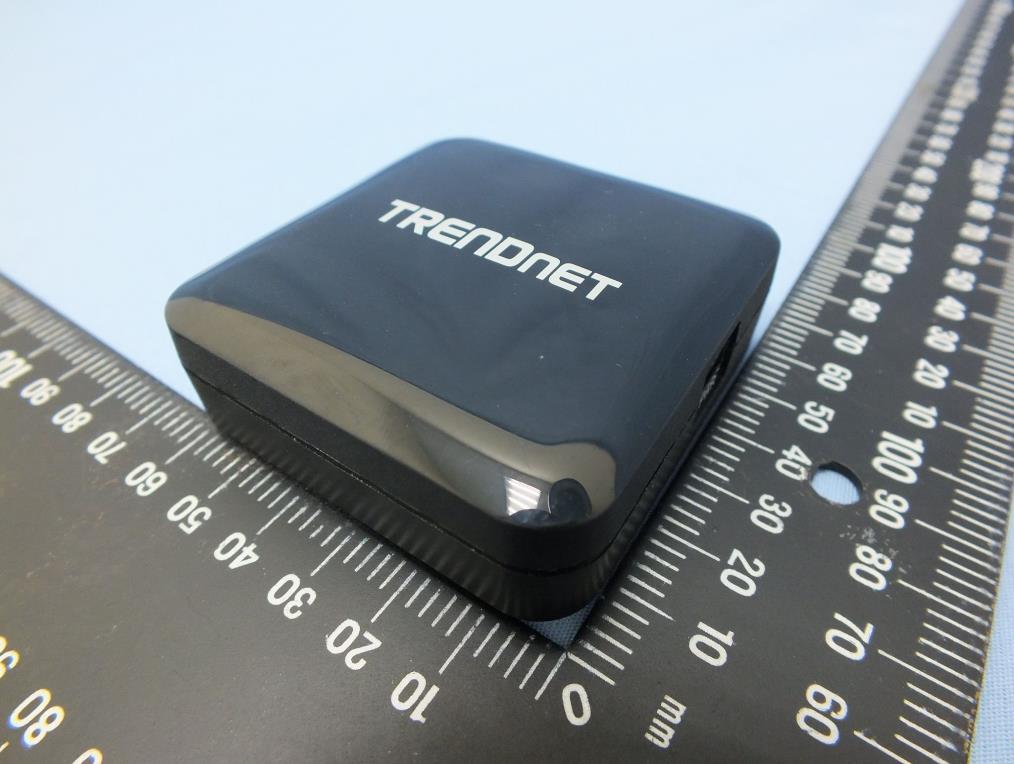

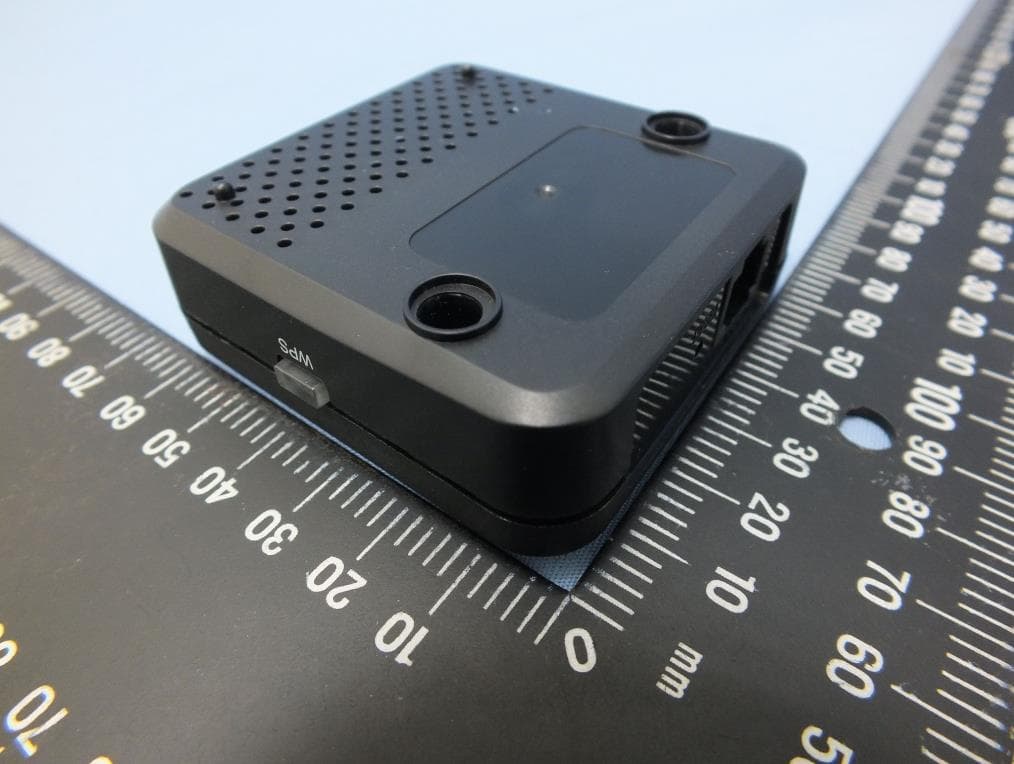

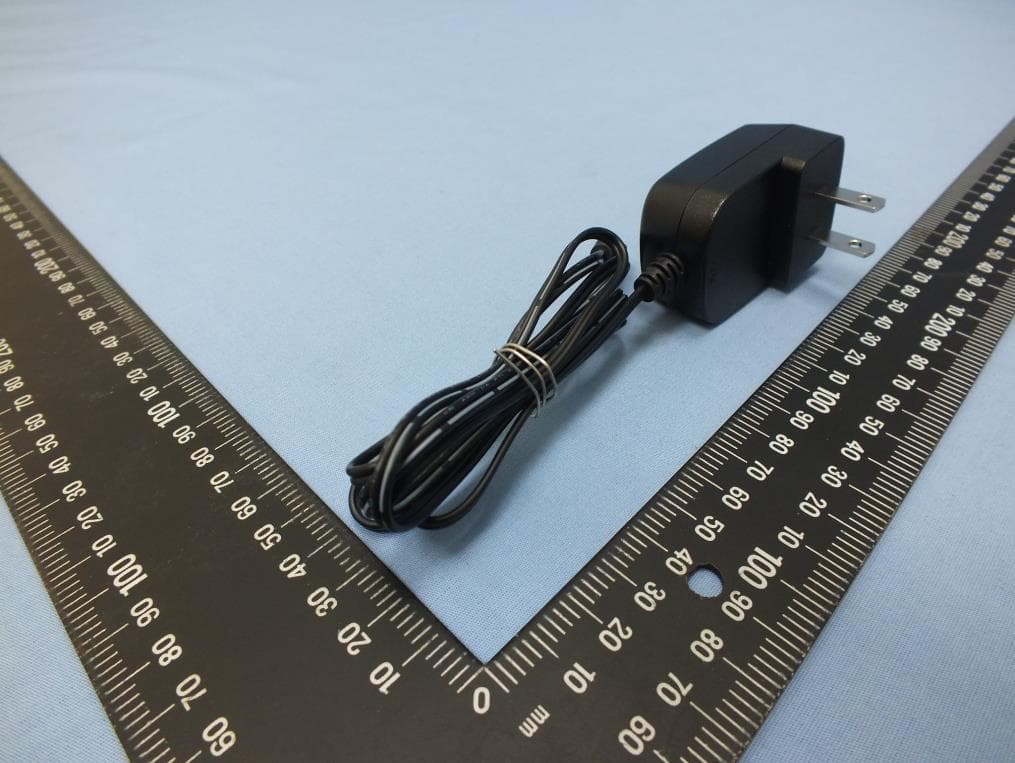

Project No.: EP432006 Page No. : 1 of 12 Photographs of EUT Project No.: EP432006 Page No. : 2 of 12 Project No.: EP432006 Page No. : 3 of 12 Project No.: EP432006 Page No. : 4 of 12 Project No.: EP432006 Page No. : 5 of 12

LAN MAC WAN MAC: XXXXXXXXXXXX/# : XXXXXXXXXXXX Made in China Device Label 主體貼紙 #為半成品規格 A規 /FCC E規 /ETSI **注意事項** 客戶序號編碼原則 S/N:C2YYWW20XXXXX C2:友勁代碼(固定) YY : 西元年份, ex~13:2013年 WW: 週數, ex~06:第六週 20: 產品別 (由客戶指定) XXXXX: 流水號 FCC ID:XU8TEW820-821 主體貼紙必須印上F/W Version F/W:ver1.00 1 0 . 0 0 m m 40.00 mm S/N:C2YYWW20XXXXX 半成品料號請對工單 TRENDnet指定MAC ID Model: TEW-820AP H/W:V1.0R TEW-820AP 確認簽名 日期 產品機種 產品料號 客戶名稱 申請者 設計者 備註 2014.05.08 TRENDnet Vicki Cherry 字型:Arial FCC ID: XU8TEW820-821 FW:ver1.00 Power Input: 5V 1A Wi-Fi Name/TRENDnet820_5GHz_NNNN Wi-Fi Key: 820W20XXXXX password: WPS PIN: XXXXXXXX "See Caution in Manual" SSID: username: admin admin Management Login: http://tew-820ap 1. Wi-Fi Name/TRENDnet820_5GHz_NNNN (TRENDnet820_5GHz_為固定碼; XXXX為4 random number and characters, N可從0~9, A~Z, Alphanumeric range: 23456789ABCDEFGHJKLMNPQRSTUVWXYZ (數字0/1 與字母“I”and “O”不要用，字母用大寫，不要小寫) 例TRENDnet820_5GHz_1A3B) 2. Wi-Fi Key/Password: 820W20XXXXX (820為固定碼;W20XXXXX為序號末八碼) 3. 4. 5. SSID: Management Login: http://tew-820ap password: WPS PIN: XXXXXXXX username: admin admin 6. Web password: AAAAAAAA~8 random digit (Alphanumeric) 39mm 9mm 7mm 24.3mm 1.92mm 38.95mm 1.92mm 1.92mm 6450T820AP1**S1 Label Location

Project No.: EP432006 Page No. : 6 of 12 Project No.: EP432006 Page No. : 7 of 12 Project No.: EP432006 Page No. : 8 of 12 Project No.: EP432006 Page No. : 9 of 12 Project No.: EP432006 Page No. : 10 of 12 Project No.: EP432006 Page No. : 11 of 12 Project No.: EP432006 Page No. : 12 of 12

FCC ID: Channel frequency ModeChannel 36 40 44 48 149 153 157 161 165 38 46 151 159 42 155 XU8TEW820-821 Operational Description RF main chipRTL8881 Frequency range (MHz) 5180~5240 / 5745~5825 Modulation typeBPSK, QPSK, 16QAM, 64QAM,256QAM Oscillating frequency (MHz)40 Antenna typePCB antenna , 3 dBi gain The device is a wireless Access Point which operates at 5GHz band and supports IEEE 802.11 a / n / ac transmission modes. 80+80 MHz mode is not supported. This device is not capable of transmitting simultaneously in more than one Part 15 band between 5 and 6 GHz and therefore not subject to the PBA as defined in KDB 644545. Frequency(MHz) 11a HT20 VHT20 5180 5200 5220 5240 5230 5745 5765 5785 5805 5825 HT40 VHT40 5190 5210 5775 VHT80 5755 5795 P 1 / 2 Data transmission is always initiated by software, which is then pass down through the MAC , through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS , PSPoll, etc) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it the turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted. P 2 / 2

Report No.: FA432006 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : XU8TEW820-821 Equipment : Wireless AC Easy-Upgrader (Please refer to 1.1.1 for more details.) Model No. : TEW-820AP (Please refer to 1.1.1 for more details.) Brand Name : TRENDnet Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501, USA Standard : 47 CFR FCC Part 2.1091 Received Date : Mar. 20, 2014 Tested Date : Mar. 21 ~ Mar. 28, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA432006 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 4 1.1 Information .............................................................................................................................................. 4 2 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 5 2.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 5 2.2 MPE EVALUATION FORMULA ............................................................................................................. 5 2.3 MPE EVALUATION RESULTS .............................................................................................................. 5 3 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA432006 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA432006 Rev. 01 Initial issue May 20, 2014 Report No.: FA432006 Page : 4 of 6 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name TRENDnet TEW-820AP Wireless AC Easy-Upgrader TEW-821AP AC433 Wireless Access Point  All models are electrically identical, different model names are for marketing purpose.  The above models, model TEW-820AP was selected as a representative one for the final test and only its data was recorded in this report. Report No.: FA432006 Page : 5 of 6 Report Version: Rev. 01 2 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 2.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 2.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 2.3 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 5180~5240 16.86 3 20 0.019 1 5745~5825 20.53 3 20 0.045 1 Report No.: FA432006 Page : 6 of 6 Report Version: Rev. 01 3 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Tel: 886-2-2601-1640 Tel: 886-3-271-8666 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR432006AN Page : 1 of 49 Report Version: Rev. 01 FCC Test Report FCC ID : XU8TEW820-821 Equipment : Wireless AC Easy-Upgrader (Please refer to 1.1.1 for more details.) Model No. : TEW-820AP (Please refer to 1.1.1 for more details.) Brand Name : TRENDnet Applicant : TRENDnet, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501, USA Standard : 47 CFR FCC Part 15.407 Received Date : Mar. 20, 2014 Tested Date : Mar. 21 ~ Mar. 28, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR432006AN Page : 2 of 49 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Testing Applied Standards ................................................................................................................... 10 1.6 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition ................................................................................................................................. 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ........................................................................................................ 12 3.1 Conducted Emissions ........................................................................................................................... 12 3.2 Emission Bandwidth ............................................................................................................................. 15 3.3 RF Output Power .................................................................................................................................. 17 3.4 Peak Power Spectral Density ............................................................................................................... 19 3.5 Peak Excursion..................................................................................................................................... 21 3.6 Transmitter Radiated and Band Edge Emissions ................................................................................ 24 3.7 Frequency Stability ............................................................................................................................... 47 4 TEST LABORATORY INFORMATION ............................................................................................... 49 Report No.: FR432006AN Page : 3 of 49 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR432006AN Rev. 01 Initial issue May 20, 2014 Report No.: FR432006AN Page : 4 of 49 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.156MHz 47.55 (Margin -8.14dB) - AV Pass 15.407(b)(1)(2)(3) 15.209 Radiated Emissions [dBuV/m at 3m]: 5150.00MHz 52.51 (Margin -1.49dB) - AV Pass 15.407(a)(1)(2)(3) Emission Bandwidth Meet the requirement of limit Pass 15.407(a)(1)(2)(3) RF Output Power Power [dBm]: 11a: 15.94 HT20: 15.82 HT40: 16.80 VHT20: 15.89 VHT40: 16.86 VHT80: 16.45 Pass 15.407(a)(1)(2)(3) Peak Power Spectral Density Meet the requirement of limit Pass 15.407(a)(6) Peak Excursion Meet the requirement of limit Pass 15.407(g) Frequency Stability Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR432006AN Page : 5 of 49 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name TRENDnet TEW-820AP Wireless AC Easy-Upgrader TEW-821AP AC433 Wireless Access Point  All models are electrically identical, different model names are for marketing purpose.  The above models, model TEW-820AP was selected as a representative one for the final test and only its data was recorded in this report. 1.1.2 Specification of the Equipment under Test (EUT) RF General Information IEEE Std. 802.11 Frequency Range (MHz) Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS a 5150-5250 5180-5240 36-48 [4] 1 6-54 Mbps n (HT20) 5150-5250 5180-5240 36-48 [4] 1 MCS 0-7 n (HT40) 5150-5250 5190-5230 38-46 [2] 1 MCS 0-7 ac (VHT20) 5150-5250 5180-5240 36-48 [4] 1 MCS 0-8 ac (VHT40) 5150-5250 5190-5230 38-46 [2] 1 MCS 0-9 ac (VHT80) 5150-5250 5210 42 [1] 1 MCS 0-9 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM, 256QAM modulation. 1.1.3 Antenna Details Ant. No. Type Gain (dBi) Connector Remark 1 PCB 3 U.FL --- 1.1.4 Power Supply Type …

Text truncated - open the document above for the full version.

Report No.: FR432006 Page: : 1 of 2 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR432006 Page: : 2 of 2 Report Version: Rev. 01 Radiated Emission Test
