XU8THA101Home Smart Switch

THA-101 WiFi Smart Plug Quick Install Guide Setup for Repeater Mode 1 Power on the Extender Step1. Plug your Wireless Extender into an electrical socket. Step2. Check the LEDs:the power LED should be always on when system is ready. Connect to the Wireless Extender 2 Step1. Default SSID is “THA-101” and security key is “12345678”. Step2. Set your wireless adapter in DHCP client and waiting for getting IP Address from the Wireless Extender. Step3. Open a web browser and enter “192.168.1.254” in URL field to open the configuration page. Step4. Default user name is “admin” and password is “password” to access WEB GUI. 3 Manually Configuration: Step1. Open Wireless Settings / AP Client page. Step2. Setup the SSID and Security of AP that you want to connect to:Click APPLY to finish. Notes: The Wireless Extender is designed as a pure wireless device, so there are no any RJ-45 ports for Etherne t cable to connect to. Please prepare any IEEE802.11 ac/b/g/n compliant wireless adapter for next setup step. OR you can use “SCAN” to refresh the wireless network and select an AP to connect to. “The product shall be used in the residential environment notwithstanding use in commercial, business environments. If you want to use other than the above environments, please contact AboCom first.” WPS Configuration: Step1. Press the WPS button of the Wireless Extender over 3 seconds. Step2. Then press the WPS button of the wireless router/AP over 3 seconds too. Step 1 and Step 2 need to be done in 200 seconds. FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. Check if Connected 4 The green–checked icon ahead is the Wireless Router/AP which the Wireless Extender is working to. WPS button behavior: Less than 2 sec → N/A, WPS LED no blinking. More than 2 sec → Do WPS, WPS LED start blinking Reset button behavior: Less than 2 sec → N/A, D5-D1 LEDs no blinking. 2-5 seconds → Do REBOOT, D5-D1 LEDs fast blinking. More than 5 sec→ Do Factory Default, D5-D1 LEDs blinking slowly. Hardware Button Behavior 5 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and it's antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501, USA Tel: 1-310-961-5500 / Fax: 1-310-961-5511 Confidential Letter Date: 2014/7/9 Federal Communications Commission Authorization and Evaluation Division FCC ID：XU8THA101 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : TRENDnet, Inc. Applicant’s company address : 20675 Manhattan Place, Torrance, CA 90501, USA Signature : Name and Job Title : Wen Tsai / Sr. Product Manager E-Mail : [email protected] Tel. : 1-310-961-5500

TRENDnet, Inc. 20675 Manhattan Place, Torrance, CA 90501, USA Tel: 1-310-961-5500 / Fax: 1-310-961-5511 Power of Attorney Date: 2014/7/9 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: TRENDnet / THA-101 FCC ID: XU8THA101 Product name: Home Smart Switch FCC Grantee contact person information. Applicant’s company name : TRENDnet, Inc. Applicant’s company address : 20675 Manhattan Place, Torrance, CA 90501, USA Signature : Name and Job Title : Wen Tsai / Sr. Product Manager E-Mail : [email protected] Tel. : 1-310-961-5500

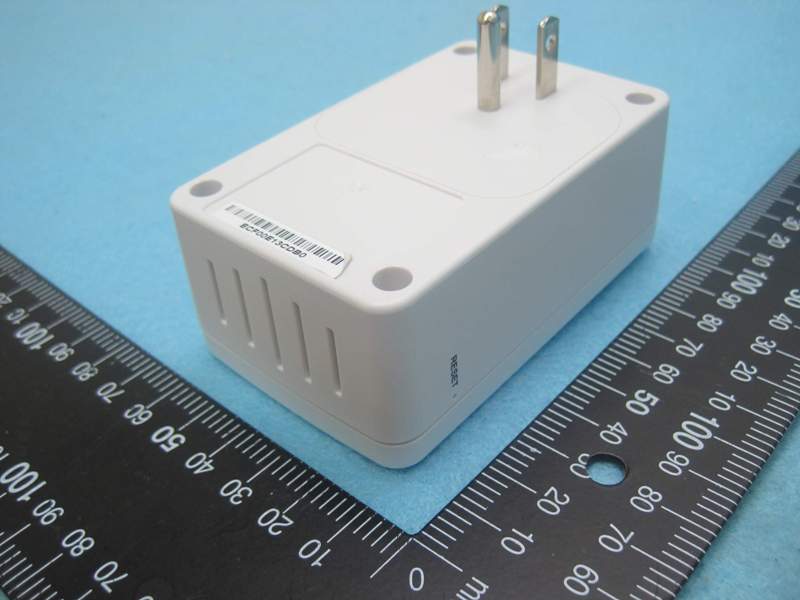

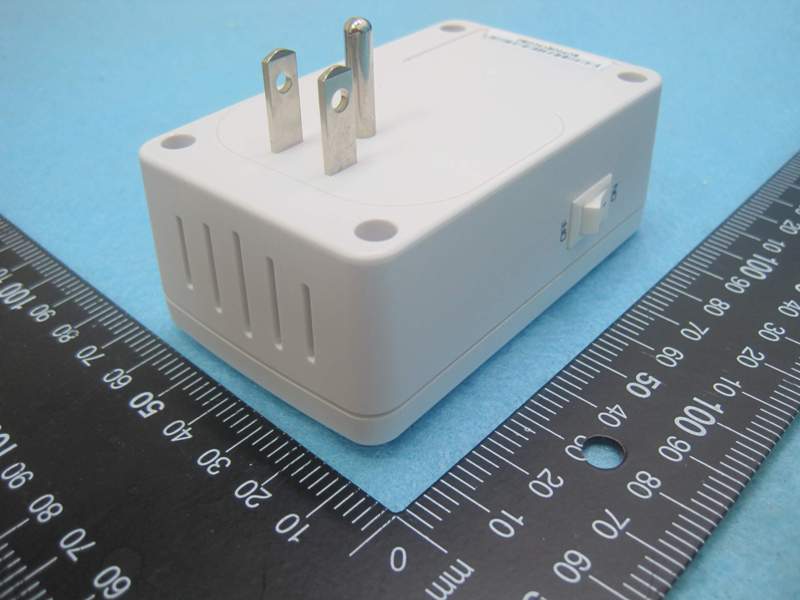

Report No.: 442524-01 SPORTON International Inc. PAGE NUMBER : 1 OF 2 TEL : 886-3-327-3456 ISSUED DATE : Jul. 09, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.: 442524-01 SPORTON International Inc. PAGE NUMBER : 2 OF 2 TEL : 886-3-327-3456 ISSUED DATE : Jul. 09, 2014 FAX : 886-3-327-0973

PLW52SMx Device Sticker : :36x29.5mm R=1mm x3 :25 M74-TRW01-052

Report No.: 442524-01 SPORTON International Inc. PAGE NUMBER : 1 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Jul. 09, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.: 442524-01 SPORTON International Inc. PAGE NUMBER : 2 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Jul. 09, 2014 FAX : 886-3-327-0973 Report No.: 442524-01 SPORTON International Inc. PAGE NUMBER : 3 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Jul. 09, 2014 FAX : 886-3-327-0973 Report No.: 442524-01 SPORTON International Inc. PAGE NUMBER : 4 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Jul. 09, 2014 FAX : 886-3-327-0973 Report No.: 442524-01 SPORTON International Inc. PAGE NUMBER : 5 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Jul. 09, 2014 FAX : 886-3-327-0973 Report No.: 442524-01 SPORTON International Inc. PAGE NUMBER : 6 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Jul. 09, 2014 FAX : 886-3-327-0973

Report No.: FR442524-01 FCC ID: XU8THA101 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR442524-01 FCC ID: XU8THA101 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR442524-01 FCC ID: XU8THA101 Page No. : B3 of B3 1.3. Calculated Result and Limit Antenna Type : Chip Antenna Conducted Power for IEEE 802.11g: 23.17 dBm The maximum combined Average Output Power Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.26 1.6827 23.1684 207.4165 0.069469 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company TRENDnet, Inc. Applicant Address 20675 Manhattan Place, Torrance, CA 90501, USA FCC ID XU8THA101 Manufacturer’s company TRENDnet, Inc. Manufacturer Address 20675 Manhattan Place, Torrance, CA 90501, USA Product Name Home Smart Switch Brand Name TRENDnet Model No. THA-101 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Apr. 25, 2014 Final Test Date Jun. 30, 2014 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r02 and KDB 662911 D01 v02r01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR442524-01 Report Format Version: Rev. 01 Page No. : i of ii FCC ID: XU8THA101 Issued Date : Jul. 09, 2014 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................7 3.7. Table for Supporting Units ...................................................................................................................................................................7 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................8 3.9. EUT Operation during Test ...................................................................................................................................................................8 3.10. Duty Cycle ..........................................................................................................................................................................................9 3.11. Test Configurations ...........................................................................................................................................................................11 4. TEST RESULT ................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................14 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................18 4.3. Power Spectral Density Measurement ..............................................................................................................................................21 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................29 4.5. Radiated Emissions Measurement ....................................................................................................................................................34 4.6. Emissions Measurement ....................................................................................................................................................................53 4.7. Antenna Requirements .....................................................................................................................................................................71 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 72 6. MEASUREMENT UNCERTAINTY.......................................................................................................................... 73 APPENDIX A. TEST PHOTOS ..................................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR442524-01 FCC ID: XU8THA101 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR442524-01 FCC ID: XU8THA101 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR442524-01 FCC ID: XU8THA101 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR442524-01 FCC ID: XU8THA101 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR442524-01 FCC ID: XU8THA101 Page No. : A5 of A5 Test Configuration: Above 1GHz / Test Mode: Mode 2 FRONT VIEW REAR VIEW
