XU8TPL310AP200MBPS POWERLINE AV WIRELESS N ACCESS POINT

----------------------------------------------------------------------------------------------------- The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons.

August 2, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID : XU8TPL310AP Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Wen Tsai/Sr. Product Manager TRENDnet, Inc. 20675 Manhattan Place Torrance, CA 90501 U.S.A. w.tsai (53trendnet.com

TRENDnet, Inc. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: SUBJECT: FCC Application for XU8TPL310AP To Whom It May Concern: We, the undersigned, IN HOUSE BPL AND CARRIER CURRENT SYSTEMS: the verification procedure has been applied for in house BPL and carrier current systems. For in-house and access BPL systems, the measurement guidelines can be found in Appendix C of Report and Order FCC 04-245 (Measurement Guidelines for Broadband Over Power Line (BPL) Devices Or Carrier Current Systems (CCS) and Certification Requirements For Access BPL Devices). Regards, Signature Name/title: Wen Tsai / Sr. Product Manager Company Name: TRENDnet, Inc. Address: 20675 Manhattan Place Torrance, CA 90501 United States Tel: (310) 961-5500 5474 Fax：(310) 961-5511 e-mail address: [email protected]

TRenonET August 2, 2011 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. Rex Lai Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: TRENDnet; TPL-310AP FCCID:XU8TPL310AP Product Name: ZOOMbps Powerline AV Wireless N Access Point Sincerely, Wen Tsai/ Sr. Product Manager TRENDnet, Inc. 20675 Manhattan Place Torrance, CA 90501 U.S.A. [email protected]

TRERDnET August 2, 2011 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: XU8TPL310AP, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Sincerely, Wen Tsai/Sr. Product Manager TRENDnet, Inc. 20675 Manhattan Place Torrance, CA 90501 U.S.A. w.tsa [email protected]

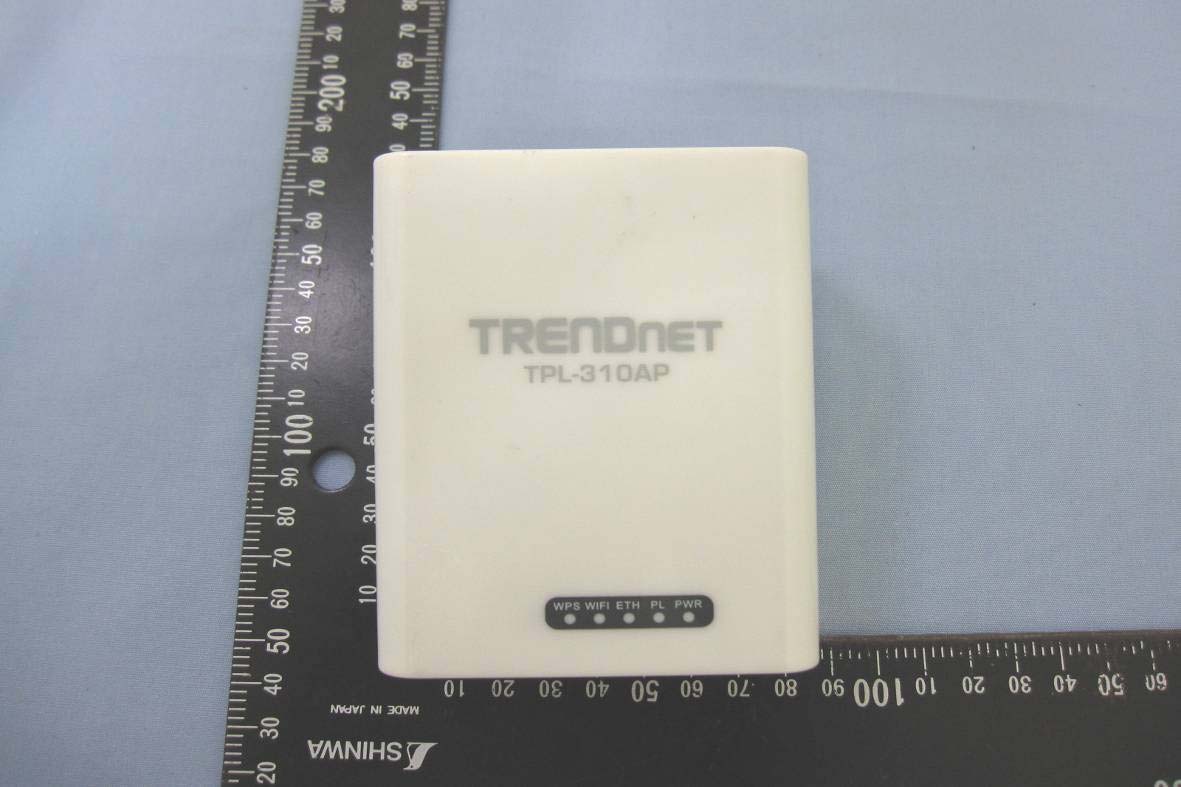

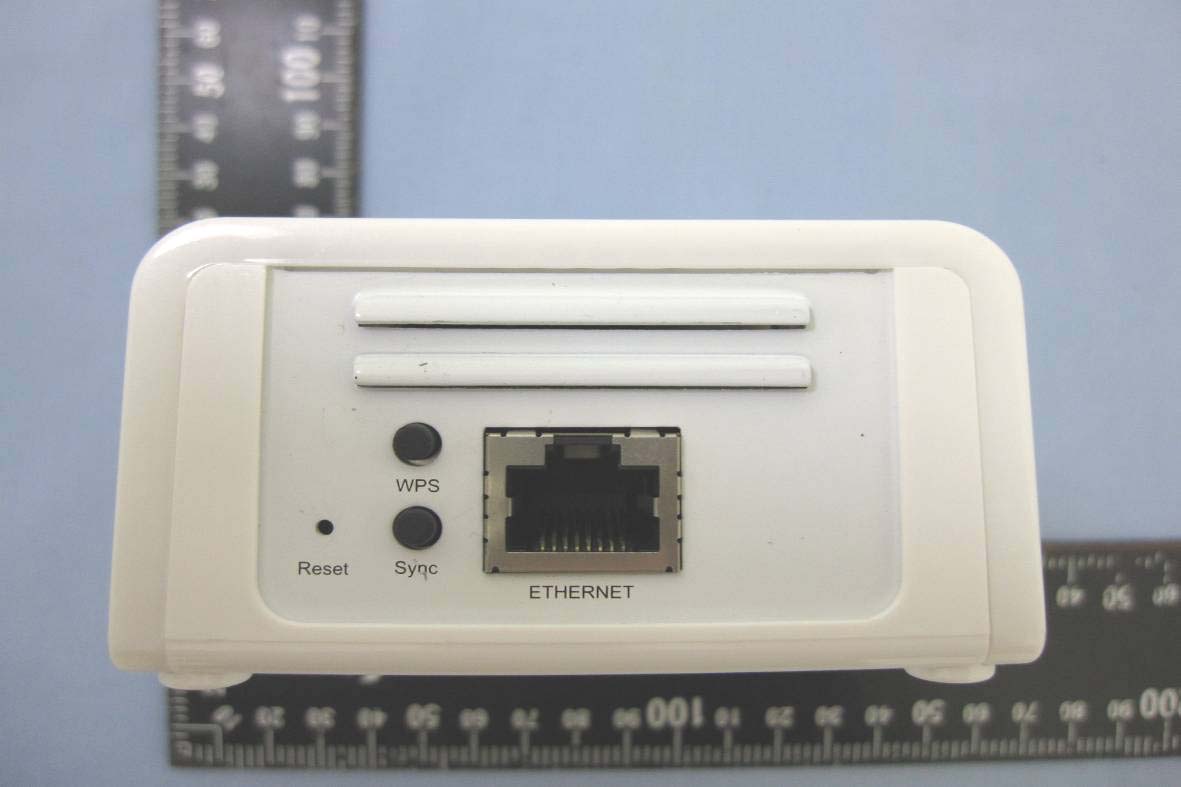

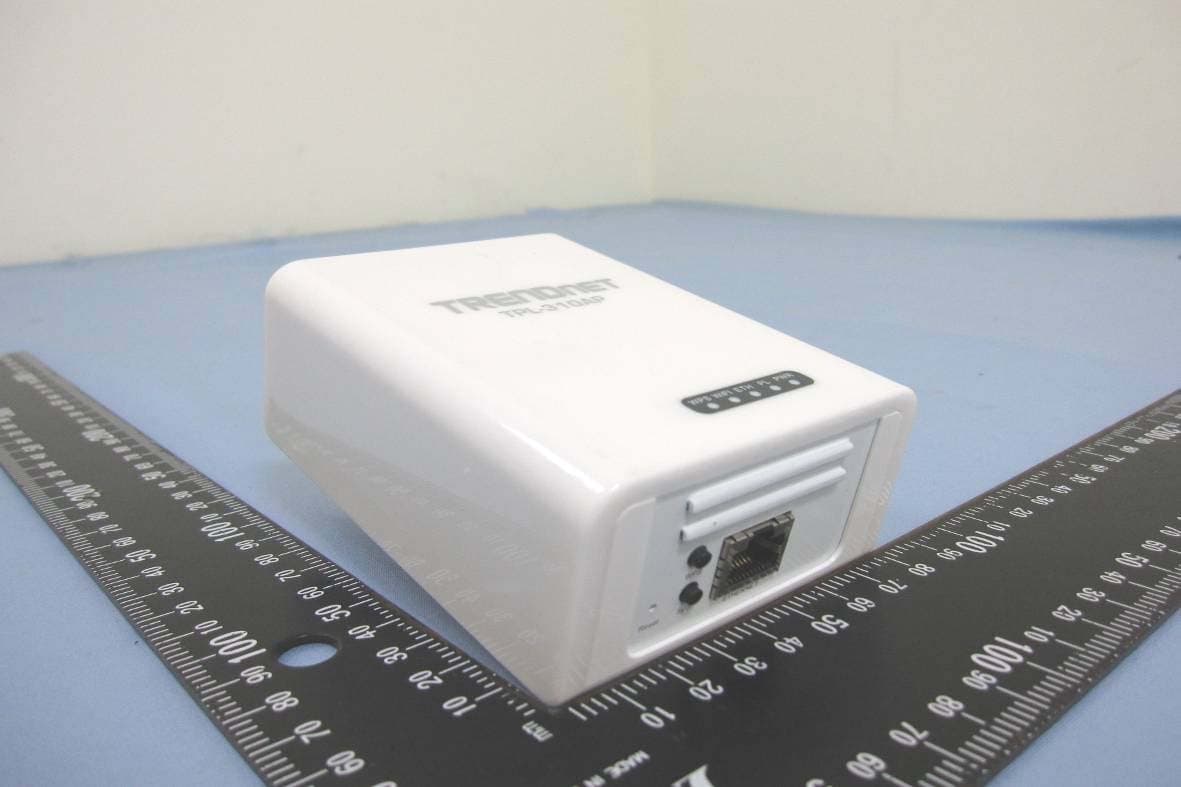

Compliance Certification Services Inc. Report No.: T110310004 Date of Issue: August 15, 2011 A1 - 1 / 15 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110310004 Date of Issue: August 15, 2011 A1 - 2

Dieline Font: Arial, 8 pt & 6 pt Size: 50mm*32mm, [email protected] Color: Black on white Barcode: Code 128 MODEL NO: TPL-310AP/A S/N: GI1106S03A00001 MAC: 0014D18A82B5 DPW: VARS-ECHE-SAGA-OWED H/W: v1.0R IP Address:192.168.10.100 F/W(AP):1.61 Subnet Mask:255.255.255.0 F/W(PL): 4.2.0.04 FCC ID: XU8TPL310AP This device complies with Part 15 of FCC Rules. Made in Taiwan AC 110~240V, 200mA, 50-60Hz Arial 8pt Arial 6pt Label Sample & Location

Compliance Certification Services Inc. Report No.: T110310004 Date of Issue: August 15, 2011 A1 - 3 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110310004 Date of Issue: August 15, 2011 A1 - 4 Compliance Certification Services Inc. Report No.: T110310004 Date of Issue: August 15, 2011 A1 - 5 Compliance Certification Services Inc. Report No.: T110310004 Date of Issue: August 15, 2011 A1 - 6 Compliance Certification Services Inc. Report No.: T110310004 Date of Issue: August 15, 2011 A1 - 7 Compliance Certification Services Inc. Report No.: T110310004 Date of Issue: August 15, 2011 A1 - 8 Compliance Certification Services Inc. Report No.: T110310004 Date of Issue: August 15, 2011 A1 - 9 WLAN Module Compliance Certification Services Inc. Report No.: T110310004 Date of Issue: August 15, 2011 A1 - 10 Printed Antenna Left Antenna Right Antenna Compliance Certification Services Inc. Report No.: T110310004 Date of Issue: August 15, 2011 A1 - 11 Compliance Certification Services Inc. Report No.: T110310004 Date of Issue: August 15, 2011 A1 - 12 Compliance Certification Services Inc. Report No.: T110310004 Date of Issue: August 15, 2011 A1 - 13 Compliance Certification Services Inc. Report No.: T110310004 Date of Issue: August 15, 2011 A1 - 14 Compliance Certification Services Inc. Report No.: T110310004 Date of Issue: August 15, 2011 A1 - 15

Compliance Certification Services Inc. FCC ID: XU8TPL310AP Report No.: T110310004-RP1 Page 95 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 200Mbps Powerline AV Wireless N Access Point Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 16.36 dBm (43.25mW) IEEE 802.11g mode: 23.01 dBm (199.98mW) IEEE 802.11n HT 20 MHz mode: 25.62 dBm (364.75mW) IEEE 802.11n HT 40 MHz mode: 25.08 dBm (322.10mW) Antenna gain (Max) 2.02dBi (Numeric gain: 1.59) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: The maximum output power is 25.62dBm (364.75.4mW) at 2437MHz (with 1.59 numeric antenna gain.). TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. FCC ID: XU8TPL310AP Report No.: T110310004-RP1 Page 96 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. FCC ID: XU8TPL310AP Report No.: T110310004-RP1 Page 97 IEEE 802.11b mode: EUT output power = 43.25 mW Numeric Antenna gain = 1.59 Æ Power density = 0.013685 mW / cm2 IEEE 802.11g mode: EUT output power = 199.98 mW Numeric Antenna gain = 1.59 Æ Power density = 0.063276 mW / cm2 IEEE 802.11n HT 20 MHz mode: EUT output power = 364.75 mW Numeric Antenna gain = 1.59 Æ Power density = 0.115411 mW / cm2 IEEE 802.11n HT 40 MHz mode: EUT output power = 322.10 mW Numeric Antenna gain = 1.59 Æ Power density =0.101916 mW / cm2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. FCC ID: XU8TPL310AP Report No.: T110310004-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 100 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 200Mbps Powerline AV Wireless N Access Point Model: TPL-310AP Trade Name: TRENDnet Issued to TRENDnet, Inc. 20675 Manhattan Place,Torrance, CA 90501 USA Issued by Compliance Certification Services Inc. No.11, Wu-Gong 6th Rd., Wugu Industrial Park, New Taipei City 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: August 15, 2011 Compliance Certification Services Inc. FCC ID: XU8TPL310AP Report No.: T110310004-RP1 Page 2 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 August 15, 2011 Initial Issue ALL Eunice Shen Compliance Certification Services Inc. FCC ID: XU8TPL310AP Report No.: T110310004-RP1 Page 3 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................4 2. EUT DESCRIPTION ...........................................................................................................................5 3. TEST METHODOLOGY ....................................................................................................................6 3.1 EUT CONFIGURATION........................................................................................................................6 3.2 EUT EXERCISE....................................................................................................................................6 3.3 GENERAL TEST PROCEDURES.............................................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................7 3.5 DESCRIPTION OF TEST MODES...........................................................................................................8 4. INSTRUMENT CALIBRATION........................................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................9 4.2 MEASUREMENT EQUIPMENT USED .........................................................................................9 4.3 MEASUREMENT UNCERTAINTY .............................................................................................10 5. FACILITIES AND ACCREDITATIONS ........................................................................................11 5.1 FACILITIES .......................................................................................................................................11 5.2 EQUIPMENT......................................................................................................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................12 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................13 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................13 6.2 SUPPORT EQUIPMENT ...............................................................................................................13 7. FCC PART 15.247 REQUIREMENTS.............................................................................................14 7.1 6DB BANDWIDTH.............................................................................................................................14 7.2 PEAK POWER....................................................................................................................................34 7.3 AVERAGE POWER............................................................................................................................36 7.4 BAND EDGES MEASUREMENT ................................................................................................38 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................55 7.6 RADIATED EMISSIONS ..............................................................................................................75 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................92 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................95 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................98 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: XU8TPL310AP Report No.: T110310004-RP1 Page 4 1. TEST RESULT CERTIFICATION Applicant: TRENDnet, Inc. 20675 Manhattan Place,Torrance, CA 90501 USA Equipment Under Test: 200Mbps Powerline AV Wireless N Access Point Tr a d e N a m e : TRENDnet Model Number: TPL-310AP Date of Test: April 26 ~ July 29, 2011 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Rex L…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: XU8TPL310AP Report No.: T110310004-RP1 Page 98 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: XU8TPL310AP Report No.: T110310004-RP1 Page 99 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: XU8TPL310AP Report No.: T110310004-RP1 Page 100 Powerline Conducted Emissions Setup Photos
