THIS MUST BE SIGNED BY THE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD Request for Confidentiality Date: 13.10.2014 Subject: Confidentiality Request for: XUY0YX0MP04087 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Y Soft Corporation, a.s. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: ______________Thomas Ring__ _____ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate THIS MUST BE SIGNED BY THE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 09/11/2014 Subject: LETTER OF AUTHORIZATION To whom it may concern: We the undersigned, hereby authorize CSA Group Bayern GmbH, Mr. Thomas Ring, Ohmstrasse 1-4, 94342 Strasskirchen, Germany to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CSA Group Bayern GmbH on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice from Y Soft Corporation, a.s. Sincerely, Pavel Slovák Logistics & Purchasing Manager cell: +420 739 534 755 office: +420 533 031 755 e-mail: [email protected] Y SOFT Corporation

External Photos External Photos External Photos External Photos

Internal Photos Internal Photos Internal Photos Internal Photos

FCC ID: XUY0YX0MP04087 CSA Group Bayern GmbH File No. T38738-00-01GK, page 1 of 31 Ohmstrasse 1-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 EMI − T E S T R E P O R T - FCC Part 15.225 - Test Report No. : T38738-00-01GK 13. October 2014 ______________________________________________________________________________________________ Date of issue Type / Model Name : MP04087 Product Description : Terminal Pro Multireader HF Applicant : Y SOFT Corporation, a.s. Address : Czech Technology Park, Podnikatelska 2902/4 612 00 BRNO, Czech Republic Manufacturer : Y SOFT Corporation, a.s. Address : Czech Technology Park, Podnikatelska 2902/4 612 00 BRNO, Czech Republic Licence holder : Y SOFT Corporation, a.s. Address : U Knezske louky 2151/18 130 00 Praha 3, Czech republic Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: XUY0YX0MP04087 CSA Group Bayern GmbH File No. T38738-00-01GK, page 2 of 31 Ohmstrasse 1-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 Contents 1 T E S T S T A N D A R D S 3 2 S U M M A R Y 4 3 E Q U I P M E N T U N D E R T E S T 5 3.1 PHOTO DOCUMENTATION OF THE EUT- FOR DETAILED PHOTOS SEE ATTACHMENT A 5 3.2 POWER SUPPLY SYSTEM UTILISED 5 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 5 4 T E S T E N V I R O N M E N T 6 4.1 ADDRESS OF THE TEST LABORATORY 6 4.2 STATEMENT REGARDING THE USAGE OF LOGOS IN TEST REPORTS 6 4.3 ENVIRONMENTAL CONDITIONS 6 4.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY 6 4.5 MEASUREMENT PROTOCOL FOR FCC, VCCI AND AUSTEL 7 5 T E S T C O N D I T I O N S A N D R E S U L T S 8 5.1 CONDUCTED EMISSIONS 8 5.2 FIELD STRENGTH OF THE FUNDAMENTAL WAVE 18 5.3 SPURIOUS EMISSIONS (MAGNECTIC FIELD) 9 KHZ – 30 MHZ 20 5.4 RADIATED EMISSIONS (ELECTRIC FIELD) 30 MHZ – 1 GHZ 22 5.5 FREQUENCY TOLERANCE OF THE CARRIER 24 5.6 EMISSION BANDWIDTH 26 5.7 TRANSMITTER SPECTRUM MASK 28 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 31 FCC ID: XUY0YX0MP04087 CSA Group Bayern GmbH File No. T38738-00-01GK, page 3 of 31 Ohmstrasse 1-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October, 2013) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths Part 15, Subpart A, Section 15.207 AC Line conducted emissions FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October, 2013) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.225 Operation within the band 13.110-14.010 MHz ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1:1992 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement FCC ID: XUY0YX0MP04087 CSA Group Bayern GmbH File No. T38738-00-01GK, page 4 of 31 Ohmstrasse 1-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 2 S U M M A R Y GENERAL REMARKS: The EuT is working at a frequency of 13.56 MHz. FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 18. September 2014 Testing concluded on : 06. October 2014 Checked by: Tested by: Klaus Gegenfurtner Teamleader Radio Konrad Graßl FCC ID: XUY0YX0MP04087 CSA Group Bayern GmbH File No. T38738-00-01GK, page 5 of 31 Ohmstrasse 1-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 3 E Q U I P M E N T U N D E R T E S T 3.1 Photo documentation of the EuT- For detailed photos see Attachment A 3.2 Power supply system utilised Power supply voltage : Primary: 115 V / 60 Hz / 1 Secondary: 12.0 V / DC 3.3 Short description of the Equipment under Test (EuT) The EuT is a multi reading terminal for reading of authentication cards Number of tested samples: 2 Serial number: SQPRC48353FBC8E For Conducted emissions test: SQPRA033534F3AE EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Continuous TX-mode at 13.56 MHz - EuT configuration: The following peripheral devices and interface cables were connected during the measurements: - Model : - Model : - Model : - Model : - Model : - Model : FCC ID: XUY0YX0MP04087 CSA Group Bayern GmbH File No. T38738-00-01GK, page 6 of 31 Ohmstrasse 1-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 4 T E S T E N V I R O N M E N T 4.1 Address of the test laboratory CSA Group Bayern GmbH Ohmstrasse 1-4 94342 STRASSKIRCHEN GERMANY 4.2 Statement regarding the usage of logos in test reports The accreditation and notification body logos displayed in this test report are only valid for standards listed in the accreditation or notification scope of CSA Group Bayern GmbH. 4.3 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa 4.4 Statement of the measurement uncertainty The data and…

Text truncated - open the document above for the full version.

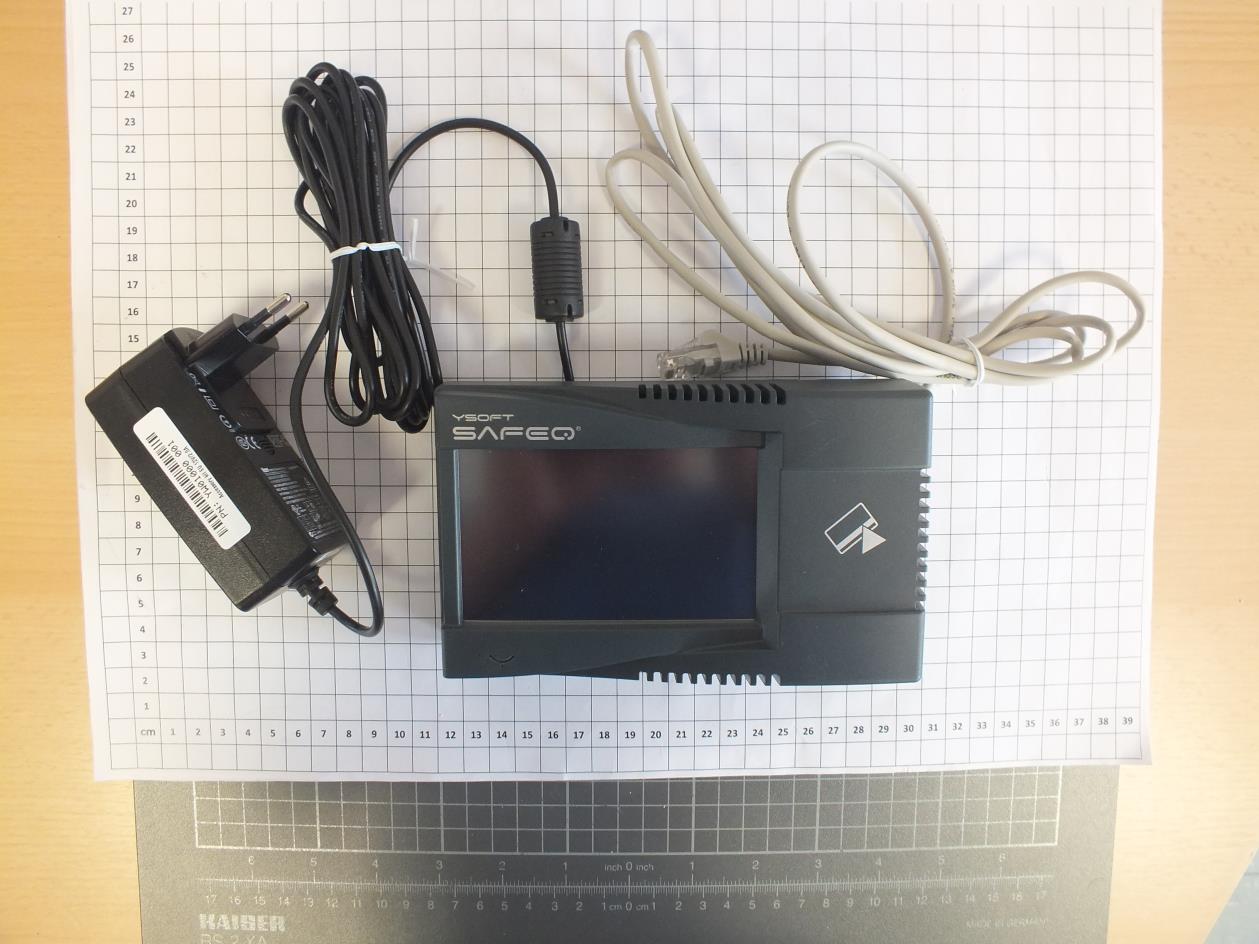

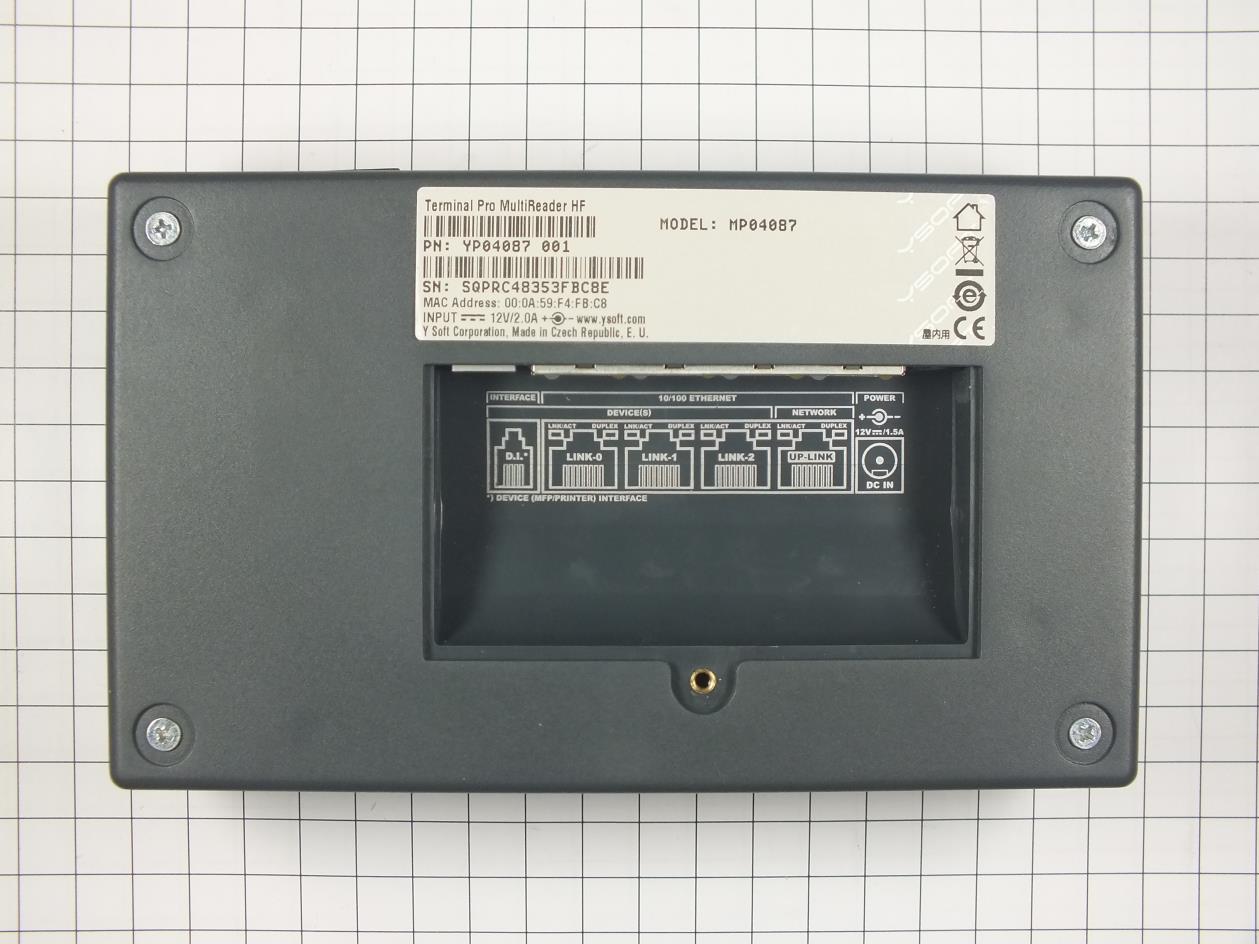

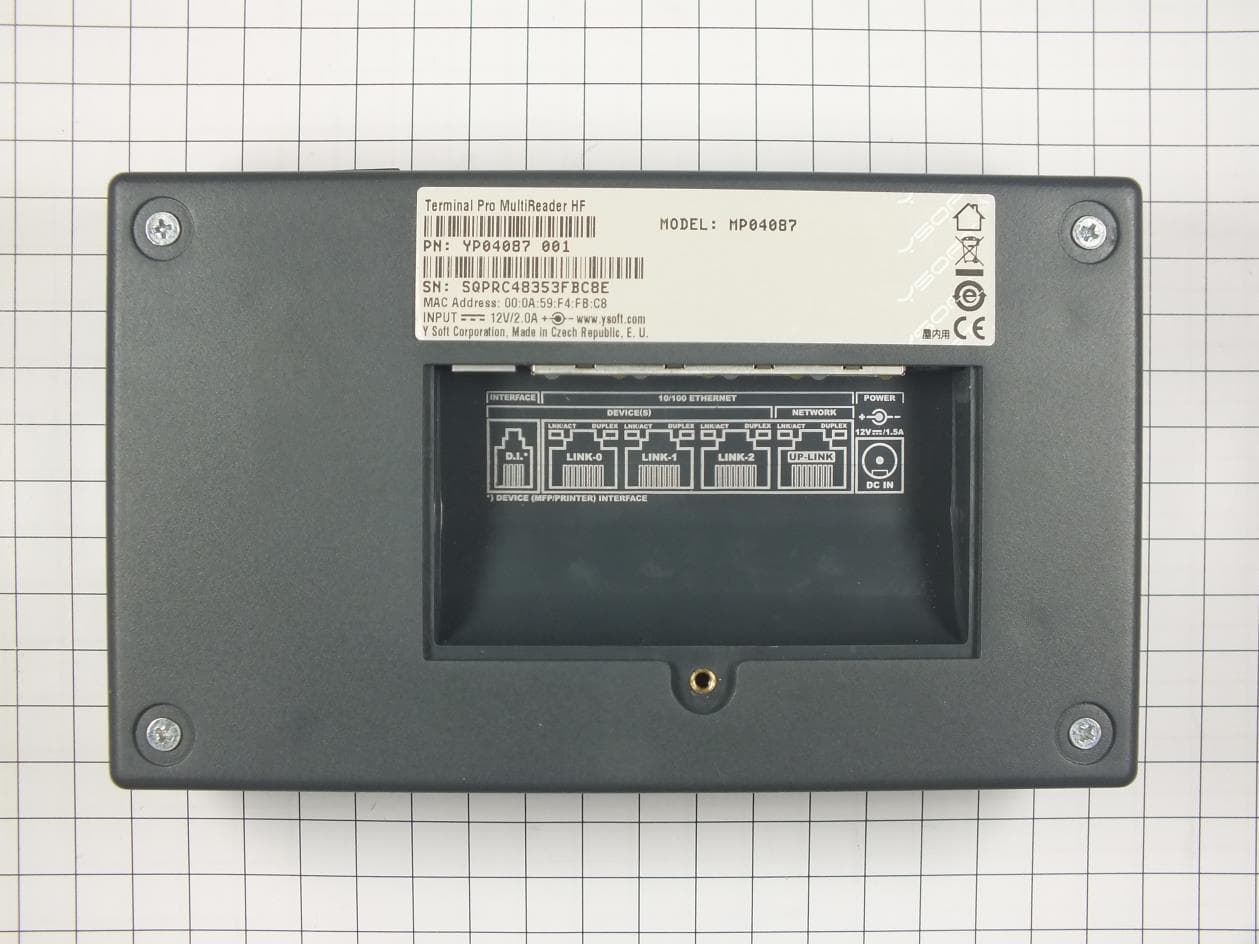

Attachment A to File No.: T38738-00 1 P h o t o d o c u m e n t a t i o n o f t h e E U T 1.1 Test Setup: 1.2 Power supply: 1.3 External views: Front view Rear view Side views: 1.4 Final Label: 1.5 Internal views 1.6 EUT with 50 Ohm load at the antenna port

Conducted emissions Field strength of the fundamental wave Out-of-band emission, radiated Transmitter frequency stability Occupied Bandwidth Transmitter spectrum mask
