Request for Confidentiality Date: 28.08.2013 Subject: Confidentiality Request for FCC ID: XUY0YX0MU02016 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Y Soft Corporation, a.s. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ ________________________ (Signature/Title 3 ) Thomas Ring 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

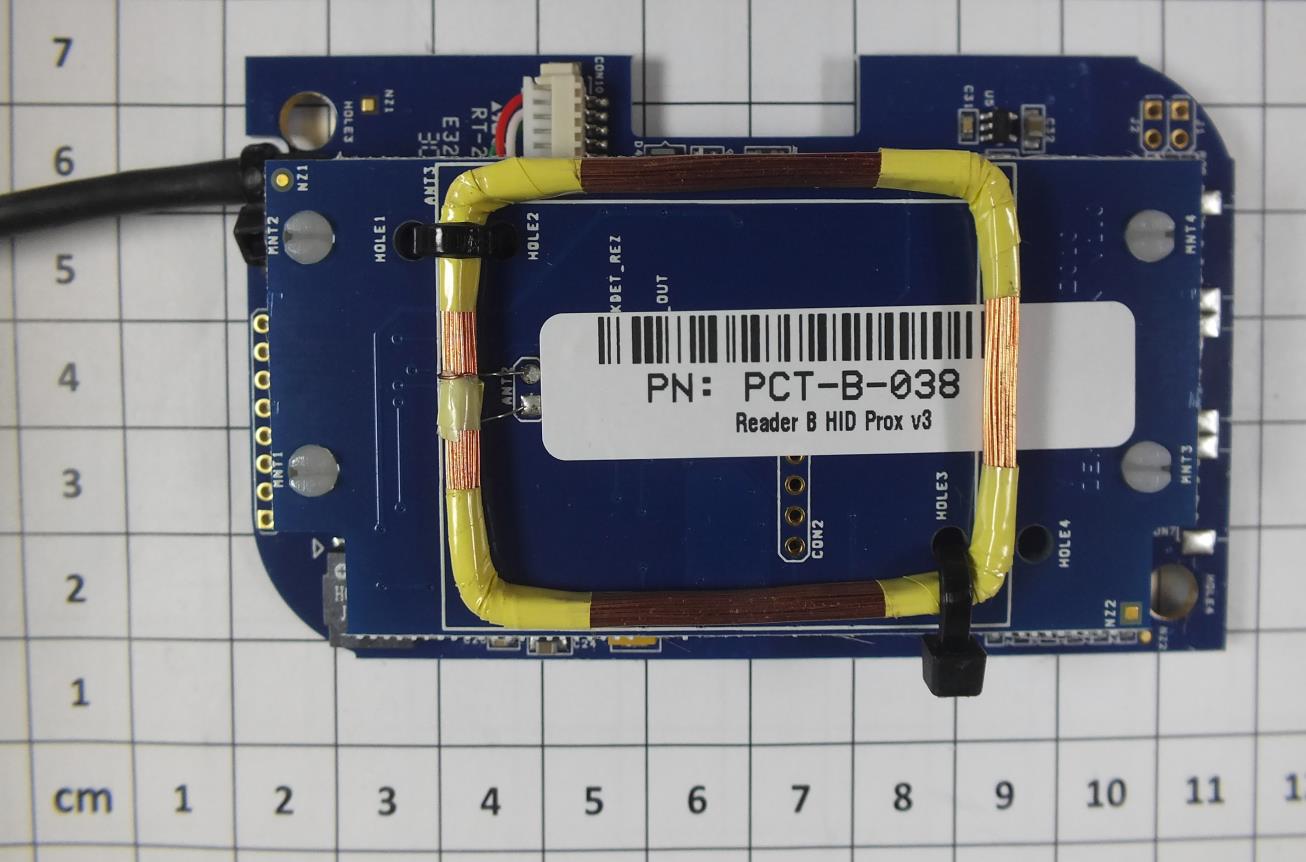

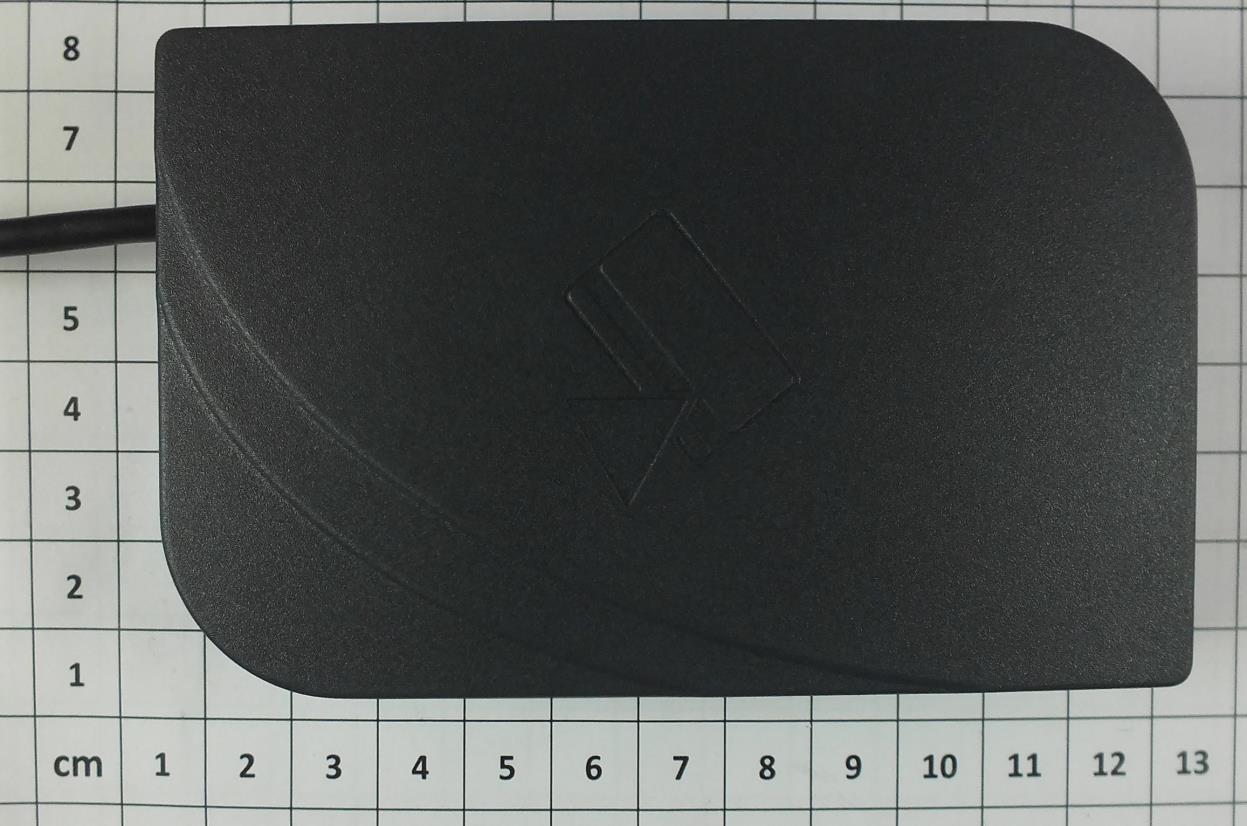

FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 5 of 25 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 3 E Q U I P M E N T U N D E R T E S T 3.1 Photo documentation of the EuT Side view FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 6 of 25 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 Front view Rear view FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 7 of 25 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 Labeling

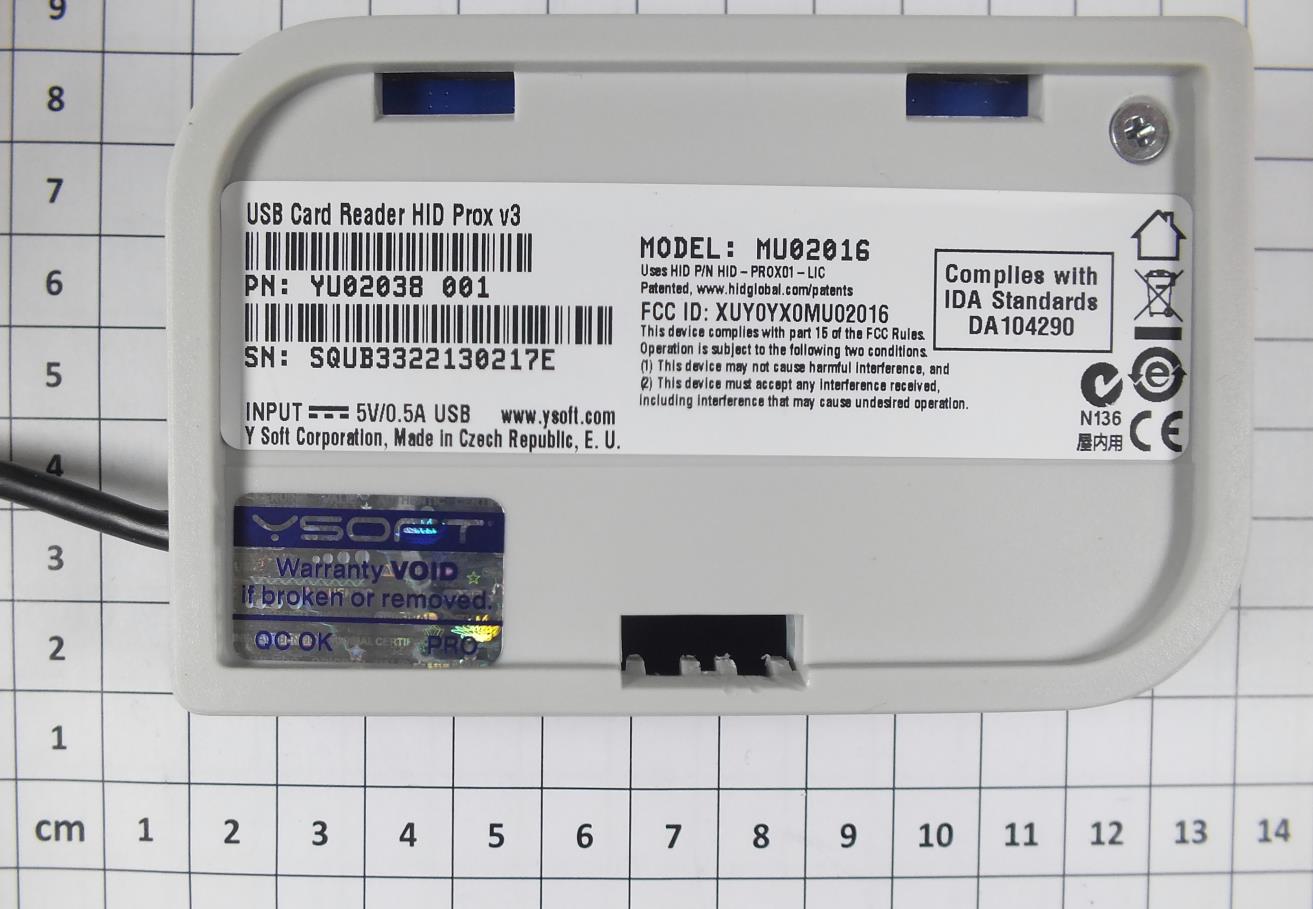

FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 7 of 25 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 Labeling FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 8 of 25 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 9 of 25 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013

FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 1 of 27 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 EMI − T E S T R E P O R T - FCC Part 15.209- Test Report No. : T37170-00-00KG 10. September 2013 ______________________________________________________________________________________________ Date of issue Type / Model Name : USB Card Reader / MU02016 Product Description : USB Card reader working at 125 kHz Applicant : Y SOFT Corporation, a. s. Address : Czech Technology Park, Technicka 2948/13 616 00 BRNO, Czech Republic Manufacturer : Y SOFT Corporation, a. s. Address : Czech Technology Park, Technicka 2948/13 616 00 BRNO, Czech Republic Licence holder : Y SOFT Corporation, a. s. Address : U Knezske louky 2151/18 130 00 Praha 3, Czech Republic Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 2 of 27 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 Contents 1 T E S T S T A N D A R D S 3 2 S U M M A R Y 4 3 E Q U I P M E N T U N D E R T E S T 5 3.1 PHOTO DOCUMENTATION OF THE EUT 5 3.2 POWER SUPPLY SYSTEM UTILISED 11 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 11 4 T E S T E N V I R O N M E N T 12 4.1 ADDRESS OF THE TEST LABORATORY 12 4.2 ENVIRONMENTAL CONDITIONS 12 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 12 4.4 MEASUREMENT PROTOCOL FOR FCC, VCCI AND AUSTEL 12 5 T E S T C O N D I T I O N S A ND R E S U L T S 14 5.1 CONDUCTED EMISSIONS 14 5.2 FIELD STRENGTH OF THE FUNDAMENTAL WAVE 18 5.3 SPURIOUS EMISSIONS (MAGNECTIC FIELD) 9 KHZ – 30 MHZ 20 5.1 RADIATED EMISSION 22 5.2 EMISSION BANDWIDTH 24 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 26 FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 3 of 27 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart A - General (September, 2012) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15 Subpart B- Intentional Radiators (September, 2012) Part 15, Subpart C, Section 15.109(a) Radiated emissions, general requirements FCC Rules and Regulations Part 15 Subpart C- Intentional Radiators (September, 2012) Part 15, Subpart C, Section 15.207(c) Conducted limits Part 15, Subpart C, Section 15.209(a) Radiated emissions, general requirements ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C63.10: 2009 Testing Unlicensed Wireless Devices CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 4 of 27 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 2 S U M M A R Y GENERAL REMARKS: The EuT is working at frequency of 125 kHz. FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 21. August 2013 Testing concluded on : 10. September 2013 Checked by: Tested by: Eduard Stangl Dipl.-Ing.(FH) Technical Director Klaus Gegenfurtner Dipl.-Ing. (FH) FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 5 of 27 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 3 E Q U I P M E N T U N D E R T E S T 3.1 Photo documentation of the EuT Side view FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 6 of 27 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 Front view Rear view FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 7 of 27 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 Labeling FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 8 of 27 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 9 of 27 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 10 of 27 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 Peripheral Device for Conducted emission test FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 11 of 27 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 3.2 Power supply system utilised Power supply voltage : Reader 5V DC USB-Hub 115V AC / 60Hz 3.3 Short description of the Equipment under Test (EuT) The EuT is a card reader for reading of authentication cards. Number of tested samples: 1 Serial number: see Photo documentation of the EuT under Point 3 / Equipment Under Test EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Tx mode at 125 kHz EuT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) T…

Text truncated - open the document above for the full version.

FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 14 of 25 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 5 T E S T C O N D I T I O N S A N D R E S U L T S 5.1 Conducted emissions For test instruments and accessories used see section 6 Part A 4. 5.1.1 Description of the test location Test location: Shielded room S2 5.1.2 Photo documentation of the test set-up 5.1.3 Applicable standard According to FCC Part 15, Section 15.207(a): Except as shown in paragraphs (b) and (c) of this Section, for an intentional radiator that is designed to be connected to the public utility (AC) power line, the radio frequency voltage that is conducted back onto the AC power line on any frequency or frequencies within the band 150 kHz to 30 MHz shall not exceed the given limits. 5.1.4 Description of Measurement The measurements are performed following the procedures set out in ANSI C63.4 described under item 4.4.3. If the minimum limit margin appears to be less than 20 dB with a peak mode measurement, the emissions are remeasured using a tuned receiver with quasi-peak and average detection and recorded on the data sheets. FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 18 of 25 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 5.2 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 1. 5.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up 5.2.3 Description of Measurement The magnetic field strength from the EuT will be measured on an open area test site in the frequency range of 9 kHz to 30 MHz using a tuned receiver and a shielded loop antenna. The set up of the Equipment under test will be in accordance to ANSI C63.4-2003. The antenna was positioned 3, 10 or 30 meters horizontally from the EuT. Measurements have been made in all three orthogonal axes and the shielded loop antenna was rotated to locate the maximum of the emissions. In the case where larger measuring distances are required the results will extrapolated based on the values measured on the closer distances according to Section 15.31 (f) (2) [2]. The final measurement will be performed with an EMI Receiver set to Quasi Peak detector except for the frequency bands 9 kHz to 90 kHz and 110 to 490 kHz where an average detector will be used according to Section 15.209 (d) [2]. FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 20 of 25 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 5.3 Spurious emissions (Magnectic field) 9 kHz – 30 MHz For test instruments and accessories used see section 6 Part SER 1. 5.3.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up 5.3.3 Description of Measurement The spurious emissions from the EuT will be measured on an open area test site in the frequency range of 9 kHz to 30 MHz using a tuned receiver and a shielded loop antenna. The antenna was positioned 3, 10 or 30 meters horizontally from the EuT. Measurements have been made in all three orthogonal axes and the shielded loop antenna was rotated to locate the maximum of the emissions. In the case where larger measuring distances are required the results will extrapolated based on the values measured on the closer distances according to Section 15.31 (f) (2) [2]. The final measurement will be performed with an EMI Receiver set to Quasi Peak detector except for the frequency bands 9 kHz to 90 kHz and 110 to 490 kHz where an average detector will be used according to Section 15.209 (d) [2]. The final level, expressed in dBV/m, is arrived at by taking the reading from the EMI receiver (Level dBV) and adding the antenna correction factor and cable loss factor (Factor dB) to it. This result then has to be compared with the relevant FCC limit. The resolution bandwidth during the measurement is as follows: 9 kHz – 150 kHz: ResBW: 200 Hz 150 kHz – 30 MHz: ResBW: 9 kHz FCC ID: XUY0YX0MU02016 mikes-testingpartners gmbh File No. T37170-00-00KG, page 22 of 25 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 4.4.2013 5.4 Emission Bandwidth For test instruments and accessories used see section 6 Part MB. 5.4.1 Description of the test location Test location: AREA4 5.4.2 Photo documentation of the test set-up 5.4.3 Description of Measurement The bandwidth is measured at an amplitude level reduced from the reference level by a specified ratio of -20 dB. The reference level is the level of the highest amplitude signal observed from the transmitter at either the fundamental frequency or the first-order modulation products in all typical modes of operation, including the unmodulated carrier, even if atypical. The resolution bandwidth of measuring instrument was set to a value as shown in the following table below according to ANSI C63.4-2003. Fundamental frequency Minimum resolution bandwidth 9 kHz to 30 MHz 1kHz 30 to 1000 MHz 10 kHz 1000 MHz to 40 GHz 100 kHz
