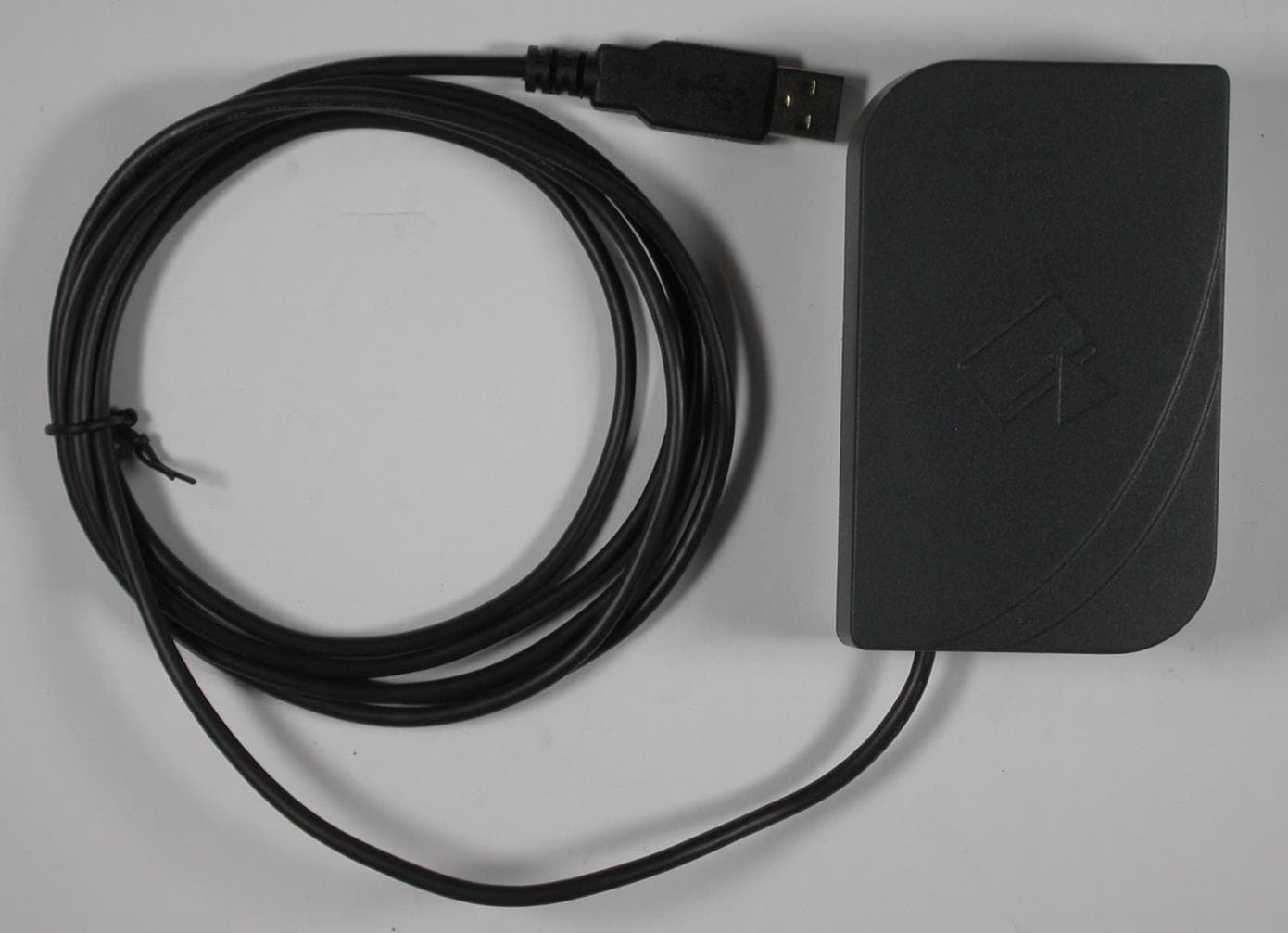

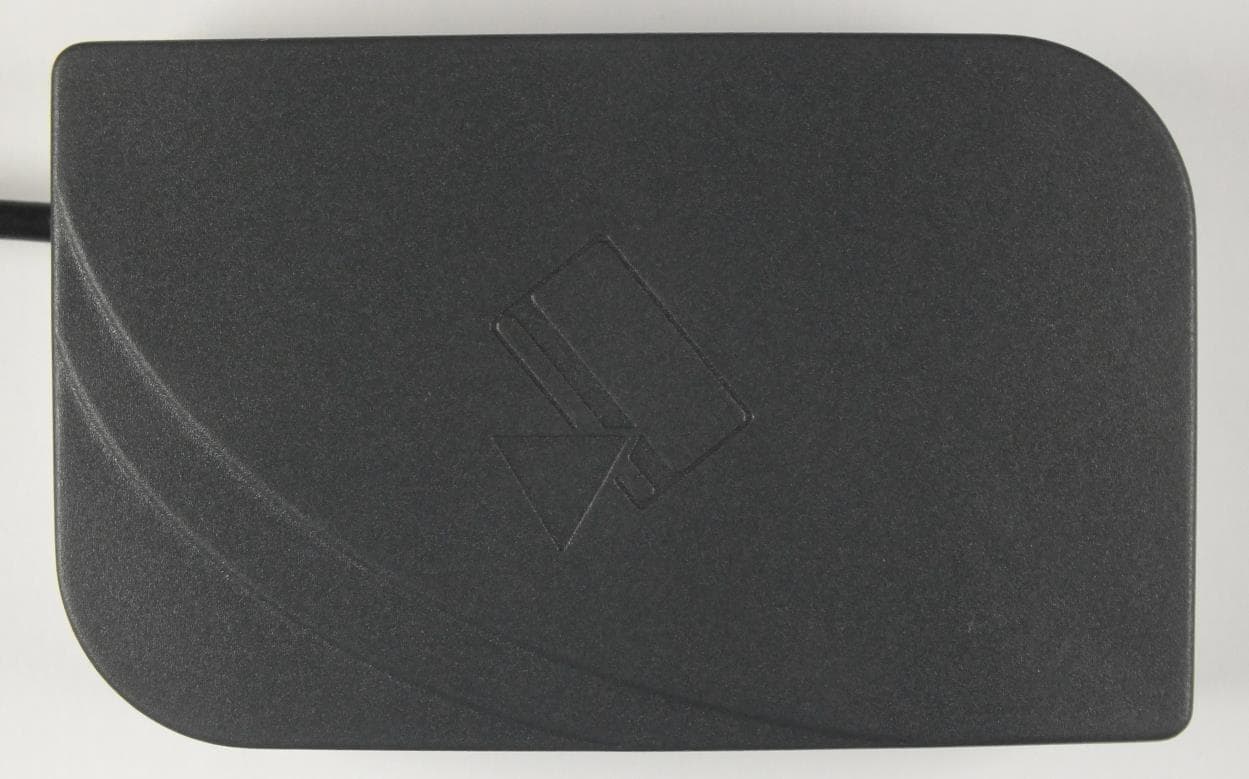

XUY0YX0MU02037USB Card Reader 13.56 MHz and 125 kHz

making the MFDs think™ YSoft SafeQ® USB Card Reader v2 Administrator’s Guide Version 1.2 18.01.2011 YSOFT SA FEQ USB CAR D READ ER V2 – ADMINISTRATOR’S GUIDE V1.2 [EN] 2/22 © 2011 by Y Soft Corporation a.s. All rights to this document, domestic and international, are reserved by Y Soft Corporation a.s. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means (elec- tronic, mechanical, photocopying, recording, or otherwise) without prior written permission of Y Soft. Y Soft®, Y Soft SafeQ® and its logo are registered trademarks of Y Soft Corporation a.s. All other brands and their products are trademarks or registered trademarks of their respective holders, and should be noted as such. 18.01.2011 YSOFT SA FEQ USB CAR D READ ER V2 – ADMINISTRATOR’S GUIDE V1.2 [EN] 3/22 T AB LE OF C ON T EN T S Table of Contents .................................................................................................................................................... 3 1 Introduction ................................................................................................................................................... 4 1.1 Purpose of document ........................................................................................................................... 4 1.2 Validity of Document ............................................................................................................................. 4 1.3 Goals and Objectives ............................................................................................................................. 4 1.4 Compatible Devices and System Requirements .................................................................................... 4 1.5 Terms and Abbreviations ....................................................................................................................... 4 1.6 Prerequisite Knowledge ......................................................................................................................... 5 1.7 Disclaimer .............................................................................................................................................. 5 2 Overview ........................................................................................................................................................ 6 2.1 System Overview ................................................................................................................................... 6 2.2 Hardware components .......................................................................................................................... 6 2.3 USB Card Reader specification .............................................................................................................. 6 3 Installation ..................................................................................................................................................... 8 3.1 Mounting of the reader module ............................................................................................................ 8 3.2 UnMounting of the reader module ..................................................................................................... 10 4 Configuration ............................................................................................................................................... 11 4.1 Configuration of the USB reader by usbrdrtool ................................................................................... 11 4.2 Card reader configuration screen ........................................................................................................ 12 4.2.1 USB keyboard .............................................................................................................................. 13 4.2.2 USB serial .................................................................................................................................... 14 4.3 Action 3 setting card reader protocol .................................................................................................. 14 4.4 Card reader testing screen .................................................................................................................. 16 4.5 Card reader Update firmware ............................................................................................................. 17 4.6 Card reader Update Service firmware ................................................................................................. 17 4.7 Card reader settings for downloadeing the log files ........................................................................... 18 4.8 Card reader USBRDRTOOL starting with predefined commands ........................................................ 18 5 Information BeeP codes ............................................................................................................................... 20 6 Relationship with other documents ............................................................................................................. 21 7 Version history ............................................................................................................................................. 22 18.01.2011 YSOFT SA FEQ USB CAR D READ ER V2 – ADMINISTRATOR’S GUIDE V1.2 [EN] 4/22 1 I N T RODUC TI ON 1 .1 P URP OSE OF D OCUM ENT This documentation provides essential information on installation and configuration of YSoft SafeQ® USB Card Reader verison 2. 1 .2 VAL ID ITY OF D OCUM EN T This document applies to YSoft SafeQ® USB Card Reader v2. 1 .3 GOAL S AND OBJE CTIVE S The YSoft SafeQ® USB Card Reader v2 that could be simply connected to the multi-functional device and serves for user authentication using card. Card must be assigned to any user in the YSoft SafeQ system. After the successful authentication the user i…

Text truncated - open the document above for the full version.

FCC ID: XUY0YX0YU02037 mikes-testingpartners gmbh File No. T36735-00-00KG, page 5 of 32 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 3 E Q U I P M E N T U N D E R T E S T 3.1 Photo documentation of the EuT Side view FCC ID: XUY0YX0YU02037 mikes-testingpartners gmbh File No. T36735-00-00KG, page 6 of 32 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Front view Rear view

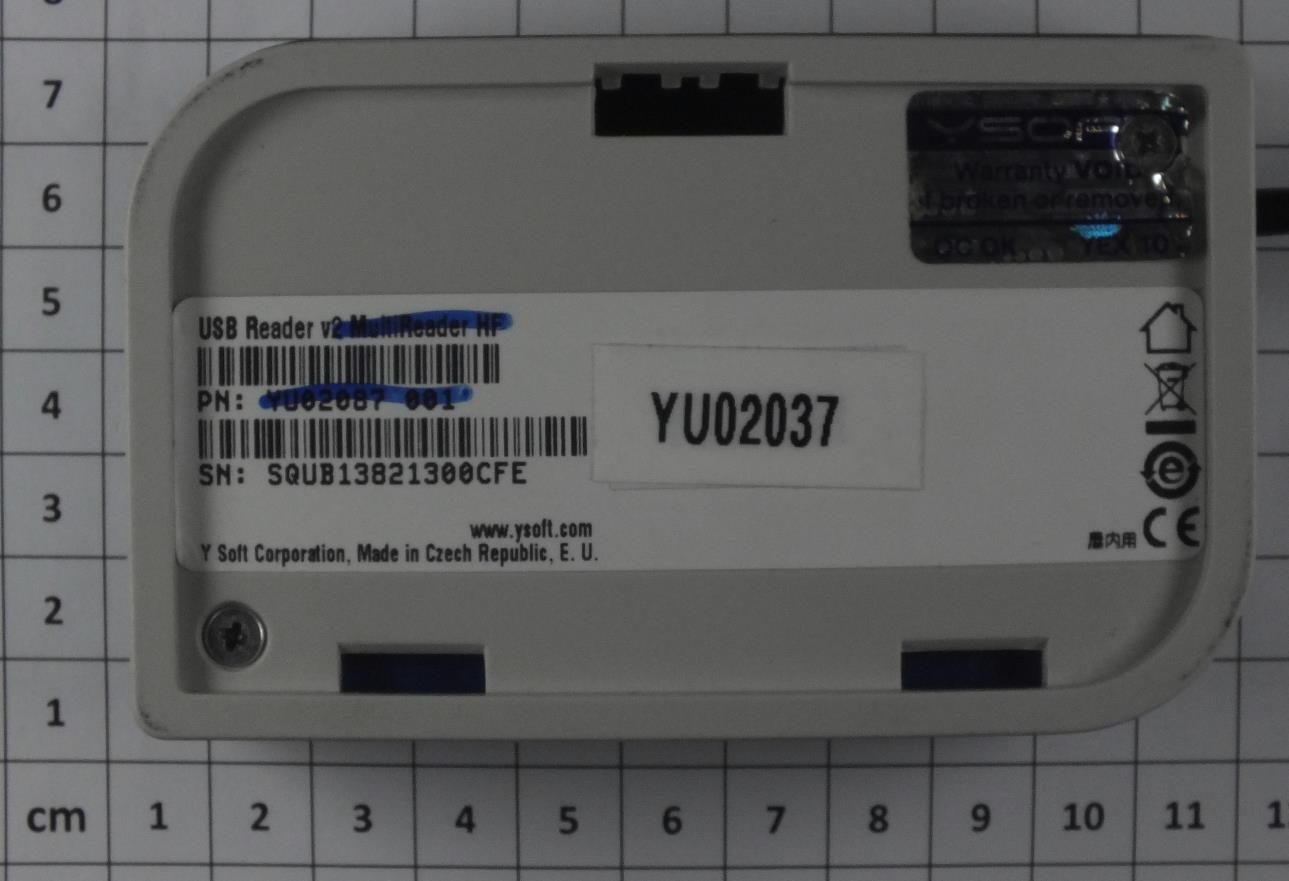

Label Location

FCC ID: XUY0YX0YU02037 mikes-testingpartners gmbh File No. T36735-00-00KG, page 8 of 32 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 FCC ID: XUY0YX0YU02037 mikes-testingpartners gmbh File No. T36735-00-00KG, page 9 of 32 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 FCC ID: XUY0YX0YU02037 mikes-testingpartners gmbh File No. T36735-00-00KG, page 10 of 32 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 FCC ID: XUY0YX0YU02037 mikes-testingpartners gmbh File No. T36735-00-00KG, page 11 of 32 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010

FCC ID: XUY0YX0MU02037 mikes-testingpartners gmbh File No. T36735-01-01KG, page 1 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 EMI − T E S T R E P O R T - FCC Part 15.209 / 15.225 - Test Report No. : T36735-01-01KG 16. April 2013 ______________________________________________________________________________________________ Date of issue Type / Model Name : MU02037 Product Description : USB Card reader Applicant : Y SOFT Corporation Address : Czech Technology Park, Podnikatelska 2902/4 612 00 BRNO, Czech Republic Manufacturer : Y SOFT Corporation Address : Czech Technology Park, Podnikatelska 2902/4 612 00 BRNO, Czech Republic Licence holder : Y SOFT Corporation Address : Czech Technology Park, Podnikatelska 2902/4 612 00 BRNO, Czech Republic Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: XUY0YX0MU02037 mikes-testingpartners gmbh File No. T36735-01-01KG, page 2 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 PHOTO DOCUMENTATION OF THE EUT 5 3.2 POWER SUPPLY SYSTEM UTILISED 13 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 13 4 TEST ENVIRONMENT 14 4.1 ADDRESS OF THE TEST LABORATORY 14 4.2 ENVIRONMENTAL CONDITIONS 14 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 14 4.4 MEASUREMENT PROTOCOL FOR FCC, VCCI AND AUSTEL 14 5 TEST CONDITIONS AND RESULTS 16 5.1 CONDUCTED EMISSIONS 16 5.2 FIELD STRENGTH OF THE FUNDAMENTAL WAVE 20 5.3 SPURIOUS EMISSIONS (MAGNECTIC FIELD) 9 KHZ – 30 MHZ 23 5.4 RADIATED EMISSIONS (ELECTRIC FIELD) 30 MHZ – 1 GHZ 25 5.5 FREQUENCY TOLERANCE OF THE CARRIER 27 5.6 EMISSION BANDWIDTH 29 5.7 TRANSMITTER SPECTRUM MASK 31 6 USED TEST EQUIPMENT AND ACCESSORIES 32 FCC ID: XUY0YX0MU02037 mikes-testingpartners gmbh File No. T36735-01-01KG, page 3 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart A - General (September, 2012) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15 Subpart C- Intentional Radiators (September, 2012) Part 15, Subpart C, Section 15.225 Operation within the band 13.110-14.010 MHz Part 15, Subpart C, Section 15.207(c) Conducted limits Part 15, Subpart C, Section 15.209(a) Radiated emissions, general requirements ANSI C63.4: 2009 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID: XUY0YX0MU02037 mikes-testingpartners gmbh File No. T36735-01-01KG, page 4 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 2 SUMMARY GENERAL REMARKS: The EuT is working at frequencies of 125 kHz and 13.56 MHz. FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 22. February 2013 Testing concluded on : 28. March 2013 Checked by: Tested by: Thomas Weise Dipl.-Ing.(FH) Laboratory Manager Klaus Gegenfurtner Dipl.-Ing. (FH) FCC ID: XUY0YX0MU02037 mikes-testingpartners gmbh File No. T36735-01-01KG, page 5 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT Side view FCC ID: XUY0YX0MU02037 mikes-testingpartners gmbh File No. T36735-01-01KG, page 6 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Front view Rear view FCC ID: XUY0YX0MU02037 mikes-testingpartners gmbh File No. T36735-01-01KG, page 7 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Reader unit open housing: FCC ID: XUY0YX0MU02037 mikes-testingpartners gmbh File No. T36735-01-01KG, page 8 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 FCC ID: XUY0YX0MU02037 mikes-testingpartners gmbh File No. T36735-01-01KG, page 9 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 FCC ID: XUY0YX0MU02037 mikes-testingpartners gmbh File No. T36735-01-01KG, page 10 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 FCC ID: XUY0YX0MU02037 mikes-testingpartners gmbh File No. T36735-01-01KG, page 11 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 FCC ID: XUY0YX0MU02037 mikes-testingpartners gmbh File No. T36735-01-01KG, page 12 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Peripheral Device for Conducted emission test FCC ID: XUY0YX0MU02037 mikes-testingpartners gmbh File No. T36735-01-01KG, page 13 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 3.2 Power supply system utilised Power supply voltage : Reader 5V DC USB-Hub 115V AC / 60Hz 3.3 Short description of the Equipment under Test (EuT) The EuT is a card reader for reading of authentication cards. Number of tested samples: 1 Serial number: see Photo documentation of the EuT under Point 3 / Equipment Under Test EuT operation mode: The equipment un…

Text truncated - open the document above for the full version.

FCC ID: XUY0YX0YU02037 mikes-testingpartners gmbh File No. T36735-01-00KG, page 16 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 5 T E S T C O N D I T I O N S A N D R E S U L T S 5.1 Conducted emissions For test instruments and accessories used see section 6 Part A 4. 5.1.1 Description of the test location Test location: Shielded room S2 5.1.2 Photo documentation of the test set-up 5.1.3 Applicable standard According to FCC Part 15, Section 15.207(a): Except as shown in paragraphs (b) and (c) of this Section, for an intentional radiator that is designed to be connected tot he public utility (AC) power line, the radio frequency voltage that is conducted back onto the AC power line on any frequency or frequencies within the band 150 kHz to 30 MHz shall not exceed the given limits. 5.1.4 Description of Measurement The measurements are performed following the procedures set out in ANSI C63.4 described under item 4.4.3. If the minimum limit margin appears of less than 20 dB with a peak mode measurement, the emissions are remeasured using a tuned receiver with quasi-peak and average detection and recorded on the data sheets. FCC ID: XUY0YX0YU02037 mikes-testingpartners gmbh File No. T36735-01-00KG, page 20 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 5.2 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 1. 5.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up 5.2.3 Description of Measurement The magnetic field strength from the EuT will be measured on an open area test site in the frequency range of 9 kHz to 30 MHz using a tuned receiver and a shielded loop antenna. The set up of the Equipment under test will be in accordance to ANSI C63.4. The antenna was positioned 3, 10 or 30 meters horizontally from the EuT. Measurements have been made in all three orthogonal axes and the shielded loop antenna was rotated to locate the maximum of the emissions. In the case where larger measuring distances are required the results will extrapolated based on the values measured on the closer distances according to Section 15.31 (f) (2) [2]. The final measurement will be performed with an EMI Receiver set to Quasi Peak detector except for the frequency bands 9 kHz to 90 kHz and 110 to 490 kHz where an average detector will be used according to Section 15.209 (d) [2]. FCC ID: XUY0YX0YU02037 mikes-testingpartners gmbh File No. T36735-01-00KG, page 23 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 5.3 Spurious emissions (Magnectic field) 9 kHz – 30 MHz For test instruments and accessories used see section 6 Part SER 1. 5.3.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up 5.3.3 Description of Measurement The spurious emissions from the EuT will be measured on an open area test site in the frequency range of 9 kHz to 30 MHz using a tuned receiver and a shielded loop antenna. The antenna was positioned 3, 10 or 30 meters horizontally from the EuT. Measurements have been made in all three orthogonal axes and the shielded loop antenna was rotated to locate the maximum of the emissions. In the case where larger measuring distances are required the results will extrapolated based on the values measured on the closer distances according to Section 15.31 (f) (2) [2]. The final measurement will be performed with an EMI Receiver set to Quasi Peak detector except for the frequency bands 9 kHz to 90 kHz and 110 to 490 kHz where an average detector will be used according to Section 15.209 (d) [2]. The final level, expressed in dBV/m, is arrived at by taking the reading from the EMI receiver (Level dBV) and adding the antenna correction factor and cable loss factor (Factor dB) to it. This result then has to be compared with the relevant FCC limit. The resolution bandwidth during the measurement is as follows: 9 kHz – 150 kHz: ResBW: 200 Hz 150 kHz – 30 MHz: ResBW: 9 kHz FCC ID: XUY0YX0YU02037 mikes-testingpartners gmbh File No. T36735-01-00KG, page 25 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 5.4 Radiated emissions (electric field) 30 MHz – 1 GHz For test instruments and accessories used see section 6 Part SER 2. 5.4.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.4.2 Photo documentation of the test set-up 5.4.3 Description of Measurement Spurious emissions from the EuT are measured in the frequency range of 30 MHz to 1000 MHz using a tuned receiver and appropriate broadband linearly polarized antennas. Measurements between 30 MHz and 1000 MHz are made with 120 kHz/6 dB bandwidth and quasi-peak detection. Table top equipment is placed on a 1.0 X 1.5 meter non-conducting table 80 centimetres above the ground plane. Floor standing equipment is placed directly on the turntable/ground plane. The set up of the Equipment under test will be in accordance to ANSI C63.4. The Interface cables that are closer than 40 centimetres to the ground plane are bundled in the center in a serpentine fashion so they are at least 40 centimetres from the ground plane. Cables to simulators/testers (if used in this test) are routed through the center of the table and to a screen room located outside the test area. The antenna was positioned 3, 10 or 30 meters horizontally from the EuT. To locate maximum emissions from the test sample the antenna is varied in height from 1 to 4 meters, measurement scans are made with both horizontal and vertical antenna polarization`s and the EuT are rotated 360 degrees. FCC ID: XUY0YX0YU02037 mikes-testingpartners gmbh File No. T36735-01-00KG, page 27 of 33 Ohmstrasse 2-4  94342 Strasskirchen Tel.:+49(0)9424-94810 …

Text truncated - open the document above for the full version.
