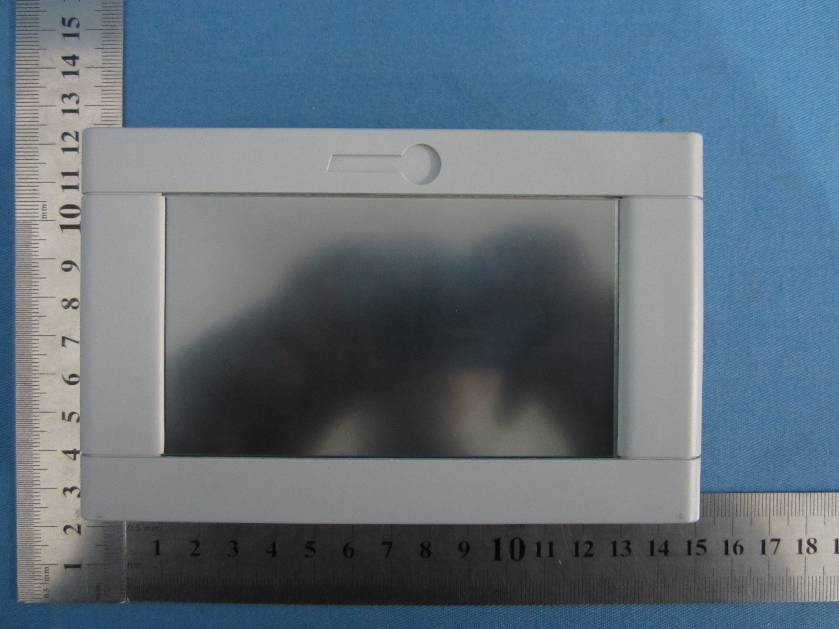

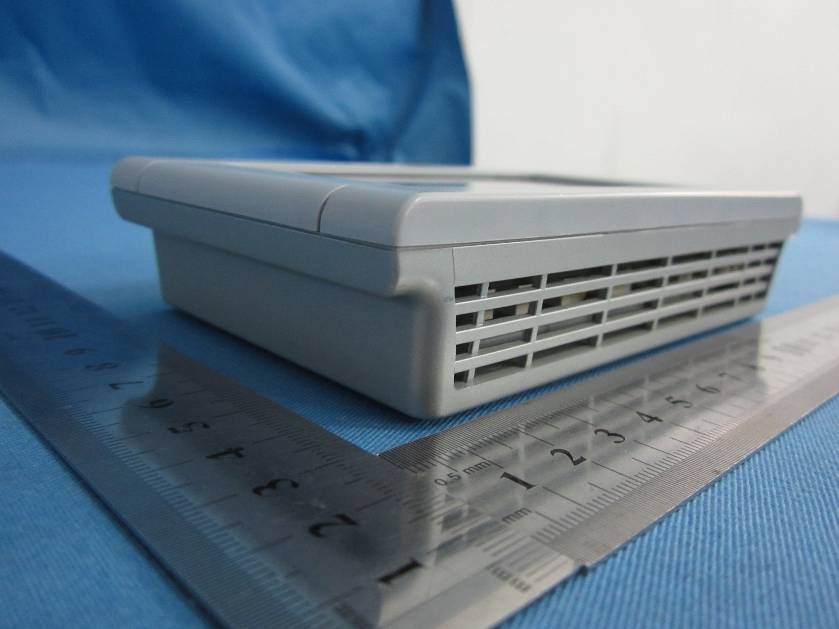

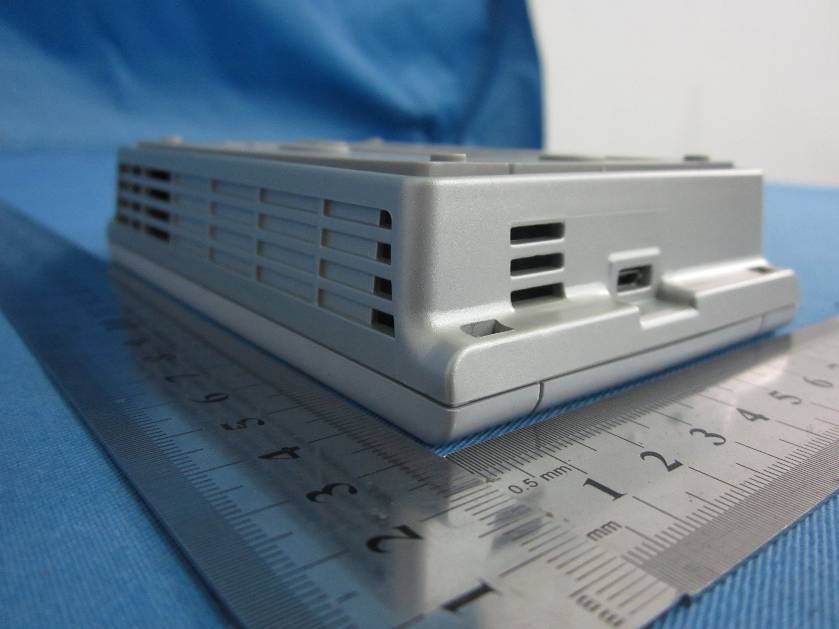

XVR-CONT8241Color Touchscreen Wi-Fi

824 Comfort Control Installation Guide 18-HD72D1-1 ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES IMPORTANT — This Document is customer property and is to remain with this unit. These instructions do not cover all variations in systems or provide for every possible contingency to be met in connection with the installation. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, the matter should be referred to your installing dealer or local distributor. WORKS WITH Installation Guide page 2 18-HD72D1-1 1. Safety NOTE: Use 18-gauge color-coded thermostat cable for proper wiring. Shielded cable is not typically required. Keep this wiring at least one foot away from large inductive loads such as Electronic Air Cleaners, motors, line starters, lighting ballasts and large distribution panels. Failure to follow these wiring practices may introduce electrical interference (noise) which can cause erratic system operation. All unused thermostat wire to be grounded at indoor unit chassis ground only. Shielded cable may be required if the above wiring guidelines cannot be met. Ground only one end of the shield to the system chassis.  WARNING ! This information is intended for use by individuals possessing adequate backgrounds of electrical and mechanical experience. Any attempt to repair a central air conditioning product may result in personal injury and/ or property damage. The manufacturer or seller cannot be responsible for the interpretation of this information, nor can it assume any liability in connection with its use.  WARNING ! LIVE ELECTRICAL COMPONENTS! During installation, testing, servicing, and troubleshooting of this product, it may be necessary to work with live electrical components. Failure to follow all electrical safety precautions when exposed to live electrical components could result in death or serious injury. 1. Safety ......................................................................2 2. Product Specifications ..........................................3 3. General Information ...............................................3 3.1 Overview .......................................................3 3.2 Features ........................................................3 3.3 Contents ........................................................3 4. Installation ..............................................................4 4.1 Location .........................................................4 4.2 Network Connections ....................................4 4.3 Mounting .......................................................4 4.4 Wiring ............................................................5 4.5 Heating and Cooling Applications .................7 4.6 Heat Pump Applications ..............................14 4.7 Dual Fuel Applications ................................18 5. System Setup .......................................................21 5.1 Power-Up Sequence ...................................21 5.2 Open ...........................................................21 5.3 Installer Settings ..........................................21 5.3.1 Installer Presets ..........................................21 5.3.2 Installer Setup Standard Settings ................23 5.3.3 Advanced Settings — Equipment ................23 5.3.4 Advanced Settings — Accessories .............23 5.3.5 Advanced Settings — Comfort ....................24 5.3.6 Advanced Settings — Airflow ......................25 5.3.7 Advanced Settings — Sensors ....................26 5.3.8 Advanced Settings — Lockouts...................26 5.4 Reminders ...................................................26 5.5 Dealer Code ................................................26 6. Basic Operation ...................................................29 6.1 PI Control ....................................................29 6.2 Load Value...................................................29 6.3 Duty Cycles .................................................29 6.4 Overshoot Clamp ........................................29 6.5 Stage Thresholds ........................................29 6.6 Stage Inhibits ..............................................30 6.7 Aggressive Recovery ..................................30 6.8 System Mode ..............................................30 6.9 Fan Mode ....................................................30 6.10 Air Cleaner Mode ........................................30 7. Advanced Operation ............................................31 7.1 Dehumidification ..........................................31 7.2 Warm Air Discharge ....................................31 7.3 Lockouts ......................................................31 7.4 Control Response Rate ...............................31 7.5 Aux Contacts ..............................................31 7.6 Stand Alone Operation ................................31 8. Diagnostic Tools ...................................................32 8.1 Test Modes. .................................................32 8.2 Data Logging ...............................................32 8.3 Diagnostics ..................................................32 8.4 History .........................................................32 9. Notices ..................................................................37 9.1 FCC Notice ..................................................37 9.2 ICC Notice ...................................................37 9.3 Warranty ......................................................38 Contents 824 Programmable Comfort Control 18-HD72D1-1 page 3 SPECIFICATIONDESCRIPTION Product ModelTCONT824 ProductXL 824 Comfort Control Size5-1/2” x 3-3/8” x 1” (WxHxD) Storage/Operating Temperature-40°F to 175°F, 5% to 95% RH non-condensing Input Power24VAC Power Consumption7VA* Wire Usage18ga System ModesAuto, Heating, Cooling, Off, Emergency Heat Fan…

Text truncated - open the document above for the full version.

Differences Declaration To whom concern, We company Trane US, Inc. hereby declares: The product model TCONT824AS52DAA and ACONT824AS52DAA are electrically identical except the model name. Authorized signature: Name: James Ford Johnson Position: Systems Test Engineer Date: 2013-12-02

Label Location

RF Exposure evaluation MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m2) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated Result and Limit(WORSE CASE IS AS BELOW) Antenna Gain (Numeric) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result 1 38.7 0.0077 1 Compiles

Global United Technology Services Co., Ltd. Report No.: GTSE13110184601 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS International Electrical Approvals or testing done by GTS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by GTS International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” FCC REPORT Applicant: Trane US, Inc. Address of Applicant: 6200 Troup Highway Tyler TX 75707 Equipment Under Test (EUT) Product Name: Color Touchscreen Wi-Fi Model No.: TCONT824AS52DAA, ACONT824AS52DAA FCC ID: XVR-CONT8241 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247:2012 Date of sample receipt: November 25, 2013 Date of Test: November 25-29, 2013 Date of report issued: November 29, 2013 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE13110184601 Global United Technology Services Co., Ltd. Project No.: GTSE131101846RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 64 2 Version Version No. Date Description 00 November 29, 2013 Original Prepared By: Date: November 29, 2013 Project Engineer Check By: Date: November 29, 2013 Reviewer Report No.: GTSE13110184601 Global United Technology Services Co., Ltd. Project No.: GTSE131101846RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 64 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION ......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE ........................................................................................................................................ 6 5.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 6 5.5 TEST FACILITY .................................................................................................................................... 7 5.6 TEST LOCATION ................................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1 ANTENNA REQUIREMENT: .................................................................................................................... 9 7.2 CONDUCTED EMISSIONS ................................................................................................................... 10 7.3 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 13 7.4 CHANNEL BANDWIDTH ...................................................................................................................... 18 7.5 POWER SPECTRAL DENSITY ............................................................................................................. 23 7.6 BAND EDGES .................................................................................................................................... 28 7.6.1 Conducted Emission Method ..................................................................................................... 28 7.6.2 Radiated Emission Method ........................................................................................................ 31 7.7 SPURIOUS EMISSION ......................................................................................................................... 36 7.7.1 Conducted Emission Method ..................................................................................................…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
