XVRZONE940TRXHVAC Comfort Controller

Comfort Link™ II Wireless Zone Sensor Owner/Operator Manual Wireless Zone Sensor with Display Wireless Remote Ambient Temperature Sensor 2 3 4 5 6 Regulatory Information Agency Statements FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the transceiver antenna. - Increase the separation between the equipment and transceiver. - Connect the equipment into an outlet on a circuit different from that to which the transceiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC/IC Caution: Any changes or modifications not expressly approved by Trane could void the user's authority to operate this equipment. To comply with IC RF exposure limits for general population/uncontrolled exposure, the module with fixed internal antenna must not be collocated or operating in conjunction with any other antenna or transmitter.

Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, MI 48111 Phone: (734) 252-9785, Fax (734) 926-9785 e-mail: [email protected] November 1, 2010 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Trane, Inc WRATS FCC ID: XVRZONE940TRX IC: 6178D-ZONE940TRX Please find enclosed application materials for certification of the Trane, Inc. WSOD. We tested it and found it to comply with RSS-GEN/102/210. The product is identified by: IC: 6178D-ZONE940TRX If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-252-9785, fax 734-926-9785 or e-mail [email protected] Sincerely, Joseph D. Brunett, Ph.D. Willow Run Test Labs, LLC Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, MI 48111 Phone: (734) 252-9785, Fax (734) 926-9785 e-mail: [email protected] November 1, 2010 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Trane, Inc WRATS FCC ID: XVRZONE940TRX IC: 6178D-ZONE940TRX Please find enclosed application materials for certification of the Trane, Inc. WSOD. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-252-9785, fax 734-926-9785 or e-mail [email protected] Sincerely, Joseph D. Brunett, Ph.D. Willow Run Test Labs, LLC

Residential Solutions 6200 Troup Highway Tyler, TX 75707-1948 USA Tel (903) 581-3391 Fax (903) 581-3280 www.trane.com Attn: Director of Certification Authority to Act as Agent I appoint Willow Run Test Labs, LLC to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by American TCB, still resides with Trane Residential Solutions, Ingersoll Rand, 6200 Troup Highway Tyler, TX 75707-1948 USA, Tel (903) 581-3391 Fax (903) 581-3280. Agency Agreement Expiration Date: (optional) Dated this ______11 th _____day of October, 2010. By: William K. Cotton (Signature) (Print name) Title: RF Engineer, Controls Engineering email: [email protected] On behalf of: Trane Residential Solutions, Ingersoll Rand Telephone: +1-903-581-9067 Fax: +1-903-581-3280

Residential Solutions 6200 Troup Highway Tyler, TX 75707-1948 USA Tel (903) 581-3391 Fax (903) 581-3280 www.trane.com Federal Communications Commission American Certification Body, Inc. Applications Processing Branch 6731 Whittier Avenue 7435 Oakland Mills Road Suite C110 Colombia, MD 21046 McLean, VA 22101 To Whom It May Concern: Willow Run Test Labs, LLC is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Dated this ______11 th _____day of October, 2010. By: William K. Cotton (Signature) (Print name) Title: RF Engineer, Controls Engineering email: [email protected] On behalf of: Trane Residential Solutions, Ingersoll Rand Telephone: +1-903-581-9067 Fax: +1-903-581-3280

Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, MI 48111 Phone: (734) 252-9785, Fax (734) 926-9785 e-mail: [email protected] Re: Certification for Trane, Inc WRATS FCC ID: XVRZONE940TRX IC: 6178D-ZONE940TRX REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, Trane requests that a part of the subject application be held confidential. Trane has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Type of Confidentiality Requested Exhibit Short Term Permanent (1)ID Label & Location Short Term Permanent (3)External Photos Short Term Permanent 1 (4)Block Diagram Short Term Permanent (5)Schematics Short Term Permanent (7)Test Setup Photos Short Term Permanent (8)User’s Manual Short Term Permanent (9)Internal Photos Short Term Permanent (10)Parts List & Placement Short Term Permanent (11)RF Exposure Short Term Permanent (12)Description of Operation 1. Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. Permanent Confidentiality: Trane requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): Trane requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734- 252-9785, fax 734-926-9785 or e-mail [email protected] Sincerely, Joseph D. Brunett, Ph.D. Willow Run Test Labs, LLC

2 Residential Solutions 6200 Troup Highway Tyler, TX 75707-1948 USA Tel (903) 581-3391 Fax (903) 581-3280 www.trane.com WSOD Labels: Trane Version American Standard Version

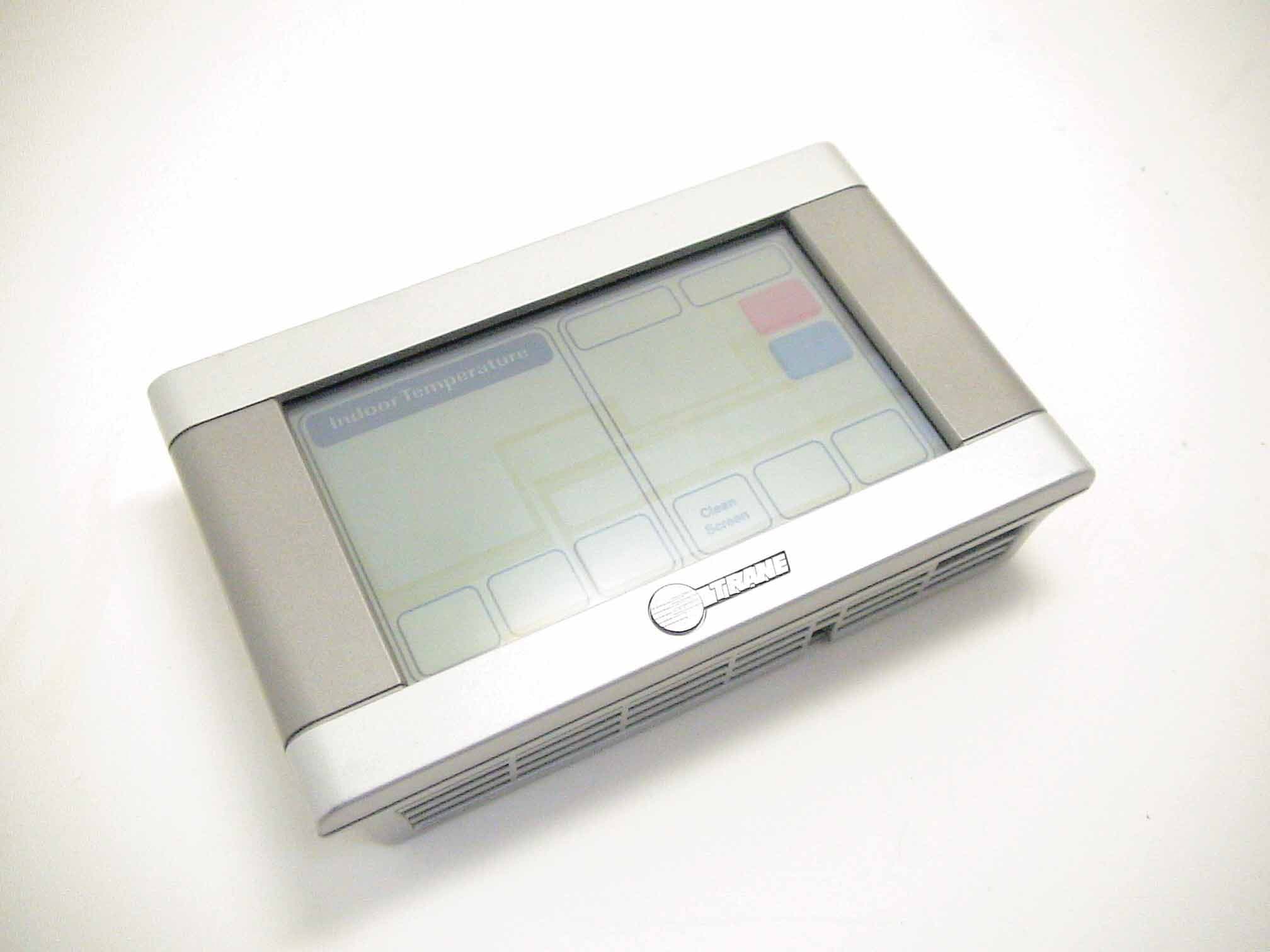

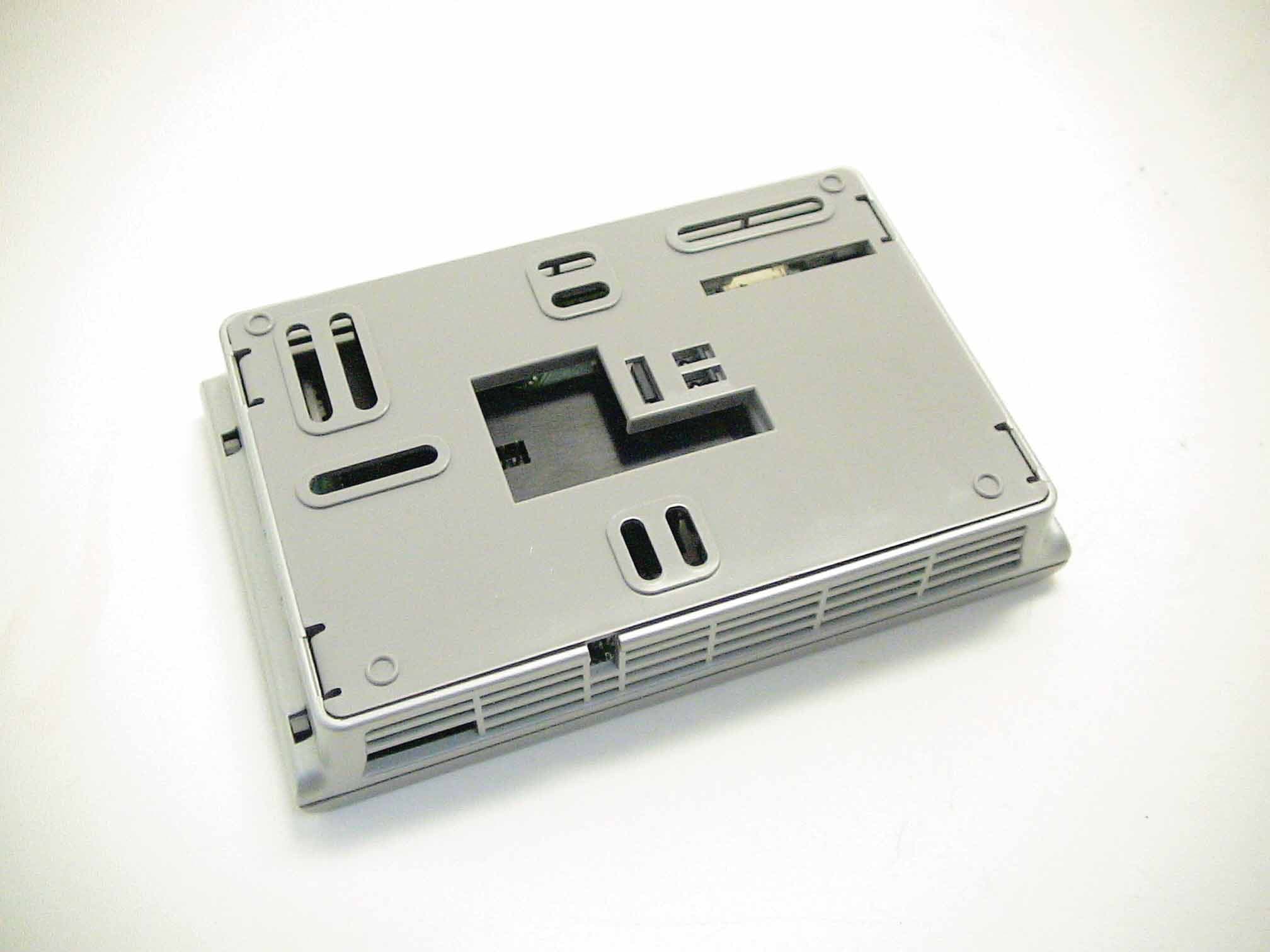

Residential Solutions 6200 Troup Highway Tyler, TX 75707-1948 USA Tel (903) 581-3391 Fax (903) 581-3280 www.trane.com October 4, 2010 WSOD (Wireless Zone Sensor with Display) Description of Operation: The WSOD is a battery or 24 Vac operated temperature and humidity sensor with liquid crystal display that communicates over a wireless network utilizing the ZigBee Pro Stack. It is intended to be used in conjunction with a high end HVAC (Heating Ventilation and Air Conditioning) system with damper zoning. Damper Zoning is a collection of zones associated with a single HVAC System using dampers to modulate airflow to the individual zones. A Zone is a HVAC application defined area where comfort can be controlled independently of other defined areas.

RF Exposure Statement Requirement: According to CFR 15 §1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. SAR Testing: The average output power under normal worst-case operation of EUT is 1.0 mW < 60/f(GHz) mW or 24.19 mW for d<2.5 cm (general population category). The user is instructed in the product manual to maintain no less than a 20 cm separation distance from this device. Per the calculations below, SAR measurements are not necessary. Health Hazard: The following table summarizes the power density at a distance of 20 cm as calculated from FCC OET Bulletin 65. Potential Health Hazard Radiation Level Worst Case Ant.Gain (dBi)* Po (dBm) EIRP*** (dBm) EIRP*** (mW) S 20cm (mW/cm 2 ) 802.15.4 0.9 -0.1 0.8 1.2 0.0002 *Gain value computed in associated test report. ** Conducted power output measured with radio transmitting at maximum duty and data rate possible ***Note: EIRP employed in calculation is the greater of the average conducted output power and the EIRP. The following equations were used in calculating duty cycle and power density (S). 10 )( 10)()( dBGain mWPomWEIRP 2 2 )(4 )( )/( cmR mWEIRP cmmWS   , R = 20 cm

Date of Issue: October 30, 2010Prepared For: Trane, Inc.Test Report No.: 20101030-01 Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, Michigan 48111 USA Tel: (734) 252 9785 Fax: (734) 926 9785 e-mail: [email protected] Testing of Electromagnetic Emissions per USA: CFR Title 47, Part 15.247 Canada: RSS-GEN and RSS-210 are herein reported for Trane, Inc. WSOD Test Report No.: 20101030-01 Copyright c ©2010 Applicant: Trane, Inc. 6200 Troup Highway, Tyler Texas 75707 USA Phone: +1 (903) 581-9067, Fax: +1 (903) 581-3280 Contact Person: William Cotton; [email protected] Measurements made by: Report Reviewed by: Joseph D. Brunett, Ph.D.Joseph D. Brunett, Ph.D. Report written by:Report Date of Issue:October 30, 2010 Joseph D. Brunett, Ph.D. Results of equipment under test (EUT) testing completed before October 30, 2010 are as follows. The transmitter fundamental emission meets the regulatory limit(s) by no less than 30.1 dB. Transmit chain spurious harmonic emissions comply by no less than 1.0 dB. Radiated spurious emissions associated with the receive chain of this device meet the regulatory limit(s) by no less than 5.3 dB. Unintentional spurious emissions from digital circuitry comply with the radiated emission limit(s) by more than 8.1 dB. AC Power Line conducted emissions comply by more than 15.8 dB. Willow Run Test Labs, LLC, 8501 Beck Rd., Bldg 2227, Belleville, MI 48111Page 1 of 19 Date of Issue: October 30, 2010Prepared For: Trane, Inc.Test Report No.: 20101030-01 Contents 1 Test Specifications, General Procedures, and Location4 1.1 Test Specification and General Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.2 Test Location and Equipment Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2 Configuration and Identification of the Equipment Under Test6 2.1 Description and Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.1EUT Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.2Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.3Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.4Test Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.5Functional Exerciser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.6Modifications Made . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.7Production Intent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.8Additional Product Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3 Emissions8 3.1 General Test Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.1Radiated Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.2Conducted Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3.1.3Power Supply Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3.2 Intentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.2.1Fundamental Emission Peak to Average Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.2.2Fundamental Emission Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.3Radiated Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.2.4Power Spectral Density . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.3 Unintentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 3.3.1Transmitter Conducted Spurious . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 3.3.2Radiated Transmitter Spurious . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.3.3Radiated Receiver Spurious . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.3.4Radiated Digital Spurious . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3.3.5Conducted Emissions Test Results - AC Power Port(s) . . . . . . . . . . . . . . . . . . . . . . . 19 Willow Run Test Labs, LLC, 8501 Beck Rd., Bldg 2227, Belleville, MI 48111Page 2 of 19 Date of Issue: October 30, 2010Prepared For: Trane, Inc.Test Report No.: 20101030-01 List of Tables 1Willow Run Test Labs, LLC Equipment List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2EUT Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 3Computed Peak to Average Ratio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 4Measured emission bandwidth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 5Radiated power test results. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 6Radiated power test results. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 7Transmit Chain Spurious Emissions≥30 MHz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 8Receiver Chain Spurious Emissions≥30 MHz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 9Digital electromagnetic emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 10AC mains conducted emissions results. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 List of Figures 1Photographs of the EUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2EUT test co…
