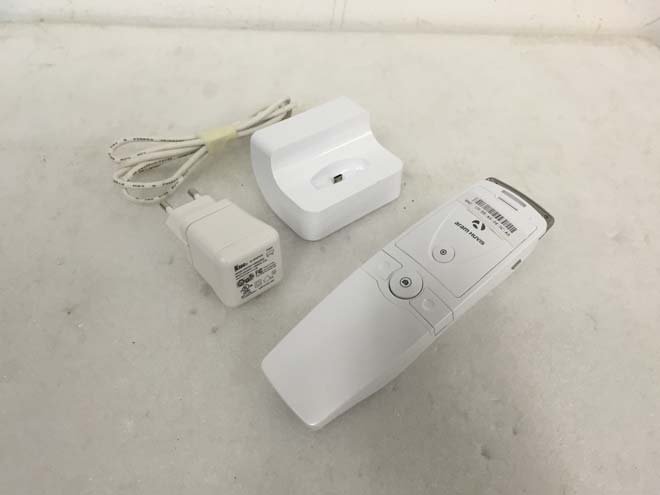

User Manual Contents C. System Settings D. Program Settings . Both Sides . Settings E. Application . Start Analysis . Full Analysis . View Mode CRM Moisture Sebum Pore Melanin Acne Wrinkle Sensitivity Summary 1 2 3 5 7 8 9 10 11 12 13 14 15 16 17 18 F. Warranty 19 A. Components B. H/W Parts Notes on use The images of this manual can be different with the actual things. The information contained in this manual and future improvements are subject to change without notice. Components API 100 Charger Manual Battery USB cable Cradle Sebum paper 1 box Main body with skin lens Cleaning cloth 1A. Components H/W Parts Both Sides Battery cover LED light & lens Mode up Mode down Capture Start, Analysis, Result External adaptor connection Power on & off 2B. H/W Parts - Both Sides H/W Parts Settings Insert the battery        Insert the battery and gently press the battery into place. Close the cover. 1 2 To turn on the power Press and hold “Power” button. "Indicate LED" starts twinkling in blue light. When it stops, the device is ready to use. 1 2 To turn off the power Press and hold "Power" button. "Indicate LED" will be turned off. 1 2 3 1 1 2 3 2 3B. H/W Parts - Settings Charger can be used for 110V & 220V. The default is 220V. Then 220V European type is disassembled and you can see the 110V-220V American type inside of the charger. Push the plug down to up at "Push" marked. 1 2 3 Choose the one you want to use and connect USB cable in adaptor. H/W Parts Settings 1 2 3 4B. H/W Parts - Settings System Settings Download & Install PC User Go to link on the browser as below. http://www.aramhuvis.com/download 1 1 Install the program. 2 2 Tablet device or Smartphone user iOS : Go to "App Store" and search "Solutionist" to download the program. Android : Go to "Google Play Store" and download it. 5C. System Settings System Settings How to connect with the program First of all, check the Wi-Fi name and password which is described at back side of battery cover. Wi-Fi name & password must be same and the format is "API_XXXX". Turn on the device. While turning on the device, prepare PC, Tablet, Smartphone to run the S/W. Once “API” device is turned on, please go to network setting to set up the Wi-Fi connection. !#$$$$%   When above code is connected, run the program “Solutionist". To check working properly, please check the program and see the left below side. If it is correctly set up, you can see the orange light of Wi-Fi singal. 1 2 3 4 5 6 7 8 9 SSID: API_XXXX PW: API_XXXX 6C. System Settings Program Settings General Settings Change the language, analysis mode and etc. 1 Analysis Settings Set up the skin type and analysis parameter. 2 Recommended Products Available for each analysis result. 3 About Check the current version and update is available in Wi-Fi connection. 4 7D. Program Settings Touch “Analysis” to start. 1 Application Start Analysis 8E. Application - Start Analysis Application CRM Take picture of customer's face with built-in camera or use the picture you already have in device. 4 Check the customer information and analysis result list. 3 Among the customer lists, select the client to check or start analysis. Input the information. - full name, email address, gender and age group 1 2 9E. Application - CRM Press "capture" button and when you hear "beep" sound, please put the sensor onto your skin and wait until you hear "beep" sound again. 1 Check the result. To analyze next step, touch button. 2 Application Moisture or To analyze next st or Moisture sensor 10E. Application - Moisture Application Sebum U-zone T-zone Check the result. To analyze next step, touch button. 4 Put the sebum paper onto the U-zone on the cheek, then press it for 2~3 seconds. 1 Place camera on the pink area and take picture. (U-zone) 2 Sebum paper Sebum paper Put the sebum paper onto the T-zone on face, then press it for 2~3 seconds. Place camera on the pink area and take picture.(T-zone) 3 or To analyze next ste or 11E. Application - Sebum Application Pore Put the camera into the skin and touch button to analyze. 2 Touch button to activate camera mode. 1 Compare your image with 3 sample images. - Good - Normal - Bad 4 The result will be appeared to compare with age group. Check the result. To analyze next step, touch button. Touch "Compare" button to check the sample image. 3 or Touch button t 1 or or to analyze. Thltill b 3 or or Compare your ima Gd 4 Check the result. To Touch "Compare" b or 12E. Application - Pore The result will be appeared to compare with age group. Check the result. To analyze next step, touch button. Touch "Compare" button to check the sample image. Application Melanin Put the camera into the skin and touch button to analyze. 2 3 Compare your image with 3 sample images. - Good - Normal - Bad 4 Touch button to activate camera mode. 1 or Touch button t 1 or or The result will bea to analyze. 3 or or Touch "Compare" b Compare your ima Good 4 or 13E. Application - Melanin The result will be appeared to compare with age group. Check the result. To analyze next step, touch button. Touch "Compare" button to check the sample image. 3 Application Acne Put the camera into the skin and touch button to analyze. 2 Compare your image with 3 sample images. - Good - Normal - Bad 4 Touch button to activate camera mode. 1 or Touch button to 1 or or Theresultwillbeap 3 to analyze. or or Touch "Compare" b Compare your imag Good 4 or 14E. Application - Acne The result will be appeared to compare with age group. Check the result. To analyze next step, touch button. Touch "Compare" button to check the sample image. 3 Application Wrinkle Put the camera into the skin and touch button to analyze. 2 Compare your image with 3 sample images. - Good - Normal - Bad 4 Touch button to activate camera mode. 1 or Touch button t 1 or or Theresultwillbeap 3 to analyze. or or Touch "Compare" b Compare your ima Good 4 or 15E. Application - Wrinkle …

Text truncated - open the document above for the full version.

-------- - Chang W -------------- Won Kim / M -------------- Manager ------- Ministry of Food and Drug Safety Aram HUVIS Co., Ltd. 801 Byucsan Technopia, 560, Dunchon-daero, Jungwon-gu, Sungnamsi, Kyunggido, South Korea(zip code 462-716) Title : Reply of reviewing whether it is medical device or not. 1. The request from your company (Registration Number : 20150070549, 2015.04.21) ‘reviewing whether it is medical device or not’ related. 2. According to medical device law Article 2 Clause 1, medical device is defined as Appliances, machinery, equipment, materials that are used to people or animals by single or combination or similar products that come under below clauses(Except : Pharmaceuticals, quasi-drugs, orthotics) a. Products are used for diagnosis, treatment, mitigation or prevention of disease. b. Products are used for diagnosis, treatment, mitigation or correction of disability & injury c. Products are used for inspection, replacement and strain structure or feature. d. Products are used for pregnancy control 3. The product that you inquiry is ‘The camera device to capture skin for cosmetic recommendation. Not the purpose to diagnose or treat the disease’. According to the medical device law article 2, we kindly inform that it is not a medical device. 4. [Medical device law] article 26, ‘Whatever if the device is not the medical device, it is not allowed to advertise that it has the similar function or effect as a medical device and mark that could cause the misunderstanding in the package, surface or attached documents. Please note that if you sell, rent these kind of marked devices, according to the same clause, it could be punished. 5. For reference, to judge accurately it is the medical device or not according to medical device law article 2 clause 1, if it is using for the purpose of above explanation, then it is considered as it is not a medical device. Also it does not need to have objectively this kind of function. And the device usage purpose should be defined by total consideration of devices structure, shape, marked usage purpose and effect, advertisement and explanation(supreme court 2010.4.29 declare 2008.7688 judgment, supreme court 1993.3.12 declare 92.811 judgment.). It is declared. 6. If you have any further questions, please contact(Jiyoung Park, Medical equipment policy department, +82 43 230 0421). Then we will kindly guide. End.

Aram Huvis Co., Ltd. 801-ho, 560 Dunchon-daero Jungwon-gu Seongnam-si Gyeonggi-do Rep.of Korea Date: Sept. 01, 2015 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: XYCAPI Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Part List CONF APPENDIX_Part List_API.PDF Schematics Diagram(s) CONF APPENDIX_Circuit diagram_API.PDF Block diagram CONF APPENDIX_Block diagram_API.PDF Operation description CONF APPENDIX_Operation description_API.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Changwon Kim / Manager

Aram Huvis Co., Ltd. 801-ho, 560 Dunchon-daero Jungwon-gu Seongnam-si Gyeonggi-do Rep.of Korea Date: Sept. 01, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize KT Kang of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by KT Kang of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; Aram Huvis Co., Ltd. 801-ho, 560 Dunchon-daero Jungwon-gu Seongnam-si Gyeonggi-do Rep.of Korea h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Changwon Kim / Manager REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

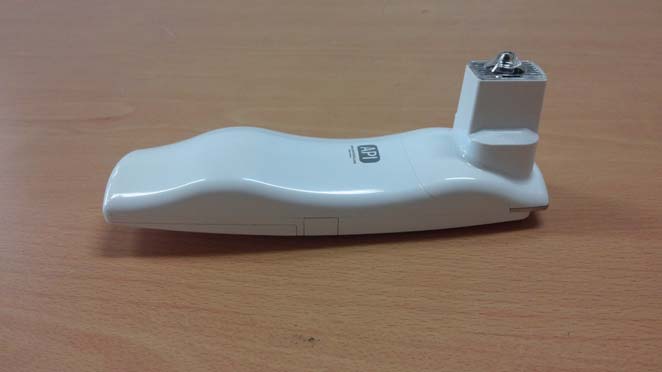

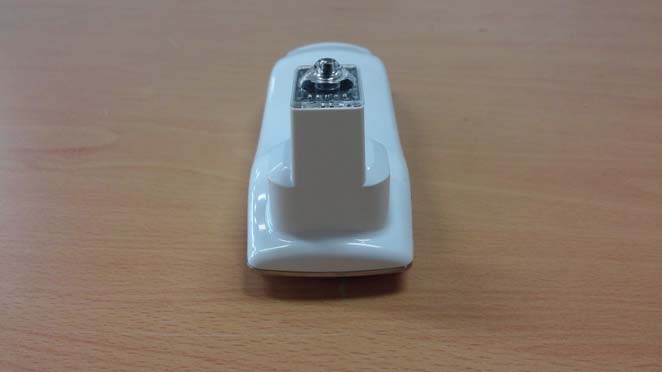

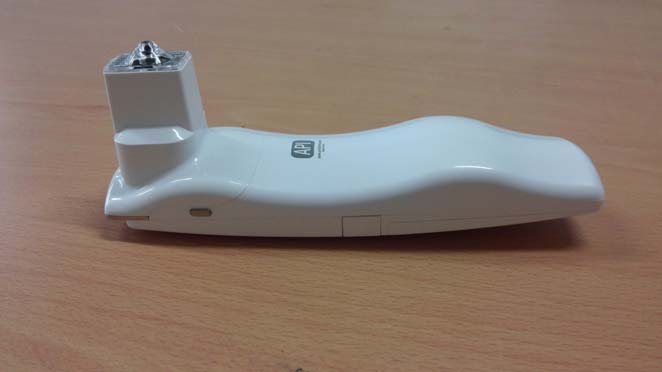

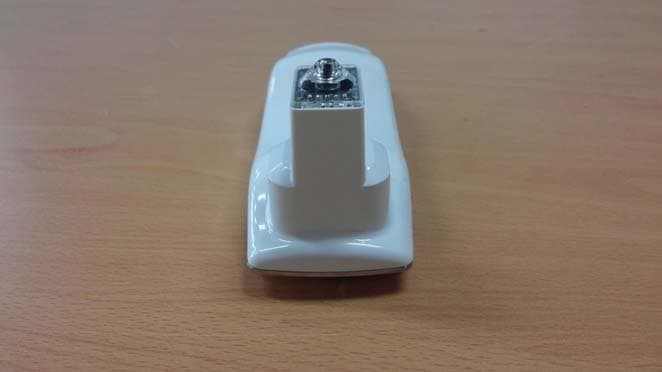

www.kes.co.kr FCC ID: XYCAPI Page 1 of 4 EUT External photographs www.kes.co.kr FCC ID: XYCAPI Page 2 of 4 www.kes.co.kr FCC ID: XYCAPI Page 3 of 4 www.kes.co.kr FCC ID: XYCAPI Page 4 of 4

www.kes.co.kr FCC ID: XYCAPI Page 1 of 2 EUT Internal photographs PCB Antenna www.kes.co.kr FCC ID: XYCAPI Page 2 of 2

FCC ID RF exp Accordin The 1-g 50 mm a [(max. p ·[√f(㎓) Where; f(㎓) is t Power a The resu Results Frequ (㎓ 2.4 2.43 2.46 Results Frequ (㎓ 2.4 2.43 2.46 Results Frequ (㎓ 2.4 2.43 2.46 Results Frequ (㎓ 2.42 2.43 2.45 No SAR : XYCAPI posure ng to 447498 and 10-g SA are determin power of chan ] ≤ 3.0 for 1- the RF chann and distance a ult is rounded – 802.11b uency ㎓) 12 37 62 – 802.11g uency ㎓) 12 37 62 – 802.11n_H uency ㎓) 12 37 62 – 802.11n_H uency ㎓) 22 37 52 evaluation is 8 D01 Gener AR test excl ed by: nnel, includi -g SAR and ≤ nel transmit are rounded d to one deci Distance (mm) 5 5 5 Distance (mm) 5 5 5 HT20 Distance (mm) 5 5 5 HT40 Distance (mm) 5 5 5 required ral RF Expos lusion thresh ing tune-up t ≤ 7.5 for 10-g frequency in to the neares imal place fo (㏈m 7.31 8.06 9.15 (㏈m 7.42 8.20 8.97 (㏈m 7.39 8.24 9.36 (㏈m 7.52 8.12 8.75 sure Guidanc holds for 100 tolerance, mW g extremity S n ㎓ st ㎽ and m or compariso Average powe m) 6 Average powe m) 2 0 7 Average powe m) 9 4 6 Average powe m) 2 2 ce v05 0 ㎒ to 6 ㎓ W)/(min. test SAR, mm before cal n er (㎽) 5.38 6.40 8.22 er (㎽) 5.52 6.61 7.89 er (㎽) 5.48 6.67 8.63 er (㎽) 5.65 6.49 7.50 ㎓ at test sep t separation d lculation Calculatio value 1.67 2.00 2.58 Calculatio value 1.71 2.06 2.48 Calculatio value 1.70 2.08 2.71 Calculatio value 1.76 2.03 2.35 www Pa paration dist distance, mm on Ex Th on Ex Th on Ex Th on Ex Th w.kes.co age 1 of 1 tances ≤ m)] xclusion hreshold ≤3.0 ≤3.0 ≤3.0 xclusion hreshold ≤3.0 ≤3.0 ≤3.0 xclusion hreshold ≤3.0 ≤3.0 ≤3.0 xclusion hreshold ≤3.0 ≤3.0 ≤3.0 o.kr

KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0069 Page (2 ) of (51) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Revision history Revision Date of issue Test report No. Description - 2015.09.07 KES-RF-15T0069Initial KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0069 Page (3 ) of (51) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 TABLE OF CONTENTS 1. General information ................................................................................................................................................... 4 1.1. EUT description ........................................................................................................................................ 4 1.2. Frequency/channel operations ................................................................................................................... 4 1.3 Device information ............................................................................................................................................ 4 2. Summary of tests ........................................................................................................................................................ 5 3. Test results .................................................................................................................................................................. 7 3.1 Radiated spurious emissions & band edge ................................................................................................ 7 3.2 Conducted spurious emissions & band edge ........................................................................................... 15 3.3. 6 ㏈ bandwidth ...................................................................................................................................... 28 3.4. Peak Output power .................................................................................................................................. 36 3.5. Power spectral density ............................................................................................................................. 38 3.6. AC conducted emission ........................................................................................................................... 46 Appendix A. Measurement equipment ......................................................................................................................... 49 Appendix B. Test setup photo ....................................................................................................................................... 50 KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0069 Page (4 ) of (51) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 1. General information Applicant: Aram Huvis Co., Ltd. Applicant address: 801-ho, 560 Dunchon-daero Jungwon-gu Seongnam-si Gyeonggi-do Rep. of Korea Test site: KES Co., Ltd. Test site address: C-3701, Simin-daero 365-40, Dongan-gu, Anyang-si, Gyeonggi-do,14057, Korea 473-29, Gayeo-ro, Yeoju-si, Gyeonggi-do, 12658, Korea Rule part(s): Part 15.247 Test device serial No.: Production Pre-production Engineering 1.1. EUT description Equipment under test API Frequency range 2 412 ㎒ ~ 2 462 ㎒ (11b/g/n_HT20) 2 422 ㎒ ~ 2 452 ㎒ (11n_HT40) Model: API Modulation technique DSSS, OFDM Number of channels 11 Antenna specification PCB antenna & 3.77 ㏈i Power source Internal Rechargeable Battery (DC 3.7 V) 1.2. Frequency/channel operations Ch. Frequency (㎒) Mode 1 2 412 11b/g/n_HT20 . . . . . . 6 2 437 11b/g/n_HT20 . . . . . . 11 2 462 11b/g/n_HT20 Ch. Frequency (㎒) Mode 3 2 422 11n_HT40 . . . . . . 6 2 437 11n_HT40 . . . . . . 9 2 452 11n_HT40 1.3 Device information - The device duty cycles are as follows: 802.11b/g/n_HT20, 40 ≥ 98 percent. KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0069 Page (5 ) of (51) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 2. Summary of tests Reference Parameter Test results 15.205 15.209 Radiated spurious emission and band edge Pass 15.247(d) Conducted spurious emission and band edge Pass 15.247(a)(2) 6 ㏈ bandwidth Pass 15.247(b)(3) Peak output power Pass 15.247(e) Power spectral density Pass 15.207 AC conducted emissions Pass Test procedures; The EUT was tested per the guidance of ANSI C63.10-2009 was used to reference the appropriate EUT setup for radiated spurious emissions testing, the guidance provided in KDB 558074_v03r03 were used in the measurement of the EUT. KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0069 Page (6 ) of (51) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Pre-scanned maximum output power Preliminary tests were performed in different data rate as belo…

Text truncated - open the document above for the full version.

KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0069 Page (50 ) of (51) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Appendix B. Test setup photo Radiated Emission (30MHz~1GHz) Radiated Emission (Above 1GHz) KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0069 Page (51 ) of (51) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Conducted Emission
