XYCAPMARAMO PROFESSIONAL MICROSCOPE

User’s Manual APM - 100 CELL SCORE IDENTITY DIAGNOSIS MICROSCOPE ASP - 100 System and components ④ ①②③ ⑥ ⑦ ⑧ Getting started ASP - 100 ⑤ APM - 100 Battery User manual Mobile chargerUSB cable Cleaning cloth NumberFunctionNumberFunction ① Menu ⑤ Moisture sensor ② Home ⑥ Camera lens ③ Back ⑦ On/Off ④ Diagnosis ⑧ Volume 1 APM - 100 Battery uses Getting started To change the battery Open the coverto pull off To charge the battery Connect the charger to the USB slot under the device. To charge the battery Connect the charger to the USB slot under the device. USB Use the touch screen Your device’s touch screen lets you select items or perform functions. Lean basic actions to use touch screen •Tap : Touch once with your finger to select or launch the menu option, or application •Drag : Tap and drag your finger up, down, left, or right to move to items on lists. •Tap and hold : Tap an item and hold it for more than 2 seconds to open pop-up option list •Double-tap : Tap twice quickly with your finger to zoom in or out while viewing photos. 2 Getting Started Enter text Enter text by selecting characters on the virtual keypads Getting started APM - 100 ① ② ③ ⑤ ⑥ ④ ① Enter text by selecting characters on the virtual keypads No.Function ①Shortcutsfor frequent use ②Changecase ③Switch between ABCand Number(symbol) mode ④Space ⑤Delete ⑥Start new line ② ③ ⑤ ⑥ ④ 3 IconsTodo Place onto your skin to take images and to measure the value Touch to take images from the device Change result values by touching screen GO PRE GONEXT Icons to operate in Manual Icons to operate GO PRE GONEXT SCANIMAGE SAVE IMAGE 3D IMAGE 2D IMAGE MAGNIFYTHE IMAGE DOWNSIZE THE IMAGE C.S.I Diagnosis Microscope Touch the ＞or fling the screen to go to next page. Note 2 4 Diagnosis Process Register client information How to register •Default information(*marked) needed to be filled to go next process How to operate C.S.I Diagnosis Microscope How to register •Default information(*marked) needed to be filled to go next process Touch the ＞or fling the screen to go to next page. Note •Touch the text to display keypad 5 How to measure •Touch to diagnosis Diagnosis Process DermoDensity & Hydro Dosage How to operate Place the sensor onto your skin and press for 3 seconds How to measure •Touch to diagnosis C.S.I Diagnosis Microscope Touch the ＞or fling the screen to go to next page. Note Result values displays 6 Lipid Dosage Put the below sebum tape (pink area) onto the U-zone of your face for 3 seconds U -ZONE T -ZONE •Tap to take picture of pink area of U and T –ZONE How to operate U T C.S.I Diagnosis Microscope Touch the ＞or fling the screen to go to next page. Note •Take picture of pink area by touching the screen •Touch to diagnosis 7 Pores Tap to take picture of pores. How to operate Place the lens onto your skin and press for 3 seconds Touch to diagnosis. C.S.I Diagnosis Microscope Touch the ＞or fling the screen to go to next page. Note 2 8 Chromie Tap to take picture of pores. How to operate Place the lens onto your skin and press for 3 seconds Touch to diagnosis. C.S.I Diagnosis Microscope Touch the ＞or fling the screen to go to next page. Note 9 Wrinkles Tap to take picture of pores. How to operate Place the lens onto your skin and press for 3 seconds C.S.I Diagnosis Microscope Touch the ＞or fling the screen to go to next page. Note Touch to diagnosis. 2 10 Result Result Heptagon Spider-gram How to operate C.S.I Diagnosis Microscope Touch the ＞or fling the screen to go to next page. Note At Home Prescription Show two product Serum Blending Show 6 drops of serum 11 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Caution Any changes or modifications (including the antenna) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment.

Phone Dear 1. 2. 434- e: +82-31-7 Simultaneo capable of sim transmitters s evaluated in Part 15 AN D evaluation  It is not a The manufa explain how next to the b operated. F between the exemption c r  The RF m -6 Byucksan 732-6320 / ous Transmitt multaneous W simultaneousl simultaneous D meets all M available to acturer must w the device is body using a b For these vari device and th riteria accordin module is aw n Technopia Sungnam Fax: +82-3 Letter ter Operation WLAN and BT y, we will nee operation mo PE and SAR use bluetoot t provide an a s used. It sho body-worn ac ious operatio he body/or he ng to KDB44 way from he a 801, Sangd m-Si 462-80 1-732-6330 of Inv n: please prov T transmitter o ed an attestatio ode and meets R limitations. P th and WiFi attestation sta ould be descr ccessory, nex on modes, it m ead. This inf 7498 D01 Mo ead for more Sincerely _______ ___ WON CH daewon-Don 07, Korea 0 / Website: vitation vide a stateme operation or no on letter indic all appropriat Please include at the same atement (lette ribed whether xt to the head must be descr formation wil obile Portable e than 5cm. Yours, _____________ HANG KIM / ARAM HU ng, Jungwo : http://ww n nt indicating t ot. If the EUT cating that that te requirement e all calculatio e time. er or RF expo r it can be op , or whether ribed the sepa l determine th RF Exposure ____________ / HW team UVIS CO., LT on-Gu ww.aramhuv August 8 that this EUT T can operate b t the unit has b nts found in 47 ons for the MP osure exhibit perated (=tran it is only han aration distan he applicable S e v04: ____________ Manager TD. vis.com 8, 2012 is either both been 7 CFR PE t) to nsmit) nd nce SAR test ___

Aram Huvis Co., Ltd. 801 Byucksan Technopia, 434-6 Sangdaewon-dong, Sungnam-City, Kyungki-do, Korea Date: 2012.06.27 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize KT Kang of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by KT Kang of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; Aram Huvis Co., Ltd. 801 Byucksan Technopia, 434-6 Sangdaewon-dong, Sungnam-City, Kyungki-do, Korea h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Chang Won, Kim / Manager REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Aram Huvis Co., Ltd. 801 Byucksan Technopia, 434-6 Sangdaewon-dong, Sungnam-City, Kyungki-do, Korea Date: 2012.06.27 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: XYCAPM Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Part List CONF APPENDIX_APM_Part List.PDF Schematics Diagram(s) CONF APPENDIX_ APM_Schemetics.PDF Block diagram CONF APPENDIX_ APM_Block diagram.PDF Operation description CONF APPENDIX_ APM_Operation description.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Chang Won, Kim / Manager

Aram Huvis Co., Ltd. 801 Byucksan Technopia, 434-6 Sangdaewon-dong, Sungnam-City, Kyungki-do, Korea Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: July 22, 2012 SUBJECT: FCC Application for (FCCID: XYCAPM) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Chang Won, Kim / Manager

www.kes.co.kr Model No.: APM Page 1 of 2 EUT External photographs www.kes.co.kr Model No.: APM Page 2 of 2

Label and Location Model No.: APM Page 1 of 1 Aram Huvis Co., Ltd. FCC ID: XYCAPM Model: APM This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

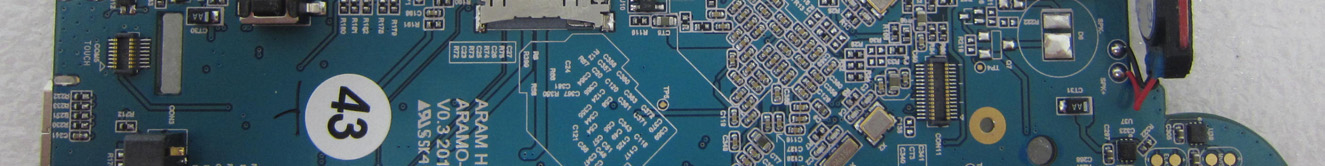

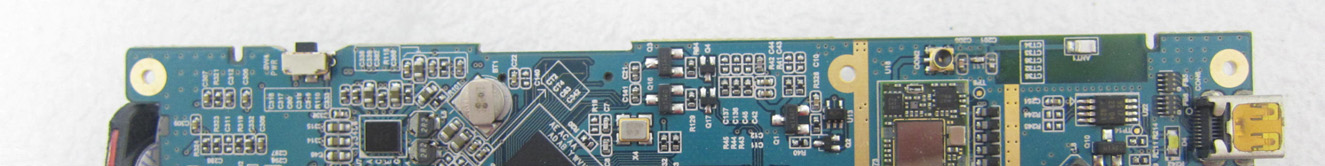

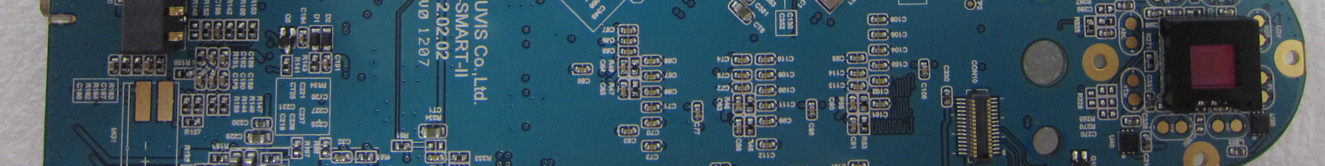

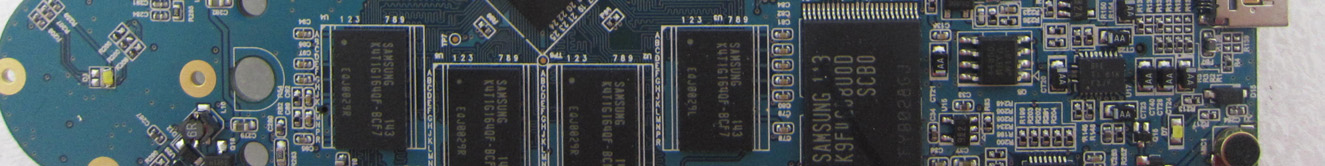

www.kes.co.kr Model No.: APM Page 1 of 2 EUT Internal photographs Antenna www.kes.co.kr Model No.: APM Page 2 of 2 EUT Internal photographs

20110214V1.1 Antenna Design Guide AH 212M245001 2.4GHz Monopole Antenna 2.4GHz Monopole Antenna 2.4GHz: AH 212M245001 2.4GHz: AH 212M245001 Keep out area (No GND Area) PCB (GND) Keep Out Area （ No GND Area) Antenna Layout Radiation Pattern Normal (Omni) Corner of PCB Recommended Size 5 x 8 mm (40m ㎡ ) or more (Larger area provides the better performance.) Data Sheet Data Sheet Actual data L= 2.0 ± 0.3 mm * Ultra Small Efficienc y : -1.8dB ( 66% ) W= 1.25 ± 0.2 mm * Low Profile Peak Gain : 0.9dBi T= 0.85 ± 0.2 mm Average Gain : -0.9dBi (ZX plane-Vertical polarization) 2400MHz 2450MHz 2500MHz Efficienc y [dB] -1.9 -1.8 -1.7 ( 64%) ( 66%) ( 68%) Peak gain [dBi] 0.9 0.9 1.3 Average XY-plane TX-H -4.1 -4.0 -3.9 gain TX-V -9.8 -9.4 -8.7 [dBi] YZ-plane TX-H -3.0 -3.0 -2.9 TX-V -35.7 -35.1 -34.9 ZX-plane TX-H -10.1 -9.8 -9.3 TX-V -1.0 -0.9 -0.9 Frequency [MHz] XY-plane YZ-plane ZX-plane @2450MHz (-X) (+Z) (+Z) (-Y) (+Y) (-Y) (+Y) (+X) (-X) unit: dBi (+X) (-Z) (-Z) @2450MHz -45-35-25-15 -5 5 TX-HTX-V -45-35-25-15 -5 5 TX-HTX-V -45-35-25-15 -5 5 TX-HTX-V +Y +X +Z +Y +X +Z +Y +X +Z 123456789 1011 1950 2450 2950 ■ Shapes ■ Feature ■ Radiation Pattern ■ Electrical Characteristics *on Taiyo Yuden’s Evaluation Board ( 52 x 10 mm )*Element-GND Distance : 4.0 mm ■ VSW R Bandwidth: 260MHz (VSWR<2) + 0.3 - 0.1 Dimensions and Land pattern Dimensions and Land pattern Recommended Land Pattern External Dimensions [Unit: mm] 11 1.25 e L W T e Design Guide Design Guide Recommended Pattern Layout GND Feed Line 0.5mm width 5mm or more. 0.5mm 0.5mm 4mm or more. 0.5mm or more. 50 Ω Input ANT No Ground Area There should be no ground whatsoever within the antenna mounting area (within the red dotted line) including inner layer. Matching circuit(1005 chip : (HK1005 , EVK105) ◎ Our recommendation is mounting positi on had better on the corner of PCB. Design Guide Design Guide Precautions I . Surface GND layer around the antenna area should be connected with inner GND layer via through hole. II. Matching circuit line should be designed as 50 Ω . III. Thickness of PCB can be flexible. IV. Matching circuit should be placed as close as possible to the antenna. V. Use of Taiyo Yuden HK1005 and EVK105 series as matching components are highly recommended for the optimized result. VI . Matching values may be required to get readjusted contingent upon the condition such as proximity to the metal and/or chassis, board size, etc. Example of through hole Recommended land pattern 1 2 1.25 Unit : mm ※ 1 Do not arrange the surface and inside of layer pattern near the an tenna mounting area. （ Refer to our company evaluation circuit board ） ※ 2 A solder area is set at solder resist. Land for input terminal Land for matching circuit （ 1005 chip ） 50 Ω Input Land for NC terminal GND Design Guide Design Guide Metal Avoidance Area Please do not set close to a metal housing, paint including the metal, board GND, the metal chassis,etc. Front or Back Side

RF exposure According to FCC part 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in § 1.1307(b) Limits for Maximum Permissible Exposure (MPE) f= frequency in ㎒ Friis transmission formula: Pd = (Pout×G)/(4×pi×R 2 ) Where, Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Results <Wireless Lan> Operation mode / Data Rate Frequency (㎒) Peak output power (㏈m) Antenna gain (㏈i) Power density at 20 ㎝(㎽/㎠) Limit (㎽/㎠) 802.11b / 11Mbps 2442 14.75 1.3 0.008 00 1 802.11g / 24Mbps 2442 17.15 1.3 0.013 91 1 802.11n(HT20) / MCS7 2442 16.71 1.3 0.012 57 1 802.11n(HT40) / MCS6 2442 16.63 1.3 0.012 34 1 <Bluetooth BDR & EDR> Operation mode / Data Rate Frequency (㎒) Peak output power (㏈m) Antenna gain (㏈i) Power density at 20 ㎝(㎽/㎠) Limit (㎽/㎠) GFSK/ 1Mbps 2441 4.83 1.3 0.000 88 1 8-DPSK / 3Mbps 2441 3.30 1.3 0.000 57 1 Frequency range (㎒) Electric field strength(V/m) Magnetic field strength (A/m) Power density (㎽/㎠) Average time (A) Limits for Occupational / Control Exposures 300 – 1 500 -- -- f/300 6 1 500 - 100000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300 – 1 500 -- -- f/1500 6 1 500 – 100 000 -- -- 1 30

ARAMO_SMART2_MAIN V0.2 2011.11.17 137.2 x 153.3 [mm] 1.0T OUTLINE Layer [ 8 ] Thickness Revision Board Size Date Model Name U7 U1 C10 C11 C7C8 R10 R11 R14 R19 R2 R20 R21 R22 R23 R24 R26 R27 R28 R3 R35 R36 R37 R38 R39 R4 R40 R41 R42 R43 R44 R45 R5 R52R54 R59 R60 U14 U5 U3 U4 C12 C141 C134 C135 C14 C19 C21 C22 C205 C33 C34 C346 C38 C143 C212 C345 C47 C53 C78 C79 C80 C81 C82 C84 C89C92 C94 C95 C97C98 U2 R1 X4 C131 C240 C295 C239 C282 C292 R88 R89 C132 C279 C238 C201 U13 FB3FB4 FB5FB6 FB1 FB2 Q20 TP1 TP3 U17 C133 C222C223C224C226C232 C242 C243 C244 C247 C248 C251 C253 C254 C267 C278 C280 C306 C307 C308 C309 C311 C312 C313 C316 C317 C318 C336 C338 C342 C368 C382 C314C315 C319 C321 C333 C335 C339 C46 C52 C59 C60 D11 D12 D13 D14 D8 U12 U22 U19 U27 U28 U31 U32 R101 R108 R110 R111 R115 R120 R121 R122 R123R124 R125 R126 R145 R148 R150 R154 R172 R173 R183 R184 R185 R186 R187 R188 R189 R198 R199 R200 R201 R202 R203 R204 R205R206 R207 R208 R209 R211 R213 R214 R215 R217 R223R226 R229 R237 R238 R239 R242 R243R244 R247 R249 R250 R251 R252 R266 R284 R286 R290 R301 R303 R319 R321R323 R324 R325 R327 R328 R331 R332 R63 R130 R83 R281R283 Q1 Q10 Q13 Q18 Q5 CT28 CT29 TP14 TP6 TP7 TP8 U21 L4 L5 U20 L10 L12 L13 L8 L9 CT4 CT2 CT9 CT10 CT11 CT12 CT14 CT15 CT16 CT8 CT17 CT23 CT24 CT20 CT22 CT40 CT21 CT18 L6 U11 R254 U15 C332 CT27 C37 Q2 Q21 Q15 C281 C283 C293 C296 C284 C285 C286 C287 D15 R234R248 BT1 U6 MIC1 CON6 C136 C137 U18 L11 C139 C140 C144 C42 C43 C44 C45 D16 Q17Q4 CON2 R129 R227 R64 Q16Q3 CT32CT33CT34CT35CT36 TP22 U41 L14 ANT1 L3 C145 D4 D5 D7 R76R77 R305 C147 C146 CT13 FB7 R132 R133 R134 R135 R136 R137 R138 R139 CON7 R259 D3 SW3 SW1 SW2 SW4 U33 R260 R285 R289 R300 R302 U7 U1 L3 C10 C11 C7C8 R10 R11 R14 R19 R2 R20 R21 R22 R23 R24R26 R27R28 R3 R35 R36 R37 R38 R39 R4 R40 R41 R42 R43 R44 R45 R5 R52R54 R59 R60 U14 U5 U3 U4 C12 C141 C134 C135 C14 C19 C21 C22 C205 C33 C34 C346 C38 C143 C212 C345 C47 C53 C78C79C80C81C82C84 C89C92 C94 C95 C97C98 U2 R1 X4 C131 C240 C295 C239 C282 C292 R88 R89 C132 C279 C238 C201 FB3FB4 Q20 U17 C133 C222C223C224C226C232 C242 C243 C244 C247 C248 C251 C253 C254 C267 C278 C280 C306 C307 C308 C309 C311 C312 C313 C316 C317 C318 C336 C338 C342 C368 C382 C314C315 C319 C321 C333 C335 C339 C46 C52 C59 C60 D11 D12 D13 D14 D8 U12 U22 R101 R108 R110 R111 R115 R120 R121 R122 R123R124 R125 R126 R145 R148 R150 R154 R172 R173 R183 R184 R185 R186 R187 R188 R189 R198 R199 R200 R201 R202 R203 R204 R205R206 R207 R208 R209 R211 R213 R214 R215 R217 R223R226 R229 R237 R238 R239 R242 R243R244 R247 R249 R250 R251 R252 R266 R284 R286 R290 R301 R303 R319 R321 R323 R324 R325 R327 R328 R331 R332 R63 R130 R83 R281R283 Q1 Q10 Q13 Q18 Q5 L4 L5 U20 L10 L12 L13 L8 L9 CT4 CT2 CT9 CT10 CT11CT12 CT14 CT15 CT16 CT8 CT17 CT18 L6 R254 U15 C332 C37 C281 C283 C293 C296 C284 C285 C286 C287 D15 R234R248 C136 C137 C139 C140 C144 C42 C43 C44 C45 D16 CON2 R129 R227 R64 Q16Q3 CT32CT33CT34CT35CT36 L14 C145 D4D5D7 R76R77 R305 C147 FB7 R132 R133 R134 R135 R136 R137 R138 R139 R259 U33 R260 R285 R289 R300 R302 ARAMO_SMART2_MAIN V0.2 2011.11.17 137.2 x 153.3 [mm] 1.0T OUTLINE Layer [ 8 ] Thickness Revision Board Size Date Model Name X2 X3 C1 C2 C3 C4 C5 C6 C9 R12 R13 R15 R16 R17 R18 R25 R46 R47 R48 R49 R50 R51 R53 R55 R56 R57 R58 R6 R7 R8 R9 C100 C101 C102 C103 C104C105 C106 C107 C108 C109 C110 C111 C112 C113 C114 C115 C116 C117 C198 C331 C123 C126 C128 C13 C118 C120 C121 C124 C127 C129 C130 C195 C323 C20 C23 C24 C25 C26 C27 C324 C32 C48 C49 C50 C51 C54 C55 C56 C57 C58 C63 C64C65 C66 C67C68 C69 C70 C71 C72 C73 C74C75 C76 C77 C83 C85 C86 C87 C88 C90 C91 C93 C96 C99 C230 R69 R66 R67 R68 R72 R73 R92 R70 R218R224 R81 X1 C197 C196 C191 C192 R86 R87 C193 R90 R93 R94 C125 R97 R98 R99 R100 R74 R75 R91 R95 J1 U10 TP2 CON3 C119 C188C189 C190 C194 C219 C225 C231 C234C235 C236 C241 C245C246 C249C250 C252 C329 C326 C268C269 C297 C298 C299 C300 C301 C302 C303 C304 C305 C310 C320 C337 C340 C341 C343 C344 C347 C348 C349 C350 C351 C352 C353 C354 C355 C356 C357 C358 C359 C360 C361 C362 C363 C364 C365 C366 C367 C369 C370 C371 C372 C380 C381 C383 C122 C220 C221 C227C228 C229 C233 C237 C30 C322 C334 C61 C62 CON8 CON9 R102 R103 R104 R105 R106 R107 R109 R112 R113 R114 R116 R117 R118 R119 R141 R142 R143 R144 R146 R147 R149 R151 R152 R153 R155 R156 R157 R158 R159 R160 R161 R162 R163 R164 R165 R166 R167 R168 R169R174R175 R176 R177 R178 R179 R180 R181 R182 R190 R216 R193 R194 R195 R196 R197 R212 R219 R221 R222 R71 R230R231R232R233 R236R240 R245 R246 R267 R29 R30 R307 R31 R310 R312 R313 R32 R322 R326 R329 R33 R330 R333 R334 R335 R34 R350 R399 R400 R61 R84R85 R96 R220 R235 R241 Y1 Q7 D6 U8 SW7 CT30 CT31 TP4 TP5 TP9 CT7 CT3 CT5 CT6 CT19 CT25 CT26 CT1 CON10 CON11 C325 C330 D1 D2 U38 U39 U40 U37 R170 R253 U9 Q6 Q8 Q11 Q19 CON1 C138 C142 R171 R191 R131 SPK-SPK+ MG1 C270 R225R228 R255R270 CON5 Q12 U24 R271 X2 X3 C1 C2 C3 C4 C5 C6 C9 R12 R13 R15 R16 R17 R18 R25 R46 R47 R48 R49 R50 R51 R53R55 R56 R57 R58 R6 R7 R8 R9 C100 C101C102C103C104C105C106 C107 C108 C109C110C111C112 C113C114 C115 C116 C117 C198 C331 C123 C126 C128 C13 C118 C120 C121 C124 C127 C129 C130 C195 C323 C20 C23 C24 C25 C26 C27 C324 C32 C48 C49 C50 C51 C54 C55 C56 C57 C58 C63 C64C65 C66 C67C68C69C70C71 C72 C73 C74C75 C76 C77 C83C85C86C87 C88 C90C91 C93 C96 C99 C230 R69 R66 R67 R68 R72 R73 R92 R70 R218R224 R81 X1 C197 C196 C191 C192 R86 R87 C193 R90 R93 R94 C125 R97 R98 R99 R100 R74 R75 R91 R95 U10 C119 C188C189 C190 C194 C219 C225 C231 C234C235 C236 C241 C245C246 C249C250 C252 C329 C326 C268 C269 C297 C298 C299 C300 C301 C302 C303 C304 C305 C310 C320 C337 C340 C341 C343 C344 C347 C348 C349 C350 C351 C352 C353 C354 C355 C356 C357 C358 C359 C360 C361 C362 C363 C364 C365 C366 C367 C369 C370 C371 C372 C380 C381 C383 C122 C220 C221 C227C228 C229 C233 C237 C30 C322 C334C61 C62 CON8 CON9 R102 R103 R104 R105 R106 R107 R109 R112 R113 R114 R116 R117 R118 R119 R141 R142 R143 R144 R146 R147 R149 R151 R152 R153 R155 R156 R157 R158 R159 R160 R161 R162 R163 R164 R165 R166 R167 R168 R169R174R175 R176R177 R178 R179 R180 R181 …

Text truncated - open the document above for the full version.

KES Co., Ltd. C-3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-120064 Page: (1) of (74) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 TEST REPORT Part 15 Subpart B&C 15.247 Equipment under test Aramo Professional Microscope Model name APM FCC ID XYCAPM Applicant Aram Huvis Co., Ltd. Manufacturer Aram Huvis Co., Ltd. Date of test(s) 2012.06.18 ~ 2012.06.23, 2012.09.13 Date of issue 2012.09.13 Issued to Aram Hubis Co., Ltd. 801 Byucksan Technopia, 434-6 Sangdaewon-dong, Sungnam-City, Kyungki-do, Korea Issued by KES Co., Ltd. C3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea 477-6, Hageo-ri, Yeoju-eup, Yeoju-gun, Gyeonggi-do, 469-803, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 Test and report completed by : Report approval by : Jae Jun Lee Test engineer Gyu-cheol Shin Technical manager KES Co., Ltd. C-3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-120064 Page: (2) of (74) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 Revision history Revision Date of issue Test report No. Description - 2012.06.27 KES-RF-120044 Initial 1 2012.09.13 KES-RF-120064 Retest and add the data in Radiated spurious emission & band edge(P.44~P.56) KES Co., Ltd. C-3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-120064 Page: (3) of (74) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 TABLE OF CONTENTS 1.0 General product description ............................................................................................................................... 4 1.1 Test frequency .................................................................................................................................................... 4 1.2 Information about variant model ....................................................................................................................... 4 1.3 Device modifications ......................................................................................................................................... 4 1.4 Test facility ........................................................................................................................................................ 5 1.5 Laboratory accreditations and listings ............................................................................................................... 5 2.0 Summary of tests ............................................................................................................................................... 6 2.1 Test data ............................................................................................................................................................. 7 2.1.1 Pre-scanned output power ......................................................................................................................... 7 2.1.2 6 ㏈ bandwidth & 99 % occupied bandwidth .......................................................................................... 8 2.1.3 Output power ........................................................................................................................................... 22 2.1.4 Power spectral density ............................................................................................................................. 30 2.1.5 Radiated spurious emissions and conducted spurious emissions ............................................................ 38 2.1.6 AC conducted emissions ......................................................................................................................... 69 Appendix A. Test equipment used for test ........................................................................................................................ 72 Appendix B. Test setup photos ......................................................................................................................................... 73 KES Co., Ltd. C-3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-120064 Page: (4) of (74) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 1.0 General product description Equipment under test Aramo Professional Microscope Model name APM Serial number N/A Frequency Range 2 412 ㎒ ~ 2 462 ㎒(802.11 b/g/n_HT20) // 2 422 ㎒ ~ 2 452 ㎒(802.11 n_HT40) 2 402 ㎒ ~ 2 480 ㎒(Bluetooth BDR & EDR) Modulation technique DSSS, OFDM, GFSK, 8DPSK Number of channels 11(802.11 b/g/n_HT20) // 7(802.11 n_HT40) // 79(Bluetooth BDR & EDR) Antenna type & gain Fixed type(Chip antenna) // 1.3 ㏈i Power source DC 3.7 V 1.1 Test frequency - 802.11 b/g/n_HT20 Low channel Middle channel High channel Frequency (㎒) 2 412 2 442 2 462 - 802.11 n_HT40 Low channel Middle channel High channel Frequency (㎒) 2 422 2 422 2 452 1.2 Information about variant model N/A 1.3 Device modifications N/A KES Co., Ltd. C-3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-…

Text truncated - open the document above for the full version.

KES Co., Ltd. C-3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-120044 Page: (64) of (65) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 Appendix B. Test setup photos Radiated field emissions KES Co., Ltd. C-3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-120044 Page: (65) of (65) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 AC conducted emission
