XZH-5570312020LED Shop Light

怡迅（珠海）光电科技有限公司 ETI Solid State Lighting (Zhuhai) Ltd. 产 品 说 明 书 Product Instruction Manual 产品名称： LED吊装支架灯 Product Name: LED Shop Light 型号编码Model No.： 55703141 生产商：怡迅（珠海）光电科技有限公司 Manufacturer: ETI Solid State Lighting (Zhuhai) Ltd. 地址：珠海市高新区科技创新海岸中珠南路1号一期2#-2厂房 Address: No.1, Zhongzhu Road South,Science & Technology Innovation Coast, High Tech District, Zhuhai City, Guangdong Prov., China 电话Tel：0756-3390990 传真Fax：0756-3390778 网址Web：www.etissl.com.cn 目录Content 1.产品简介ProductIntroduction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐--‐‐‐‐‐‐‐‐‐‐3 1.1产品描述ProductDescription ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐---‐‐‐‐‐‐‐3 1.2产品示意图SchematicDiagram‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐----‐‐‐‐‐‐‐‐3 2.产品特性ProductFeature‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐4 2.1产品特点Productcharacteristic ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐4 2.2技术参数Specification‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐5 2.3配光性能LightDistribution‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐6 3.安装方法Methodofapplication‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐4-7 4.维护说明MaintenanceInstruction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐-----‐‐‐‐‐7 5.环境要求Environmentalrequirement‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐8 6.产品执行标准Productcarriedstandard‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐8 7.包装说明Packageinstruction ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐8 7.1包装规格Packagespecification‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐8 7.2包装清单Packagelist ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐8 1.产品简介Product Introduction 1.1. 产品描述：Product Description 1 外形尺寸Out Size： 1100x110x65mm； 2 外壳：铝型材6063，电源盒：铝，灯罩：PC； Shell:AL6063 , Drive box:AL, lamp cover:PC 3 内置电源； built-in drive with box 4 灯珠：三星2835白光灯珠，SMD 3V 0.5W Samsung-LED-2835 1.2. 产品外形图：Product schematic diagram: 2.产品特性 Product Featuers: 2.1. 产品特点Product characteristics ： a.长寿命5万小时以上； Long lifetime (above 50,000hrs) b.高效节能环保； High efficiency, energy saving, environmental friendly c.耐冲击,抗震能力强,无紫外线和红外线辐射； Impact resistant, shock resistant, no UV and IR radiation d.绿色环保，无有害气体排放，使用热量低，安全可靠。 Green Initiative, no harmful gas is emitted, low heat is generated while used, safe and reliable . e.光色纯正，使用过程中无频闪，提供更好的视觉感受，保护人眼视力。 Authentic and pure light color, no flicker, protecting your eyes while providing better visualenjoyment. 2.2 技术参数Specification 项目/单位Item/ 参数Parameter 电气参数Electronicratings 额定整灯功率/WRatedPower/W 50W 额定输入电压/VRatedInputvoltage/V AC120V 额定工作频率/HzFrequency/Hz 50/60Hz 额定电源效率/%RatedPowerefficiency 75% 额定功率因数（PF）RatedPowerFactor 0.9 额定输入电流/ARatedInputcurrent/A 0.34A 额定总谐波失真RatedI‐THD <20% 是否调光 否 光源参数Photometricratings LED类型/数量LEDtype/Qty. Samsung-2835/0.5W/92PCS 整灯光通量 /Lm Lumen 3600 Lm 整灯光效/Lm/WLumenefficiency ≥90 色温/K Temprature/K 4000K 显色指数/Ra CRI 80 光束角BeamAngle ≥120° 物理参数Physicalinformation 材质Material PC+AL 工作温度operatingtemperature 45°C 储存温度storagetemperature ‐30～45°C 防护等级IPrating IP20 灯具规格(L×W×H)/mmLuminairedimension(L×W×H)/mm 1100x110x65 净重/gNetweight 1660 g 设计寿命/hrsLifetime/hrs 50000h 3 安装方法 Installation Instructions 3.1.1将两个挂钩固定在天花板表面，挂钩间距760mm Mount the two fixed on the ceiling surface, hook spacing is 760 mm. 3.1.2将吊链挂到灯体背面的挂孔 Will the hanging hole on the reverse of the chain hoist on the lamp body back. 3.1.3将吊链挂到天花板挂钩上 Will the hanging hole on the reverse of the chain hoist on the lamp body back. 3.1.4重复以上两个步骤，用吊链钩住灯具，并挂到天花板挂钩上完成安装，插上插头通 电即可工作 Repeat the above two steps ,with chain hoist hook lamps and lanterns, and hung from the ceiling hook to complete the installation, plug in electricity work。 3.1.5互联安装 End to end connection 3.1.5.1 产品可以互联安装，从第二台灯具开始，参照以上第1,2,3,4步骤安装。 The fixture can be installed end to end. Starting from the second lamps, with reference to the above steps 1, 2, 3,4 installation. 3.1.5.2 将要互联的第二台灯插头线插到前一台灯的插座上即可，最多互联8台灯具。 Will be the second lamp plug in line connected to the former one desk lamp socket. Most Interconnected eight lamps and lanterns 3.1.6 蓝牙连接操作 Control with Bluetooth 1. Open the Bluetooth on your smart phone. 2. The phone will search for “shoplight A”(Test version name), press “shoplight A” to connect the phone to the light. After connected successfully, the light will sound “The light is connected”. 3. Then open you music APP, choose the songs and start to play. 4. To disconnect the shoplight, hit the “shoplight A” again, after disconnected successfully, it will sound “The phone is disconnected”. Note： Installation Instructions - Provided in accordance with the Sec. Gen. In addition, the following markings shall be provided: 1. Instructions for interconnected unit use shall include at least the following: a) Voltage and current rating of portable luminaire; b) Maximum number of units to be interconnected; and c) Maximum distance between units to be interconnected. 2.Caution that installation not be made on a radiant-heating ceiling, and, for swag-type units, a caution that the hooks are to engage the chain only and not the electric cord shall be included 3. “the unit is intended to be installed directly beneath a ceiling-mounted receptacle, and tha t excess cord should be kept out of the workspace, such as by securing it to one of the support ing chains with a cable tie” 4. the maximum distance to the receptacle is determined by the length of cord provided. FCC STATEMENT Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement, the device can be used in portable exposure condition without restriction. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television…

Text truncated - open the document above for the full version.

Model difference statement Application company: ETI Solid State Lighting (Zhuhai) Ltd Address: No.1, Zhongzhu Road South, Science & Technology Innovation Coast, High Tech District, Zhuhai City, Guangdong Prov., China Product name: LED Shop Light Trade mark: ETI, Commercial Electric, Hampton Bay Model name: 5570312020, 557031XX (where “XX=00-99” denotes color temperature) All the model are the same except model name and LED color temperature. Sign 2020/06/11 FCC ID: XZH-5570312020

DATE :2020.6.11 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: _ XZH-5570312020__ Product Name: _ LED Shop Light _____ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Sean Luo Title: Dept. Manager Applicant Company: ETI Solid State Lighting (Zhuhai) Ltd

DATE: 2020.6.11 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Dongguan New Testing Centre Co., Ltd；3F, No. 1 the 1st North Industry Road, Songshan Lake Science & Technology Park, Dongguan, Guangdong, China, 523808. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with ETI Solid State Lighting (Zhuhai) Ltd； No.1, Zhongzhu Road South, Science & Technology Innovation Coast, High Tech District, Zhuhai City, Guangdong Prov., China <Signature> Name: Sean Luo Title: Dept. Manager Applicant Company: ETI Solid State Lighting (Zhuhai) Ltd

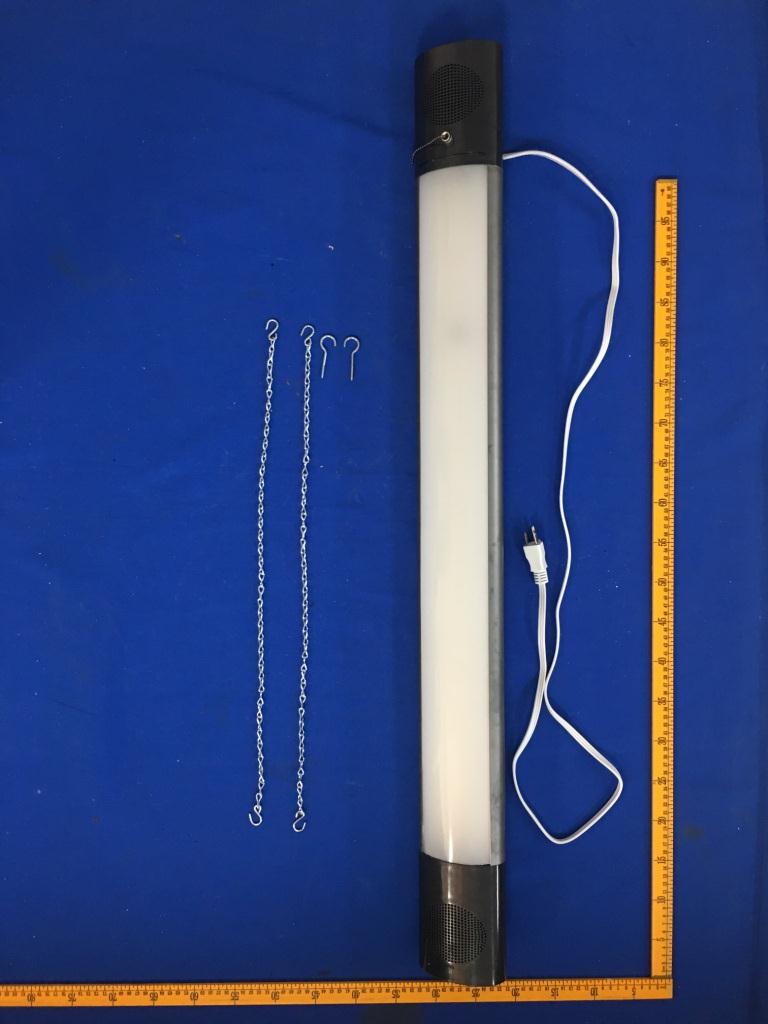

External photos Model:55703141

Label and label location

Internal Photos Model:55703141 Antenna

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√ f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Worse case is as below: [2402 MHz 3.476 dBm（2.226mW）output power] (2.226mW /5mm) ·[√2.4 02(GHz)]=0.7< 3.0 for 1-g SAR Then SAR evaluation is not required
