XZH-ANT-9C-BMotion Sensor

User Manual 1. Overview This sensor uses 5.8 GHz CW Doppler radar to detect moving people/objects. It outputs a control signal upon motion detection. Ideal for lighting, security, and automation. This product is suitable for a wide range of applications thanks to its 360° detection coverage, stable performance across varying temperatures, and ability to penetrate non-metallic materials. Intelligent Lighting Control – Ideal for corridors, stairwells, restrooms, elevator lobbies, offices, conference rooms, underground parking garages, and courtyard pathways. It enables automatic "light on when motion is detected, light off or dim when vacant" functionality, significantly reducing energy waste. Security and Automation – Can be used as an intrusion detector in warehouses, equipment rooms, or other unattended areas, triggering alarms or surveillance systems upon motion detection. It also works seamlessly with automatic doors, motion-activated switches, smart toilet lids, and motorized curtains for touch-free operation. Smart Home and IoT Integration – Serves as a motion/presence sensing node that integrates with smart home systems. When movement is detected, it can trigger not only lighting but also HVAC systems, ventilation fans, smart speakers, and other connected devices, enabling fully automated scene-based experiences. 2. Key Specs  Frequency: 5845 ± 20 MHz  Modulation: CW  Power: DC 12–24 V  Antenna Gain: 0 dBi (microstrip)  Temp Range: -30°C to +60°C  Detection Range: ~5–15 m | Angle: ~120° (H) / 80° (V) 3. Wiring Terminal Function VCC DC 12–24 V (+) GND DC Ground (–) OUT Control output 4. Installation Tips  Mount on stable, non-metal surface.  Avoid metal shielding in front of antenna.  Height: 2–6 m recommended. 5. Troubleshooting Issue Likely Fix No motion output Check orientation (movement toward/away works best) False triggers Remove nearby moving objects (fans, curtains) Short range Remove metal obstacles, check power supply 6.FCC statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause interference. 2) This device must accept any interference, including interference that may cause undesired operation of the device. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 1.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body at all times. 2.This device has been evaluated to meet general RF exposure requirements and can be used in mobile exposure conditions without restriction.

ETi Solid State Lighting，lnc Covered Equipment Certification Attestation Letter 7/13/2026 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: XZH-ANT-9C-B ETi Solid State Lighting，lnc (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. ETi Solid State Lighting，lnc (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. ETi Solid State Lighting，lnc (“the applicant”) certifies that the equipment for which authorization issought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity oranti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Sean.Luo Title: supervisor Company Name: ETi Solid State Lighting，lnc Date: 7/13/2026

ETi Solid State Lighting，lnc * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter July 13, 2026 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: XZH-ANT-9C-B Per section 2.911(d)(7) of the FCC rules, ETi Solid State Lighting，lnc (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: ETi Solid State Lighting，lnc Physical U.S. Company Address: 720 Northgate Parkway Wheeling, IL 60090 Agent name: Sean.Luo Agent Email Address: [email protected] ,[email protected] FRN: 0032652737 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Signed: Printed name: Sean.Luo Printed name: Sean.Luo Title: supervisor Title: supervisor Company Name: ETi Solid State Lighting，lnc Company Name: ETi Solid State Lighting，lnc Date: July 13, 2026 Date: July 13, 2026 FRN Code: 0032652737 FRN Code: 0032652737

ETi Solid State Lighting，lnc 7/13/2026 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT - FCC On our behalf, I appoint ETi Solid State Lighting，lnc to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, Printed name: Sean.Luo

ETi Solid State Lighting，lnc July 13, 2026 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: XZH-ANT-9C-B Pursuant to Sections 0.457(d) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request permanent confidential treatment of exhibits identified as such in the table below and request they are permanently withheld from public review based on the documents containing trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. We also request short-term confidentiality on certain exhibits until the intended date of marketing as outlined below. We request the exhibits be withheld from public view for a period of insert number of days (cannot exceed 180 days) days. We attest marketing of the product will only commence after the period of short-term confidentiality expires, or if marketing is to commence before the requested number of days listed above, the grantee will inform Nemko to release the Short-Term Confidentiality information withheld on the FCC equipment authorization website. Exhibit Type of Confidentiality Requested Block Diagrams ☒ Permanent ☐ Short Term External Photos ------------------ ☐ Short Term Internal Photos ☐ Permanent* ☐ Short Term Operation Description ☒ Permanent ☐ Short Term Parts List & Placement/BOM ☒ Permanent ☐ Short Term Tune-Up Procedure ☐ Permanent ☐ Short Term Schematic Diagrams ☒ Permanent ☐ Short Term Test Setup Photos ------------------ ☐ Short Term User’s Manual ☐ Permanent* ☐ Short Term The asterisked items (*) require further information to be provided in this justification letter before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. Note: any documents held under the Short-Term confidentiality will automatically become public after the requested time if an appropriate extension request has not been received. Any exhibits (i.e., schematic diagrams) that may have already been requested to have “Permanent” confidentiality as shown above need not be repeated under Short-Term confidentiality request. Sincerely, Signed: Printed name: Sean.Luo Title: supervisor Company Name: ETi Solid State Lighting，lnc

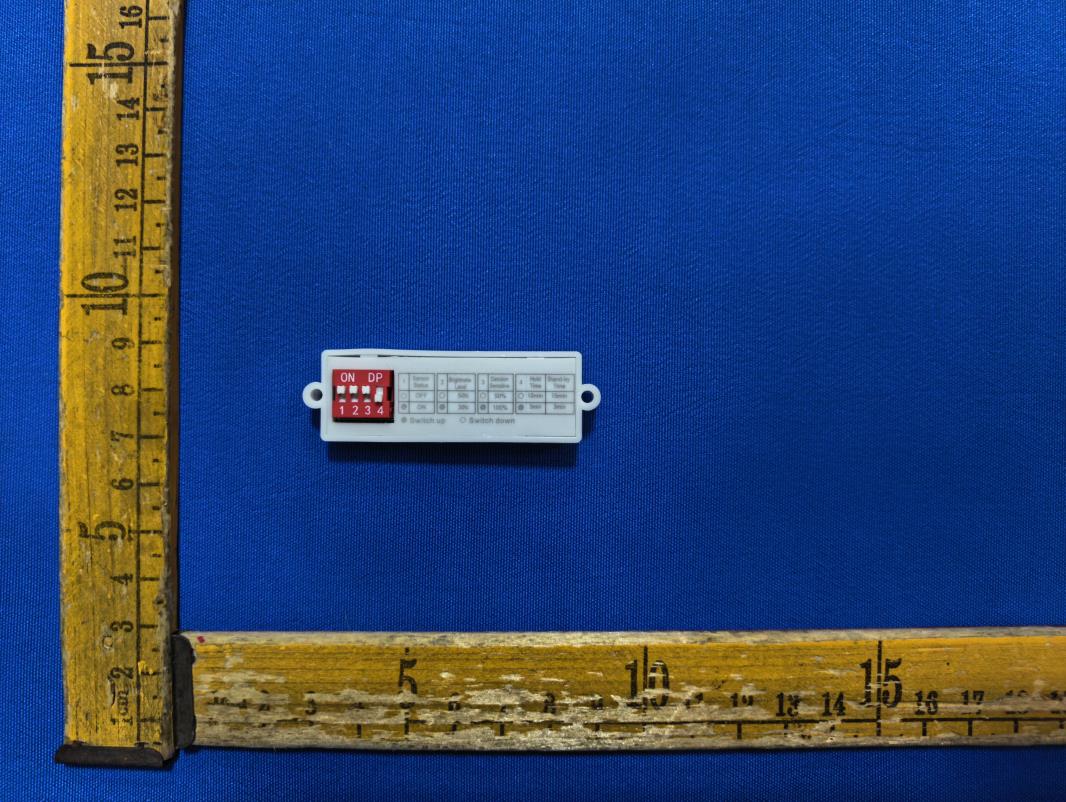

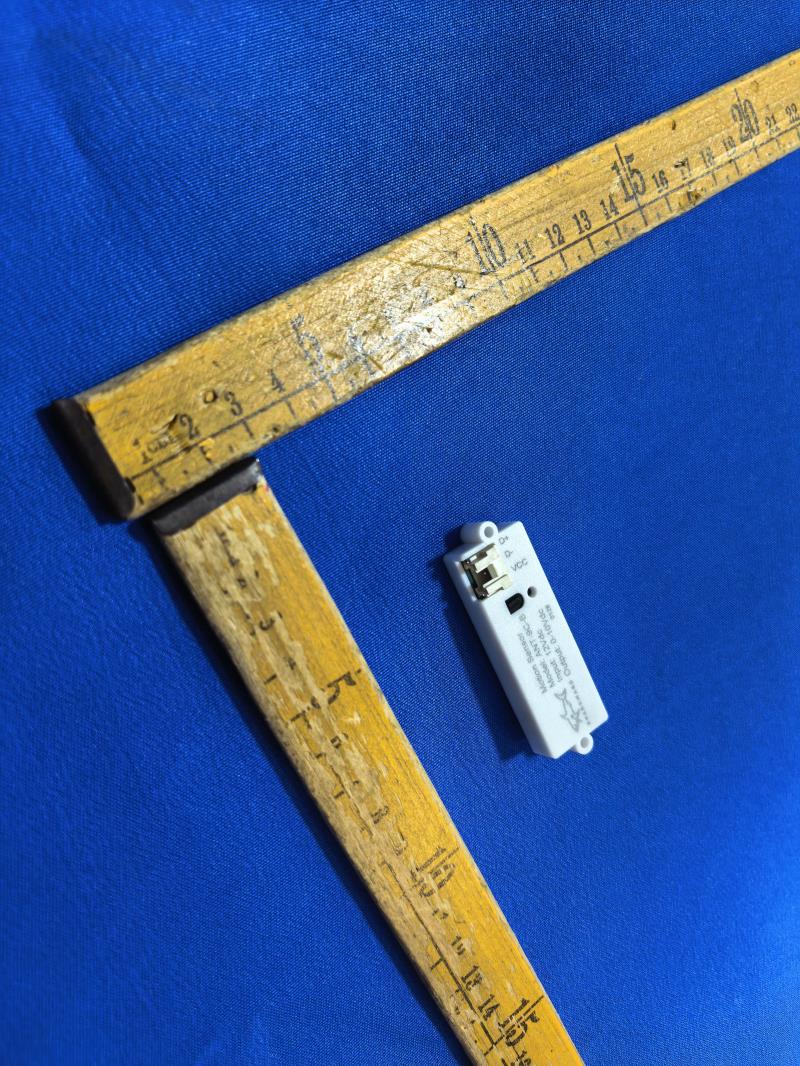

Label and Label Locaion

Internal Photos antenna

Page 1 of 2 FCC-ID: XZH-ANT-9C-B RF Exposure evaluation FCC ID: XZH-ANT-9C-B Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density Page 2 of 2 FCC-ID: XZH-ANT-9C-B 2. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 3. Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0dBi for 5.8GHz , the RF power density can be obtained. Mode E (dBuV/m) EIRP (dBm) EIRP (mW) Power Density At 20 cm (mW/cm 2 ) Power Density (mW/cm 2 ) Test Results CW 94.55 -0.61 0.87 0.0001 1.0000 PASS 4. Conclusion The SAR evaluation is not required.

一.模块参数 1.模块型号：ANT-9C-B 2.供电电压：12V-24V,电流30MA; 3.工作频率：5.845G±20MHZ 4.Antenna bandwidth:20MHZ 5.Channel Number:：single channel 6.Modulation Type: CW 7.Antenna Type: microstrip antenna； 8.Antenna Gain:0dBi 9. Manufacturer：NINGBO SHARKWARD ELECTRONICS CO., LTD #88 Gongmao Road No.3,Jishigang Industrial Zone, Haishu District ,Ningbo 315171,China
