XZZ-WB-198INNER STRUCTURE WIRELESS SIGNAL BOX

PAGE 1 ..................................................................................... 2 ....................................................................... 3 ....................................................................... 4 ........................................ 5 ................................................. 6 .................................................. 7 .............................. 8 ........................................... 9 ................................................. 10 .......................................................... 10 Contents Warnings Package contentsQuick Start Guide Choosing a location for your device Installing the Exterior AntennaInstalling the Interior AntennaPowering your Inner Structure Signal BoxDo you need more coverage area?Signal Booster specificationsGuarantee and warranty Before starting the initial installation process, you should read the entire instruction manual and understand the impor-tance of following the recommended installation instructions. There are important safety and operating information guide-lines to insure proper performance of your device. Failure to do so could be hazardous and result in damage to your device, voiding your warranty.After reading the entire instruction manual and before actu-ally installing, SCT Wireless, Inc. TM strongly recommends that you visualize where each component will be placed. This will avoid unnecessary problems with your installation (i.e. nail holes, reinstalling a component, re-wiring etc), and create a pleasant and successful experience with this device.*NOTE: All SCT Wireless, Inc. TM devices are manufactured to provide you with a pleasant experience, by following the simple instructions within in this manual you will be assured not to cause adverse effects on any cellular network. PAGE 10 1-Year Warranty SCT Wireless, Inc.™ warrants for a period of one (1) year this product is free from any defects in material or workmanship. If a defect is found by SCT Wireless, Inc.™, SCT Wireless, Inc. agrees to repair or replace the product at its own discretion EXCLUDING ALL SHIPPING CHARGES. This product must have been registered with SCT Wireless, Inc. within 30-days of purchase and you are the original owner. To return a product, an RMA number must be obtained by contacting customer support. SCT Wireless, Inc. TM will not accept returns unless all parts, packaging, and accessories along with dated proof of purchase with original receipt (copies not permit-ted) from where you purchased your product must be included with your return. Failure to return all product, parts, packaging, and accessories will result in only the product returned being replaced. If the product has been modified, abused or tampered with in any manner, SCT Wireless, Inc. will consider the warranty void. Any use of non SCT Wireless, Inc.™ antennas, cables or other accessories will void your warranty. Disclaimer: All information included in this document by SCT Wireless, Inc. TM is believed to be complete and accurate. SCT Wireless, Inc. TM assumes no responsibility or liability for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use. Copyright © 2010 SCT Wireless, Inc. TM All rights reserved. For Additional Technical Support Contact [email protected] Phone: 888.728.6330 Local: 707.200.2506 Fax: 888.728.6322 FCC ID: XZZ-WB-198ICModel Antenna connectorsAntenna impedance Dimensions Weight FrequencyPassband Gain Dual-Band Wireless 800/1900 MHz Specifications Sphere TNC Female 50 ohms 3.5 x 3.5 x 1 inch (8.8 x 8.8 x 2.5 cm) 0.3 lbs (0.14 kg) 824-894 MHz / 1850-1990 MHz 55 dB Technical Specifications Sphere Inner Structure Wireless Dual Band Signal Box              Contact SCT Technical support at 888-728-6330 or e-mail us at [email protected] TM User Guide EXPERIENCE SATISFACTION TM SCT WIRELESS SIGNAL CONTROL TECHNOLOGY W S TM EXPERIENCE SATISFACTION TM Signal Boxes Routers Wireless Modems Antennas Accessories Copyright © 2010 SCT Wireless, Inc. All rights reserved. Visit www.SCTWireless.com for all your connection needs. Package Contents 1.) 5.) 6.) 4.) 7.) 2.) 3.) 1.) Inner Structure Wireless Signal Box2.) Interior Antenna3.) Interior (25ft.) Antenna Cable4.) Exterior 360° Antenna5.) Dual use mounting bracket6.) Exterior (25ft.) Antenna Cable7.) Wall Power Adapter PAGE 3 POWER PAGE 8 4.) Powering your Inner Structure Signal Box Plug the Micro USB connector of the Wall Power Adapter into the device labeled “power”. Plug the Wall Power Adapter cable into your 120v electrical outlet. The blue LED light indicates your Sphere Wireless Signal Box has power and is operational. If after powering up your device a red LED light appears, this is an indication that your antennas are likely incorrectly placed. In the unlikely situation that this error occurs, immediately unplug your power supply cable from the electrical 120V outlet immediately, and increase the separation between the exterior glass antenna and the front area patch antenna. Then re-connect the power supply cable into your 120v power source. The blue LED light indicates your Sphere Wireless Signal Box has power and is operational. Power Port Fault Indicator Lights Micro USB Wall Adapter BAND BAND POWER POWER Coverage Area BAND BAND POWER TM TM PAGE 2 You are cautioned that changes or modifications not expressly approved by SCT Wireless Inc. could void your authority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference and (2) this device must accept any interference received, including inter-ference that may cause undesired operation.FCC regulations require that antennas connected to this device can not exceed the maximum allowable dbi rating regardless of whether the antennas are installed …

Text truncated - open the document above for the full version.

SCT Wireless Inc. 1894 US Hwy 50 East Building 4 Suite 281 Carson City NV 89701 TEL: 888-728-6330 FAX: 888-728-6322 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: XZZ-WB-198 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. 1. 050510 Amplifier SCH.PDF 2. Airgoon Sphere Theory of Operation.PDF 3. 050510 Amplifier Block Diagram.PDF 4. 050510 Amplifier BOM.PDF 5. Airgoon Sphere Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued.

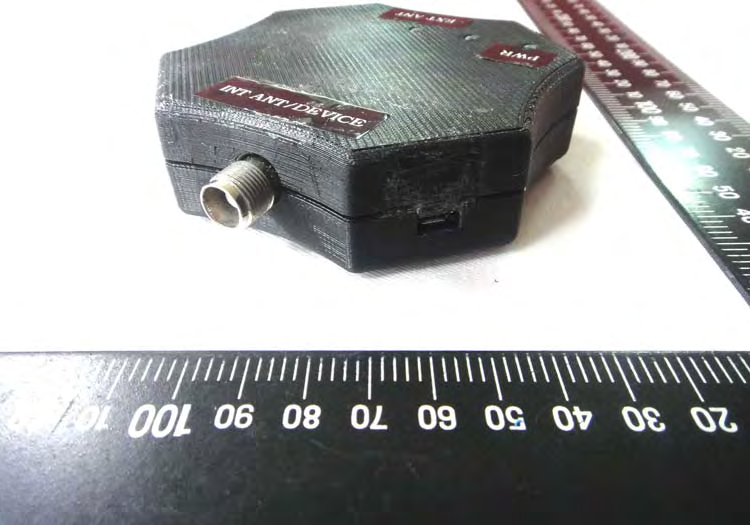

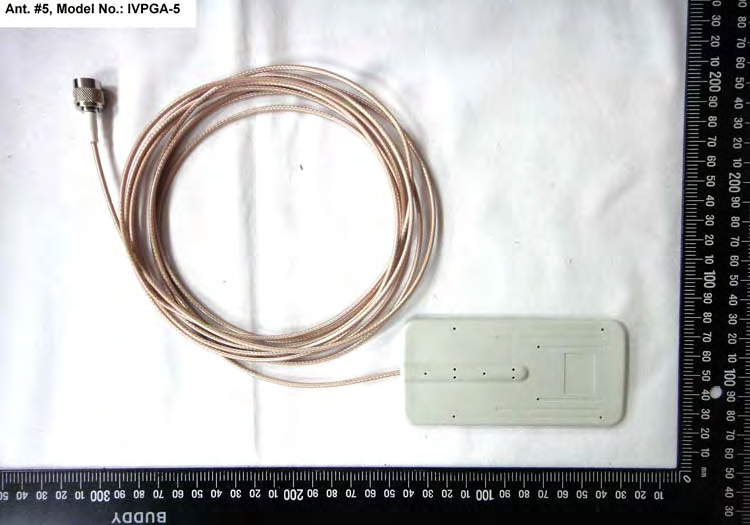

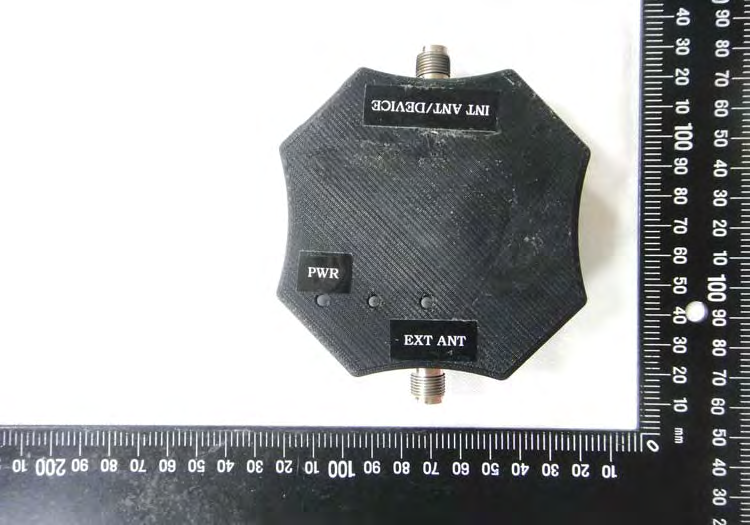

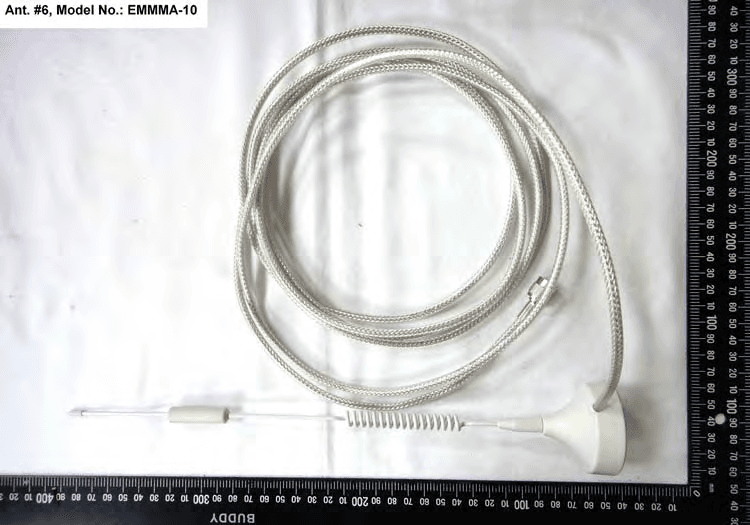

1 of 12 External Photos Model Number: Sphere FCC ID: XZZ-WB-198 IC ID: 9222A-SPTR 2 of 12 EUT Photo 1 ) EUT Photo 2 ) 3 of 12 EUT Photo 3 ) EUT Photo 4 ) 4 of 12 EUT Photo 5 ) EUT Photo 6 ) 5 of 12 EUT Photo 7 ) EUT Photo 8 ) 6 of 12 EUT Photo 9 ) EUT Photo 10 ) 7 of 12 EUT Photo 11 ) EUT Photo 12 ) 8 of 12 EUT Photo 13 ) EUT Photo 14 ) 9 of 12 EUT Photo 15 ) EUT Photo 16 ) 10 of 12 EUT Photo 17 ) EUT Photo 18 ) 11 of 12 EUT Photo 19 ) EUT Photo 20 ) 12 of 12 EUT Photo 21 )

LABEL LOCATION

1 of 5 Internal Photos Model Number: Sphere FCC ID: XZZ-WB-198 IC ID: 9222A-SPTR 2 of 5 EUT Photo 1 ) EUT Photo 2 ) 3 of 5 EUT Photo 3 ) EUT Photo 4 ) 4 of 5 EUT Photo 5 ) EUT Photo 6 ) 5 of 5 EUT Photo 7 )

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 MPE Report Test Report No. ： 1009FS15 Applicant ： SCT Wireless Inc Manufacturer ： Airgoon LTD. Product Type ： Wireless Inner Structure Trade Name ： SCT Wireless Model Number ： Sphere Dates of Test ： Sep. 23 ~ 24, 2010 Test Specification ： 47 CFR § 2.1091 47 CFR §1.1310 ANSI / IEEE Std.C95.1-1999 H46_2/99_237E: 1999 Location of Test Lab. ： Chang-an Lab. 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Sam Chuang Sep. 24, 2010 Alex Wu Sep. 24, 2010 Approve Signer Testing Engineer ©2010 A Test Lab Techno Corp. Report Number: 1009FS15Page 1 of 6 Contents 1. Description of Equipment under Test (EUT) ................................................................................................. 3 1.1 RF Output Power ................................................................................................................................ 4 2. Human Exposure Assessment ..................................................................................................................... 5 2.1 Test Result .......................................................................................................................................... 6 ©2010 A Test Lab Techno Corp. Report Number: 1009FS15Page 2 of 6 1. Description of Equipment under Test (EUT) Applicant SCT Wireless Inc Applicant Address 1894 US Hwy 50 East Building 4 Suite 281 Carson City NV 89701 Manufacturer Airgoon LTD. Manufacturer Address 2207 Concord Pike, Suite 700, Wilmington, DELAWARE Product Type Wireless Inner Structure Trade Name SCT Wireless Model Number Sphere Frequency Range 1852.4 - 1907.6 MHz WCDMA(RMC 12.2K) Band II Uplink 826.4 - 846.6 MHz WCDMA(RMC 12.2K) Band V 1932.4 – 1987.6 MHz WCDMA(RMC 12.2K) Band II Downlink 871.4 – 891.6 MHz WCDMA(RMC 12.2K) Band V Transmit Power WCDMA(RMC 12.2K) Band II: 0.257 W / 24.10 dBm (Average conducted power) Uplink WCDMA(RMC 12.2K) Band V: 0.142 W / 21.51 dBm WCDMA(RMC 12.2K) Band II: 0.006 W / 7.47 dBm Downlink WCDMA(RMC 12.2K) Band V: 0.009 W / 9.64 dBm Type of Antenna Uplink Ant. #1 Model No.: E3A-W15, Exterior 360º Antenna DownlinkAnt. #2 Model No.: ICA-W8, Exterior 360º Antenna Antenna Gain (dBi) Uplink Ant. #1 WCDMA Band II / WCDMA Band V : 15dBi DownlinkAnt. #2 WCDMA Band II / WCDMA Band V : 8dBi Temperature Range -30 ~ +70°C The above equipment was tested by Compliance Certification Services Inc. For compliance with the requirements set forth in 47 CFR § 2.1091 & 47 CFR § 1.1310. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties ©2010 A Test Lab Techno Corp. Report Number: 1009FS15Page 3 of 6 1.1 RF Output Power Band Ant. Port CH Frequency (MHz) Time-Average Conducted power (dBm) 9262 1852.4 22.48 9400 1880.0 24.10 Uplink 9538 1907.6 22.25 9662 1932.4 7.47 9800 1960.0 6.13 WCDMA Band II Downlink 9938 1987.6 3.90 4132 826.4 21.10 4183 836.6 21.51 Uplink 4233 846.4 21.42 4357 871.4 9.35 4408 881.6 9.47 WCDMA Band V Downlink 4458 891.6 9.64 ©2010 A Test Lab Techno Corp. Report Number: 1009FS15Page 4 of 6 2. Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR §1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. ” This product is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Client has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 cm from the user. Thus, this product is a “mobile device” as defined in section § 2.1091 paragraph (b). Exposure evaluation Equation from page 18 of OET Bulletin 65, Edition 97-01 2 4R PG S π = Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna. ©2010 A Test Lab Techno Corp. Report Number: 1009FS15Page 5 of 6 2.1 Test Result Band Data Mode Frequency (MHz) Limit (mw) Distance (cm) [R] Power (dBm) [P] ANT Gain (dBi) [G] [P]+ [G] (W) [TP] Duty Cycle Power Density [S] 1850.2 1.00020 22.48 15.00 5.598 1.0000.679 1880.0 1.00020 24.10 15.00 8.128 1.0000.986 Uplink 1909.8 1.00020 22.25 15.00 5.309 1.0000.644 1932.4…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 22H and 24E Product Type ： Wireless Inner Structure Applicant ： SCT Wireless Inc Address 1894 US Hwy 50 East Building 4 Suite 281 Carson City NV 89701 Trade Name ： SCT Wireless Model Number ： Sphere Test Specification ： FCC 47 CFR PART 22H: Oct, 2009 FCC 47 CFR PART 24E: Oct, 2009 CANADA RSS-131 Issue 2: Jul. 2003 ANSI/TIA-603-C 2004 Issue Date ： Sep. 24, 2010 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. A Test Lab Techno Corp. Report Number: 1008FR17 1/115 Revision History Rev. Issue Date Revisions Revised By 00 Sep. 24, 2010 Initial Issue A Test Lab Techno Corp. Report Number: 1008FR17 2/115 Verification of Compliance Issued Date: 2010/09/24 Product Type : Wireless Inner Structure Applicant : SCT Wireless Inc Address : 1894 US Hwy 50 East Building 4 Suite 281 Carson City NV 89701 Trade Name : SCT Wireless Model Number : Sphere FCC ID : XZZ-WB-198 IC ID : 9222A-SPTR EUT Rated Voltage : DC 12V, 1.0A Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 22H: Oct, 2009 FCC 47 CFR PART 24E: Oct, 2009 CANADA RSS-131 Issue 2: Jul. 2003 ANSI/TIA-603-C 2004 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 22H, Part 24E. The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Miller Lee ) (Testing Engineer) (Gary Wu) A Test Lab Techno Corp. Report Number: 1008FR17 3/115 TABLE OF CONTENTS 1 General Information ....................................................................................................................... 6 1.1. EUT Description...................................................................................................................... 6 1.2. Mode of Operation .................................................................................................................. 7 1.3. EUT Exercise Software........................................................................................................... 7 1.4. Configuration of Test System Details......................................................................................7 1.5. Test Site Environment............................................................................................................. 8 1.6. Summary of Test Result ......................................................................................................... 8 2 RF Output Power Test.................................................................................................................... 9 2.1. Limit ........................................................................................................................................ 9 2.2. Test Instruments ..................................................................................................................... 9 2.3. Test Setup............................................................................................................................... 9 2.4. Test Procedure........................................................................................................................ 9 2.5. Uncertainty............................................................................................................................ 10 2.6. Test Result ............................................................................................................................ 10 3 Occupied Bandwidth / Band Edge Test ..................................................................................... 11 3.1. Limit ...................................................................................................................................... 11 3.2. Test Instruments ................................................................................................................... 11 3.3. Setup .................................................................................................................................... 11 3.4. Test Procedure...................................................................................................................... 12 3.5. Uncertainty............................................................................................................................ 12 3.6. Test Result ............................................................................................................................ 13 4 Conducted Spurious Emissions Test ........................................................................................ 39 4.1. Limit ...................................................................................................................................... 39 4.2. Tes t Instruments ................................................................................................................... 39 4.3. Setup .....................................…

Text truncated - open the document above for the full version.

Part 22H & Part 24E Test Setup Photographs Radiated Emissions Test Configuration: Below 1GHz _ Front View Below 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1008FR17 1/2 Radiated Emissions Test Configuration: Above 1GHz _ Front View Above 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1008FR17 2/2
