XZZSCT-UM300USB BROADBAND MODEM

Element Mobile SCT-UM300 Wireless Broadband Modem User Guide Version 1.0 1 Introduction Mobile Connect is a software program running on your PC. With Mobile Connect, the user can activate the device and establish a data link. Windows The Main Window ...........................................................................................................................2 Data Link .........................................................................................................................................3 Basics .............................................................................................................................. 3 Establishing a data link ................................................................................................... 3 Disconnect a data link ..................................................................................................... 3 Profiles (Dialup Configuration) ...................................................................................... 3 Statistics .......................................................................................................................... 4 Settings .............................................................................................................................................5 General ............................................................................................................................ 5 Network........................................................................................................................... 5 Flow warning .................................................................................................................. 6 Version ............................................................................................................................ 7 OTA ................................................................................................................................ 7 Device Activation ........................................................................................................... 8 Live Update ..................................................................................................................... 8 Help ................................................................................................................................................12 Mac Installation .............................................................................................................................13 Mac Home Screen ..........................................................................................................................20 Data Link ...................................................................................................................................... 20 Establishing a data link ................................................................................................. 20 Disconnect a data link ................................................................................................... 21 Device Activation ......................................................................................................................... 21 OTA .............................................................................................................................. 22 View OTA ..................................................................................................................... 22 Display .......................................................................................................................... 22 Device Activation ......................................................................................................... 22 Network......................................................................................................................................... 22 Frequency Band ............................................................................................................ 23 Safety Information .........................................................................................................................24 2 The Main Window The main window of Mobile Connect consists of three areas: 1. Main Menu - Connect, Statistics, Setting. Make proper configuration to functions. 2. Client - display the details of each function. 3. Status - display the status of the Mobile Equipment. Icons in the main window ICON DESCRIPTION Signal level Internet connection duration Transferring baud rate Receiving baud rate 3 Data Link Basics You can establish a dialup data link over CDMA/EVDO via the device. The dialup data link requires network coverage for CDMA or EVDO. In each of the links, the device will be connected to a specific phone number. Establishing a data link 1. Select “Connect” tab 2. Select a profile from the profile list, or click “More Profiles” to set a profile as your default profile 3. Select “Connect” tab and click the “Connect” button to establish a data link. Disconnect a data link To disconnect, press the “Disconnect” button. Profiles (Dialup Configuration) Add 1. Select "Connect-->More Profiles". 2. Select "New", enter the profile name, choose a network in the popup window; setup the device in advanced settings; click "Finish" to save and close the window. Note: a. Each profile depends on the setup settings of the carriers. Contact your service provider for these settings. b. If the settings for CSD, DNS, PPP and TCP/IP are needed, click on "Advanced Settings" to enter the proper settings for your carrier. After selecting, click "OK" to save the settings. Set Default Profile 1. Select "Connect-->More Profiles" 2. Choose a profile in the list, and then click "Set as Default". Modify 1. Select "Connect-->More Profiles"; 2. Choose a profile in the list, and then click "View/Modify"; 3. Make modifications; 4. Click "Finish" to save the settings. 4 Delete 1. Select "Connect-->More Profiles" 2. Choose a p…

Text truncated - open the document above for the full version.

SCT Wireless Inc. 1894 US Hwy 50 East Building 4 Suite 281 Carson City NV 89701 TEL: 888-728-6330 FAX: 888-728-6322 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: XZZSCT-UM300 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operation Description Antenna Location Tune Up Procedure BOM Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. 2010/11/25

SCT Wireless Inc. 1894 US Hwy 50 East Building 4 Suite 281 Carson City NV 89701 TEL: 888-728-6330 FAX: 888-728-6322 Attestation for FCC Declaration of Conformity Brand: SCT Wireless Model Number: SCT-UM300 Date : 2010/11/25 FCC ID: XZZSCT-UM300 Please be notified that we, SCT Wireless Inc., declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report numbers supporting the DoC are 1008FE21. Testing in regards to this report was done by A Test Lab Techo Corp., located in No.140-1 Changan Str., Bade city Taoyuan County Taiwan, which has been accredited in accordance to all of the requirements of 47 CFR 2.948 (d) and (e) of the FCC riles and KDB349827. Sincerely,

SCT Wireless Inc. 1894 US Hwy 50 East Building 4 Suite 281 Carson City NV 89701 TEL: 888-728-6330 FAX: 888-728-6322 1 of 2 Date: 2010/11/25 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize (Miller Lee /Measurement Center Manger) of (A Test Lab Techno Corp.) and hereafter referred to as (ATL), to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by (Miller Lee /Measurement Center Manger) of (A Test Lab Techno Corp.) on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing (ATL) as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; SCT Wireless Inc. 1894 US Hwy 50 East Building 4 Suite 281 Carson City NV 89701 TEL: 888-728-6330 FAX: 888-728-6322 2 of 2 i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. 2010/11/25 REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

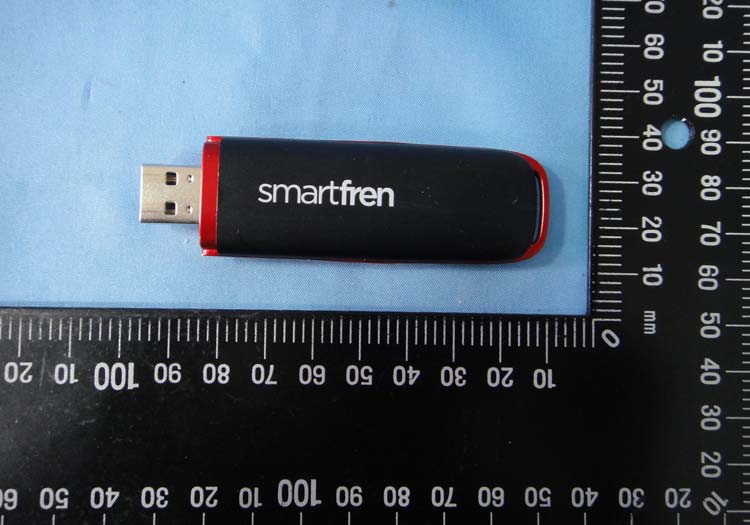

1 of 3 External Photos Model Number: SCT-UM300 FCC ID: XZZSCT-UM300 2 of 3 EUT Photo 1 ) EUT Photo 2 ) 3 of 3 EUT Photo 3 ) EUT Photo 4 )

EUT LABEL Serial Number: FCC ID: xxxxxxxxxx xxxxxxxxxx xxxxxxxxxx

Serial Number: FCC ID: xxxxxxxxxx xxxxxxxxxx xxxxxxxxxx

1 of 6 Internal Photos Model Number: SCT-UM300 FCC ID: XZZSCT-UM300 2 of 6 EUT Photo 1 ) EUT Photo 2 ) 3 of 6 EUT Photo 3 ) EUT Photo 4 ) 4 of 6 EUT Photo 5 ) EUT Photo 6 ) 5 of 6 EUT Photo 7 ) EUT Photo 8 ) 6 of 6 EUT Photo 9 ) EUT Photo 10 )

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 SAR EVALUATION REPORT Test Report No. ： 1011FS18 Applicant ： SCT Wireless Inc Product Type ： USB Broadband Modem Trade Name ： SCT Wireless Model Number ： SCT-UM300 Dates of Test ： Nov. 22 ~ Nov. 24, 2010 Test Environment ： Ambient Temperature： 22 ±2 ° C Relative Humidity：40 - 70 % Test Specification ： Standard C95.1-2005 IEEE Std. 1528-2003 2.1093;FCC/OET Bulletin 65 Supplement C [July 2001] RSS-102 Issue 4 (March 2010) FCC KDB 447498 D01 Mobile Portable RF Exposure V04, Published on Nov. 16, 2009 FCC KDB 616217 D01 SAR for Laptop with screen Ant V01, Published on Nov. 16, 2009 FCC KDB 941225 D01 SAR test for 3G devices V02 Max. SAR ： 0.737 W/kg Body SAR Test Lab Location ： Chang-an Lab 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. The test results in the report only apply to the tested sample. Sam Chuang Nov. 26, 2010 Alex Wu Nov. 26, 2010 Approve Signer Testing Engineer ©2010 A Test Lab Techno Corp. Report Number: 1011FS18Page 1 of 92 ©2010 A Test Lab Techno Corp. Report Number: 1011FS18Page 2 of 92 Contents 1. Description of Equipment under Test (EUT) ..................................................................................... 3 2. Introduction .......................................................................................................................................... 4 3. SAR Definition ...................................................................................................................................... 4 4. SAR Measurement Setup .................................................................................................................... 5 5. Test Equipment List ............................................................................................................................. 6 6. Tissue Simulating Liquids................................................................................................................... 7 6.1 Ingredients.................................................................................................................................... 8 6.2 Recipes......................................................................................................................................... 8 6.3 Liquid Confirmation ...................................................................................................................... 9 7. Measurement Process ....................................................................................................................... 10 7.1 Device and Test Conditions........................................................................................................ 10 7.2 RF Conducted Output Power ..................................................................................................... 10 7.3 Test Mode Description................................................................................................................ 14 7.4 System Performance Check....................................................................................................... 15 7.5 Measurement Procedures .......................................................................................................... 17 7.6 Spatial Peak SAR Evaluation ..................................................................................................... 18 8. Measurement Uncertainty ................................................................................................................. 19 9. SAR Test Results Summary .............................................................................................................. 21 9.1 Std. C95.1-2005 RF Exposure Limit...........................................................................................29 10. Conclusion.......................................................................................................................................... 30 11. References .......................................................................................................................................... 30 Appendix A - System Performance Check ........................................................................................... 31 Appendix B - SAR Measurement Data .................................................................................................. 34 Appendix C - Calibration ........................................................................................................................58 1. Description of Equipment under Test (EUT) Applicant ： SCT Wireless Inc Applicant Address ： 1894 US Hwy 50 East Building 4 Suite 281 Carson City NV 89701 Manufacturer ： Airgoon LTD. Manufacturer Address ： 2207 Concord Pike, Suite 700, Wilmington, DELAWARE Product Type ： USB Broadband Modem Trade Name ： SCT Wireless Model Number ： SCT-UM300 FCC ID ： XZZSCT-UM300 Tx Frequency ： CDMA 2000, 1xRTT revision A, EVDO release 0, EVDO release A 824- 849 MHz Cellular Band 1820 - 1910 MHz PCS Band RF Conducted Power ： 0.119 W / 20.77 dBm Cellular Band (Average) 0.045 W / 16.57 dBm PCS Band Max. SAR Measurement ： 0.737 W/kg Body SAR Antenna Type ： monopole Antenna Device Category ： Mobile Device RF Exposure Environment ： General Population / Uncontrolled Battery Option ： Standard Application Type ： Certification This wireless portable device ha…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 22H and 24E Product Type ： USB Broadband Modem Applicant ： SCT Wireless Inc Address 1894 US Hwy 50 East Building 4 Suite 281 Carson City NV 89701 Trade Name ： SCT Wireless Model Number ： SCT-UM300 Test Specification ： FCC 47 CFR PART 22H: Oct, 2009 FCC 47 CFR PART 24E: Oct, 2009 ANSI/TIA-603-C 2004 Issue Date ： Nov. 26, 2010 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. A Test Lab Techno Corp. Report Number: 1009FR14 1/69 Revision History Rev. Issue Date Revisions Revised By 00 Nov. 26, 2010 Initial Issue A Test Lab Techno Corp. Report Number: 1009FR14 2/69 Verification of Compliance Issued Date: 2010/11/26 Product Type : USB Broadband Modem Applicant : SCT Wireless Inc Address : 1894 US Hwy 50 East Building 4 Suite 281 Carson City NV 89701 Trade Name : SCT Wireless Model Number : SCT-UM300 FCC ID : XZZSCT-UM300 EUT Rated Voltage : DC 5V (USB Interface) Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 22H: Oct, 2009 FCC 47 CFR PART 24E: Oct, 2009 ANSI/TIA-603-C 2004 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment was tested by A Test Lab Techno Corp. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 22H, Part 24E. The test results of this report relate only to the tested sample identified in this report. Approved By ： Reviewed By ： (Manager) (Miller Lee ) (Testing Engineer) (Gary Wu) A Test Lab Techno Corp. Report Number: 1009FR14 3/69 TABLE OF CONTENTS 1 General Information .......................................................................................................................... 6 1.1. EUT Description......................................................................................................................... 6 1.2. Mode of Operation ..................................................................................................................... 7 1.3. EUT Exercise Software.............................................................................................................. 8 1.4. Configuration of Test System Details......................................................................................... 8 1.5. Test Site Environment................................................................................................................ 8 1.6. Summary of Test Result ............................................................................................................ 9 2 RF Output Power Test..................................................................................................................... 10 2.1. Limit ......................................................................................................................................... 10 2.2. Test Instruments ...................................................................................................................... 10 2.3. Test Setup................................................................................................................................ 10 2.4. Test Procedure......................................................................................................................... 10 2.5. Uncertainty............................................................................................................................... 10 2.6. Test Result ............................................................................................................................... 11 3 Effective Radiated Power / Equivalent Isotropic Radiated Power Test ..................................... 16 3.1. Limit ......................................................................................................................................... 16 3.2. Test Instruments ...................................................................................................................... 16 3.3. Test Setup................................................................................................................................ 17 3.4. Test Procedure......................................................................................................................... 18 3.5. Uncertainty............................................................................................................................... 18 3.6. Test Result ............................................................................................................................... 19 4 Occupied Bandwidth Test .............................................................................................................. 20 4.1. Limit ......................................................................................................................................... 20 4.2. Test Instruments ...................................................................................................................... 20 4.3. Setup ..................................................................…

Text truncated - open the document above for the full version.

Part 22H & Part 24E Test Setup Photographs Radiated Emissions Test Configuration: Below 1GHz _ Front View Below 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1009FR14 1/2 Above 1GHz _ Front View Above 1GHz _ Rear View A Test Lab Techno Corp. Report Number: 1009FR14 2/2

SAR Test Setup Photographs Horizontal Down Horizontal Up Vertical Front Vertical Back ©2010 A Test Lab Techno Corp. Report Number: 1011FS18Page 1 of 7 Body SAR Test Setup (Flat Section) Figure 1. Horizontal Up, EUT to Phantom 5mm space _ LCD Open90 degree Horizontal Up ©2010 A Test Lab Techno Corp. Report Number: 1011FS18Page 2 of 7 Body SAR Test Setup (Flat Section) Figure 2. Horizontal Down, EUT to Phantom 5mm space with USB Cable _ LCD Open90 degree Horizontal Down ©2010 A Test Lab Techno Corp. Report Number: 1011FS18Page 3 of 7 Body SAR Test Setup (Flat Section) Figure 3. Horizontal Down, EUT to Phantom 10mm space with USB Cable _ LCD Open90 degree Figure 4. Horizontal Down, EUT to Phantom 15mm space with USB Cable _ LCD Open90 degree ©2010 A Test Lab Techno Corp. Report Number: 1011FS18Page 4 of 7 Body SAR Test Setup (Flat Section) Figure 5. Vertical Front, EUT to Phantom 5mm space _ LCD Open90 degree Vertical Front ©2010 A Test Lab Techno Corp. Report Number: 1011FS18Page 5 of 7 Body SAR Test Setup (Flat Section) Figure 6. Vertical Back, EUT to Phantom 5mm space with USB Cable _ LCD Open90 degree Vertical Back ©2010 A Test Lab Techno Corp. Report Number: 1011FS18Page 6 of 7 Body SAR Test Setup (Flat Section) Figure 7. Vertical Back, EUT to Phantom 10mm space with USB Cable _ LCD Open90 degree Figure 8. Vertical Back, EUT to Phantom 15mm space with USB Cable _ LCD Open90 degree ©2010 A Test Lab Techno Corp. Report Number: 1011FS18Page 7 of 7
