Y2NRC24XXLow power wireless communication module

Radiocrafts Embedded Wireless Solutions RC241x/RC241xHP ©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 1 of 20 ZigBee ® - Ready RF Transceiver Modules Product Description The RC241x and RC241xHP RF Transceiver Modules are a series of compact surface- mounted modules specially designed for the ZigBee® PRO protocol stack. It can also be used for wireless star and mesh networks based on an IEEE 802.15.4 compliant PHY and MAC. The complete shielded module is only 16.5 x 35.6 x 3.5 mm and comes in both a low-power consuming variant (RC241x) and a High Power version with LNA and power amplifier for extended range (RC241xHP). The two variants are pin compatible. The module is available with integrated antenna or RF connector (U.FL type) Applications • Home- and building automation • Smart Metering / AMR / AMI • Electricity, gas, water and heat meters • Energy Service Portal (ESP) / Load Control • IP sensor networks (6LoWPAN) • Wireless sensor networks Features • 100mW / 20 dBm option and low-power option in same packages • 16.5 x 35,6 x 3.5 mm compact shielded module for SMD mounting • Integrated antenna option / U.FL connector option • 256 kB Flash memory, 8 kB SRAM • 15 digital and analogue I/Os, 8 channel 12 bit ADC • 2.0 – 3.6 V supply voltage, ultra low power modes • Optional 4 kB internal EEPROM • Optional internal SPI flash for over the air upgrade (OTA) • Conforms with EN 300 440 and EN 300 328 (Europe), FCC CFR 47 part 15 (US), ARIB STD-T66 (Japan) and G.S.R. 542(E)/45(E) (both for India) Quick Reference Data (typical over manufacturing lots at 3.3V, frequency 2440 MHz) Parameter RC241x RC241xHP Unit Frequency band 2.400-2.4835 GHz Number of channels 16 Data rate 250 kbit/s Max output power 4 20 * dBm Sensitivity (PER 1%) -97 -99 dBm Adjacent Channel Rejection 49 dB Alternate Channel Rejection 57 dB Supply voltage 2.0 - 3.6 3.0 - 3.6 Volt Current consumption, RX/TX 24/34 27/175 mA Current consumption, PD 0.4 10 uA Flash memory 256 kB RAM 8 kB Internal EEPROM (optional) 4 kB Operating Temperature -30 to +85 (-40 to +85 available on request) °C * Limited to 12 dBm in Europe due to ETSI regulation and limited to 10 dBm in US for frequency 2480MHz due to FCC regulation. Radiocrafts Embedded Wireless Solutions RC241x/RC241xHP ©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 2 of 20 Quick Product Introduction The RC241x series of modules are specially designed to comply with IEEE 802.15.4-based industry standards like ZigBee PRO, 6LoWPAN, Wireless HART, RF4CE and others. Using the module together with the TI Z-stack is a powerful combination to build any ZigBee profile and application. The module contains qualified RF hardware and enough processor power to run the complete ZigBee mesh network protocol for a full function device including the application. Using a pre-qualified module is the fastest way to make a ZigBee product and shortest time to market. The embedded RF HW and MCU resources in a 100% RF tested and pre-qualified module shorten the qualification and approval process. No RF design or RF expertise is required to add powerful wireless networking to the product. In most cases you only need supply voltage (for example an external battery) and a sensor/actuator and the module can run the entire application. The module can be delivered as: • RC241x/RC241xHP: HW platform. No preloaded firmware. • RC2411x-ZNM/RC2411HP-ZNM : A complete ZigBee PRO network module where the entire ZigBee PRO compliant stack and configurable application software is preloaded in module and available via a serial API. Article number and variants: -AT includes internal chip antenna -CT include U.FL type connector For detailed article numbers with various antenna variants, see page (18) About this document This document is one part of the documentation for the module. It describes the electrical parameters, RF performance, footprint and PCB layout and regulatory information. Depending on the selected FW solution one additional User Manual should be used. See • RC24xx/RC24xxHP Firmware Development User Manual for using the module as a hardware platform only • RC24xx/RC24xxHP-ZNM User Manual for details on how to use the ZNM module with preloaded ZigBee Pro stack and API through a serial interface. Figure 1 Document structure RC241x/RC241xHP Datasheet (This document) RC24xx/RC24xxHP Firmware Development User Manual RC24xx/RC24xxHP-ZNM User Manual Future User Manuals Radiocrafts Embedded Wireless Solutions RC241x/RC241xHP ©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 3 of 20 Pin Assignment Radiocrafts 1 10 11 30 33 31 53 34 Pin Description (See User Manual for more detailed pin out) Pin no Pin name Description and internal MCU connection 1 GND System ground 2 NC Reserved for future use 3 NC Reserved for future use 4 GND System ground 5 I/O pin Digital I/O 6 I/O pin Digital I/O 7 I/O pin Digital I/O 8 I/O pin Digital I/O 9 I/O pin Digital I/O 10 GND System ground 11 GND System ground 12 I/O pin Digital I/O, HGM for PA CTRL IN HP VERSION 13 I/O pin Digital I/O 14 I/O pin Digital I/O 15 I/O pin Digital I/O 16 I/O pin Digital I/O ENABLE(LNA_ENABLE) FOR PA CTRL IN HP VERSION 17 RESET_N RESET 18 NC Not connected 19 NC Not connected 20 NC Not connected 21 NC Not connected 22 NC Not connected 23 NC Not connected 24 NC Not connected 25 NC Not connected 26 NC Not connected 27 NC Not connected 28 NC Not connected 29 NC Not connected Radiocrafts Embedded Wireless Solutions RC241x/RC241xHP ©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 4 of 20 30 GND System ground 31 GND System ground 32 RF_TEST RF I/O connection for Automatic test purposes. For modules intended for use with U.FL connector, do not connect this pad. 33 GND System ground 34 GND System ground 35 VCC VCC 36 NC Not connected 37 NC Not connected 38 NC Not connected 39 NC Not connected 40 NC Not connected 41 SPI_FLASH_RESET RESET for SPI flash, NC for without SPI flash 42 I/O pin Digital I/O or Connected to 32kHz crystal 43 I/O pin Digi…

Text truncated - open the document above for the full version.

2010-11-30 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Nemko A/S, Instituttveien 6, N-2007 Kjeller, Norway , to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with, Radiocrafts AS, Sandakerveien 64, N-0484 OSLO, Norway. Dated this 30th of November 30 10 Agency agreement expiration date: 31 May 2011 By: Ørjan Nottveit Signature Printed Title: Product Line Manager On behalf of : Radiocrafts AS Telephone: +47 4000 5195

Radiocrafts Embedded Wireless Solutions Radiocrafts AS, Oslo Adresse/Address: Sandakerveien 64 NO-0484 OSLO NORWAY Attn: Reviewing Engineer Federal Communications Commission Tel: (+47) 4000 5195 Fax: (+47) 22 71 29 15 Web: www.radiocrafts.com E-mail: [email protected] Foretaksnr./Enterprise No.: NO 985 876 096 MVA Deres ref. / Your ref. Vår ref. / Our ref. Tlf. direkte / Direct Line Oslo, To Whom It May Concern: Pursuant of Section 0.457 and 0.459 of the FCC Commission's Rules we hereby request confidentiality for documents given below. Letter cover FCC ID: Y2NRC24XX We request that the - Schematic diagrams - Part list /Bill of Material (BOM) - Block diagrams - Technical descriptions submitted with this application, are withheld from public review. The documents are company proprietary information that should never get into the possession of our competition. Please contact me if there is any information you may need. Sincerely, Radiocrafts Ørjan Nottveit

Radiocrafts Embedded Wireless Solutions Radiocrafts AS, Oslo Adresse/Address: Sandakerveien 64 NO-0484 OSLO NORWAY Attn: Reviewing Engineer Federal Communications Commission Tel: (+47) 4000 5195 Fax: (+47) 22 71 29 15 Web: www.radiocrafts.com E-mail: [email protected] Foretaksnr./Enterprise No.: NO 985 876 096 MVA Deres ref. / Your ref. Vår ref. / Our ref. Tlf. direkte / Direct Line Oslo, To Whom It May Concern: This letter serves as an official request for a Modular Approval. A full modular approval is being requested for the FCC ID: Y2NRC24XX. Model number: RC2412CT RC2412AT RC2400 These products include a 32 kHz RTC clock oscillator for the microprocessor part of the module. Variant without this 32 kHz are also requested to be approved with same FCC ID Model without real time clock RC2411CT RC2411AT RC2401 RC2400 is based on a smaller PCB than RC2412, but have the same RF part - Same Transceiver - Same reference oscillator for RF part Memory options: The module has several options in terms of memory options. E.g. the embedded microcontroller can be used with 256 kB, 128 kB, 64 kB or 32 kB flash size. (Default is 256 kB). In addition an extra flash can be used with 128 kB or 256 kB memory and an extra EEPROM of 4 kB can be included. Information on the options will be printed on the label as -F64 if this is a RC2412CT with 64 kB flash in stead of 256 kB. The memory information will be separated from the model number. 2 With reference to FCC Public Notice DA00-1407, the FCC ID: Y2NRC24XX is characterized by: 1. The module has its own RF shielding that prevents coupling between the RF circuitry of the module and any wires or circuits in the device which the module is to be installed 2. The module transmitter has a data buffer that prevents over-modulation under conditions of excessive data rates. The duty cycle of the transmitter will never go above 27% within a 100 ms interval. 3. The RF output power level control, the frequency synthesizers and modulator are all powered from an internal low-drop power regulator to ensure FCC-compliance regardless of the design of the power supplying circuitry in the device into which the module is installed. 4. The module has an integrated ceramic antenna, or a non-standard connection point/connector(U.FL) 5. The module has been tested in a stand-alone configuration, only using an open PCB carrier as test jig. 6. The module is labeled with it own FCC ID number. This marking will be repeated on the outside of the device where the module is to be installed. 7. The module is supported with a User Manual that gives instructions on how to install and operate the module in order to comply with the regulations. 8. The output power is below the low threshold, SAR evaluation is therefore not required. _________________________ _2011-04-04___ Ørjan Nottveit Date

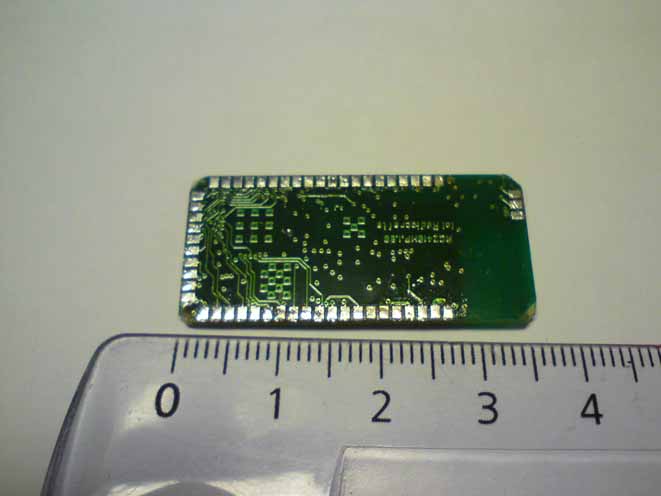

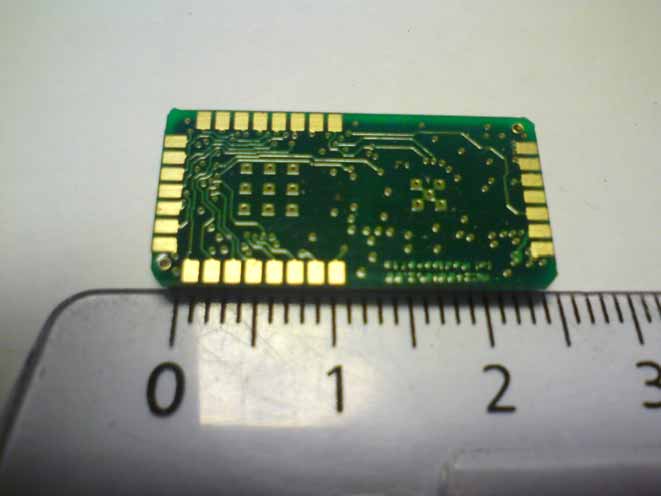

RC241x-CT/RC241xHP-CT RC241x-AT/RC241xHP-AT RC241x (all variants) RC2400/RC2400HP RC2400/RC2400HP RC241x inside RC2400 inside

Label location Model: RC2400 201050 FCC ID: Y2NRC24XX IC: 9402A-RC24XX Label location Model: RC2401 201050 FCC ID: Y2NRC24XX IC: 9402A-RC24XX Label location Model: RC2411AT 201050 FCC ID: Y2NRC24XX IC: 9402A-RC24XX Label location Model: RC2411CT 201050 FCC ID: Y2NRC24XX IC: 9402A-RC24XX Label location Model: RC2412AT 201050 FCC ID: Y2NRC24XX IC: 9402A-RC24XX Label location Model: RC2412CT 201050 FCC ID: Y2NRC24XX IC: 9402A-RC24XX

RC241x-CT/RC241xHP-CT RC241x-AT/RC241xHP-AT RC241x (all variants) RC2400/RC2400HP RC2400/RC2400HP RC241x inside RC2400 inside
