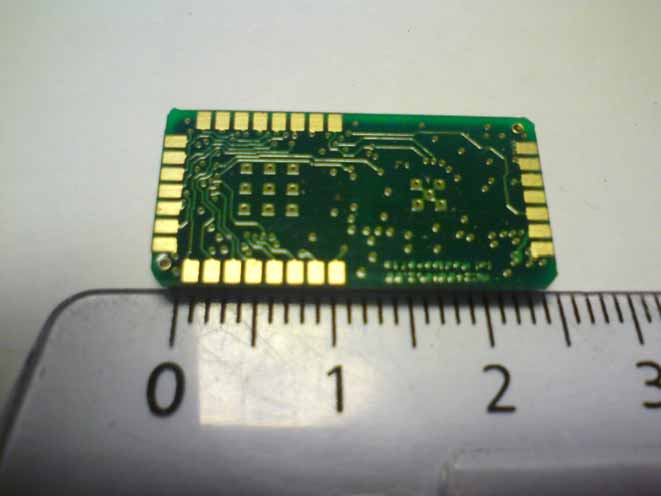

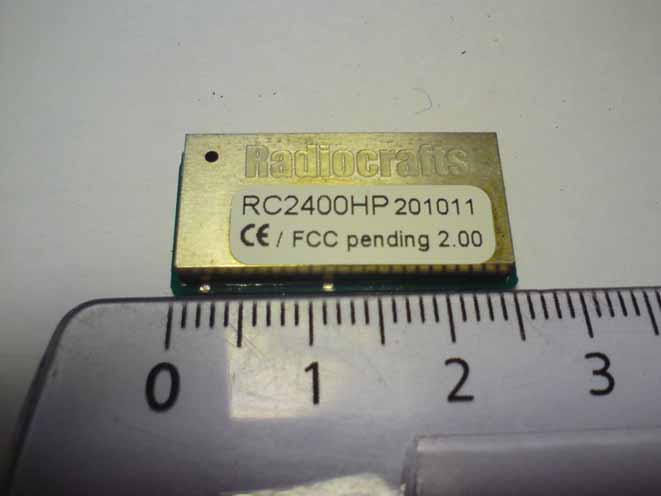

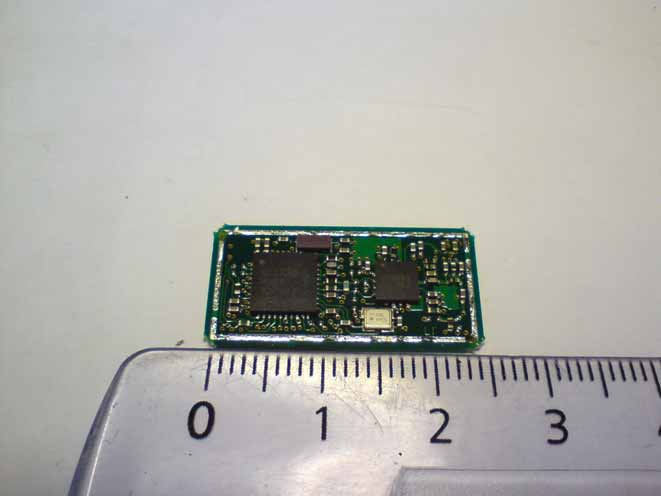

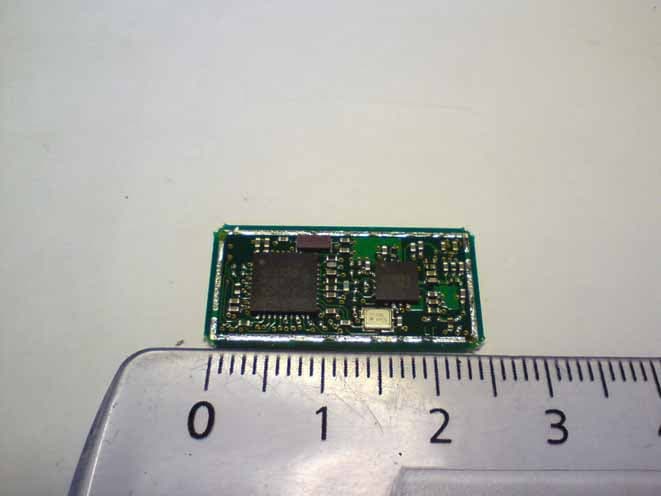

Y2NRC24XXHPLow power wireless communication module

Radiocrafts Embedded Wireless Solutions RC2400/RC2400HP ©2011 Radiocrafts AS RC2400/RC2400HP Data Sheet (rev. 1.2) Page 1 of 15 ZigBee ® - Ready RF Transceiver Modules Product Description The RC2400 and RC2400HP RF Transceiver Modules are a series of compact surface- mounted modules specially designed for the ZigBee® PRO protocol stack. It can also be used for other for wireless star and mesh networks based on IEEE 802.15.4 compliant PHY and MAC. The complete shielded module is only 12.7 x 25.4 x 3.3 mm and comes in both a low current variant (RC2400) and a High Power version with LNA and power amplifier for extended range (RC2400HP). The two variants are pin compatible. Applications • Smart Metering / AMR / AMI • Electricity, gas, water and heat meters • Energy Service Portal (ESP) / Load Control • IP sensor networks (6LoWPAN) • RF4CE remote controls • Wireless sensor networks/Building Automation Features • Complete ZigBee-ready module • 100mW / 20 dBm option and low-power option in pin compatible packages • 12.7 x 25.4 x 2.5 mm compact shielded module for SMD mounting • IEEE 802.15.4 compliant PHY • Single-cycle high performance 8051 microcontroller core • 256 kB Flash memory, 8 kB SRAM • 15 digital and analogue I/Os, 8 channel 12 bit ADC • UART, SPI and debug interfaces • On-board 32.768 kHz real time clock (RTC), 4 timers • High performance direct sequence spread spectrum (DSSS) RF transceiver • 2.0 – 3.6 V supply voltage, ultra low power modes • Optional 4 kB internal EEPROM • Conforms with EN 300 440 and EN 300 328 (Europe), FCC CFR 47 part 15 (US), ARIB STD-T66 (Japan) and G.S.R. 542(E)/45(E) (both for India) Quick Reference Data (typical at 3.3V, frequency 2440 MHz) Parameter RC2400 RC2400HP Unit Frequency band 2.400-2.4835 GHz Number of channels 16 Data rate 250 kbit/s Max output power 4 20 * dBm Sensitivity (PER 1%) -97 -99 dBm Adjacent Channel Rejection 49 dB Alternate Channel Rejection 57 dB Supply voltage 2.0 - 3.6 2.7 - 3.6 Volt Current consumption, RX/TX 24/34 27/175 mA Current consumption, PD 0.4 1.3 uA Flash memory 256 kB RAM 8 kB * Limited to 12 dBm in Europe due to ETSI regulation and limited to 10 dBm in US for frequency 2480MHz due to FCC regulation. Radiocrafts Embedded Wireless Solutions RC2400/RC2400HP ©2011 Radiocrafts AS RC2400/RC2400HP Data Sheet (rev. 1.2) Page 2 of 15 Internal EEPROM (optional) 4 kB Operating Temperature -30 to +85 (-40 to +85 available on request) °C Quick Product Introduction The RC2400 series of modules are specially designed to comply with IEEE 802.15.4-based industry standards like ZigBee PRO, 6LoWPAN, Wireless HART, RC4CE and others. Using the module together with the TI Z-stack is a powerful combination to build any ZigBee profile and application. The module contains qualified RF hardware and enough processor power to run the complete ZigBee mesh network protocol for a full function device including the application. Using a pre-qualified module is the fastest way to make a ZigBee product and shortest time to market. The embedded RF HW and MCU resources in a 100% RF tested and pre-qualified module shorten the qualification and approval process. No RF design or RF expertise is required to add powerful wireless networking to the product. In most cases you only need supply voltage (for example an external battery) and a sensor/actuator and the module can run the entire application. The module can be used as • RC2400/RC2400HP: HW platform. No preloaded firmware. • RC2400-ZNM/RC2400HP-ZNM : A complete ZigBee PRO network module where the entire ZigBee Pro compliant stack and configurable application software is preloaded in module and available via API on a serial interface. About this document This document is one part of the documentation for the module. It describes the electrical parameters, RF performance, footprint and PCB layout and regulatory information. Depending on the selected FW solution one additional User Manual should be used. See • RC2400/RC2400HP Firmware Development User Manual for using the module as a hardware platform only • RC2400/RC2400HP-ZNM User Manual for details on how to use the ZNM module with preloaded ZigBee Pro stack and API through a serial interface. Figure 1 Document structure RC2400/RC2400HP Datasheet (This document) RC2400/RC2400HP Firmware Development User Manual RC2400/RC2400HP-ZNM User Manual Future User Manuals Radiocrafts Embedded Wireless Solutions RC2400/RC2400HP ©2011 Radiocrafts AS RC2400/RC2400HP Data Sheet (rev. 1.2) Page 3 of 15 Pin Assignment Pin Description Pin no Pin name Description 1 GND System ground 2 Digital I/O Digital I/O 3 Digital I/O Digital I/O 4 Digital I/O Digital I/O 5 Digital I/O Digital I/O 6 Digital I/O Digital I/O 7 GND System ground 8 GND System ground 9 RF RF I/O connection to antenna 10 GND System ground 11 NC Not Connected 12 Reset Reset. Active Low 13 VCC Supply voltage input. Internally regulated. 14 GND System ground 15 Digital I/O/ LNA Gain mode Digital I/O/LNA Gain control for RC2400HP 16 Digital I/O Digital I/O 17 Digital I/O Digital I/O 18 Digital I/O Digital I/O 19 Digital I/O /DD Digital I/O. Debug interface is used for programming. 20 Digital I/O Digital I/O. Debug interface is used for programming. 21 Digital I/O Digital I/O 22 Digital I/O LNA_Enable Digital I/O /LNA Enable for RC2400HP 23 Digital I/O /32kHz_Q1 Internal 32 kHz oscillator. Do not connect. (Digital I/O if no xtal) 24 Digital I/O /32kHz_Q2 Internal 32 kHz oscillator. Do not connect. (Digital I/O if no xtal) 25 Digital I/O Digital I/O 26 Digital I/O Digital I/O 27 Digital I/O Digital I/O 28 Digital I/O Digital I/O 29 Digital I/O PA_Enable Digital I/O /PA Enable for RC2400HP 30 Digital I/O Digital I/O Note 1: For detailed pin description, see respective User Manual Note 2: Pins 17 and 18 are suggested as I2C interface. They can be configured otherwise, but are connected to an optional internal EEPROM with I2C address = 000. It is recommended to leave these pins as I2C. Sensors and actuators or any…

Text truncated - open the document above for the full version.

2010-11-30 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Nemko A/S, Instituttveien 6, N-2007 Kjeller, Norway , to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with, Radiocrafts AS, Sandakerveien 64, N-0484 OSLO, Norway. Dated this 30th of November 30 10 Agency agreement expiration date: 31 May 2011 By: Ørjan Nottveit Signature Printed Title: Product Line Manager On behalf of : Radiocrafts AS Telephone: +47 4000 5195

Radiocrafts Embedded Wireless Solutions Radiocrafts AS, Oslo Adresse/Address: Sandakerveien 64 NO-0484 OSLO NORWAY Attn: Reviewing Engineer Federal Communications Commission Tel: (+47) 4000 5195 Fax: (+47) 22 71 29 15 Web: www.radiocrafts.com E-mail: [email protected] Foretaksnr./Enterprise No.: NO 985 876 096 MVA Deres ref. / Your ref. Vår ref. / Our ref. Tlf. direkte / Direct Line Oslo, To Whom It May Concern: Pursuant of Section 0.457 and 0.459 of the FCC Commission's Rules we hereby request confidentiality for documents given below. Letter cover FCC ID: Y2NRC24XXHP We request that the - Schematic diagrams - Part list /Bill of Material (BOM) - Block diagrams - Technical descriptions submitted with this application, are withheld from public review. The documents are company proprietary information that should never get into the possession of our competition. Please contact me if there is any information you may need. Sincerely, Radiocrafts Ørjan Nottveit

Radiocrafts Embedded Wireless Solutions Radiocrafts AS, Oslo Adresse/Address: Sandakerveien 64 NO-0484 OSLO NORWAY Attn: Reviewing Engineer Federal Communications Commission Tel: (+47) 4000 5195 Fax: (+47) 22 71 29 15 Web: www.radiocrafts.com E-mail: [email protected] Foretaksnr./Enterprise No.: NO 985 876 096 MVA Deres ref. / Your ref. Vår ref. / Our ref. Tlf. direkte / Direct Line Oslo, ØN To Whom It May Concern: This letter serves as an official request for a Modular Approval. A full modular approval is being requested for the FCC ID: Y2NRC24XXHP. Modul number: RC2412HP-CT RC2412HP-AT RC2400HP These products inlcude a 32kHz RTC clock oscillator for the microprocessor part of the module. Variant without this 32 kHz are also requested to be approved with same FCC ID Product ID: RC2411HP-CT RC2411HP-AT RC2401HP RC2400HP is based on a smaller PCB than RC2412HP, but have the same RF part - Same Tranceiver - Same Referece oscillator for RF part - Same Power amplifier /LNA - Same RF lumped element filter Memory options: The module has several options in terms of memory options. E.g. the embedded microcontroller can be used with 256 kB, 128 kB, 64 kB or 32 kB flash size. (Default is 256 kB). In addition an extra flash can be used with 128 kB or 256 kB memory and an extra EEPROM of 4 kB can be included. Information on the options will be printed on the label as -F64 if this is a RC2412HP-CT with 64 kB flash in stead of 256 kB. The memory information will be separated from the model number. 2 With reference to FCC Public Notice DA00-1407, the FCC ID: Y2NRC24XXHP is characterized by: 1. The module has its own RF shielding that prevents coupling between the RF circuitry of the module and any wires or circuits in the device which the module is to be installed 2. The module transmitter has a data buffer that prevents over-modulation under conditions of excessive data rates. The duty cycle of the transmitter will never go above 27% within a 100 ms interval. 3. The RF output power level control, the frequency synthesizers and modulator are all powered from an internal low-drop power regulator to ensure FCC-compliance regardless of the design of the power supplying circuitry in the device into which the module is installed. 4. The module has an integrated ceramic antenna, or a non-standrad connection poin/connector(U.FL) 5. The module has been tested in a stand-alone configuration, only using an open PCB carrier as test jig. 6. The module is labeled with it own FCC ID number. This marking will be repeated on the outside of the device where the module is to be installed. 7. The module is supported with a User Manual that gives instructions on how to install and operate the module in order to comply with the regulations. 8. The module is to be used in equipment that is not operated closer than 20 cm from any part of the body. The User Manual provides instructions for installation to provide a separation distance of at least 20 cm from all persons. _________________________ _2011-04-04___ Ørjan Nottveit Date

RC241x-CT/RC241xHP-CT RC241x-AT/RC241xHP-AT RC241x (all variants) RC2400/RC2400HP RC2400/RC2400HP RC241xHP inside RC2400HP inside

Label location Model: RC2400HP 201050 FCC ID: Y2NRC24XXHP IC: 9402A-RC24XXHP Label location Model: RC2401HP 201050 FCC ID: Y2NRC24XXHP IC: 9402A-RC24XXHP Label location Model: RC2411HP-AT 201050 FCC ID: Y2NRC24XXHP IC: 9402A-RC24XXHP Label location Model: RC2411HP-CT 201050 FCC ID: Y2NRC24XXHP IC: 9402A-RC24XXHP Label location Model: RC2412HP-AT 201050 FCC ID: Y2NRC24XXHP IC: 9402A-RC24XXHP Label location Model: RC2412HP-CT 201050 FCC ID : Y2NRC24XXHP IC: 9402A-RC24XXHP

RC241x-CT/RC241xHP-CT RC241x-AT/RC241xHP-AT RC241x (all variants) RC2400/RC2400HP RC2400/RC2400HP RC241xHP inside RC2400HP inside

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to isotropicR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 22.32 (dBm) Maximum peak output power at antenna input terminal: 171 (mW) Antenna gain(typical): 2.5 (dBi) Maximum antenna gain: 1.78 (numeric) Prediction distance: 20 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 2400 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm^2) Power density at prediction frequency: 0.0604 (mW/cm^2) Power density at prediction frequency: 0.604 (W/m^2) Margin of Compliance: 12.2 (dB) 2 4 R PG S π =
