Y47RN200HB4High Capacity Indoor Radio Node for UMTS Coverage

SpiderCloud ® Radio Node - SCRN-200 Hardware Installation Guide Part number: DOC-SCRN-HW-07, Rev. 1 Published: December 2012 ® 2 © 2012 SpiderCloud Wireless, Inc, SpiderCloud, and SpiderNet are registered trademarks of SpiderCloud Wireless, Inc. All Rights Reserved. FCC Statements Caution: Any changes or modification cautions to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum 20 cm between the radiator and your body. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC. Industry Canada Statements This Class [A/B] digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe [A/B] est conforme à la norme NMB-003 du Canada. SpiderCloud Wireless 408 East Plumeria Drive San Jose, CA 95134, USA http://www.spidercloud.com Tel: +1 408 567-9165 Email: [email protected] Revision History RevisionDateSummary of Changes 112/04/2012First release for SCOS R3.1 SpiderCloud Wireless, Inc. SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide 3 Table of Contents About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Services Provided . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Radio Node System Isometric Top View and Bottom View. . . . . . . . . . . . . . . . . . . . . . . . . . 6 System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Frequency Bands of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Size and Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Radio Node Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 The Top-Panel LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Input Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Select the Radio Node Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Installation and Mount Bracket Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Bracket Mounting and Cabling Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Installing the Radio Node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Installing the Radio Node (Method 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Installing the Radio Node (Method 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Completing the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Detaching the Radio Node from the Mount Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Boot Sequence and Services Node Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Radio Node LED Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Radio Node LED Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 The SpiderCloud Documentation Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Appendix, Antenna Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 SpiderCloud Wireless, Inc. Contents 4 SpiderCloud Wireless, Inc. 5 SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide About this Manual This guide provides the system specifications of the SpiderCloud® Radio Node 200 (SCRN-200). It includes detailed hardware installation instructions, the boot sequence, and expected LED behavior both during the boot-up and under operating conditions. An appendix shows the radio node antenna patterns. The primary audience for this guide includes network planners, system administrators and installation personnel. It assumes you have knowledge about networking principles, networking configuration, site preparation, powering, and experience in hardware installation and maintenance. System Overview The SCRN-200 is a low-cost, low-power (100mW) base station designed for indoor use. The radio node is 3GPP compliant, supporting Universal Mobile Telecommunications …

Text truncated - open the document above for the full version.

SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide SpiderCloud Wireless, Inc. 15 Step 2 Route the Ethernet cable through the pedestal base cable opening and through the cable guards. Insert the RJ-45 connector into the Ethernet port as shown in Figure 13: Figure 13 Route and Terminate the Cable Step 3 Slide the pedestal base of the radio node into the groove opening in the mount bracket. When the pedestal reaches the end of the trough, a spring clip will secure the unit into place. Figure 14 Fully Mounted RJ-45 Connector in Ethernet Port Cable Opening Cable Guard Spring Clip SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide SpiderCloud Wireless, Inc. 16 Installing the Radio Node (Method 2) To route the cable directly and mount the radio node Step 1 Route the Ethernet cable through the large hole in the mounting bracket. Figure 15 Mount Bracket with Direct Cable Routing Step 2 With two user-provided screws, attach the mount bracket assembly to a wall or ceiling. The screw holes are sized for an M4 (#10) screw. Ensure the screws have a snug fit onto the studs, sheetrock, anchor, or other material you are bolting onto. Step 3 Insert the RJ-45 connector into the Ethernet port as shown in Figure 16: Figure 16 Route and Terminate the Cable Step 4 Push as much cable back through the wall or ceiling as possible. The mount bracket assembly has room for some cable slack. RJ-45 Connector in Ethernet Port SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide SpiderCloud Wireless, Inc. 17 Step 5 Slide the pedestal base of the radio node into the groove opening in the mount bracket. When the pedestal reaches the end of the trough, a spring clip will secure the unit into place. Figure 17 Fully Mounted Completing the Installation Step 1 For radio nodes for use with external antennas, attach the antennas to the TNC connectors. If the radio node is mounted on a horizontal surface, direct the antennas downward. If it is mounted on a vertical surface, orient the antennas upward. Figure 18 External Antenna Orientation Ceiling Wall SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide SpiderCloud Wireless, Inc. 18 Step 2 Attach a padlock or cable tie wrap through the cutout lock holes in the mount bracket and pedestal base. Figure 19 Padlock and Lock Holes Step 3 The radio node boots up and attempts to connect to the services node. Refer to Boot Sequence and Services Node Communication below for more information. Detaching the Radio Node from the Mount Bracket To remove the radio node from the bracket assembly Step 1 If needed, remove the padlock or cable tie wrap securing the radio node. Step 2 Depress the spring clip on the pedestal base and slide the radio node out of the mount bracket. Step 3 Detach the RJ-45 clip from the Ethernet port and remove the cable from cable brackets and cable opening. The lock in the above figure is shown schematically. The orientation is for illustration purposes (not accurate) since the bracket is typically wall or ceiling mounted. Note SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide SpiderCloud Wireless, Inc. 19 Boot Sequence and Services Node Communication On initial boot, the radio node performs the following boot sequence and communicates with the services node. This sequence takes about one minute to complete. When completed, all devices are reachable: Figure 20 Radio Node Boot Sequence Sequence description: 1. When the radio node is powered on, the device sends a DHCP Request to the services node DHCP server to get IP information. The DHCP server is configured on the services node by default to respond only to DHCP requests from SpiderCloud Wireless radio nodes. Refer to the SpiderCloud OS (SCOS) Administrator Guide for more information about the services node DHCP server configuration. 2. The server responds with the IP addresses of the radio node and the services node (the master of the radio node). 3. Using its own IP address, the radio node sends a Join Request message to the services node. The radio node seeks to join the cellular network. 4. The services node responds with a Join Response message indicating whether the radio node is allowed to join the network or not. 5. The arrival sequence begins. Based on the configuration of the radio node, the radio node will join the system and get its configuration. The services node sends the SpiderCloud software image (the system image and configuration settings) to the radio node. 6. The radio node reboots and mounts the SpiderCloud software image as a RAM-based file system. 7. The radio node contacts the services node and joins the network. USBCONSOLE LKAT LKAT LKAT LKAT LKAT LKAT LKAT LKAT 81234567 LNKACT MGMT POWERSTATUS12 SIM 0SIM 1 Radio NodeServices Node DHCP Request for IP Address DHCP Response (RN, IP, Controller IP) Join Request Join Response (Join Grant, Redirect, Denied) Arrival sequence begins Send SpiderCloud software package Mount package, join the network SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide SpiderCloud Wireless, Inc. 20 Radio Node LED Boot Sequence The radio node state machine is sequential and progresses in the following order: State 0 -> State 1 -> State 2 -> State 3 -> State 4 -> State 5 A normal boot sequence transitions through all these states sequentially and the LED state transitions accordingly. If the radio node fails to transition to the next state, the system restarts the boot sequence, starting with State 0. You can determine the progress during the booting stages by observing the LED color transitions. On failure, the last LED state will display the state that encountered the failure. Ta b l e 3 shows the radio node boot sequence and corresponding LED behavior: Table 3: Radio Node LED Boot Sequence StateLED ColorDescriptionPossible Failures and Actions 0. Power On/ Reset Green Flashing This is the initial state on startup. The radio node bootup is controlled by firmware in this state. It will go through a lamp test…

Text truncated - open the document above for the full version.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 Nov 20, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: Y47RN200HB4 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Part List - Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Nov 20, 2012 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: Y47RN200HB4 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 days: - User Manual - Internal Photos - The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors.

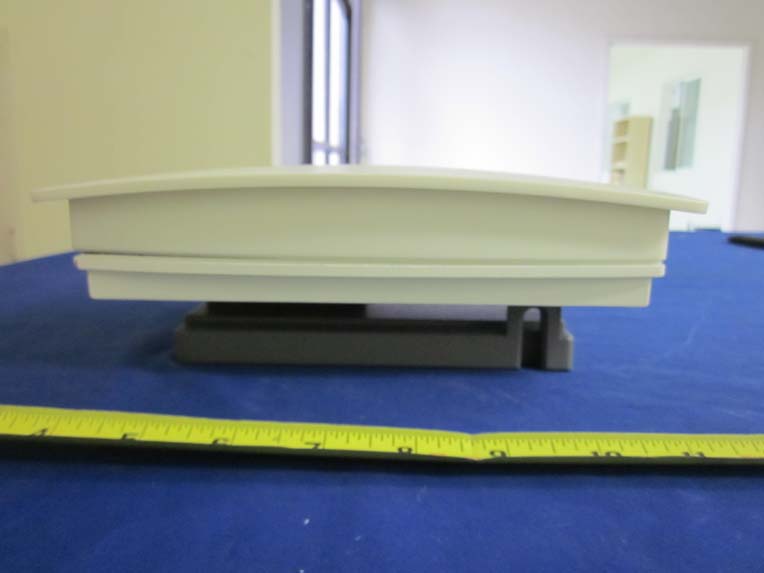

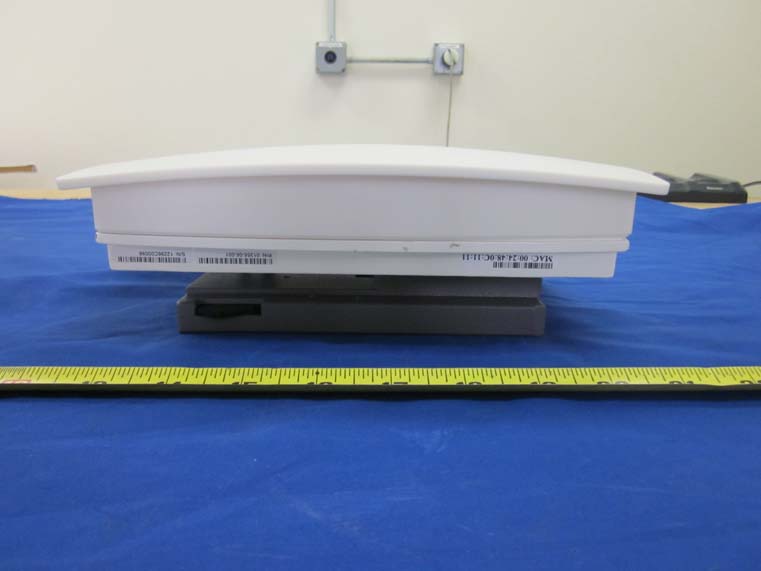

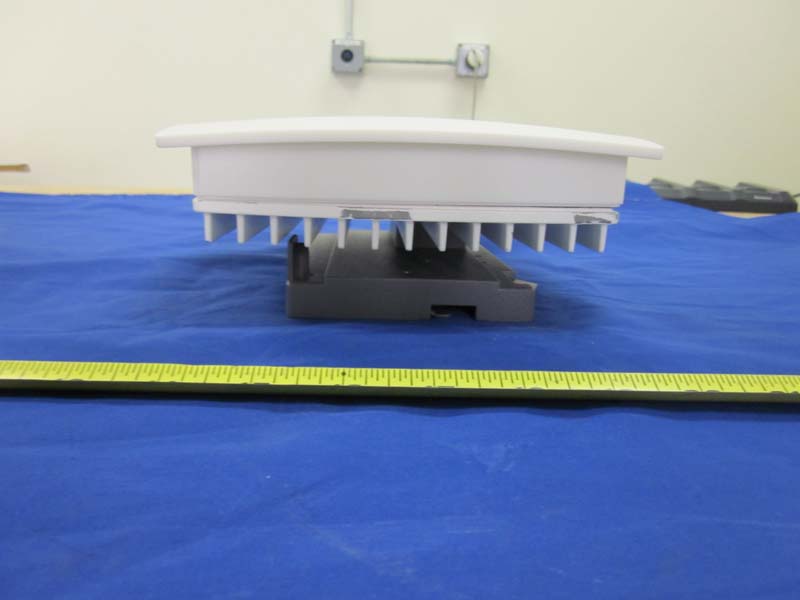

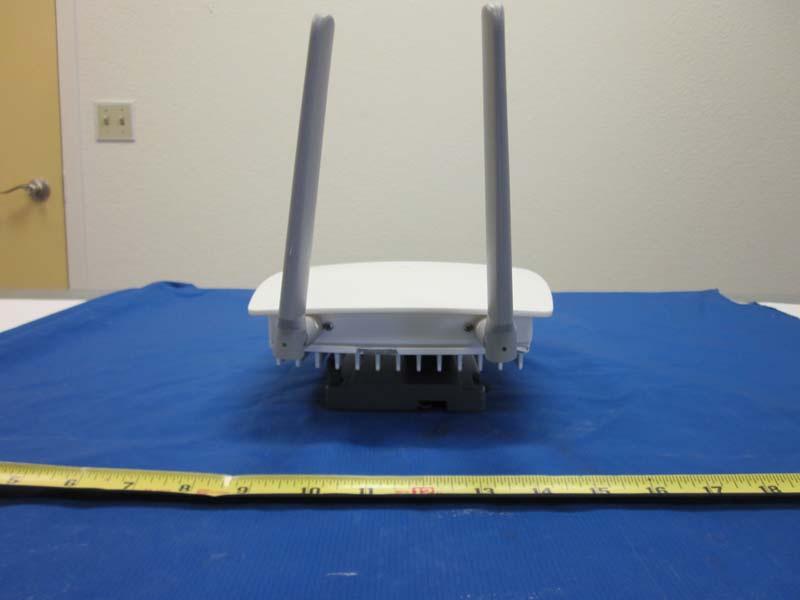

EUT with Internal antenna EUT - Front View EUT - Back View EUT - Top View EUT - Bottom View EUT - Right View EUT - Left View EUT with External Antenna EUT - Front View EUT - Back View EUT - Top View EUT - Bottom View EUT - Right View EUT - Left View

1 234 567 D C B AA B C D 765 432 1 MODIFICATIONS REVISIONDESCRIPTIONDATE © 2012 SPIDERCLOUD WIRELESS C SIZEDRAWING BY TITLE SPIDERCLOUD ENGINEER DATE DRAWING NUMBER TOLERANCES REV PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SPIDERCLOUD WIRELESS. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN PERMISSION OF SPIDERCLOUD WIRELESS IS PROHIBITED. ALL RIGHTS RESERVED 01371-03001 SEE NOTES TAC GRAPHICSDAN FARMER Sheet 1 of 1 2500 Augustine Drive, #200 Santa Clara, CA 95054 NOTES: 1. ALL DIMENSIONS ARE IN INCHES. INTERPRET DIMENSIONS AND TOLERANCES PER ANSI Y14.5 1994. 2. TOLERANCES: DECIMALS .X = ± 0.05 .XX = ± 0.025 ANGLES = ± 0.5• 3. MATERIAL: .002” BRIGHT SILVER MYLAR WITH .001” MATTE LAMINATION. 4. ADHESIVE: CLEAR, PERMANENT, ACRYLIC ADHESIVE. 5. COLOR: BACKGROUND: SILVER. GRAPHICS: PMS BLACK. 6. LABEL MATERIAL, ADHESIVE AND PRINTING PROCESS TO CONFORM TO UL AND CSA STANDARDS FOR USE ON ABS PLASTIC AND METAL SURFACES. 7. VISUAL INSPECTION OF PART TO MEET CLASS A PER SPIDERCLOUD COSMETIC SPECIFICATION. 8. OUTLINES AND FEATURE LINES ARE FOR REFERENCE ONLY AND DO NOT PRINT. THIS FILE CONTAINS ARTWORK AND ART SPECIFICATIONS. 10/16/12 LABEL, AGENCY + RATINGS, SCRN-200-244 001PROTOTYPE DEVELOPMENT10/16/12 Model: SCRN-200-244 Input Rating: 56V 0.6A ® FCC ID: Y47RN200HB4 IC: 9424A-RN200HB4 CUS Model: SCRN-200-244 Input Rating: 56V 0.6A ® FCC ID: Y47RN200HB4 IC: 9424A-RN200HB4 CUS 200% for reference only R 0.05 (4X) 5.45 .33

1 234 567 D C B AA B C D 765 432 1 MODIFICATIONS REVISIONDESCRIPTIONDATE © 2012 SPIDERCLOUD WIRELESS C SIZEDRAWING BY TITLE SPIDERCLOUD ENGINEER DATE DRAWING NUMBER TOLERANCES REV PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SPIDERCLOUD WIRELESS. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN PERMISSION OF SPIDERCLOUD WIRELESS IS PROHIBITED. ALL RIGHTS RESERVED 01392-02001 10/16/12 SEE NOTES TAC GRAPHICSDAN FARMER LABEL, AGENCY + RATINGS, SCRN-200-244E Sheet 1 of 1 2500 Augustine Drive, #200 Santa Clara, CA 95054 NOTES: 1. ALL DIMENSIONS ARE IN INCHES. INTERPRET DIMENSIONS AND TOLERANCES PER ANSI Y14.5 1994. 2. TOLERANCES: DECIMALS .X = ± 0.05 .XX = ± 0.025 ANGLES = ± 0.5• 3. MATERIAL: .002” BRIGHT SILVER MYLAR WITH .001” MATTE LAMINATION. 4. ADHESIVE: CLEAR, PERMANENT, ACRYLIC ADHESIVE. 5. COLOR: BACKGROUND: SILVER. GRAPHICS: PMS BLACK. 6. LABEL MATERIAL, ADHESIVE AND PRINTING PROCESS TO CONFORM TO UL AND CSA STANDARDS FOR USE ON ABS PLASTIC AND METAL SURFACES. 7. VISUAL INSPECTION OF PART TO MEET CLASS A PER SPIDERCLOUD COSMETIC SPECIFICATION. 8. OUTLINES AND FEATURE LINES ARE FOR REFERENCE ONLY AND DO NOT PRINT. THIS FILE CONTAINS ARTWORK AND ART SPECIFICATIONS. 001PROTOTYPE DEVELOPMENT10/16/12 Model: SCRN-200-244E Input Rating: 56V 0.6A ® FCC ID: Y47RN200HB4 IC: 9424A-RN200HB4 CUS Model: SCRN-200-244E Input Rating: 56V 0.6A ® FCC ID: Y47RN200HB4 IC: 9424A-RN200HB4 CUS 200% for reference only R 0.05 (4X) 5.45 .33

Label Location

EUT Cover off View PCB Top View PCB Bottom View

MPE CALCULATION RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 EUT Frequency Band: 1500 ~100,000MHz Power Density Limit: 1 mW/ cm 2 Equation: S = PG / 4πR 2 or R = √PG / 4πS Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ MPE test Result Radio Mode Output Power (mW) Antenna (numeric) Power Density (mw/cm2 ) Power Density Limit(mw/cm2 ) UMTS Band IV 1352.07 1.78 0.48 1
