Y4N-70290TPure Sounds Wireless Audio Monitor (Transmitter Unit)

Compatible with... Compatible with... TABLE OF CONTENTSINTRODUCTION Introduction1 Package Contents2 Features3 Consumer Guide to Product Safety 4-5 Knowing your Receiver6 Knowing Your Transmitter7 Installation & Setup8 Receiver/Transmitter Operation9 Troubleshooting10 Radio Interference Advice11 Warranty12 Notes13 Congratulations on the purchase of the Mobi® Pure Sounds™ Audio Monitor- ing System, which brings you the latest in wireless technology. We recommend that you read the instructions carefully before use. The Mobi® Pure Sounds™ enables you to transmit audio wirelessly, which is ideal for monitoring a babies, young children, pets, or the elderly. Your Mobi® Pure Sounds™ uses a digital transmission to ensure clear and con- sistent audio transmission. The signal also passes easily through interior walls. However, buildings with metal frames or placing the transmitter near large metal objects may cause signal degradation. If reception is poor, moving the transmitter or receiver may fix this problem. 1 PACKAGE CONTENTSFEATURES • Trasmission Range up to 600Ft • 2.4 GHz Private Digital Transmission • No installation needed—ready to use • Compact design for easy portability • Auto Mute with Voice Activation • Low Battert and Out of Range Indicators • Rechargeable Batteries Included for Receiver • AC Adaptors included for Receiver and Transmittor 1 x Receiver Unit (#70294R) 1 x Transmitter Unit (#70294T) 1 X Receiver Power Cord 1 X Transmitter Power Cord 1 x Rechargeable Battery Pack NOTE: If you find any of the contents are missing or should you need to order replace- ment parts, please contact the manufacturer or visit www.getmobi.com. 23 • Always use transmitter and receiver where there is adequate ventilation. To prevent overheating, keep away from heat sources such as radiators, heat registers, stoves, or other appliances that produce heat. • Use only a dry cotton cloth to keep the Camera and Monitor units free of dust. Do no use a dampened cloth, water, or liquid cleaner of any kind. • Remove the battery from the Monitor during long periods of non- use as alkaline batteries can leak. • Unplug the AC adaptors from the Monitor and Camera during peri ods of non-use. To disconnect from the power supply, grip the transformer and pull from the power socket. Never pull by the cord. • Replace battery with the same equivalent type. Please dispose of old, defective batteries in an environmentally friendly manner in accordance with the relevant legislation. • Only use the Monitoring System with the supplied power adaptors. CONSUMER GUIDE TO PRODUCT SAFETY Please read this instruction manual before using your Mobi® Pure Sounds™ sys- tem. When using electrical appliances, basic safety precautions should always be followed. Please keep safe for future reference. • This product is not intended to be used as a medical monitor and its use should not replace adult supervision. • Periodically examine this product for damage to the cord, housing or other parts that may result in the risk of fire, electric shock or injury. Do not operate any product with a damaged cord or plug. If the Color Wireless Monitor malfunctions or is damaged in any manner please contact the manufacturer for examination and repair to avoid a hazard. • Never use transmitter and receiver near water (i.e. bathtub, sink, etc.). • The AC adaptors are not Toys. 45 KNOWING YOUR RECEIVERKNOWING YOUR TRANSMITTER 11. Power On Indicator 12. DC Jack (5V/600mA) Button & LED Functions 1. Power On/Off Button 2. Volume Up ( + ) 3. Volume Down ( - ) 4. Sound Level Indicator (LED will flash indicating noise level increase) 5. Power On Indicator (battery charge indicator) 6. Link Indicator LED (LED will blink if connection is poor/lost) 7. Speaker 8. DC Jack (5V/600mA) 9. Belt Clip 10. Battery Compartment 67 1 2 3 4 5 6 7 8 9 10 11 12 INSTALLATION & SETUPRECEIVER/TRANSMITTER OPERATION The Mobi® Pure Sounds™ transmitter is designed to be powered by either rechargeable batteries (provided) or the AC/DC adaptors. Using AC/DC adaptor: • Plug the connector of the AC adaptor into the DC Jack on the unit (fig. 7 pg. 6, fig. 12 pg. 7). • Plug the power cord into an outlet. • Press the Power On/Off Button (fig. 1 pg. 7) to turn ON your receiver. • The power indicator lights will illuminate indicating units are ON (fig. 5 pg. 6, fig. 11 pg. 7) Using Batteries: • Remove the belt clip (fig.8 pg. 6) by sliding the clip downwards • Remove the battery door on your receiver (fig. 9 pg. 6) • Plug in the supplied battery pack into your battery compartment • Return battery cover and belt clip to their original position Note: Battery life is between 3-4 hours. When monitoring over long periods and, in particular, overnight, it is recommended to use AC adaptors for the receiver. Warning: 1. Use on the supplied battery pack with your receiver. 2. Do not mix old and new batteries. 3. Do not mix alkaline, standard or rechargeable batteries 4. Remove the batteries during long periods of non-use. 5. Use only the AC adaptors supplied with the package. Note: Transmitter only functions with AC Adaptor. Receiver Power ON/OFF Press the Power On/Off Button (fig. 1 pg. 7) to turn on your receiver. The power indicator light (fig. 5 pg. 6) will turn red indicating receiver is ON. Volume Adjustment Press the volume up (fig. 2 pg. 6) or volume down (fig. 3 pg. 6) to adjust the volume to the desired level. LED Indicator Lights The Link Indicator Light (fig. 6 pg 6) will blink continuously if your connection to the receiver is poor or lost. The Sound Indicator Light (fig. 4 pg 6) will blink when sound levels increase Auto Mute/VOX Activation Setting Your receiver is equiped with automatica mute setting. When sound levels reach a preset level the mute option will engage to conserve battery power, once the transmitter picks up noise the receiver will automatically begin trans- mitting. Note: If link is lost between transmitter and receiver you must place both units near each other, turn t…

Text truncated - open the document above for the full version.

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

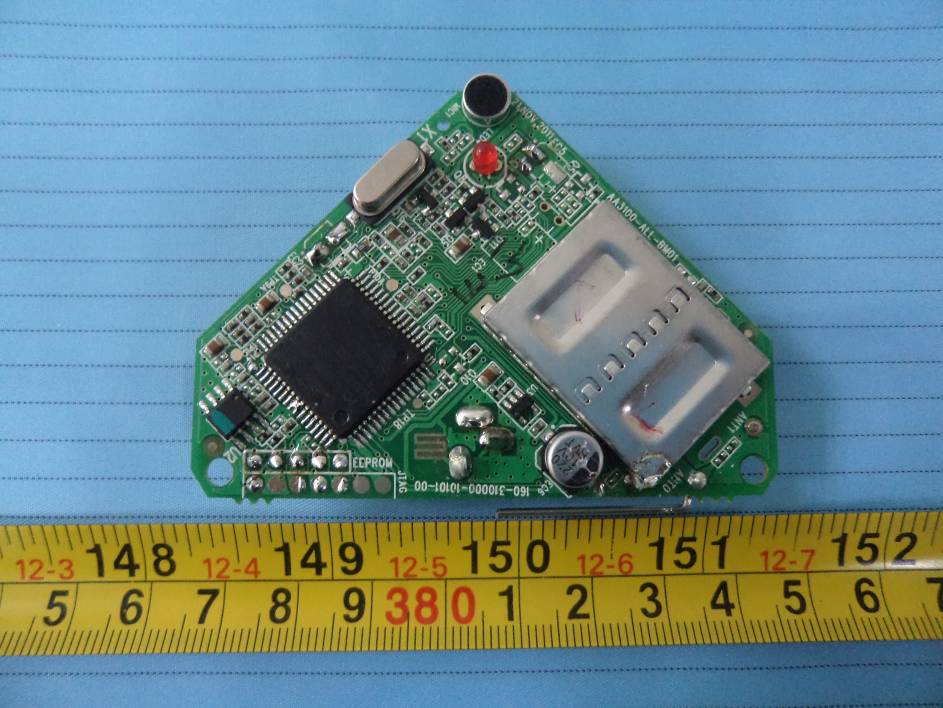

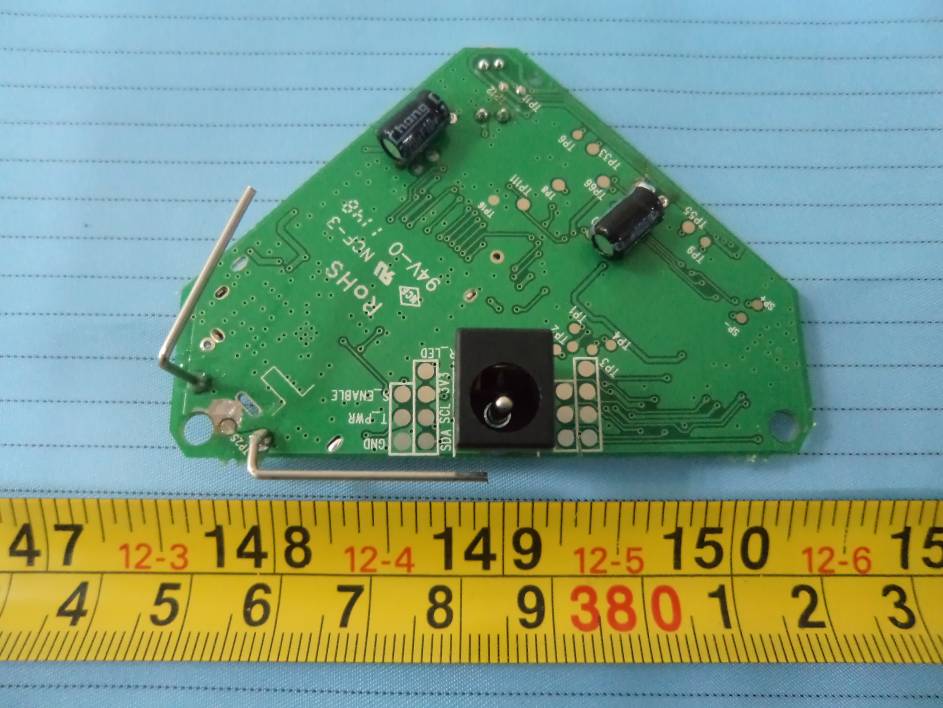

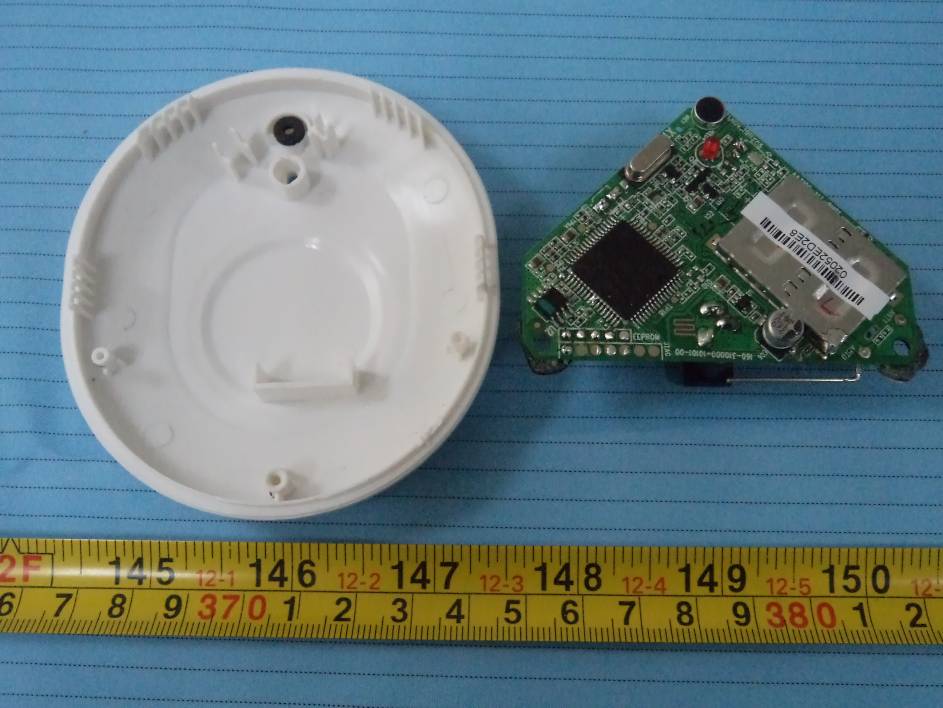

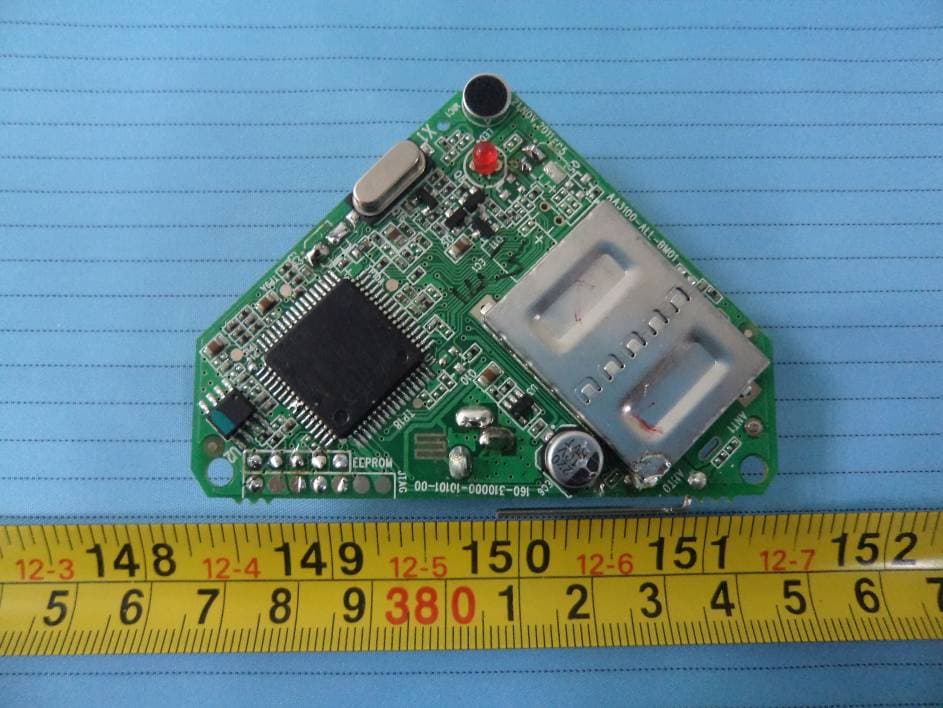

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View 1 EUT – Cover off View 2 EUT – Main Board Top View EUT – Main Board Top Shielding off View EUT – Main Board Bottom View EUT – Adapter 1 View Transmitting /Receiving antenna Reflecting Antenna connected to ground EUT – Adapter 1 Label View EUT – Adapter 2 View EUT – Adapter 2 Label View

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ111212001-00A FCC Part 15.247 Page 9 of 42 FCC §15.247 (i) & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) Standard Applicable According to FCC subpart 15.247 (i) and subpart 1.1307 (b)(1), 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mw/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Test Data Predication of MPE limit at a given distance S = PG/4πR² Where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Maximum peak output power at antenna input terminal: 14.96 (dBm) Maximum peak output power at antenna input terminal: 31.33(mW) Prediction distance: >20 (cm) Predication frequency: 2402.784 (MHz) Antenna Gain (typical): 0 (dBi) Maximum Antenna Gain: 1 (numeric) The worst case is power density at predication frequency at 20 cm: 0.00623 (mW/cm2) MPE limit for general population exposure at prediction frequency: 1.0 (mW/cm2) Result: The device meets the MPE at 20 cm distance.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP* or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15.247 TEST REPORT For Mobi Technologies, Inc. 5913 Blackwelder St, Culver City, CA 90232, USA FCC ID: Y4N-70290T Report Type: Original Report Product Type: Pure Sounds (Transmitter unit) Test Engineer: Tiger Ye Report Number: RSZ111212001-00A Report Date: 2012-01-12 Reviewed By: Merry Zhao EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ111212001-00A FCC Part 15.247 Page 2 of 42 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................6 EXTERNAL I/O CABLE..................................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 FCC §15.247 (i) & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE).........................................................9 STANDARD APPLICABLE..............................................................................................................................................9 TEST DATA..................................................................................................................................................................9 FCC §15.203 – ANTENNA REQUIREMENT ..........................................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 ANTENNA CONNECTOR CONSTRUCTION....................................................................................................................10 FCC §15.207 (a) - CONDUCTED EMISSIONS .......................................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 EUT SETUP................................................................................................................................................................11 EMI TEST RECEIVER SETUP.......................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST RESULTS SUMMARY..........................................................................................................................................12 TEST DATA................................................................................................................................................................12 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS.............................................................................17 APPLICABLE STANDARD...................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conduction Emissions – Front View Conduction Emissions – Side View Radiated Emissions View (30MHz~1000MHz) Radiated Emissions View (Above 1GHz)
