IMPORTANT: Keep instructions for future reference. 70208 Complete Operating Instructions Complete Operating Instructions Complete Operating Instructions 1 INTRODUCTION Congratulations on the purchase of this MobiCam® DXR Touch Monitoring System, which incorporates the latest advanced technology. To fully maximi- ze and benefit from this product’s avanced features we hightly recommend you review these instructions. This 2.4 GHz Digital monitor enables you to transmit picture and sound signals cordlessly, which is ideal for many situa- tions suchs as monitoring a baby, young children or the elderly or used as office or warehouse monitoring system. RADIO INTERFERENCE PARAMETERS FCC Statement 15.19: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful inter- ference and (2) This device must accept any interference received, including interference that may cause undesired operation. 15.21: Changes or modifications not expressly approved by the party respon- sible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement This equipment has been tested and complies with Federal Communications Commission radiation exposure limits as set forth for uncontrolled environ- ments. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This Camera must not be co-located or operating in conjunction with any other antenna or Cam- era. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or Camera. This device has been tested for compliance with FCC RF Exposure (SAR) limits in the typical laptop computer configuration and this device can be used in desktop or laptop computers via side mounted USB slots. This device and its antenna must not be co-located or operated in conjunction with any other antenna or Camera. IC Statement Operation of this device is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any inter- ference, including interference that may cause undesired operation of the device. TABLE OF CONTENTS Introduction 1 Radio Interferece Parameters 1 Package Contents 2 Monitor/Receiver 2 Camera/Transmitter 3 To Start Charging/Powering On 4 Locking the Screen 4 Set to Another Language 4 Pairing Camera and Monitor 5 Main Menu 6 Touch Navigation Volume/Display 7 Lullabys 7 Night Light 7 Record 8 Play 9 Quad and Channel View 10 VOX (Voice Activation) 10 Settings Monitor Settings 11-14 Camera Settings 15 Per Camera and Convenience Icons 16 Webcam Use • Data/File Transfers 17 Audio/Video Out 18 Troubleshooting 18 Factory Default Settings 19 Battery Replacement 20 Product Safety 20 Proper Disposal 21 Limited Warranty 21 About Mobi® / Contact Mobi® 22 IMPORTANT: Use ONLY a fingertip or other NON-SHARP object to select touch screen options. Using sharp objects can damage the screen and void the warranty. 23 CAMERA MONITOR PACKAGE CONTENTS • 1 Monitor/Receiver • 1 Camera/Transmitter • 2 AC/DC Adaptors 5V 800mAh • 1 Li-Ion Rechargeable Battery (for monitor only) • 1 Attachable Strap Mount • 1 Door/Drawer Attachable Hook • 1 Wall Anchor Mount with Screw • 1 USB to Mini USB Data Cord • 1 AV-Out Cable • 1 User Manual PAIR Button Strap Mount (underneath) Power ON LED Indicator Camera Lens Night Light Night Vision IR LEDs DC Power Input 2-Way Talk / Lullaby Speaker Microphone ON / OFF Button Battery Compartment Retractable Antenna Ridge-Grip Surface Stand Positioning/Mounting Options A. Horizontal to Slightly Angled Surfaces - Built-in Ridge-Grip Feet... B. Wall Mount Screw with Drywall Anchor (included)... C. Door or Drawer Hook Mount / Stand (included)... D. Horizontal Rails / Drawer Handles - Attachable Strap Mount (included) Camera / Transmitter Unit features: • PAIR Button • LED for Power ON / Pairing (flashes) • Microphone & Speaker • DC Input (AC/DC adaptor included) • Night Vision • Temperature Sensor and Alarm • VOX (Hi/Mid/Lo/Off) with receiver control • Adjustable Volume from receiver • Adjustable TX Power (High-Low) from receiver • 4 Lullaby choices • Night Light • Rechargeable Battery 3.7V 1500 mAh (not included - sold separately) • 2.4GHz Digital FHSS, 100% secure with full privacy and interference free Monitor / Receiver Unit features: • 3.5” QVGA resolution TFT touch panel screen • VGA resolution (640*480) up to 25 frames per second • up to 250-300m range • 2-way communication • MENU/ESCAPE button • PAIR Button • TALK Button • Lock Screen Button for disabling touch screen • SD Card Slot up to 32 Gb (not included) • Mini USB Output port (for connection to a PC and charging) Power ON LED Indicator Retractable Antenna 2-Way Talk Speaker ON/OFF Button Lock Screen Button Battery Compartment PAIR Button Combo Screen Cover / Fold-back Stand Escape/Menu Button 2-Way Talk Button AV Output DC Power Input / Mini USB Output 2-Way Talk Microphone SD Card Slot (card not included) • A/V Output port • DC Input (AC/DC adaptor included) • Two-Color LED: solid green for power on; flashing red for charging • Quad-View split screen (up to 4 camera capability) • Main Menu color icon display • Rechargeable Li-ion Battery 3.7V 1200 mAh (included for monitor only) A.B. C.D. A.B. C.D. WARNING: To prevent strangulation never place a power cord within reach of a child. TO START A. Plug one of the AC/DC adapters (they are interchangeable) into the monitor and allow it to charge the Monitor Battery for at least 5-1/2 hours. B. Plug the other AC/DC adapter into the camera. Turn the Camera On by holding the ON/OFF Button down for several seconds. The green “Power On” Indicator lights when powered up. C. Turn the Monitor On by holding its ON/OFF Button down for several seconds. Its “Power On” Indicator will light up (green on…

Text truncated - open the document above for the full version.

12MHz Crystal Y1 SN93502 CONTROL UNIT (For Parent Unit ) Power adaptor jack Status indicator LED Voice indicator LED Keypad RF module Battery rechargeable ANT LCM Speaker 2.4GHz

MOBI TECHNOLOGIES INC. 5913 BLACKWELDER STREET CULVER CITY, CA 90232, USA Tel: 877-662-4462 Fax: 424-672 6628 FCC Authorization 2013-2-4 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We MOBI Technologies, Inc , the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. On our Behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours,  David Naghi President

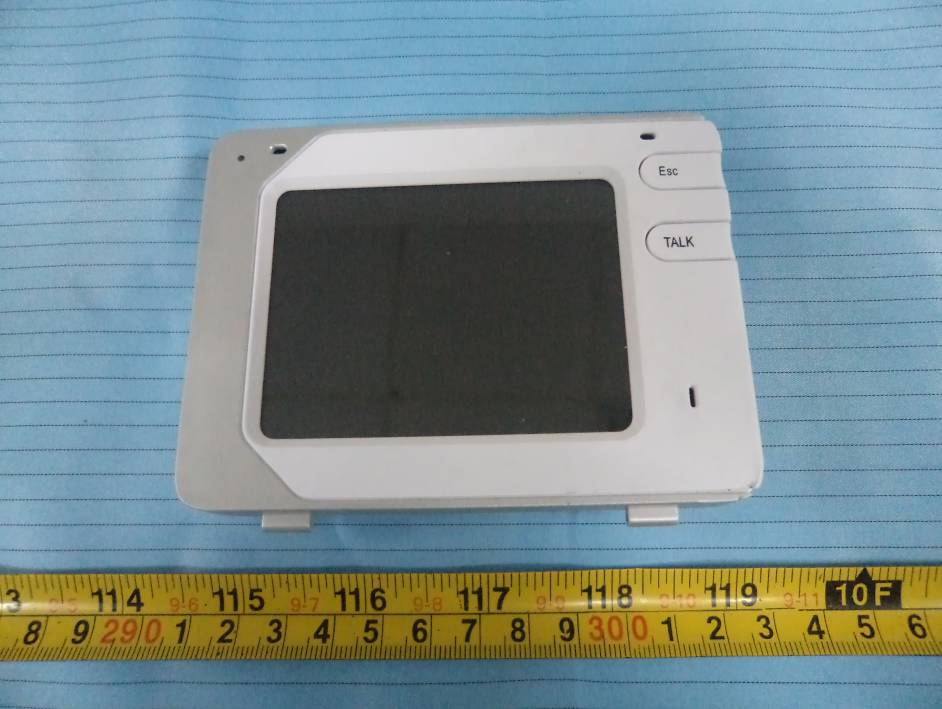

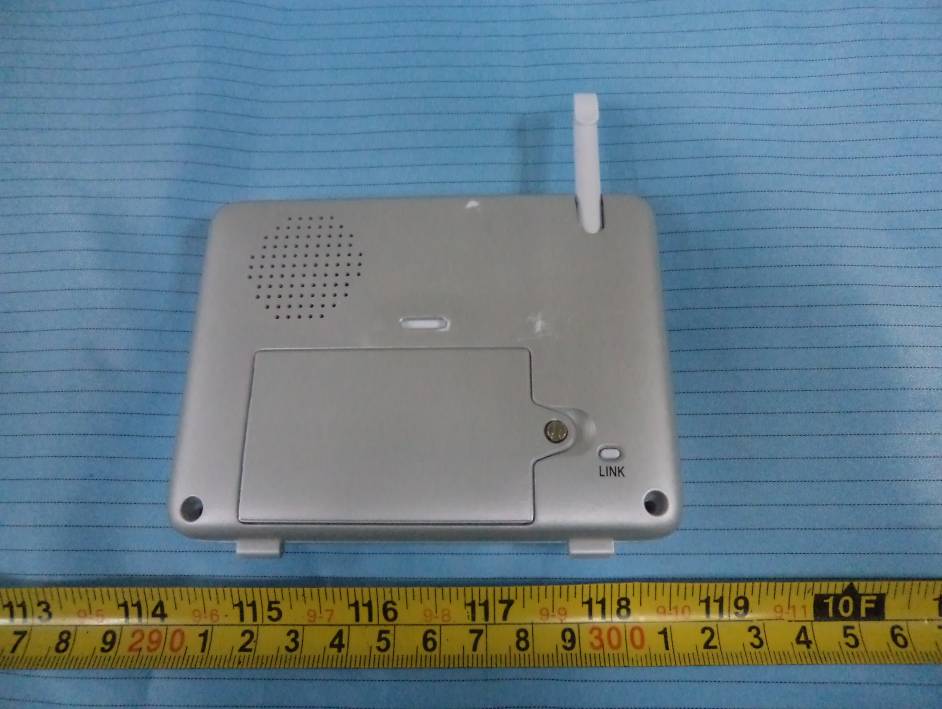

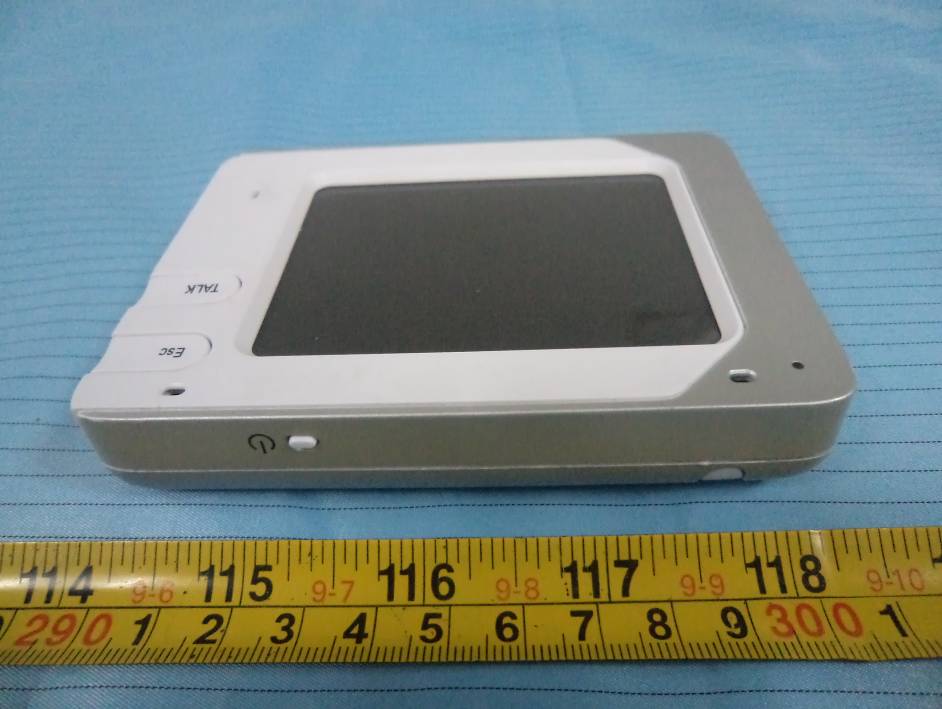

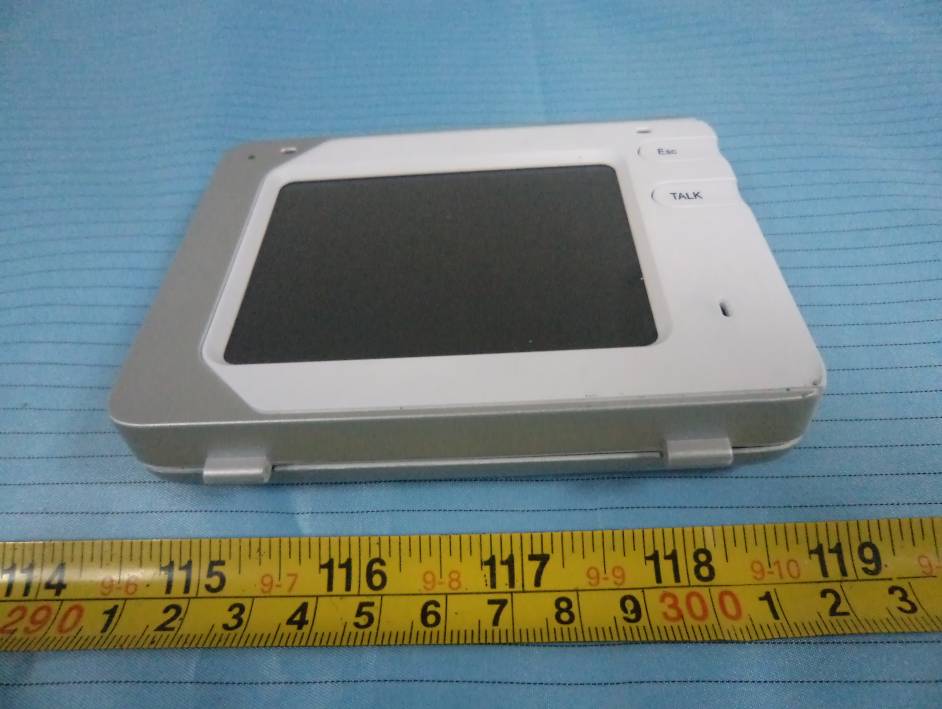

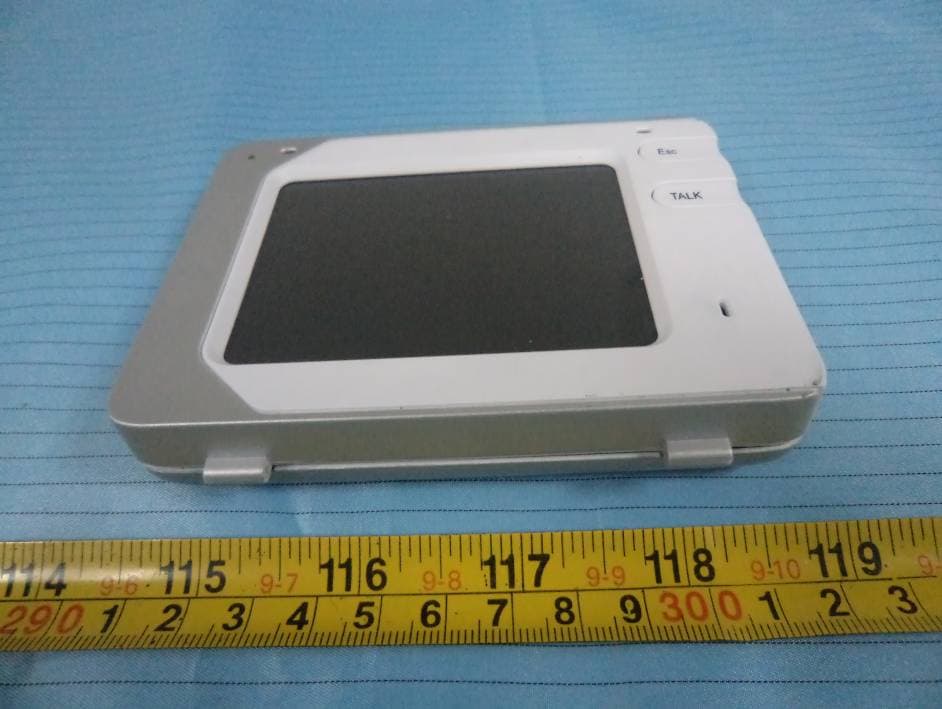

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View Antenna EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View EUT – Adapter View EUT – Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View EUT – Main Board Top View EUT – Main Board Top Shielding off View Antenna EUT – Main Board Bottom View EUT – LCD Screen View EUT – LCD Rear View EUT – Battery View

Circuit Description 1.The Circuit structure The receiver utilizes single conversion.The IF is 4.5MHz,The local oscillators signal both for TX and RX are supplied from the crystal oscillator circuit.. 2.Receiver System. 1).RF AMP. The RF signal coming from the antenna passes through harmonic filter (LPF) consisting of U4 to filter out the unwanted signals, the antenna switching circuit (U5),and is amplified by RF low-noise-Amplifier Q3,and goes to the mixer. 2)Mixer The signal from the front end is mixed with the local oscillator signal generated in the crystal oscillator by U2 to the produce IF of frequency of 4.5MHz. 3.Local oscilltor Transmitter:RF modules 18MHz(C31, C32, Y1) and SN93500 IC of the 12MHz(C69, C671,X1) component. 4.Launchers system 1).Transmit audio TX wheat drive through the first to voice signals into electricalsignals though IC2(LM4890) to enlarge an operational amplifierand then after the second class , Composed of hight-frequency extraction filter bandwidth of 20-30kHz of the electrical signal and then to ADC(in SN93500) converted to PCM DATA,though the SPIport module output to RF7121 sent. 2)Video transmission Transmitter though the U8(OV7670) to obtain images,compressed by SN93500 IC output though the SPI port to RF7121 module . 3)Modulation and RF amplifier Basically ,audio and video packets in the A7121 though the RFmodulator ,PA after U3(AP1110) after amplification(U4) BF2520 launch out. 4)ANT switch and LPF Mainly by the antenna switch U5(HWS314) processing ,the signal input and output filter by U4(BF2520) to deal with. 5. The cmposition of power The input 6V power or 3.7V battery power ,by a 3.3V voltage regulator U3 to RF module,U5 from 3.3v voltage regulator power supply to SN93500 and amplifier IC2.

Channel No. Frequency (MHz) 0 2410.875 1 2414.25 2 2417.625 3 2421 4 2424.375 5 2427.75 6 2431.125 7 2434.5 8 2437.875 9 2441.25 10 2444.625 11 2448 12 2451.375 13 2454.75 14 2458.125 15 2461.5 16 2464.875 17 2468.25 18 2471.625 working channel An explanation on Frequency Hopping system 1. Scope of frequency used in this product is limited between 2410.875 MHz and 2471.625 MHz, which is dividedinto 19 channels (channel 0 to channel 18) with an interval of 3.375 MHz every two channels, and each channel ‘sworking time is 4.04 ms, in which TX keeps transmitting for 3.68 ms, and at non-transmitting state for 0.36 ms.2. The initial serial numbers of difference pairs aren't identical because it is a fixed serial number of frequencyhopping for every pair of units, which is generated when establish code link, also, acquired manner of frequencyhopping of every pair is at random. It hop 248 times per second.3. Below is the corresponding table of channels No. and channels’ frequencies.

Title Number Revision Size A4 Date: 19-Jun-2012 Sheet of Drawn By: VBL- 1 VBL- 2 VBL+ 3 VBL+ 4 NC 5 RESET 6 NC 7 YU 8 XR 9 YD 10 XL 11 B0 12 B1 13 B2 14 B3 15 B4 16 B5 17 B6 18 B7 19 G0 20 G1 21 G2 22 G3 23 G4 24 G5 25 G6 26 G7 27 R0 28 R1 29 R2 30 R3 31 R4 32 R5 33 R6 34 R7 35 HSYNC 36 VSYNC 37 DOTCLK 38 NC 39 NC 40 VCC 41 VCC 42 CS 43 GND 44 NC 45 GND 46 NC 47 NC 48 SCL 49 SDI 50 NC 51 DEN 52 GND 53 GND 54 LCD1HJT-CD035KT05 LCD-IO17 LCD-IO18 LCD-IO15 R68100K LCD-IO13LCD-IO14 LCD-IO16 GND-LCD VDD33-LCD VDD33 C93106P R650RR640R Y+Y-X+X- GPIO9(RESET) VDD33 C22104P R79390K VDD33-LCDGND-LCDGND-LCD LED-LED+ BUSY 1 DIN 2 CSN 3 DCLK 4 VDD 5 X+ 6 Y+ 7 X- 8 Y- 9 GND 10 IN3 11 IN4 12 VREF 13 VDD 14 PENINQR 15 DOUT 16 U8 WT5200 C95 104P VDD33 R91 10K R90 10K R89 100K X- X+ Y+ Y-GND VDD33 GPIO6GPIO5GPIO4 R7233R R701K C81225P GND 2 FB 3 EN 4 OV 5 IN 6 SW 1 U6CE1937 L5 10UH D4 1N5819 R340R GPIO0(LCM) VCC LED+LED- R7375R R390R C8422P C83270P C89330P L61.8UH VBUS 1 D- 2 D+ 3 SHELD 5 GND 4 CN1 USBCONNECT DMDP C82473P GND R38 0R R36 0R USB+5V I-OUT I-OUTB SD-D2SD-D3SD-CMDVDD33SD-SCKDGNDSD-D0SD-D1 C21104P DGND SD-D2SD-D3SD-CMDSD-D0SD-D1 R5 100K R30 10K R75 56K R76 56K R77 56K VDD33 R860R C70104P R8530K+-1% K1 LOCK K2ESCK3TALK R87 10K+-1% AIN2 VDD33 GPIO8 LCD-IO2LCD-IO3LCD-IO4LCD-IO5LCD-IO6LCD-IO7LCD-IO8LCD-IO9LCD-IO1LCD-IO10 LCD-IO18LCD-IO15LCD-IO13 LCD-IO20 R88100K VDD33 JACK1 AV/OUT VDD33 C80 105P C102201P C99104P C98105P C100104P R781K5 R1910K R40390K Q59014 C101106P R81 220R VDD33 AUDIO OUTL AUDIO R682100K K10 CODE VDD33 LCD-IO23 DAT2 1 DAT3 2 CMD 3 VDD 4 CLX 5 VSS 6 DAT0 7 DAT1 8 NC 9 SW 10 SD110PIN-1 GPIO2(SD) GPIO2(SD) R94 100K R93 100R C10420P VDD33 VDD33 R9810K LCD-IO0 R35 FM1005KF-121T01 File: 1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Title Number Revision Size A3 Date: 19-Jun-2012 Sheet of Drawn By: VDAC-VREF 1 VDAC-REG 2 VDD-TV 3 GND-TV 4 RF-TXD/GPIO 6 RF-RX-SEL/GPIO 7 RF-RXD 8 RF-SPI-CS/GPIO 9 RF-SPI-CLK 10 RF-SPI-IN 11 VDD33 12 GND 13 VDD18 14 RF-SPI-OUT/GPIO 15 RF-ANT1/GPIO 16 RF-ANT2/GPIO 17 RF-PA/GPIO 18 RF-CE/GPIO 19 RF-TX-SEL/GPIO 20 GPIO0/PWM-A0 21 GPIO1/PWM-A1 22 GPIO2/PWM-A2 23 GPIO3/PWM-A3 24 GND-ADC 25 PGA-P-L 26 PGA-N-L 27 PGA-P-R 28 PGA-N-R 29 VDD-ADC 30 AIN1-L 31 AIN1 32 AIN2 33 AIN3 34 TX/DMIC-CLK/GPIO 37 RX/DIMC-DI/GPIO 38 SD-CLK/GPIO 39 SD-CMD/GPIO 40 GND 41 VDD33 42 USB-DET 43 SD-D0/GPIO 44 SD-D1/GPIO 45 SD-D2/GPIO 46 SD-D3/GPIO 47 TEST 48 GND 49 DDR-VREF 50 GND-DDR 51 VDD25 52 VDD18 53 GND-DDR 54 VDD25 55 GND-DDR 56 VDD25 57 GND-DDR 58 VDD25 59 GND-DDR 60 VDD18 61 VDD25 62 GND-RTC 63 RTC-XIN 64 RTC-XOUT 65 VDD-RTC 66 RTC-CTL 67 KEY 68 VDD18-PLL4 70 VDD-USB 71 GND-USB 72 DM 73 DP 74 GND-PLL3 75 VDD18-PLL3 76 VDD-PLL 77 VDD18-PLL1 78 GND-LVD 79 VDDL18 80 VDD-LVD 81 OUTR 82 VDD-DAC 83 GND-DAC 84 OUTL 85 GND 86 RST 87 GPIO4/PWM-B0/I2S-MCLK 88 GPIO5/PWM-B1/I2S-LRCK 89 GPIO6/PWM-B2/I2S-BCLK 90 GPIO7/PWM-B3/I2S-DAT-IN 91 GPIO8/I2S-DAT-OUT 92 GPIO9 93 XOUT 94 XIN 95 VDD33 96 GND 97 VDD18 98 LCD-IO0 99 LCD-IO1 100 VDD25 113 GND-DDR 114 VDD18 115 VDD25 116 GND-DDR 117 VDD25 118 GND-DDR 119 GND-DDR 120 VDD25 121 VDD18 122 GND-DDR 123 VDD25 124 SF-CS 125 SF-SO 126 SF-SI 127 SF-SCK 128 S-HSYNC/LCD-IO20 129 S-VSYNC/LCD-IO21 130 S-PCK/LCD-IO19 131 SEN-CLK/LCD-IO22 132 GND 133 VDD33 134 S-IMG0/LCD-IO11 135 S-IMG1/LCD-IO13 137 S-IMG2/LCD-IO12 136 S-IMG3/LCD-IO14 138 S-IMG4/LCD-IO15 139 S-IMG5/LCD-IO16 140 S-IMG6/LCD-IO17 141 S-IMG7/LCD-IO18 142 I-OUT 143 I-OUTB 144 NC 35 NC 36 GND 5 NC 69 LCD-IO2 101 LCD-IO3 102 LCD-IO4 103 LCD-IO5 104 LCD-IO6 105 LCD-IO7 106 LCD-IO8 107 LCD-IO9 108 LCD-IO10 109 I2C-SCL/LCD-IO23/GPIO 110 I2C-SDA/LCD-IO24/GPIO 111 VDD33 112 U7 SN93502 VDD25DGNDVDD18VDD25DGNDVDD25DGNDDGNDVDD25VDD18DGNDVDD25SF-CSSF-SOSF-SISF-SCK VDD33 C26 104P DGND C24 104P DGND C30 104P C28 104P C31 104P C25104P C23104P C27 104P LCD-IO10LCD-IO23LCD-IO24VDD33 GPIO6 GPIO8 GPIO9(RESET) KEY OUTL VDD18-PLL4 VDD33 OUTR DGND DM DGND DP DGND VDD18-PLL3 VDD33 VDD18-PLL1 AIN3 DGND C18104P VDDL18 R6 100K C19 104P VDD33 VDD33 RTC-CTL C20 104P VDD33-DAC GND-DAC DGND RST GPIO4 GPIO5 GPIO7(POW LED) XOUT XIN VDD33 DGND VDD18 C13 104P C14104P DGND C15 104P R7456K DGND DGND VDD33 C42 104P C36 104P C16 104P GND-DAC C17 104P C4105P I-OUTBI-OUT LCD-IO19LCD-IO22LCD-IO21LCD-IO20 GPIO3(4890) LCD-IO0 R430R DGND VCC18 LCD-IO9 C44104P R540R LCD-IO18LCD-IO17 GND-TV LCD-IO16LCD-IO15 DGND LCD-IO14LCD-IO13LCD-IO12LCD-IO11 Y112MHZ C8522P RF-TXD C8622P RF-RX-SEL RF-RXD RF-SPI-CS RF-SPI-CLK RF-SPI-IN DGND VDD33 XINXOUT Y232.768KHZ C8820P DGND C87 20P VDD18 DGND C45 104P DGND C53104P RTC-XIN RTC-XOUT R530R R440RR500R C90475P VDD33 GND-TV VDD33-TV RF-SPI-OUT RF-ANT1 VDDL18 RF-ANT2 RF-PA VDD18 RF-CE VDD18-PLL4 RF-TX-SEL VDD18-PLL1 GPIO0(LCM) VDD18-PLL3 GPIO1(CH) GPIO2(SD) GND-ADC MIC-P-L R510R MIC-N-L R520R VDD33-ADC C91106P AIN1-L AIN1 AIN2 C69104P VDD33 VDD33-TV VDD33-ADC GND-ADC C94 10UF R620R C43104P R630R R829.1K C92106P GND-TV VDD33 VDD33-DAC GND-DAC TX DGND RXSD-SCKSD-CMD DGND VDD33USB-DETSD-D0SD-D1 C35 104P SD-D2 C39 104P SD-D3 C37104P C41104P VDD-RTCRTC-XOUTRTC-XINDGNDVDD25VDD18DGNDVDD25DGND C34 104P DGND VDD25 R83 NC DGNDDGNDDDR-VREFDGNDVDD25VDD18DGNDVDD25 C38104P C32 104P DGND C33 104P C40 104P SF-SO SF-SCK VDD33 VDD33 1 2 JP1 CON2 C11105P VDD33 SF-SISF-CS R71 1K 1234 5678 IC4MX25L1606E BAT AIN1 AIN1-L R84300K+-1%R80200K+-1% RXTX R1810K 1234 CON1CON4 GND VDD33 C97104P R41100K R66390K R69330R BAT2BATTERY D91N5819 D81N5819 VDD33 VDD-RTC D7 1N5819 LCD-IO1 LCD-IO2 LCD-IO3 LCD-IO4 LCD-IO5 LCD-IO6 LCD-IO7 LCD-IO8 R52210M VDD R95 NC R96 NC VDD33 LCD-IO19 LCD-IO22 LCD-IO21 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 U9 SN8P2501BSB R6747K D10 LL4148 VDD33 C96 104P C71 104P DA P1.2 P1 P2 SF-SO SF-SCK VDD33 VDD33 1 2 JP1 CON2 C11105P WP SF-SISF-CS R71 1K 1234 5678 IC4MX25L1606E 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 U10 MX25L12845 SF-SO SF-SCK VDD33 SF-SI PO1 WP R101100K R102NC VDD33 PO1 File: Title Number Revision Size A4 Date: 19-Jun-2012 Sheet of Drawn By: C12104P C7210UF D2 1N5819 R13300K R1410K Q1 SI230…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP* or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” FCC PART 15.247 TEST REPORT For MOBI TECHNOLOGIES INC. 5913 BLACKWELDER STREET CULVER CITY, CA 90232, USA FCC ID: Y4N70208R Report Type: Original Report Product Type: MobiCam DXR Touch Wireless Monitoring System (Parent Unit) Test Engineer: Jimmy Xiao Report Number: RSZ130124006-00 Report Date: 2013-02-01 Reviewed By: Sula Huang RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ130124006-00 FCC Part15.247 Page 2 of 36 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 EXTERNAL I/O CABLE..................................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS...............................................................................................................................7 FCC §15.247 (i) & §2.1093 – RF EXPOSURE ............................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 RF EXPOSURE EVALUATION........................................................................................................................................8 FCC §15.203 – ANTENNA REQUIREMENT ............................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................9 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS .....................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 MEASUREMENT UNCERTAINTY..................................................................................................................................10 EUT SETUP................................................................................................................................................................10 EMI TEST RECEIVER SETUP.......................................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST RESULTS SUMMARY..........................................................................................................................................11 TEST DATA................................................................................................................................................................11 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS.............................................................................14 APPLICABLE STANDARD............................................................................................................................................14 MEASUREMENT UNCERTAINTY.......................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conduction Emissions - Front View Conduction Emissions - Side View Radiated Emissions – Front View (Below 1 GHz) Radiated Emissions – Rear View (Below 1 GHz) Radiated Emissions – Front View (Above 1 GHz) Radiated Emissions – Rear View (Above 1 GHz)
