Y7J5094B01-DKeypad RF with Calculator (Dongle)

2 Press the key. NOTE: The icon on the front display should be flashing. If not, press the key again. CALCULATOR MODE AND KEYPAD MODE When RF connected, this Calculator Keypad has 2 modes -- Calculator Mode (CAL) and Keypad Mode (KP). Switch between Calculator and Keypad Mode JTo switch between Calculator and Keypad mode, simply press the key. Calculator Mode (with RF connection) JThe calculator performs normal 10-digit calculator operations. JSend calculation results or display contents to a computer by pressing SEND . • You cannot perform a send operation while the E (Error) indicator is shown on the Calculator Keypad display. • The SEND key is disabled when the calculator is not RF connected. Keypad Mode (with RF connection) JInput the following to a computer directly: Numbers 0-9+ – ×÷ Auto Power Off and Wake-up JCalculator Only, NO RF Connection • The device will automatically power off after approximately 7 minutes of inactivity. Press the key to turn on the device. JCAL and KP Modes, with RF Connection • The RF connection will be disconnected after approximately 30 minutes of inactivity (the display will reset to “0”). The device will function the same as “Calculator Only, NO RF Connection”. Press to re-activate the RF connection. • After the RF connection is disconnected, the device will automatically power off after an additional 7 minutes of inactivity. Press and then to turn on the device and re-activate the RF connection. Power-low Indicator JWhen the display is dim or the icon appears, RF connection will not function. Replace the batteries to avoid running out of power unexpectedly. Keypad Lock (with RF connection) JPress the key and hold for 3 seconds to lock. JTo unlock, press the key and hold for 3 seconds. Power-low display Keypad locked display Radio Frequency Calculator Keypad / Teclado Calculadora Radio Frecuencia ●When finished using the calculator with a computer, remove the dongle from the computer and replace it in the slot on the back of the device. ●When using with a different computer, please connect again with the initial setup. ●The RF icon will remain on (solid, not flashing) when the Calculator Keypad is successfully connected to your computer. ●RF connection requires battery power to function properly. ●When RF connection is off, calculator functions can be used without batteries (powered by solar panel). USAGE TIPS USER GUIDE / GUIA DE USARIO PRINTED IN CHINA / IMPRESO EN CHINA ENGLISH IMPORTANT: READ BEFORE USE Please read the following instructions and safety precautions before using the Calculator Keypad. Keep this sheet on hand for future reference. THIS DEVICE IS WINDOWS AND MACINTOSH COMPATIBLE. Be sure to plug in the Radio Frequency (RF) dongle before connecting the Calculator Keypad to your computer. Hardware : Windows based PC x86 / x64 or above, Intel-based Mac Operating Windows ® XP (SP2 or above) or Windows Vista ® or Windows ® 7 System : Mac OS ® X 10.4 ~ 10.6 SYSTEM REQUIREMENTS ●Keep the batteries out of reach of children. ●Never expose batteries to high temperatures, direct heat, or dispose by incineration. ●Do not mix new and old batteries or batteries of different types. ●Do not allow metal objects to touch the battery terminals on the device; they can become hot and cause burns. ●Remove the batteries if they are worn out or have been stored for an extended period of time. ●Always remove old, weak, or worn out batteries promptly and recycle or dispose of them in accordance with Federal, State, and Local regulations. ●If a battery leaks, remove all batteries, taking care to keep the leaked fluid from touching your skin or clothes. If fluid from the battery comes into contact with skin or clothes, flush skin with water immediately. BATTERY CAUTION ! Model : X Mark I Keypad RF Power Source : AAA-size Alkaline batteries x 2 Operating Temperature : 0ºC to 40ºC (30ºF to 104ºF) Dimension : 155mm (L) x 86mm (W) x 20mm (H) 1-7/64” (L) x 3-25/64” (A) x 25/32” (A) DEVICE SPECIFICATIONS Frequency : 2.4 GHz frequency range Connection Range : The operating range is up to 10 meters (32.8 feet) NOTE : Connection range is affected by many factors, such as nearby metallic objects and the relative positioning of the device and the receiver. RADIO FREQUENCY SPECIFICATIONS NOTE: All specifications are subject to change without notice. ●Never continue to use the Calculator Keypad if it starts to smoke, emits a strange odor, or emits heat. Continued use of the calculator under such conditions creates the danger of fire and electric shock. ●When cleaning the Calculator Keypad, do not use a damp cloth or volatile liquid such as paint thinner; instead, use only a soft, dry cloth. ●Never dispose of the Calculator Keypad improperly (such as burning), which can lead to personal injury or harm. You should dispose of this product in accordance with Federal, State, and Local regulations. HANDLING AND CARE ▪Power on ▪Clear all display | Keypad lock / unlock ▪Re-connect the RF connection ▪Clear last input entered | Clear all input (CAL mode only) ▪Escape the input (KP mode only) ▪Switch between Calculator Mode or Keypad Mode ▪Backspace in Keypad mode; in Calculator mode shifts each digit of the displayed numerical value and clears the last significant digit ▪Send calculation results or display contents to computer (CAL mode with RF Connection) ▪Perform percentage add-on and discount calculation. (CAL mode only) ▪Execute calculation (CAL mode only) ▪Enter Key -- Confirm the input (KP mode only) ▪Set the number of digits displayed in calculation after the decimal point ▪Press and then press and hold , the display will change in the sequence of F 0 2 3 F (CAL mode only) ▪F represents a floating decimal point WAKE UP KEY INDEX © CANON ELECTRONIC BUSINESS MACHINES (H.K.) CO., LTD. 2011 Set-up may vary slightly depending on the computer. Instructions provided should work universally on Windows ® XP, Windows Vista ® , Windows ® 7, and Macintosh. 1. Remove the battery cover from…

Text truncated - open the document above for the full version.

USB port USB Dongle Block Diagram RF & USB controller LSI (SH68F86) RF IC (ARF2 496 K ) 2011- 5 - 20 2.4G RF Block Diagram

CAmSTT CANON ELECTRONTC BUSTNESS MACHTNES (H.K.) CO., LTD. 17|F.,'lower One, Ever Gain Plaza, 82-100 Container Port Road, Kwai Chung, New Teritories, Hong Kong. Phone: (852) 2305-8400 "1, an officer of Canon Electronic Business Machines (H.K.) Co., Ltd. do hereby authorize Intertek Testing Services (Mr. Terry Chan) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in 51.2002(b) of CFR 47 , 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 21 day of February,2011 Ronald Chan Printed Name Director Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base. Signature I I Nov 2010

Canon CANON ELECTRONIC BUSINESS MACHINES (H.K.) CO., LTD. 17lF., Tower One, Ever Gain Plaza, 82-100 Container Port Road, Kwai Chung, New Territories, Hong Kong. PHONE: (8s2) 230s-8400 Attention: Application Examiner Re: Request for confidentiality Applicant: fCanon Electronic Business Machines (H.K.) Co., Ltd.l FCC ID: [Y7J5 09 3 B 0 ]1, lYTJs 5 6 5 B 0 Il, [Y7J 5 09 4 B 0 t], [y 7 J s 0 9 4 B 0 I -D] To whom it may concern, Short-term ConfidentÍality Request is hereby submitted by lCanon Electronic Business Machines (H.K.) Co., Ltd.l iowithhold from public review for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are' to be kept confidèntial for a period of 45 days from the date of Authoization: lSelect one or more of items below that are not selected in the list qbove, as appropriatel ¡ Schematics ¡ Detailed Block diagrams o DetailedOperational,/FunctionalDescription ¡ Test setup photos ¡ External photos o Internal photos . User manual Rationale for request for confidentiality: fCanon Electronic Business Machines (H.K.) Co., Ltd.l has invested considerable time and materials in research and development to produce the referenced product. Short term confidentiality.' Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development. Canon Electronic Business Machines (H.K.) Co., Ltd.

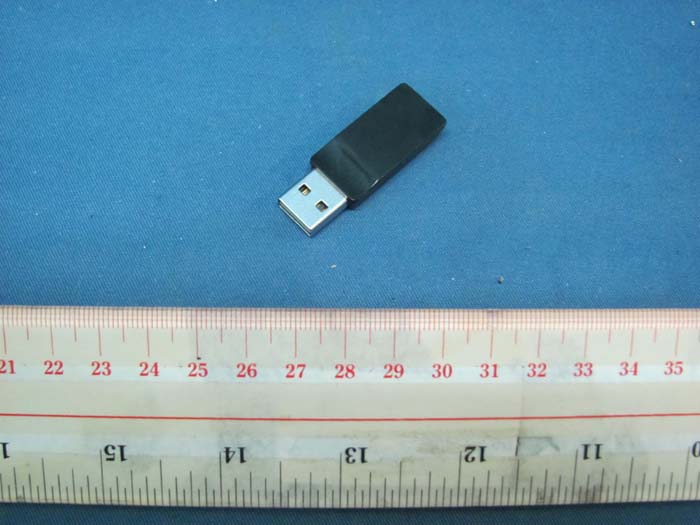

INTERTEK TESTING SERVICE Report No.: HK11060153-3 FCC ID: Y7J5094B01-D Equipment Photographs Model : X Mark I Keypad RF (External)

Label Artwork FCC ID: Y7J5094B01-D

INTERTEK TESTING SERVICE Report No.: HK11060153-3 FCC ID: Y7J5094B01-D Equipment Photographs Model : X Mark I Keypad RF (Internal) INTERTEK TESTING SERVICE Report No.: HK11060153-3 FCC ID: Y7J5094B01-D Equipment Photographs Model : X Mark I Keypad RF (Internal)

FCC ID: Y7J5094B01-D Technical Description: The Equipment Under test (EUT) is a 2.4GHz Transceiver for a wireless dongle which is operating at 2415 to 2470MHz with 1MHz channel spacing. The EUT is energized by a USB port. When the EUT is inserted to the PC, it will pair the corresponding wireless calculator/ numeric keypad for wireless data transfer. The functions of main ICs are mentioned as below; 1) U1 acts as 2.4GHz RF chip. 2) U2 acts as USB Controller. Antenna Used: Patch antenna has been used.

ARF2496K 2.4GHz RF Single Chip Transceiver The above information is the exclusive intellectual property of AlfaPlus Semiconductor and shall not be disclosed, distributed or reproduced without permission from AlfaPlus Semiconductor. - 1 - Version 1.67 Data Sheet AlfaPlus Semiconductor Inc. General Description The ARF2496K is a low-power, high-integrated single chip RF transceiver using 0.18μm mixed-mode CMOS process optimized for ISM 2.4GHz wireless systems. The ARF2496K contains receiver, transmitter, voltage-controlled oscillator (VCO) and phase-locked loop (PLL). The device is expressly designed for low power consumption. Specific expertise has been applied to save current consumption and thus to extend the battery life, which is of most importance to the portable wireless consumer applications. Power saving mode has also been implemented to further reduce the power consumption. The receiver contains a low-noise amplifier (LNA), a high-frequency mixer, a received signal strength indicator (RSSI), a channel select filter, a limiting amplifier, a demodulator and a data slicer with clock recovery. Current consumption of receive mode is 18mA and transmit mode is 10.5mA at –5dBm output. Features z 2.4GHz GFSK RF transceiver z Operates in unlicensed worldwide Industrial, Science and Medical (ISM) band (2.400GHz ~ 2.527GHz) z Sensitively up to –93 dBm z Output power up to 0 dBm z Low-noise amplifier, power amplifier, modern and data slicer/recovery on chip z Low operation voltage from 1.9V to 3.6V z Low current consumption, 8.2mA@-20dBm at TX mode and 18mA at RX mode z Programmable 250kbps/1Mbps transfer bit-rate z Configurable preamble, scramble, source address, destination address and CRC generation z Programmable data payload length from 1-byte to 32-byte z 3-wire SPI interface for device configuration z Complete RSSI function on chip z Operation temperature range from –40 °C to +85 °C z Compact 24-pin QFN 4x4 mm package Applications z Wireless Mouse, Presenters, Keyboards and Gamepad z Wireless VOIP and Headsets z Remote Controls z Toys z Home Automation z Consumer Electronics The above information is the exclusive intellectual property of AlfaPlus Semiconductor and shall not be disclosed, distributed or reproduced without permission from AlfaPlus Semiconductor. - 2 - 2 Version 1.67 Data Sheet AlfaPlus Semiconductor Inc. Table of Contents General Description .......................................................... 1 Features............................................................................. 1 Applications ...................................................................... 1 Table of Contents .............................................................. 2 Pin Configuration.............................................................. 3 Block Diagram.................................................................. 3 Electrical Specifications ................................................... 4 Absolute Maximum Ratings ..................................... 4 Recommend Operating Conditions ........................... 4 DC Electrical Characteristics .................................... 4 AC Electrical Characteristics .................................... 4 Function Description......................................................... 5 Internal State and Operation Mode ........................... 5 Power-Down Mode........................................... 5 Power-Saving Mode.......................................... 5 Stand-By Mode.................................................. 6 SPI-Access Mode.............................................. 6 Active Mode...................................................... 6 Operation Mode and Pin Behavior................... 6 Data Transfer Modes................................................. 6 RX/Direct Mode................................................ 6 RX/Burst Mode.................................................. 7 TX/Direct Mode................................................ 7 TX/Burst Mode.................................................. 8 TX/Multi-Burst Mode........................................ 8 Timing of TRRDY to TRRDY at RX Mode......... 9 Advantage by Using Burst Mode...................... 9 Packet Format ........................................................... 9 Preamble........................................................... 9 Destination Address.......................................... 9 Reserved.......................................................... 10 Source Address................................................ 10 Data................................................................ 10 CRC................................................................. 10 SPI Interface ........................................................... 10 SPI Interface Pins........................................... 10 SPI Packet Format.......................................... 10 Timing of SPI Read-Access............................. 11 Timing of SPI Write-Access............................. 11 Timing of TRRDY to SPIEN............................ 11 RSSI Function......................................................... 11 Output Power Ramp-Up/Down Function................ 11 PLL Pre-Turn-On Time ........................................... 12 Antenna Interface.................................................... 12 Global Clock ........................................................... 12 Power Supply.......................................................... 12 Device Registers ............................................................. 13 Register List and Index................................... 13 T/R and Channel Index (0x00)........................ 13 Crystal Frequency and Output Power (0x01).13 Data Function Control (0x02)........................ 14 RSSI Function Control (0x03)......................... 14 RSSI Value (0x04)........................................... 14 Data Format Control (0x05).........................…

Text truncated - open the document above for the full version.

1 2 34 ABCD 4 3 2 1 D CBA Title:Size: Drawing Name: Date:Drawn By: Check By: ConfiRm By: Revision: Sheet of A4 LOGITECH X MARK I KRF(Receiver) 2011/07/14GCW V4.0 1 w j i a w i T X W \ Z X W [ C722pF C1322P C1222PY1 16MHz R21M L13.3nH L2 6.8nH C145pF C30.1uF C62.2nF C91uF C510uF C822pF R156K C150.1uF L310nH TRRDY 1 TRSCLK 2 TRSDAT 3 SPIEN 4 VCCD 5 GNDD 6 VDDD 7 XOUT 8 XIN 9 PSB 10 GNDVCO 11 VCCVCO 12 VDDRF 13 ANT1 14 ANT2 15 VSSRF 16 VCCRF 17 GNDIF 18 RSSI 19 IREF 20 TRINT 21 DRSSI 22 T06 23 T07 24 U1ARF2496 E1 Antenna L4 12nH C111uF C104.7uF V33 VCC_RF VCC_RF VCC_RF PSBTRINT TDOTMS TRRDYTRSCLKTRSDATSPIEN 5V 1 D- 2 D+ 3 GND 4 J1USB C21uF C110uF V33 +5V P10 1 P00/TDO 2 P01/TMS 3 P02/TDI 4 P06 5 P05 6 P04 7 P03/TCK 8 P07 9 GND 10 P14 11 P13 12 P12 13 P11 14 TFLASH_BAK 15 VNN 16 VPP 17 VCC 18 VDD5V 19 PVDD 20 VDDRO 21 VDDRIN 22 VDM 23 VDP 24 GND 25 GND 26 GND 27 SH68F86_DIE U2SH68F86_DIE C41.5pF C178.2nF C168.2nF R3 0NEW ADD

INTERTEK TESTING SERVICES Report No.: HK11060153-3 Sample No.: 1/2 (Dongle) Code: FCC15C_e / Effective Date: 20 Dec 2010 ( of ) Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement

Report no.: HK11060153-3 Mode: RF data transfer mode Ctrl No.: 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 27.JUL.2011 10:08:18 Report no.: HK11060153-3 Mode: RF data transfer mode Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 4.0335 MHz 29.28 L1 -26.71 2 CISPR Average4.0335 MHz 18.80 N -27.19 1 Quasi Peak 4.3485 MHz 30.78 L1 -25.21 2 CISPR Average4.416 MHz 21.97 N -24.02 2 CISPR Average14.037 MHz 30.93 N -19.07 2 CISPR Average15.504 MHz 31.52 L1 -18.48 Date: 27.JUL.2011 10:07:52

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11060153-3 Canon Electronic Business Machines (H.K.) Co., Ltd. Application For Certification (Original Grant) (FCC ID: Y7J5094B01-D) Transceiver and, Class B Personal Computers and Peripherals Prepared and Checked by: Approved by: Signed On File Wong Kwok Yeung, Kenneth Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: August 02, 2011 INTERTEK TESTING SERVICES Report No.: HK11060153-3 FCC ID: Y7J5094B01-D i GENERAL INFORMATION Canon Electronic Business Machines (H.K.) Co., Ltd. BRAND NAME: Canon, MODEL: X Mark I Keypad RF FCC ID: Y7J5094B01-D Grantee: Canon Electronic Business Machines (H.K.) Co., Ltd. Grantee Address: 17/F., Tower One, Ever Gain Plaza, 82-100 Container Port Road, Kwai Chung, N.T., Hong Kong. Contact Person: Mr. Ronald Chan Tel: 852-2305 8400 Fax: 852-2318 1719 e-mail: [email protected] Manufacturer: Canon Electronic Business Machines (H.K.) Co., Ltd. Manufacturer Address: 17/F., Tower One, Ever Gain Plaza, 82-100 Container Port Road, Kwai Chung, N.T., Hong Kong. Brand Name: Canon Model: X Mark I Keypad RF Type of EUT: Transceiver, Class B Compters and Peripherals Description of EUT: Keypad RF with Calculator (Dongle) Serial Number: N/A FCC ID: Y7J5094B01-D Date of Sample Submitted: June 02, 2011 Date of Test: July 28, 2011 Report No.: HK11060153-3 Report Date: August 02, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11060153-3 FCC ID: Y7J5094B01-D ii SUMMARY OF TEST RESULT Canon Electronic Business Machines (H.K.) Co., Ltd. BRAND NAME: Canon, MODEL: X Mark I Keypad RF FCC ID: Y7J5094B01-D TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.6 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 Pass Transmitter Field Strength 15.227 / RSS-310 3.8 N/A Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Digital Device Radiated Emissions 15.109 / ICES-003 Pass Digital Device Conducted Emissions 15.107 / ICES-003 Pass Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK11060153-3 FCC ID: Y7J5094B01-D iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 3 2.3 Special Accessories...................................................................................... 3 2.4 Equipment Modification................................................................................. 3 2.5 Measurement Uncertainty ............................................................................. 3…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK11060153-3 FCC ID: Y7J5094B01 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model : X Mark I Keypad RF INTERTEK TESTING SERVICE Report No: HK11060153-3 FCC ID: Y7J5094B01 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Back View) Model : X Mark I Keypad RF INTERTEK TESTING SERVICE Report No: HK11060153-3 FCC ID: Y7J5094B01 iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model : X Mark I Keypad RF

INTERTEK TESTING SERVICE Report No: HK11060153-3 FCC ID: Y7J5094B01-D Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : X Mark I Keypad RF Radiated Emission Model: X Mark I Keypad RF Job: HK11060153-3 A15B1… INTERTEK TESTING SERVICE Report No: HK11060153-3 FCC ID: Y7J5094B01-D Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : X Mark I Keypad RF Radiated Emission Model: X Mark I Keypad RF Job: HK11060153-3 A1…B15
