7 layers AG Borsigstr.11 40880 Ratingen Germany Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 CONFIDENTIALITY REQUEST FOR “L7 ENTRY” FCC-ID: Y7OL7ENTRY Sirs, In accordance with FCC Rule Section 0.457 and 0.459 of CFR 47, 7 layers AG (authorized by Continental Automotive GmbH) hereby requests the following documentation as Long-term confidential: - Schematic diagrams - Block diagrams - Operational Description Short-term confidential (until 01. August 2011): - Internal Photos - External Photos - Test Setup Photos - User Manual These documents contain detailed system and equipment description and related information about the product, which Flextronics International GmbH considers to be proprietary. This information should never get into the possession of competitors, which would be harmful for our business. Do not hesitate to contact me if you have any additional questions. Carsten Steinroeder Ratingen, 24/02/2011

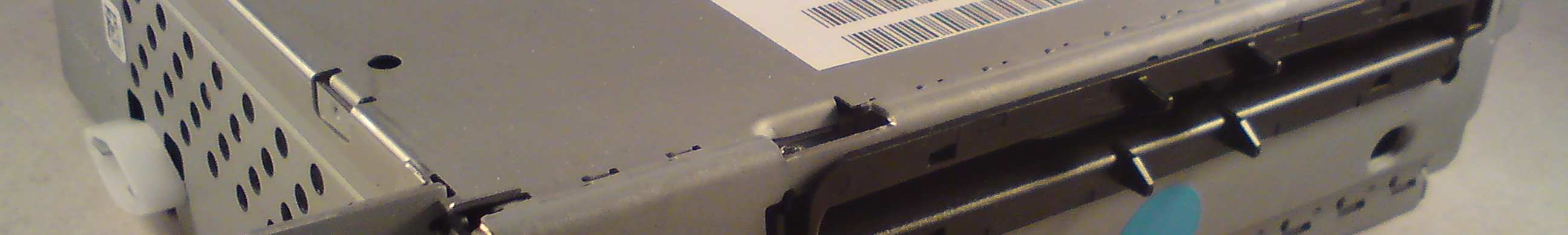

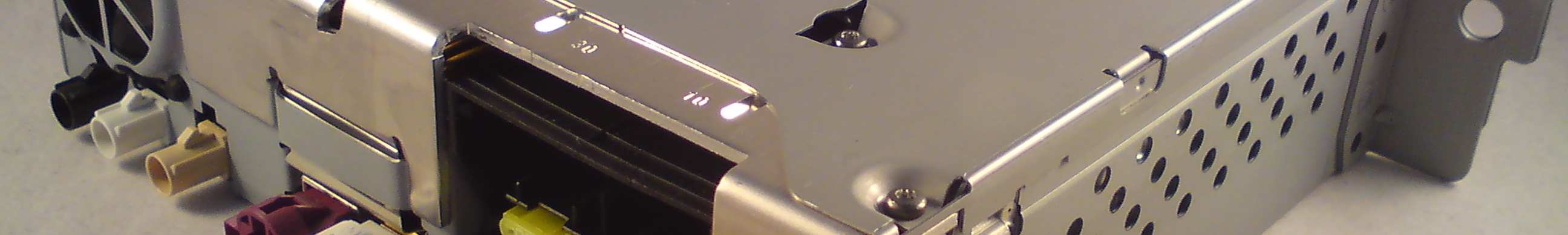

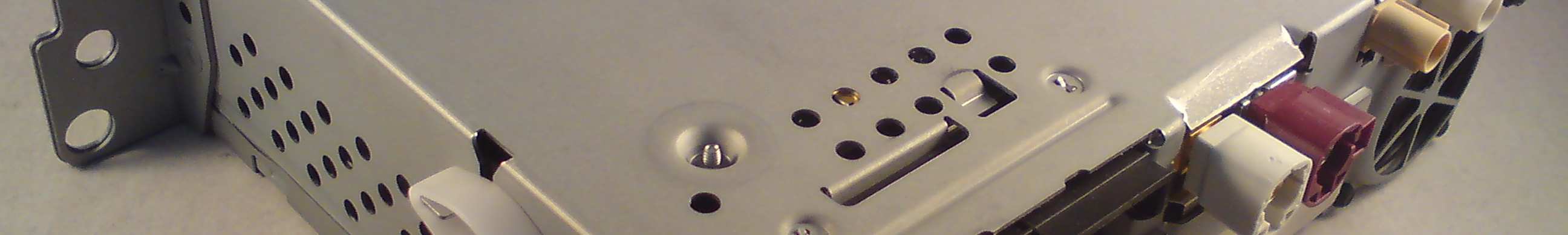

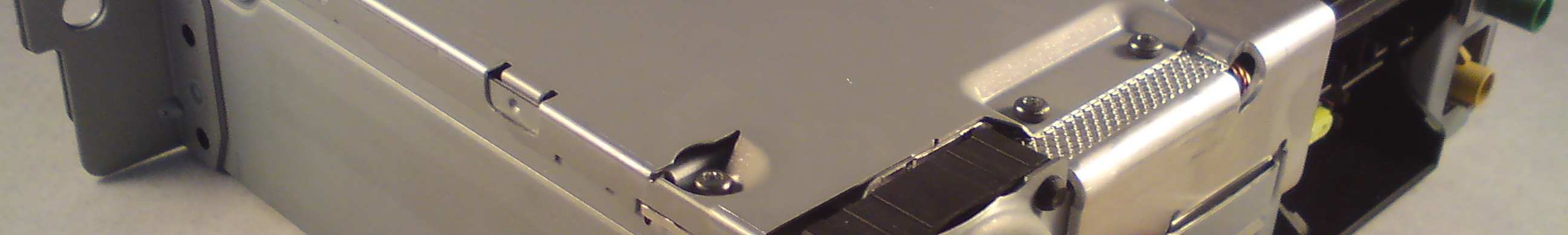

EXTERNAL PHOTOS – L7 ENTRY

LABEL & LOCATION

I IC RD Scope: EE Project: L7 Entry File: L7_Entry_target_pictures_2011_02_28.doc 1 of 7 Copyright © by Continental Automotive GmbH 2008 All rights reserved. For internal use only! Printout from project folder Transmittal, reproduction, dissemination and/or editing of this do cument as well as utilization of its contents and communicati on there of to others without express authorization are prohibited. Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved. L7 Entry Multi Media radio with Infineon Bluetooth Module on Main Board HW-Version C3 BT module-Version V2.01 1 Released by Role Name Department Date Loca- tion Signature or E-Sign-ID EE-Developer Frank Born I IC RD G HW D2 04-Nov-2010 WTZ Reviewed by (see Review Log, P730006FFF) Role Name Department Date Location EE Group Leader I IC RD G HW D2 - WTZ EE-Architect Thomas Volk I IC RD G HW AS - WTZ EE-DPL Gunnar Plüschke I IC RD G HW PM - WTZ 2 Members of CCB Role Name Department Location 3 History of Content Changes Version Status Date dd-Mmm-YYYY Document Owner, Department Changed by: Changes / Requested by (e.g. CR-number) a01 [draft] 28-Oct-2010 Frank Born, I IC RD G HW D2 First draft a01 [released] 04-Nov-2010 Frank Born, I IC RD G HW D2 a02 [released] 01-Dec-2010 Frank Born, I IC RD G HW D2 Document update a03 [released] 14-Feb-2011 Frank Born, I IC RD G HW D2 Add picture with removed Bluetooth shielding a04 [released] 28-Feb-2011 Frank Born, I IC RD G HW D2 Picture update with removed PCB mounting bracket 4 5 I IC RD Scope: EE Project: L7 Entry File: L7_Entry_target_pictures_2011_02_28.doc 2 of 7 Copyright © by Continental Automotive GmbH 2008 All rights reserved. For internal use only! Printout from project folder Transmittal, reproduction, dissemination and/or editing of this do cument as well as utilization of its contents and communicati on there of to others without express authorization are prohibited. Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved. Table of contents 6 1 SUMMARY ...................................................................................................................... 3 7 1.1 INTRODUCTION ................................................................................................................ 3 8 1.2 SYSTEM DESCRIPTION ..................................................................................................... 3 9 2 SYSTEM OVERVIEW...................................................................................................... 4 10 11 12 I IC RD Scope: EE Project: L7 Entry File: L7_Entry_target_pictures_2011_02_28.doc 3 of 7 Copyright © by Continental Automotive GmbH 2008 All rights reserved. For internal use only! Printout from project folder Transmittal, reproduction, dissemination and/or editing of this do cument as well as utilization of its contents and communicati on there of to others without express authorization are prohibited. Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved. 1 Summary 13 1.1 Introduction 14 This document shows an overview of the L7 Entry system with the internal PCB’s. 15 The L7 Entry is a multi media radio for the customer BMW with an on board Bluetooth module from Infineon 16 which support the Bluetooth version V2.1+EDR with a data rate up to 3Mbit/s in EDR mode. 17 18 19 1.2 System description 20 The Bluetooth module in the L7 Entry system is implement for audio and data connections with mobile 21 devices like mobile phones. 22 The basic function of the L7 Entry Bluetooth system is the hands free functionality in combination with the 23 car internal loudspeaker and microphone. 24 25 The following picture shows the L7 Entry hardware with the housing: 26 27 28 Figure1: L7 Entry, front top view 29 30 31 32 33 34 35 36 37 38 39 I IC RD Scope: EE Project: L7 Entry File: L7_Entry_target_pictures_2011_02_28.doc 4 of 7 Copyright © by Continental Automotive GmbH 2008 All rights reserved. For internal use only! Printout from project folder Transmittal, reproduction, dissemination and/or editing of this do cument as well as utilization of its contents and communicati on there of to others without express authorization are prohibited. Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved. 2 System overview 40 The following pictures show the L7 Entry system disassembled down to the Main PCB. 41 42 43 Figure2: L7 Entry backside view 44 45 46 47 48 49 50 Figure3: top bracket removed, CD drive visible 51 52 53 54 55 56 57 58 59 Bluetooth RF connector USB connector I IC RD Scope: EE Project: L7 Entry File: L7_Entry_target_pictures_2011_02_28.doc 5 of 7 Copyright © by Continental Automotive GmbH 2008 All rights reserved. For internal use only! Printout from project folder Transmittal, reproduction, dissemination and/or editing of this do cument as well as utilization of its contents and communicati on there of to others without express authorization are prohibited. Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved. 60 61 Figure4: CD drive and front bracket removed 62 63 64 65 66 67 68 Figure5: rear side view without housing 69 70 71 72 73 74 75 76 77 78 79 80 81 I IC RD Scope: EE Project: L7 Entry File: L7_Entry_target_pictures_2011_02_28.doc 6 of 7 Copyright © by Continental Automotive GmbH 2008 All rights reserved. For internal use only! Printout from project folder Transmittal, reproduction, dissemination and/or editing of this do cument as well as utilization of its contents and communicati on there of to others without express authorization are prohib…

Text truncated - open the document above for the full version.

7
layers
AG
Aufsichtsratsvorsitzenderh
Registergerichth
registered
in:
Borsigstrasse
11
Chairman
of
the
Supervisory
Board:
Düsseldorf,
HRB
44096

40880
Ratingen,
Germany
Markus
Becker
USt+IdNr
h
VAT
No.:

Phone:
+49
(0)
2102
749
0
Vorstandh
Board:
DE
203159652
Fax:
+49
(0)
2102
749
350
Dr.
H.+J.
Meckelburg

www.7Layers.com
Wilfried
Klassmann
TAX
No.
147/5869/0385


InterLab 
is
a
registered
trademark
of
7
layers
AG






FCC
Measurement/Technical
Report
on

L7
Entry
Car
Radio
with
Bluetooth




ReportReference:
MDE_CONTI_1007_FCCc







TestLaboratory:

7
layers
AG
Borsigstrasse
11

40880
Ratingen
Germany
email:
[email protected]


DGA-PL-192/99-02


Note:
The
following
test
results
relate
only
to
the
devices
specified
in
this
document.
This
report
shall
not
be
reproduced
in
parts
without
the
written
approval
of
the
testing
laboratory.




Test
report
Reference:
MDE_CONTI_1007_FCCc
Page
2
of
87
TableofContents
0 Summary3 0.1 Technical
Report
Summary
3 0.2 Measurement
Summary
4 1 AdministrativeData7 1.1 Testing
Laboratory
7 1.2 Project
Data
7 1.3 Applicant
Data
7 1.4 Manufacturer
Data
7 2 TestobjectData8 2.1 General
EUT
Description
8 2.2 EUT
Main
components
9 2.3 Ancillary
Equipment
9 2.4 Auxiliary
Equipment
9 2.5 EUT
Setups
10 2.6 Operating
Modes
10 2.7 Product
labelling
10 3 TestResults11 3.1 Occupied
bandwidth
11 3.2 Peak
power
output
14 3.3 Spurious
RF
conducted
emissions
17 3.4 Spurious
radiated
emissions
20 3.5 Band
edge
compliance
27 3.6 Dwell
time
31 3.7 Channel
separation
33 3.8 Number
of
hopping
frequencies
35 4 TestEquipment36 5 PhotoReport42 6 SetupDrawings42 7 FCCandICCorrelationofmeasurementrequirements 43 8 Annexmeasurementplots44 8.1 Occupied
bandwidth
44 8.2 Peak
power
output
53 8.3 Band
edge
compliance
conducted
and
Spurious
RF
conducted
emissions
62 8.4 Band
edge
compliance
radiated
80 8.5 Radiated
emissions
(f
<
30
MHz)
83 8.6 Dwell
time
85 8.7 Channel
separation
86 8.8 Number
of
hopping
frequencies
87


Test
report
Reference:
MDE_CONTI_1007_FCCc
Page
3
of
87
0 Summary 0.1 TechnicalReportSummary
TypeofAuthorization Certification
for
an
Intentional
Radiator
(Frequency
Hopping
Spread
Spectrum).

ApplicableFCCRules
Prepared
in
accordance
with
the
requirements
of
FCC
Rules
and
Regulations
as
listed
in
47
CFR
Ch.1
Parts
2
(10+1+09
Edition)
and
15
(10+1+09
Edition).
The
following
subparts
are
applicable
to
the
results
in
this
test
report.


Part
2,
Subpart
J
+
Equipment
Authorization
Procedures,
Certification

Part
15,
Subpart
C
–
Intentional
Radiators

§
15.201

Equipment
authorization
requirement

§
15.207

Conducted
limits

§
15.209

Radiated
emission
limits;
general
requirements

§
15.247

Operation
within
the
bands
902+928
MHz,
2400+2483.5
MHz

and
5725+5850
MHz





Note:
The
tests
were
selected
and
performed
with
reference
to
the
FCC
Public
Notice
DA
00+ 705,
released
March
30,
2000.
Instead
of
applying
ANSI
C63.4+1992
which
is
referenced
in
the
FCC
Public
Note,
the
newer
ANSI
C63.4+2003
is
applied.





SummaryTestResults:  TheEUTcompliedwithallperformedtestsaslistedinchapter0.2Measurement Summary.


Test
report
Reference:
MDE_CONTI_1007_FCCc
Page
4
of
87
0.2 MeasurementSummary
FCCPart15,SubpartC§15.207 Conducted
emissions
(AC
power
line)

The
measurement
was
performed
according
to
ANSI
C63.4
2003
OP6ModeSetupPortFinalResult

AC
Port
(power
line)
N/A




FCCPart15,SubpartC
§15.247(a)(1)
Occupied
bandwidth

The
measurement
was
performed
according
to
FCC
§
15.31
10+1+09
Edition
OP6ModeSetupPortFinalResult op+mode
1
Setup_b01
Temp
ant.connector
passed
op+mode
2
Setup_b01
Temp
ant.connector
passed
op+mode
3
Setup_b01
Temp
ant.connector
passed
op+mode
6
Setup_b01
Temp
ant.connector
passed
op+mode
7
Setup_b01
Temp
ant.connector
passed
op+mode
8
Setup_b01
Temp
ant.connector
passed
op+mode
10
Setup_b01
Temp
ant.connector
passed
op+mode
11
Setup_b01
Temp
ant.connector
passed
op+mode
12
Setup_b01
Temp
ant.connector
passed




FCCPart15,SubpartC
§15.247(b)(1)
Peak
power
output

The
measurement
was
performed
according
to
FCC
§
15.31
10+1+09
Edition
OP6ModeSetupPortFinalResult op+mode
1
Setup_b01
Temp
ant.connector
passed
op+mode
2
Setup_b01
Temp
ant.connector
passed
op+mode
3
Setup_b01
Temp
ant.connector
passed
op+mode
6
Setup_b01
Temp
ant.connector
passed
op+mode
7
Setup_b01
Temp
ant.connector
passed
op+mode
8
Setup_b01
Temp
ant.connector
passed
op+mode
10
Setup_b01
Temp
ant.connector
passed
op+mode
11
Setup_b01
Temp
ant.connector
passed
op+mode
12
Setup_b01
Temp
ant.connector
passed




FCCPart15,SubpartC
§15.247(d)
Spurious
RF
conducted
emissions

The
measurement
was
performed
according
to
FCC
§
15.31
10+1+09
Edition
OP6ModeSetupPortFinalResult op+mode
1
Setup_b01
Temp
ant.connector
passed
op+mode
2
Setup_b01
Temp
ant.connector
passed
op+mode
3
Setup_b01
Temp
ant.connector
passed
op+mode
6
Setup_b01
Temp
ant.connector
passed
op+mode
7
Setup_b01
Temp
ant.connector
passed
op+mode
8
Setup_b01
Temp
ant.connector
passed
op+mode
10
Setup_b01
Temp
ant.connector
passed
op+mode
11
Setup_b01
Temp
ant.connector
passed
op+mode
12
Setup_b01
Temp
ant.connector
passed






Test
report
Reference:
MDE_CONTI_1007_FCCc
Page
5
of
87

FCCPart15,SubpartC
§15.247(d),§15.35(b),§15.209
Spurious
radiated
emissions

The
measurement
was
performed
according
to
ANSI
C63.4
2003
OP6ModeSetupPortFinalResult op+mode
1
Setup_a01
Enclosure
passed
op+mode
2
Setup_a01
Enclosure
passed
op+mode
3
Setup_a01
Enclosure
passed
op+mode
6
Setup_a01
Enclosure
passed
op+mode
7
Setup_a01
Enclosure
passed
op+mode
8
Setup_a01
Enclosure
passed
op+mode
10
Setup_a01
Enclosure
passed
op+mode
11
Setup_a01
Enclosure
passed
op+mode
12
Setup_a01
Enclosure
passed




FCCPart15,SubpartC
§15.247(d)
Band…

Text truncated - open the document above for the full version.
