Y8ABTU600BLUETOOTH SPEAKER SYSTEM

0 1 INSTRUCTION MANUAL BLUETOOTH SPEAKER SYST EM & PLL FM STEREO RADIO & USB PORT & CARD SLOT MODEL: BTU600AR Please read following instructions prior to operating your unit. Manufacturer of this unit follows a principle of continuous improvement and has no responsibility for any changes that are made to the unit or any liability for these changes. Thanks for your choice of our products. WARNING - CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. - CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE. - TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. - WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. - WARNING: THE BATTERIES SHALL NOT BE EXPOSED TO EXCESSIVE HEAT SUCH AS SUNSHINE, FIRE OR THE LIKE. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) t hat produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinch particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15) This appliance shall not be exposed to dripping or splashing water and that no object filled with liquid such as vases shal l be placed on the apparatus. 16) Rating label is located at the back of enclosure. 17) "CAUTION" mark is also located at the back of enclosure. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN S3125A 2 3 FCC Warnings WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC RF radiation exposure limits set forth an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. MAIN UNIT 1. PLAY/PAUSE/PAIR/SCAN BUTTON 2. SOURCE BUTTON 3. POWER BUTTON 4. VOL- BUTTON 5. VOL+ BUTTON 6. SPEAKERS 7. LCD DISPLAY 8. BLUETOOTH INDICATOR 9. REMOTE SENSOR 10. SD/MMC CARD SLOT 11. USB PORT 12. DC IN JACK 13. AUX IN JACK 14. FM ANTENNA 12 3 45 6789 6 1011 12 13 14 4 5 REMOTE CONTROL 1. POWER BUTTON 2. MUTE BUTTON 3. NEXT/FAST FORWARD BUTTON 4. VOL+ BUTTON 5. PREVIOUS/FAST BACKWARD BUTTON 6. VOL- BUTTON 7. PLAY/PAUSE/PAIR/SCAN BUTTON 8. CLK BUTTON 9. SOURCE BUTTON 10. TUN+ BUTTON 11. TUN- BUTTON 12. MEM BUTTON POWER SUPPLY Plug the AC/DC adapter to the DC jack on the unit and to the main power. HOW TO SET TIME 1. At the standby mode, press the CLK button on the remote once, the display lights up. 2. Press the CLK button once again in the display lighting, the hour flashes on the display.…

Text truncated - open the document above for the full version.

FCC ID: Y8ABTU600 POWER OF ATTORNEY 2013/1/4 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize I-Test Laboratory (MR. Pauler LI, Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by I-Test Laboratory (MR. Pauler LI, Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on 2013/4/4. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, (Ngai Lik Electronics Enterprises Limited), are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, (Ngai Lik Electronics Enterprises Limited) <SIGNATURE> ------------------------------- (Liming Jiang) (Engineer)

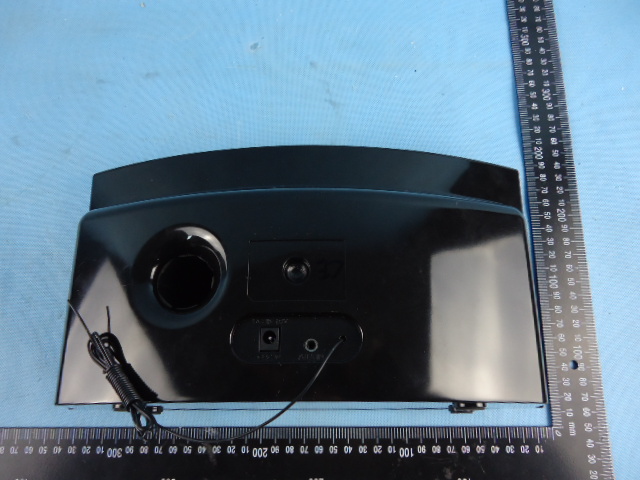

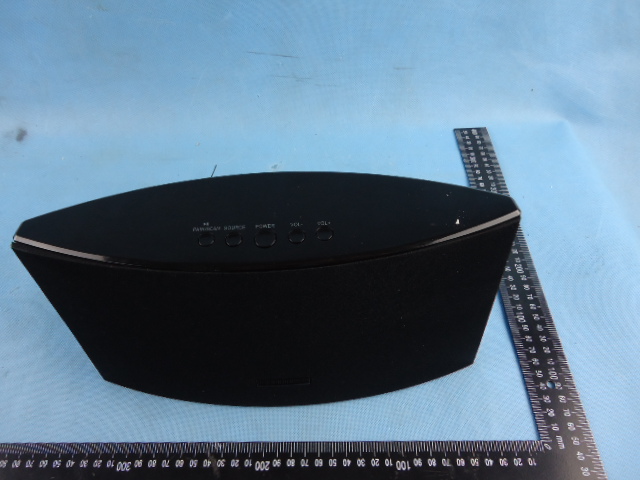

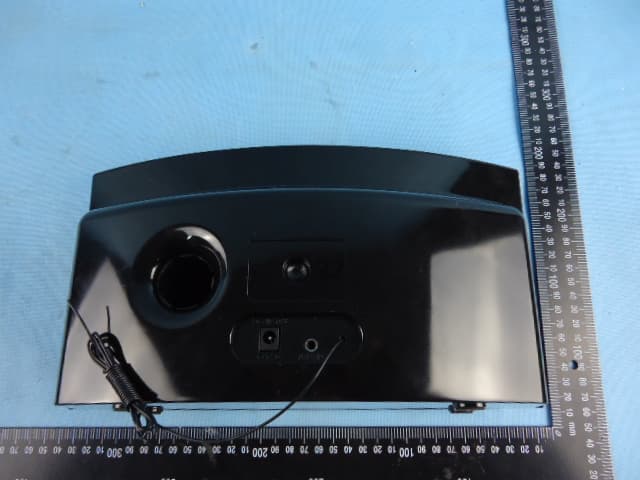

Page 1 of 2 External PHOTO: Model: BTU600A Page 2 of 2

FM STEREO RADIO WITH Bluetooth/USB/ SD CARD/AUX IN PLAYER FREQUENCY RANGE: FM:87.5-108MHz POWER SUPPLY: INPUT DC 18V 2A POWER CONSUMPTION:35W MADE IN CHINA NGAILIK ELECTRONICS ENTERPRISES LIMITED This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference,and (2)this device must accept any interference received, including interference that may cause undesired operation. BT-102 FCC ID:Y8ABTU600 BTU600AR MADE IN CHINA FM STEREO RADIO WITH Bluetooth/USB/ SD CARD/AUX IN PLAYER FREQUENCY RANGE: FM:87.5-108MHz POWER SUPPLY: INPUT DC 18V 2A POWER CONSUMPTION:35W This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference,and (2)this device must accept any interference received, including interference that may cause undesired operation. FCC ID:Y8ABTU600

Page 1 of 1 External PHOTO: Model: BTU600A Attach label here

Page 1 of 4 Internal PHOTO: Model: BTU600A Page 2 of 4 PCB: Page 3 of 4 Page 4 of 4

Operational Description Product Description This product integrated a Bluetooth chipset to support the Bluetooth function that allows users to use it as a speaker as the primary usage of this device. The brief introduction of the circuit 1. The Bluetooth signal is transmitted and received through the antenna system consists of the PCB antenna. 2. Power of the whole body is provided by 18VDC. 3. Line in port is to connect audio source by line in cable to input audio signal. ON/OFF button is to turn on or turn off the speaker. 4. IC8 is MCU master control IC, it is use to button control, input Switch between Bluetooth and line in, and output audio source to amplifier IC. 5. TPA311002 is to amplify audio signal provided by master control IC and motivate loudspeakers. Technical Description of FHSS The Bluetooth standard describes a frequency hopping spread spectrum system (FHSS). The frequency hopping sequence is governed by one unit known as the master in any group of units communicating together. The group is known as a piconet, and all units other than the master are known as slaves. The master determines the pseudo random hopping sequence internally and without reference to any external information, there is no co-ordination with any other Bluetooth or other FHSS systems to avoid simultaneous occupancy of hopping channels. Bluetooth uses re-transmission, interleaving and coding techniques to mitigate against lost transmissions when simultaneous occupancy of a channel cause loss of data. The pseudo random hopping sequence is initialized at the start of a new connection between master and slave to a random frequency ( hopping channel ), and the hopping sequence is generated such that an equal time is spent in each of 79 channels throughout the duration of the connection. The antenna supplied with the unit is a short monopole of 1/4 wavelength with a nominal gain of 0 dBi. The antenna is an integral part of the device. The peak power of the BC01 transceiver is approximately 0 dBm, and the maximum EIRP is approximately 0 dBm.

RF Exposure Compliance Requirement 1. Standard requirement Syste ms operating under the provisions of this section shall be operated in a manner th at ensures th at the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 and RSS 102 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational / Controlled Exposu re Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/c m 2 ) Averaging Times | E | 2 , |H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100000 5 6 (b) Limits for General Popula tion / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/c m 2 ) Averaging Times | E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/500 30 1500-100000 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density 2. MPE Calcula tion Method E (V/m)=(30*P*G) 0.5 /d Power Density: Pd(W/m 2 )=E 2 /377 E=Electric Field (V/m) P=Peak RF output Power (W) G=EUT Antenna numeric gain (numeric) d= Separation distance between radiator and human body (m) The formula can be changed to Pd= (30*P*G)/(377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. 3. Calcula ted Result and Limit 1) Normal: Frequenc y (MHz) Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2402 1.0 2.741 1.88 0.0004 1 Compli ance 2441 1.0 2.997 1.99 0.0004 1 Compli ance 2480 1.0 3.049 2.02 0.0004 1 Compli ance EDR: Frequenc y (MHz) Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2402 1.0 2.193 1.66 0.0003 1 Compli ance 2441 1.0 2.548 1.80 0.0004 1 Compli ance 2480 1.0 2.587 1.81 0.0004 1 Compli ance

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn 3 X T A L _ I N 4 X T A L _ O U T 3 3 L E D _ 1 3 2 L E D _ 2 2 0 P I O _ 1 4 1 9 P I O _ 1 3 1 8 P I O _ 1 2 1 5 P I O _ 1 1 1 4 P I O _ 9 2 1 P I O _ 8 2 2 P I O _ 7 2 3 P I O _ 6 2 4 P I O _ 5 2 5 P I O _ 4 5 8 P I O _ 3 5 9 P I O _ 2 6 0 P I O _ 1 6 1 P I O _ 0 2 9 S P I _ C L K 3 1 S P I _ M I S O 2 8 S P I _ M O S I 3 0 S P I _ C S # 9 U A R T _ T X 1 0 U A R T _ R X 1 1 U A R T _ C T S 1 2 U A R T _ R T S 7 A I O _ 0 6 A I O _ 1 5 L O _ R E F 2 7 T E S T _ E N 2 6 R S T # 69 VSS_CNTR_PAD 8 NC 40 NC 41 NC 42 NC 43 NC 44 NC 49 NC 45 MIC_BIAS 50 MIC_B_N 48 MIC_B_P 52 MIC_A_N 51 MIC_A_P 56 SPK_A_N 57 SPK_A_P 54 SPK_B_P 53 SPK_B_N 55 AU_REF_DCPL 16 VDD_PADS 13 VDD_UART 62 VDD_PIO 47 VDD_AUDIO 46 VREGIN_L_AUDIO 68 VREGENABLE_L 35 VREGENABLE_H 38 BAT_P 39 VDD_CHG 36 VCC_BUCK_CORE 37 LX 1 VREGIN_L 2 VDD_ANA 34 VDD_CORE 17 VDD_CORE 63 VDD_RADIO 66 VDD_RADIO 67 VDD_LO 6 4 R F _ P 6 5 R F _ N U 1 B L U E _ T U R N S _ R O M 6 B A L 4 B A L 2 D C 1 U N B A L 3 N C 5 GND 8 GND 7 GND F 1 D B F 8 1 F 1 0 4 _ C S R 1 E 0 2 E 1 3 E 2 4 V S S 5 S C L 6 S D A 7 W C 8 V C C U 2 M 2 4 C 3 2 - M F B 5 T G L3 22uH C 1 0 R 0 C2 15P L1 NF L2 8n2 L4 15nH 1 A N T 1 A N T _ G E N E R A L C3 15P C4 15P C5 2u2 C6 22n C7 4u7 C8 2u2 C9 2u2 R1 10K C10 2u2 C11 22n R2 2R2 C12 22n 1 2 3 4 U 3 T S X 3 2 2 5 2 6 M H z C13 6P8 C14 18P R3 2K2 R4 2K2 R5 2K2 C15 100n C16 22n C17 2u2 C18 2u2 C19 100n C20 100n R 6 1 K R 7 2 K 2 L 5 C23 47n R9 2R2 1 V 5 1 V 5 1 V 5 1 V 5 V 1 . 8 V1.8 1V5 VDD_CHG BAT POW 1 V 8 1 V 8 1 V 5 _ A U D I O 1 V 8 1 V 8 L E D 1 L E D 2 S W 4 S W 3 S W 2 S W 1 P I O 1 P I O 2 1 V 8 S P I _ C L K S P I _ M I S O S P I _ M O S I S P I _ C S # R S T M I C _ B I A S S P A N S P A P S P B P S P B N 1 V 5 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

ITL Page 1 of 66 Report No.: 12123450 TEST REPORT Applicant: Ngai Lik Electronics Enterprises Limited Address of Applicant: Flat 29-32, 8/F., Block B, Focal Industrial Centre, 21 Man Lok Street, Hung Hom, Kowloon, Hong Kong Manufacturer: Ngai Lik Electronics Enterprises Limited Address of Manufacturer: Flat 29-32, 8/F., Block B, Focal Industrial Centre, 21 Man Lok Street, Hung Hom, Kowloon, Hong Kong Product name: Bluetooth speaker system with FM radio and USB /SD card Model: For main: BTU600AR; BT-102 For AC/DC Adapter: MLF-A00451802000D0132; Rating(s): For main: Input DC 18V, 35W; For switching power supply: Input 100-240V~, 50/60Hz, 1.2A max. Output: DC 18V, 2.0A Trademark: QFX for BT-102, NA for BTU600AR FCC register number： 935596 Standards: FCC Part 15.247 :2010 FCC ID: Y8ABTU600 Data of Receipt: 2012-12-18 Date of Test: 2012-12-19~2012-12-20 Date of Issue: 2012-12-24 Test Result Pass* * In the configuration tested, the test item complied with the standards specified above. Authorized for issue by: Test by: Reviewed by: Dec.24.2012 Jumy Qiu Dec.24.2012 Pauler Li Project Engineer Project Manger Date Name/Position Signature Date Name/Position Signature ITL Page 2 of 66 Report No.: 12123450 Possible test case verdicts: test case does not apply to the test object .. : N/A test object does meet the requirement ........ : P (Pass) test object does not meet the requirement .. : F (Fail) Testing Laboratory information: Testing Laboratory Name .......... : I-Test Laboratory Address : 1-2 floor, South Block, Building A2 , No 3 Keyan Lu, Science City, Guangzhou, Guangdong Province, P.R. China Testing location : Same as above Tel : 0086-20-32209330 Fax : 0086-20-62824387 E-mail : [email protected] General remarks: The test results presented in this report relate only to the object tested. The results contained in this report reflect the results for this particular model and serial number. It is the responsibility of the manufacturer to ensure that all production models meet the intent of the requirements detailed within this report. This report would be invalid test report without all the signatures of testing technician and approver. This report shall not be reproduced, except in full, without the written approval of the Issuing testing laboratory. General product information: For main unit, all models are identical in electrical and mechanical construction except for the model No. and trademark. After review, model BTU600AR (with power supply unit model MLF-A00451802000D0132) was selected as representative. ITL Page 3 of 66 Report No.: 12123450 1 Test Summary Test Test Requirement Test method Result Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PASS Occupied Bandwidth FCC PART 15 C section 15.247 (a)(1) ANSI C63.10: Clause 6.9 & DA 00-705 PASS Carri er Frequencies Separated FCC PART 15 C section 15.247(a)(1) DA 00-705 PASS Hopping Channel Number FCC PART 15 C section 15.247(a)(1)(iii) DA 00-705 PASS Dwell Time FCC PART 15 C section 15.247(a)(1)(iii) DA 00-705 PASS Pseudorandom Frequency Hopping Sequence FCC PART 15 C section 15.247(a)(1) DA 00-705 PASS Maximum Peak Output Power FCC PART 15 C section 15.247(b)(1) ANSI C63.10: Clause 6.10 & DA 00-705 PASS Conducted Spurious Emission (30 MHz to 25 GHz) FCC PART 15 C section 15.247(d) ANSI C63.10: Clause 6.7 & DA 00-705 PASS Radiated Spurious Emission (9 kHz to 25 GHz) FCC PART 15 C section 15.247(d) ANSI C63.10: Clause 6.4, 6.5 and 6.6 & DA 00-705 PASS Band Edges Measurement FCC PART 15 C section 15.247 (d) &15.205 ANSI C63.10: Clause 6.9 & DA 00-705 PASS Conducted Emissions at Mains Terminals FCC PART 15 C section 15.207 ANSI C63.10: Clause 6.2 & DA 00-705 PASS Remark: N/A: not applicable. Refer to the relative section for the details. EUT: In th is whole report EUT means Equipment Under Test. Tx: In th is whole report Tx (or tx) means Transmitte r. Rx: In this whole report Rx (or rx) means Receiver. RF: In this whole report RF means Radio Frequency. ANSI C63.10: the detail version is ANSI C63.10:2009 in the whole report. DA 00-705: “Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems” ITL Page 4 of 66 Report No.: 12123450 2 Contents Page TEST REPORT ....................................................................................................................................................................... 1 1 TEST SUMMARY ......................................................................................................................................................... 3 2 CONTENTS ................................................................................................................................................................... 4 3 GENERAL INFORMATION ........................................................................................................................................ 5 3.1 CLIENT INFORMATION ............................................................................................................................................ 5 3.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 5 3.3 DETAILS OF E.U.T. ................................................................................................................................................ 5 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................ 5 3.5 TEST LOCATION ..................................................................................................................................................... 6 3.6 DEVIATION FROM STANDARDS .............................................................................................................................. 6 3.7 ABNORMALITIES FROM STANDARD CONDITIONS .........................…

Text truncated - open the document above for the full version.
