Y8AMIB668BLUETOOTH SPEAKER SYSTEM

0 1 INSTRUCTION MANUAL BAR SPEAKER WITH BLUETOOTH RECEPTION & FM RADIO AND USB PORT & SD/MMC CARD SLOT MODEL: MIB668CR Please read following instructions prior to operating your unit. Manufacturer of this unit follows a principle of continuous improvement and has no responsibility for any changes that are made to the unit or any liability for these changes. Thanks for your choice of our products. FCC Warnings WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. 2 3 1 2 3 4 5 67 8910 11 12 13 11 14 15 MAIN UNIT 1. VOLUME - BUTTON 2. VOLUME + BUTTON 3. STANDBY BUTTON 4. MODE BUTTON 5. PAIR/PLAY/PAUSE BUTTON 6. SD/MMC CARD SLOT 7. USB PORT 8. LCD DISPLAY 9. BLUETOOTH INDICATOR 10. REMOTE SENSOR 11. HANGING HOLES 12. FM ANTENNA 13. AC CORD 14. AUX IN JACKS 15. LINE IN JACK REMOTE CONTROL 1. SLEEP BUTTON 2. MODE BUTTON 3. CLOCK BUTTON 4. TIMER BUTTON 5. NUMERIC BUTTONS 6. VOICE BUTTON 7. EQ BUTTON 8. BASS +/- BUTTONS 9. TREBLE +/- BUTTONS 10. MUTE BUTTON 11. STANDBY BUTTON 12. TUNING/SKIP/SEARCH BACKWARD BUTTON 13. TUNING/SKIP/SEARCH FORWARD BUTTON 14. MEM BUTTON 15. PAIR/PLAY/PAUSE BUTTON 16. MUSIC BUTTON 17. MOVIE BUTTON 18. VOL +/- BUTTONS 19. CH+/- BUTTONS POWER SUPPLY Plug AC plug into the outlet socket for connecting the main power. SLEEP TIMER SETTING You can set the sleep timer at power on modes as following instructions: During playback, press the SLEEP button on the remote control repeatedly to cycle through the sleep time options, Release the SLEEP button when your desired sleep time shows on the screen. Once the sleep time is expired, the unit will be switched off. During playback, press SLEEP button once to check the remaining sleep time. HOW TO SET TIME At the standby mode, press and hold the CLOCK button on the remote until Hour flashes on the screen; use the TUNING/SKI P/SEARCH buttons on the remote to adjust the hour and confirm your adjustment by pressing the CLOCK button on the remote; Minute starts blinking on the screen, press the TUNING/SKI P/SEARCH buttons on the remote to set the minute accordingly, press the CLOCK button on the remote again to confirm your setting. During playback, press and hold the CLOCK button on the remote to check the current time. Note: The time only could be set at standby mode. 123456789 10111213141516171819 4 5 TIMER SETTING 1. At standby mode, press and hold the TIMER button on the remote. The hour on the display will begin blinking on the screen with the flashing timer icon “T”. 2. Press the TUNING/SKIP/SEARCH buttons on the remote to adjust the hour. 3. Press the TIMER button to confirm. The minute on the display will begin blinking. 4. Press the TUNING/SKIP/SEARCH buttons on the remote to adjust the minute. 5. Press the TIMER button on the remote to confirm your setting. 6. After the set time is reached, the unit will power on to the radio automatically. 7. The timer function can be deactivated or activated by short pressing the TIMER button on the remote. USB & SD/MMC CARD PLAYBACK 1. Power on the unit, insert an USB or a SD/MMC card into the unit. 2. Press MODE button repeatedly to switch to USB or card mode. The playback will start automatically. 3. Press the TUNING SKIP/SEA RCH FORWARD button on the remote to skip to the next track; press and hold to search through the track forward. 4. Press the TUNING SKIP/ SEARCH BACKWARD button on the remote to skip to the previous track; press and hold to search through the track backward. 5. Use the numeric buttons to enter the track number to select your desired track for playback. BLUETOOTH OPERATING This unit can receive stereo audio signal from a BLUETOOTH stereo audio source device. 1. Power on the unit, switch to BLUETOOTH mode by pressing MODE button repeatedly. 2. LED indicator rapid blinking while it is pairing. 3. Enable the Bluetooth of the Bluetooth audio source device. 4. Pair and connect to MIB668A(the unit) on the audio source device. If prompted for passcode, enter “0000”. 5. Pairing successful (LED indicator blue), ready to stream music. 6. During playback, press PLAY/PAUSE button to cease or resume the playback. 7. During playback, press TUNING/SKIP/SE ARCH FORWARD button to skip to the next track; press TUNING/SKIP/SEARCH BACKWARD button twice to skip to the previous track. 8. During playback, press and hold TUNING/ SKIP/SEARCH buttons to search through the current track forward or backward. Note:  Pairing mode is canceled about 1.5 minutes.  The above are generic steps to pair a BLUETOOT H device, for more specific instructions on BLUETOOTH connectivity for your device, please consult your manufacturer’s manual. RE-CONNECT TO THE BLUETOOTH AUDIO SOURCE DEVICE If the device is already paired with the MIB668A, but became unconnected even with both Bluetooth devices turned on. You can re-connect them by fol…

Text truncated - open the document above for the full version.

crystla:26MHz

FCC ID: Y8AMIB668 POWER OF ATTORNEY 2013/2/2 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize I-Test Laboratory (MR. Pauler LI, Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by I-Test Laboratory (MR. Pauler LI, Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on 2013/5/2. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, (Ngai Lik Electronics Enterprises Limited), are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, (Ngai Lik Electronics Enterprises Limited) <SIGNATURE> ------------------------------- (Liming Jiang) (Engineer)

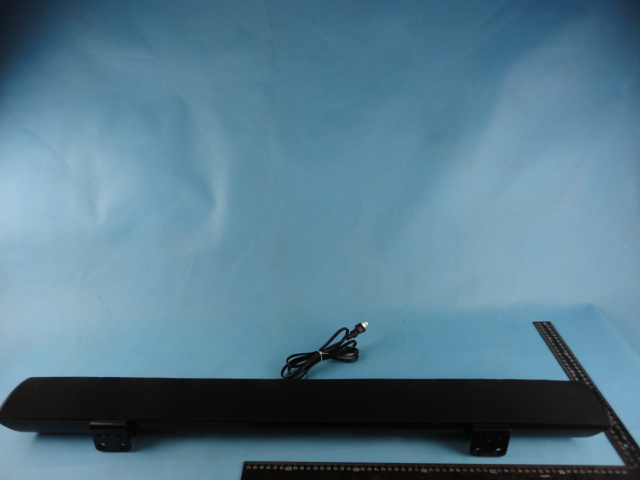

Page 1 of 3 External PHOTO: Model: MIB668A- Page 2 of 3 Page 3 of 3

\\ \\ {'/:::~------~ . / ···.'\ /·-·~\ ·. 0 Cl 0::: <( <..> <..> ::2: ~ 2i en ·-----·---. (~~~.;,;;;-,-=~~; _) L _) --, D '~ u _) cc= _) (.__ u -~·· ~ft. ~t .!L~ ~ 1.rl:. ~k 7f4 {~ft 12)t. tJ 0 ,,, j{ I '1' ~ *4--15 ff}f MIB668A ¥Jl~*1 I 4~x~Ji I }(14~ r~~li 1ftt mu1t tit =-1.J a.~, s J!Jj I II ii " I' \\ \\ '·\ 2012.09.24 ----- ---=::.=.--,

37” Sound Bar Model : MIB668A INPUT:100-240V or 120V~ 50/60Hz, 50W NGAI LIK ELECTRONICS ENTERPRISES LTD. Manufactured Date: JAN,2013 MADE IN CHINA 37” Sound Bar Model : NHS-2005 INPUT:100-240V or 120V~ 50/60Hz, 50W Manufactured Date: JAN,2013 MADE IN CHINA FCC ID:Y8AMIB668 FCC ID:Y8AMIB668

Page 1 of 6 Internal PHOTO: Model: MIB668A Page 2 of 6 PCB: Page 3 of 6 Page 4 of 6 Page 5 of 6 Page 6 of 6

Operational Description Product Description This product integrated a Bluetooth chipset to support the Bluetooth function that allows users to use it as a speaker as the primary usage of this device. The brief introduction of the circuit 1. The Bluetooth signal is transmitted and received through the antenna system consists of the PCB antenna. 2. Power of the whole body is provided by 120VDC. 3. Line in port is to connect audio source by line in cable to input audio signal. ON/OFF button is to turn on or turn off the speaker. 4. U5 is MCU master control IC, it is use to button control, input Switch between Bluetooth and line in, and output audio source to amplifier IC. 5. 74HC4052D is to amplify audio signal provided by master control IC and motivate loudspeakers. 6.The chipset of BT is CSR 57F687A05U,BT version is 2.1+EDR, modulation types are GFSK, (π/4)DQPSK, 8DPSK, The data rate is 1Mbps,2Mbps or 3Mbps. Technical Description of FHSS The Bluetooth standard describes a frequency hopping spread spectrum system (FHSS). The frequency hopping sequence is governed by one unit known as the master in any group of units communicating together. The group is known as a piconet, and all units other than the master are known as slaves. The master determines the pseudo random hopping sequence internally and without reference to any external information, there is no co-ordination with any other Bluetooth or other FHSS systems to avoid simultaneous occupancy of hopping channels. Bluetooth uses re-transmission, interleaving and coding techniques to mitigate against lost transmissions when simultaneous occupancy of a channel cause loss of data. The pseudo random hopping sequence is initialized at the start of a new connection between master and slave to a random frequency ( hopping channel ), and the hopping sequence is generated such that an equal time is spent in each of 79 channels throughout the duration of the connection. The antenna supplied with the unit is a short monopole of 1/4 wavelength with a nominal gain of 0 dBi. The antenna is an integral part of the device. The peak power of the BC01 transceiver is approximately 0 dBm, and the maximum EIRP is approximately 0 dBm.

3 X T A L _ I N 4 X T A L _ O U T 3 3 L E D _ 1 3 2 L E D _ 2 2 0 P I O _ 1 4 1 9 P I O _ 1 3 1 8 P I O _ 1 2 1 5 P I O _ 1 1 1 4 P I O _ 9 2 1 P I O _ 8 2 2 P I O _ 7 2 3 P I O _ 6 2 4 P I O _ 5 2 5 P I O _ 4 5 8 P I O _ 3 5 9 P I O _ 2 6 0 P I O _ 1 6 1 P I O _ 0 2 9 S P I _ C L K 3 1 S P I _ M I S O 2 8 S P I _ M O S I 3 0 S P I _ C S # 9 U A R T _ T X 1 0 U A R T _ R X 1 1 U A R T _ C T S 1 2 U A R T _ R T S 7 A I O _ 0 6 A I O _ 1 5 L O _ R E F 2 7 T E S T _ E N 2 6 R S T # 69 VSS_CNTR_PAD 8 NC 40 NC 41 NC 42 NC 43 NC 44 NC 49 NC 45 MIC_BIAS 50 MIC_B_N 48 MIC_B_P 52 MIC_A_N 51 MIC_A_P 56 SPK_A_N 57 SPK_A_P 54 SPK_B_P 53 SPK_B_N 55 AU_REF_DCPL 16 VDD_PADS 13 VDD_UART 62 VDD_PIO 47 VDD_AUDIO 46 VREGIN_L_AUDIO 68 VREGENABLE_L 35 VREGENABLE_H 38 BAT_P 39 VDD_CHG 36 VCC_BUCK_CORE 37 LX 1 VREGIN_L 2 VDD_ANA 34 VDD_CORE 17 VDD_CORE 63 VDD_RADIO 66 VDD_RADIO 67 VDD_LO 6 4 R F _ P 6 5 R F _ N U 1 B L U E _ T U R N S _ R O M 6 B A L 4 B A L 2 D C 1 U N B A L 3 N C 5 GND 8 GND 7 GND F 1 D B F 8 1 F 1 0 4 _ C S R 1 E 0 2 E 1 3 E 2 4 V S S 5 S C L 6 S D A 7 W C 8 V C C U 2 M 2 4 C 3 2 - M F B 5 T G L3 22uH C 1 0 R 0 C2 15P L1 NF L2 8n2 L4 15nH 1 A N T 1 A N T _ G E N E R A L C3 15P C4 15P C5 2u2 C6 22n C7 4u7 C8 2u2 C9 2u2 R1 10K C10 2u2 C11 22n R2 2R2 C12 22n 1 2 3 4 U 3 T S X 3 2 2 5 2 6 M H z C13 6P8 C14 18P R3 2K2 R4 2K2 R5 2K2 C15 100n C16 22n C17 2u2 C18 2u2 C19 100n C20 100n R 6 1 K R 7 2 K 2 L 5 C23 47n R9 2R2 1 V 5 1 V 5 1 V 5 1 V 5 V 1 . 8 V1.8 1V5 VDD_CHG BAT POW 1 V 8 1 V 8 1 V 5 _ A U D I O 1 V 8 1 V 8 L E D 1 L E D 2 S W 4 S W 3 S W 2 S W 1 P I O 1 P I O 2 1 V 8 S P I _ C L K S P I _ M I S O S P I _ M O S I S P I _ C S # R S T M I C _ B I A S S P A N S P A P S P B P S P B N 1 V 5 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

ITL Page 1 of 65 Report No.: 13013692 TEST REPORT Applicant: Ngai Lik Electronics Enterprises Limited Address of Applicant: Flat 29-32, 8/F., Block B, Focal Industrial Centre, 21 Man Lok Street, Hung Hom, Kowloon, Hong Kong Manufacturer: Ngai Lik Electronics Enterprises Limited Address of Manufacturer: Flat 29-32, 8/F., Block B, Focal Industrial Centre, 21 Man Lok Street, Hung Hom, Kowloon, Hong Kong Product name: 37” Sound Bar Model: MIB668A, MIB668C, MIB668B, NHS-2005 Rating(s): 100-240V~ or 120V~ 50/60Hz, 50W Trademark: NAXA for NHS-2005 FCC register number： 935596 Standards: FCC Part 15.247 :2010 FCC ID: Y8AMIB668 Data of Receipt: 2013-01-21 Date of Test: 2013-01-21~2013-01-25 Date of Issue: 2013-01-29 Test Result Pass* * In the configuration tested, the test item complied with the standards specified above. Authorized for issue by: Test by: Reviewed by: Jan.29.2013 Jumy Qiu Jan.29.2013 Pauler Li Project Engineer Project Manger Date Name/Position Signature Date Name/Position Signature ITL Page 2 of 65 Report No.: 13013692 Possible test case verdicts: test case does not apply to the test object .. : N/A test object does meet the requirement ........ : P (Pass) test object does not meet the requirement .. : F (Fail) Testing Laboratory information: Testing Laboratory Name .......... : I-Test Laboratory Address : 1-2 floor, South Block, Building A2 , No 3 Keyan Lu, Science City, Guangzhou, Guangdong Province, P.R. China Testing location : Same as above Tel : 0086-20-32209330 Fax : 0086-20-62824387 E-mail : [email protected] General remarks: The test results presented in this report relate only to the object tested. The results contained in this report reflect the results for this particular model and serial number. It is the responsibility of the manufacturer to ensure that all production models meet the intent of the requirements detailed within this report. This report would be invalid test report without all the signatures of testing technician and approver. This report shall not be reproduced, except in full, without the written approval of the Issuing testing laboratory. General product information: The models MIB668A, MIB668B, MIB668C and NHS-2005 are fully identical in the electrical circuit design, layout, component used and internal wiring, with differences being speaker grill and model number. The EUT have an infrared remote controller. Tests shall be conducted on model MIB668A ITL Page 3 of 65 Report No.: 13013692 1 Test Summary Test Test Requirement Test method Result Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PASS Occupied Bandwidth FCC PART 15 C section 15.247 (a)(1) ANSI C63.10: Clause 6.9 & DA 00-705 PASS Carri er Frequencies Separated FCC PART 15 C section 15.247(a)(1) DA 00-705 PASS Hopping Channel Number FCC PART 15 C section 15.247(a)(1)(iii) DA 00-705 PASS Dwell Time FCC PART 15 C section 15.247(a)(1)(iii) DA 00-705 PASS Pseudorandom Frequency Hopping Sequence FCC PART 15 C section 15.247(a)(1) DA 00-705 PASS Maximum Peak Output Power FCC PART 15 C section 15.247(b)(1) ANSI C63.10: Clause 6.10 & DA 00-705 PASS Conducted Spurious Emission (30 MHz to 25 GHz) FCC PART 15 C section 15.247(d) ANSI C63.10: Clause 6.7 & DA 00-705 PASS Radiated Spurious Emission (9 kHz to 25 GHz) FCC PART 15 C section 15.247(d) ANSI C63.10: Clause 6.4, 6.5 and 6.6 & DA 00-705 PASS Band Edges Measurement FCC PART 15 C section 15.247 (d) &15.205 ANSI C63.10: Clause 6.9 & DA 00-705 PASS Conducted Emissions at Mains Terminals FCC PART 15 C section 15.207 ANSI C63.10: Clause 6.2 & DA 00-705 PASS Remark: N/A: not applicable. Refer to the relative section for the details. EUT: In th is whole report EUT means Equipment Under Test. Tx: In th is whole report Tx (or tx) means Transmitte r. Rx: In this whole report Rx (or rx) means Receiver. RF: In this whole report RF means Radio Frequency. ANSI C63.10: the detail version is ANSI C63.10:2009 in the whole report. DA 00-705: “Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems” ITL Page 4 of 65 Report No.: 13013692 2 Contents Page TEST REPORT ....................................................................................................................................................................... 1 1 TEST SUMMARY ......................................................................................................................................................... 3 2 CONTENTS ................................................................................................................................................................... 4 3 GENERAL INFORMATION ........................................................................................................................................ 5 3.1 CLIENT INFORMATION ............................................................................................................................................ 5 3.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 5 3.3 DETAILS OF E.U.T. ................................................................................................................................................ 5 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................ 5 3.5 TEST LOCATION ..................................................................................................................................................... 6 3.6 DEVIATION FROM STANDARDS .............................................................................................................................. 6 3.7 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 6 3.8 OTHER INFORMATION REQUESTED BY THE CUS…
