Y8PFJ16-2Immobilizer

Manual Requirement of FCC Our product (FJ16-2) is one of vehicle parts. Therefore, we will not supply the user’s manual. However, we will ask the vehicle manufacturer to include following statements in the vehicle user’s manual in accordance with FCC and IC requirements. 1. Requirement for User Manual 1.1. FCC Requirement 1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the user’s manual. 1.1.2. In accordance with requirement of FCC§15.19(a)(3), following statement will be included in the user’s manual. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

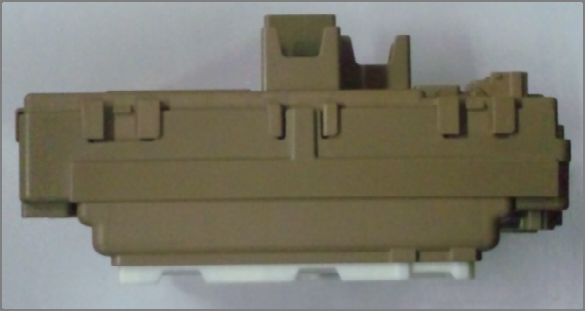

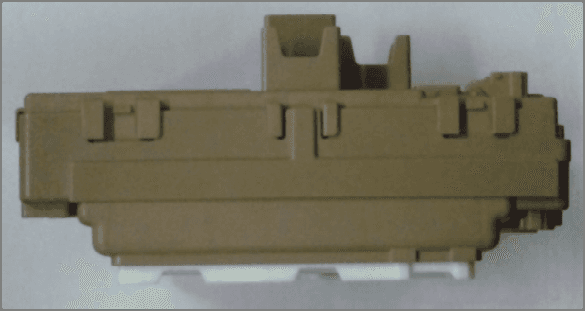

External P Photos (Joinnt Box) 1/3 Front Rear FUJI HEEAVY IN FC NDUSTRI Im m CC ID: Y8 ES LTD. mobilizer 8PFJ16-2 . r 2 FUJI HEAVY INDUSTRIES LTD. Immobilizer FCC ID: Y8PFJ16-2 External Photos (Joint Box) 2/3 Top Bottom FUJI HEAVY INDUSTRIES LTD. Immobilizer FCC ID: Y8PFJ16-2 External Photos (Joint Box) 3/3 Right Left Note: The outer appearance may be changed. FUJI HEAVY INDUSTRIES LTD. Immobilizer FCC ID: Y8PFJ16-2 External Photos (Antenna_Model 1) 1/2 Front Rear Top Bottom FUJI HEAVY INDUSTRIES LTD. Immobilizer FCC ID: Y8PFJ16-2 External Photos (Antenna_Model 1) 2/2 Right Left Note: The outer appearance may be changed. FUJI HEAVY INDUSTRIES LTD. Immobilizer FCC ID: Y8PFJ16-2 External Photos (Antenna_Model 2) 1/2 Front Rear Top Bottom FUJI HEAVY INDUSTRIES LTD. Immobilizer FCC ID: Y8PFJ16-2 External Photos (Antenna_Model 2) 2/2 Right Left Note: The outer appearance may be changed. FUJI HEAVY INDUSTRIES LTD. Immobilizer FCC ID: Y8PFJ16-2 Antenna Connection

10. Mar k Note: Compli a But mar king location ance statem rking layout, FCC This Ope dev mus that Mod n and layout ent of marki size and ot C ID:Y8PFJ16-2 s device complies wit eration is subject to the vice may not cause harm st accept any interferenc t may cause undesired o del: FJ16-2 t ng will not b her indicatio th part 15 of the FC following two condition ful interference, and (2) ce received, including in peration. be changed. ons maybe c CC Rules. ns: (1) This this device nterference SU changed. UBARU 10

FUJI HEAVY INDUSTRIES LTD. Immobilizer FCC ID: Y8PFJ16-2 Internal Photos (Joint Box) Component side Solder side FUJI HEAVY INDUSTRIES LTD. Immobilizer FCC ID: Y8PFJ16-2 Internal Photos Front Rear Note: The circuit board on the Rear side is just for wiring, and it has no influence on RF performance. FUJI HEAVY INDUSTRIES LTD. Immobilizer FCC ID: Y8PFJ16-2 Internal Photos (Antenna) Front Rear Top Bottom Note: The outer case may be changed.

Test report No. : 10893288H-R1 Page : 2 of 18 Issued date : September 18, 2015 Revised date : November 16, 2015 FCC ID : Y8PFJ16-2 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10893288H Revision Test report No. Date Page revised Contents - (Original) 10893288H September 18, 2015 - - 1 10893288H-R1 November 16, 2015 P 4 Correction about variant model notation 1 10893288H-R1 November 16, 2015 P.12 Correction of calculating formula 1 10893288H-R1 November 16, 2015 P.12 Addition of “No signal detected” 1 10893288H-R1 November 16, 2015 P.12 Correction of Reading value Test report No. : 10893288H-R1 Page : 3 of 18 Issued date : September 18, 2015 Revised date : November 16, 2015 FCC ID : Y8PFJ16-2 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ..................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................ 4 SECTION 3: Test specification, procedures & results ........................................................................ 5 SECTION 4: Operation of E.U.T. during testing ................................................................................. 8 SECTION 5: Radiated emission (Fundamental and Spurious Emission) .......................................... 9 SECTION 6: -26dB Bandwidth ............................................................................................................ 11 SECTION 7: 99% Occupied Bandwidth ............................................................................................. 11 APPENDIX 1: Test data ....................................................................................................................... 12 Radiated Emission below 30MHz (Fundamental and Spurious Emission) ................................. 12 Radiated Emission above 30MHz (Spurious Emission) ................................................................. 13 -26dB Bandwidth and 99% Occupied Bandwidth ......................................................................... 14 APPENDIX 2: Test instruments .......................................................................................................... 15 APPENDIX 3: Photographs of test setup ............................................................................................ 16 Radiated Emission ............................................................................................................................. 16 Worst Case Position .......................................................................................................................... 17 Test report No. : 10893288H-R1 Page : 4 of 18 Issued date : September 18, 2015 Revised date : November 16, 2015 FCC ID : Y8PFJ16-2 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : FUJI HEAVY INDUSTRIES LTD. Address : 1-1 SUBARU-CHO, OTA, GUNMA, 373-8555, JAPAN Telephone Number : +81-276-26-3064 Facsimile Number : +81-276-26-3069 Contact Person : Yuji Kobayashi SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Immobilizer Model No. : FJ16-2 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 12.0V Receipt Date of Sample : August 4, 2015 Country of Mass-production : United States of America, Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: FJ16-2 (referred to as the EUT in this report) is the Immobilizer. General Specification Clock frequencies in the system : 4.000 MHz (CPU) Radio Specification [Transmitter] Radio Type : Transmitter Frequency of Operation : 134.2 kHz Oscillator Frequency : 4 MHz Type of Modulation : ASK (A1D) Oscillation circuit : Ceramic Resonator Power Supply : DC 12.0 V Antenna Type : Coil antenna [Receiver] Radio Type : Receiver Frequency of Operation : 128.7 kHz Oscillator frequency : 4 MHz Type of Modulation : FSK (F1D) Type of receiving system : Direct conversion Power Supply : DC 12.0 V Antenna Type : Coil antenna * The antenna (Refer to Section 4, Clause 4.2; item No. B) has model 1 and model 2. The test was performed with the representative model 1. The difference between model 1 and model 2 is presence or absence of LED lighting circuit board. Model 1 has LED lighting circuit board. Model 2 does not have LED lighting circuit board. Test report No. : 10893288H-R1 Page : 5 of 18 Issued date : September 18, 2015 Revised date : November 16, 2015 FCC ID : Y8PFJ16-2 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2015, final revised on September 8, 2015 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted Emission Section 15.209 Radiated emission limits, general requirements * The revision on September 8, 2015 does not affect the test specification applied to the EUT. FCC Part 15.31 (e) The test was performed with the New Battery (DC 12.0 V) and the EUT constantly provides the stable voltage to RF part through the regulator regardless of input voltage from New Battery. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the vehicle. Therefore, the equipment complies with the a…

Text truncated - open the document above for the full version.

Test report No. : 10893288H-R1 Page : 16 of 18 Issued date : September 18, 2015 Revised date : November 16, 2015 FCC ID : Y8PFJ16-2 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Emission Photo 1 Photo 2 Test report No. : 10893288H-R1 Page : 17 of 18 Issued date : September 18, 2015 Revised date : November 16, 2015 FCC ID : Y8PFJ16-2 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position Antenna Below 30MHz: Z Above 30MHz: Horizontal X, Vertical X X-axis Joint Box Below 30MHz: X Above 30MHz: Horizontal Y, Vertical Y X-axis Y-axis Y-axis Z-axis Z-axis Test report No. : 10893288H-R1 Page : 18 of 18 Issued date : September 18, 2015 Revised date : November 16, 2015 FCC ID : Y8PFJ16-2 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position Smart ECU With key (Worst) Without key End of Report
