Y8PSSPLF03Smart LF Oscillator

Attachment 1 Model: SSPLF03 File-No. 34942-00 mikes-testingpartners gmbh Attachment 1 to Test Report No. 34942-00-00JK Ohmstrasse 2-4 Rev. 1.0 D-94342 Strasskirchen Page 1 of 3 2011-01-27 Attachment 1 Model: SSPLF03 File-No. 34942-00 mikes-testingpartners gmbh Attachment 1 to Test Report No. 34942-00-00JK Ohmstrasse 2-4 Rev. 1.0 D-94342 Strasskirchen Page 3 of 3 2011-01-27

Smart LF Oscillator FCC ID: Y8PSSPLF03 Approval Label （Note） The layout and design of the approval label may be changed. ay be changed. The location of FCC ID code and Canadian approval number m

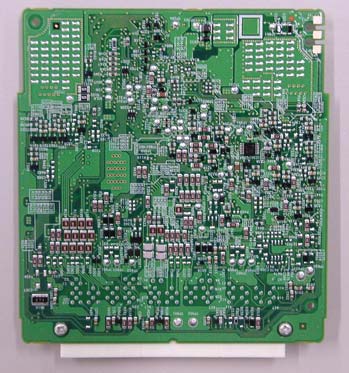

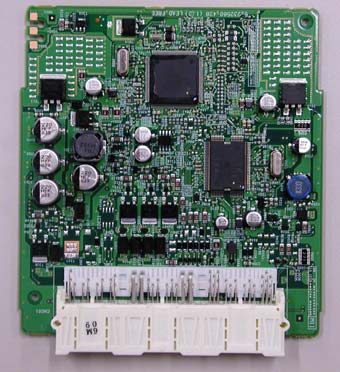

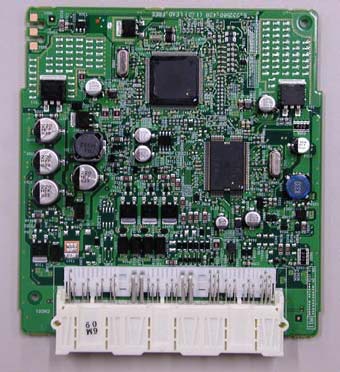

SSPLF03 (1/2) Photographs of Smart LF Oscillator Model SSPLF03 ○ Computer Assy, Smart Key (Representative) Appearance Rear View Front View Printed Circuit Board Rear View Front View Appearance ○ Door Antenna (Representative) SSPLF03 (2/2) Front View Rear View Front View Printed Circuit Board Rear View Appearance ○ Trunk Antenna (Representative) Front View Rear View Appearance ○ Room Antenna/Luggage Antenna (Representative) Front View Rear View - end - Attachment 1 Model: SSPLF03 File-No. 34942-00 mikes-testingpartners gmbh Attachment 1 to Test Report No. 34942-00-00JK Ohmstrasse 2-4 Rev. 1.0 D-94342 Strasskirchen Page 2 of 3 2011-01-27

Test report No. : 31DE0263-HO-02-A Page : 1of 27 Issued date : February 2, 2011 FCC ID : Y8PSSPLF03 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 31DE0263-HO-02-A Applicant:Fuji Heavy Industries Ltd. Type of Equipment:Smart LF Oscillator Model No.:SSPLF03 FCC ID :Y8PSSPLF03 Test regulation:FCC Part 15 Subpart C 2010 Section 15.207, Section 15.209 Test Result:Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with above regulation. 4.The test results in this report are traceable to the national or international standards. 5.This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Date of test: Representative test engineer: Motoya Imura Engineer of WiSE Japan, UL Verification Service Approved by : Shinya Watanabe Leader of WiSE Japan, UL Verification Service MF058b (12.01.11) NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap January 12 and 13, 2011 Test report No. : 31DE0263-HO-02-A Page : 2of 27 Issued date : February 2, 2011 FCC ID : Y8PSSPLF03 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ..................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................ 3 SECTION 3: Test specification, procedures & results ........................................................................ 4 SECTION 4: Operation of E.U.T. during testing ................................................................................. 7 SECTION 5: Radiated emission (Fundamental and Spurious Emission) .......................................... 8 SECTION 6: -26dB Bandwidth ............................................................................................................ 10 SECTION 7: 99% Occupied Bandwidth ............................................................................................. 10 APPENDIX 1: Photographs of test setup ............................................................................................ 11 Radiated emission .............................................................................................................................. 11 Worst Case Position .......................................................................................................................... 14 APPENDIX 2: Data of EMI test........................................................................................................... 16 Radiated Emission below 30MHz (Fundamental and Spurious Emission) ................................. 16 Radiated Emission above 30MHz (Spurious Emission) ................................................................. 20 -26dB Bandwidth and 99% Occupied Bandwidth ......................................................................... 24 APPENDIX 3: Test instruments .......................................................................................................... 27 Test report No. : 31DE0263-HO-02-A Page : 3of 27 Issued date : February 2, 2011 FCC ID : Y8PSSPLF03 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Fuji Heavy Industries Ltd. Address : 1-7-2, Nishishinjuku, Shinjuku, Tokyo, 160-8316 Japan Contact Person : Takashi Nishida SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Smart LF Oscillator Model No. : SSPLF03 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC12.0V (Max 0.5A) Receipt Date of Sample : January 11, 2011 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Smart LF Oscillator, model: SSPLF03 is a transmitter that is installed in a motor vehicle and is used as part of Smart System. Radio Specification Radio Type : Transmitter Frequency of Operation : 134.2kHz Modulation : ASK Method of Frequency Genenration : Crystal Antenna type : Coil Antenna Duty Cycle : up to 100 % Smart LF Oscillator (model: SSPLF03) consists of the following parts: -Computer Assy, Smart Key (ECU) -Door Antenna -Trunk Antenna -Room Antenna / Luggage Antenna Test report No. : 31DE0263-HO-02-A Page : 4of 27 Issued date : February 2, 2011 FCC ID : Y8PSSPLF03 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124  SECTION 3: Test specification, procedures & results 3.1 Test Specification  Test Specification : FCC Part15 Subpart C: 2010, final revised on December 6, 2010 and effective January 5, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted Emission Section 15.209 Radiated emission limits, general requirements FCC 15.31 (e) The stable voltage (DC2.3 to 6.2V*) is constantly provided to RF Part through the regulator regardless of voltage fluctuation of car battery(DC12V). Therefore, this EUT complies with the requirement. *The regulated voltage value differs depe…

Text truncated - open the document above for the full version.

Test report No. : 31DE0263-HO-02-A Page : 11of 27 Issued date : February 2, 2011 FCC ID : Y8PSSPLF03 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated emission Door Antenna Photo 1 Photo 2 Test report No. : 31DE0263-HO-02-A Page : 12of 27 Issued date : February 2, 2011 FCC ID : Y8PSSPLF03 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated emission Trunk Antenna Photo 1 Photo 2 Test report No. : 31DE0263-HO-02-A Page : 13of 27 Issued date : February 2, 2011 FCC ID : Y8PSSPLF03 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated emission Room Antenna / Luggage Antenna Photo 1 Photo 2 Test report No. : 31DE0263-HO-02-A Page : 14of 27 Issued date : February 2, 2011 FCC ID : Y8PSSPLF03 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Door Antenna Below 30MHz:X-axis Above 30MHz(Hori:X-axis /Vert:X-axis) Trunk Antenna Below 30MHz:X-axis Above 30MHz(Hori:X-axis /Vert:X-axis) X-axisX-axis Y-axisY-axis Z-axis Z-axis Test report No. : 31DE0263-HO-02-A Page : 15of 27 Issued date : February 2, 2011 FCC ID : Y8PSSPLF03 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Room Antenna / Luggage Antenna Below 30MHz:X-axis Above 30MHz(Hori:Z-axis /Vert:Y-axis) ECU Below 30MHz:X-axis Above 30MHz(Hori:X-axis /Vert:X-axis) X-axisX-axis Y-axisY-axis Z-axis Z-axis
