Y9E-IAD-18001Smart Signboard

Quick Start Guide This is a quick walkthrough of the set up process. For complete documentations and quick start guides, please visit http://support.IAdea.com. Box Content Smart signboard Power and micro SD card brackets Mounting and Installation Mounting option 1: VESA mount - VESA standard: VESA MIS-D75 (75 mm x 75 mm) - Screw: M4 x 4 mm (excluding the mounting plate thickness) Mounting option 2: using back cover - Power / SD card brackets MUST NOT be connected when mounting cover - plate Mounting option 3: glass mount - 3M VHB™ Industrial Heavy Duty Mounting Tape (90 mm x 70 mm) Mounting back cover 1)Release the cover plate screw to release cover plate 2)Install cover plate (thread head height not to exceed 3 mm) 3)Run power and network cable from the bottom and connect to signboard before mounting Securing power and network cable 1)Insert both cables 2)Fasten bracket onto the socket Securing SD card 1)Insert SD2)Fasten SD card bracketcard bracket Securing table stand Screw the table stand into stand screw hole. Supports landscape and portrait setup. Glass mount Landscape Portrait 1)Order your glass mount kit 2)Scan QR code for user manual 3)Mount your signboard 4)Impress your visitors Port Connections QR: http://www.iadea.com/wp-content/uploads/2018/10/PGM-001_User-Manual_2018OCT_web.pdf XDS-1078 A12) Q41G78SP05901A CAUTION - Replacement of a battery with an incorrect type that can be defeat a safeguard; - Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion; - Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; - A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. Risk of explosion if the battery is replaced by an incorrect type. Wait one-half hour after switching off before handling parts. Company Name: IAdea Corporation Address: 3F, No. 21, Lane 168, Xingshan Road,Neihu Dist. Taipei, 114 Taiwan Tel: 886-2-2791-1110 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. FCC Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure and Industry Canada RSS-102 RF exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. To comply with FCC RF exposure and Industry Canada RSS-102 RF exposure compliance requirements, this grant is applicable to only Mobile Configura- tions. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Cet equipement est conforme aux limites d’exposition aux rayonnements enoncees pour un environnement non controle et respecte les regles d’exposition aux frequences radioe lectriques (RF) CNR-102 de I’IC. Cet equipement doit etre installe et utilize en gardant une distance de 20 cm ou plus entre le radiateur et le corps humain (a I’exception des extremites : mains, poignets, pieds et chevilles). This device is restricted to indoor use due to its operation in the 5.15 to 5.25GHz frequency range. Les dispositifs fonctionnant dans la bande 5.15-5.25GHz sont reserves uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. P.6P.2P.1 USB 3.0USB 2.0 Ethernet DC Reseting smart signboard to factory default Factory reseting the smart signboard will result in the removal of all saved con- to complete the smart signboard factory reseting process: Use a pen to press and hold the reset button - do not release until Step 4.1 Insert the power cord. 2 Wait 30 seconds for the system reboot indicating your data is erased.3 Release the reset button and your smart signboard will initialize in factory default state. 4 Content Management How do I interrupt playback and enter setup menu? Use USB mouse to click and hold one corner of the screen for 10 seconds to exit playback and enter setup menu. How do I provide a DEBUG log for a misbehaving signboard to the support team? Please follow the instructions below to collect the player's DEBUG log: Troubleshooting Prepare a blank USB stick in FAT-32 format.1 Create a folder named "DEBUG" (case insensitive) in the root of USB stick.2 Make sure the player is operating (see welcome screen or playing content).3 Insert the USB stick into player and wait for 4 Within the "DEBUG" folder, is a folder with a string of number as its name. If the string of numbers are all zero's, the debug log has not been collected properly. Repeat step 1-4 again and make sure to wait . 5 6Zip the"DEBUG" folder and send to IAdea Support Team. Please consult the Solution Store documentation for information QR: https://support.iadea.com/hc/en-us/articles/360041795652 Boot up1 System Setup Set content To change smart signboard system language, se- lect “(Current Language) .... - rations, select “Advanced.” 2 1 2 Set correct time, date, and time zone for properly scheduled playback. Set password to prevent unauthorized access during setup menu. Set network for establishing network connection. 3 Plug in Et…

Text truncated - open the document above for the full version.

Designation of U.S. Agent for Service of Process Explanation: As required by section 2.911(d)(7), the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. In either scenario, the designation of the U.S. agent for service of process should be provided as an attachment to the equipment authorization application. The applicant must provide a written certification, which must: i. Be signed by both the applicant and designated agent for service of process, if the agent is different from the applicant. ii. Acknowledge the applicant’s consent and the designated agent’s obligation to accept service of process. iii. Provide a physical U.S. address and email for the designated agent. iv. Acknowledge the applicant’s acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. NOTE: The U.S. Agent for Service of Process should not be confused with the authorized agent used for signing the 731 form, other cover letters within the application, and agent who may interface with the TCB. Further Clarification provided from the FCC on February 14, 2023 via TCB Council. The Agent for Process of Service: • cannot be a TCB or affiliated with a TCB (e.g. could not be a person who works for a TCB or a company that owns or is owned by the TCB) • cannot be a [FCC recognised] Lab or affiliated with a test lab (e.g. could not be a person who works for a Lab or a company that owns or is owned by the Lab) • Agent can be Individual Entity or a Company Entity • Agent Entity must be located in US, US address/phone • Entity acting as Agent must have FRN (best practice, put FRN on Agent Letter) • Agent letter does not have to be FCC ID specific, can be general Agent for Grantee For devices being marketed or for which marketing has ceased for less than 1 year, if the Agent for Process of Service changes, then for every TC Number the TCB must request the FCC to put application into Audit Mode and Agent Letter needs to be updated (superseded). IAdea America Corp. 20 Fairbanks, Suite 170 Irvine/CA 92618 Tel: +1-949-305-6489 x200 U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Nemko North America, Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: IAdea America Corp. Contact Name: Yung-Tsai Wang Street Address:20 Fairbanks, Suite 170 City/Province/Zip: Irvine/CA 92618 Telephone No: +1-949-305-6489 x200 Email: [email protected] FRN #: 0020588661 This letter is t o confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 3/1/2023 Signed by (Printed Name/Title): Yung-Tsai Wang/Director of Product Development The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission- rel ated proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: IAdea Corporation Grantee Code: Y9E Contact Name: Yung-Tsai Wang Street Address: 3F, No. 21, Lane 168, Xingshan Road,Neihu Dist. City/Province/Zip: Taipei/TW 114 Telephone No: +1-949-305-6489x200 Email: [email protected] Applicant Signature: Date: 3/1/2023 Signed by (Printed Name/Title): Yung-Tsai Wang / Director of Product Development

IAdea Corporation 3F, No. 21, Lane 168, Xingshan Road, NeihuDist., Taipei City 11469, Taiwan, R.O.C. Tel : 886-2-2791- 1110/ Fax: 886-2-2791- 1170 Certification Application Attestation Statements Date: March 22, 2023 FCC ID: Y9E-IAD-18001 Nemko North America, Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) ______IAdea Corporation______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) ______ IAdea Corporation ______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant - is / - is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: __________________________ Yung­Tsai Wang____ (Print name) (Signature) Title: ____ Director of product development ____ Company: ____ IAdea Corporation _____ Telephone: _ +1-949-305-6489x200 __

V1.0 IAdea Corporation 3F, No. 21, Lane 168, Xingshan Road, Neihu Dist., Taipei City 11469, Taiwan, R.O.C. Tel : 886-2-2791- 1110/ Fax: 886-2-2791- 1170 Date: Feb. 20, 2023 Federal Communications Commission Authorization and Evaluation Division FCC ID: Y9E-IAD-18001 We, IAdea Corporation, declare that the device does not support channel 12 ~ 13 in 2.4 GHz band and any non-US channels in all the operational mode(s) for the following product. Product: Smart Signboard Model: IAD-18001 FCC ID: Y9E-IAD-18001 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! Sincerely, Name: Yung-Tsai Wang Position: Director of product development IAdea Corporation Web site: www.iadea.com Attestation Letter

DATE Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:____Y9E-IAD-18001_______ Product Name:___ Smart Signboard ________ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) •Schematics •Block diagram •Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Feb. 21, 2023 By: Yung-Tsai Wang Signature Printed Title: Director of product development On behalf of : IAdea Corporation Telephone: +1-949-305-6489x200

DATE : Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 F FCC ID:____Y9E-IAD-18001_______ Product Name:___ Smart Signboard ________ Request for Short-Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.: ⚫Test Setup Photos ⚫External Photos ⚫Internal Photos ⚫User Manual The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Dated this Feb. 21, 2023 By: Yung-Tsai Wang Signature Printed Title: Director of product development On behalf of: IAdea Corporation Telephone: +1-949-305-6489x200

IAdea Corporation 3F, No. 21, Lane 168, Xingshan Road, NeihuDist., Taipei City 11469, Taiwan, R.O.C. Tel : 886-2-2791-1110/ Fax: 886-2-2791- 1170 Non-SDR (Software Defined Radio) Cover Letter Date: 2023/2/20 Refer to KDB 442812 D01 SDR apps Guide v02r03. The following questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? Yes – go to 2. No, not an SDR. 2.Can third parties not permitted by the Commission through specific fillings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? Yes, must be an SDR. No – go to 3. 3. Is the device capable of operating in any other way than granted, or will be, granted? Yes – go to 4. No – go to 5. 4.Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? Yes, qualifies as a part 15 client devices – go to 5. No, must be an SDR. 5.Does the manufacturer elect SDR? Yes, elects to be an SDR. No, Not an SDR. Final conclusion: Not an SDR According to the above questions reply, we can confirm this Smart Signboard (FCC ID: Y9E-IAD-18001) must be a Non-SDR. Name: Yung-Tsai Wang Position: Director of Product Development IAdea Corporation

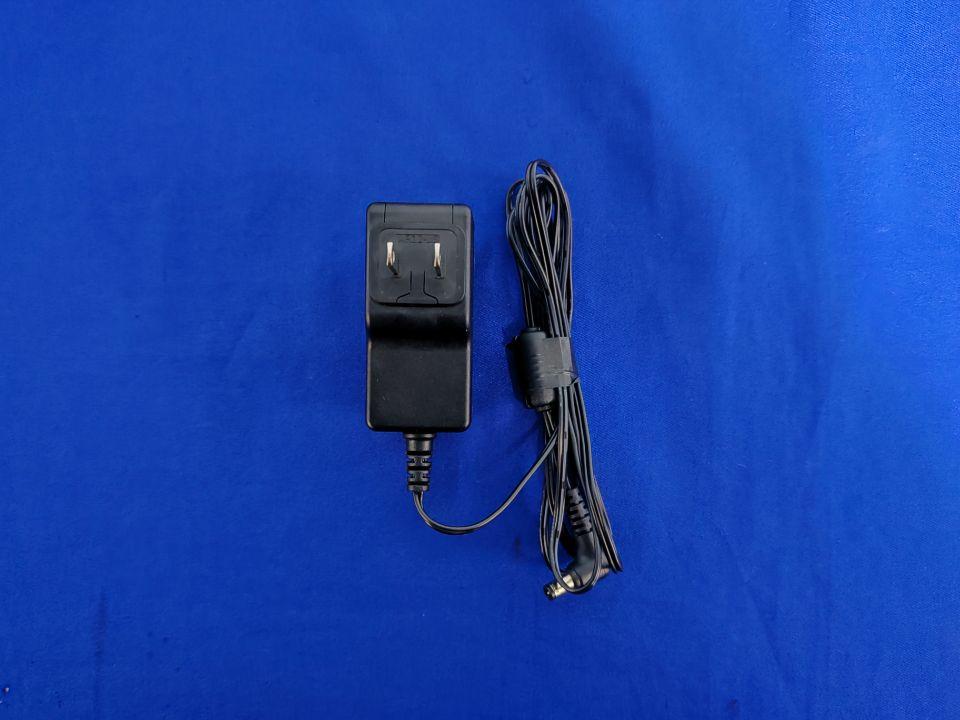

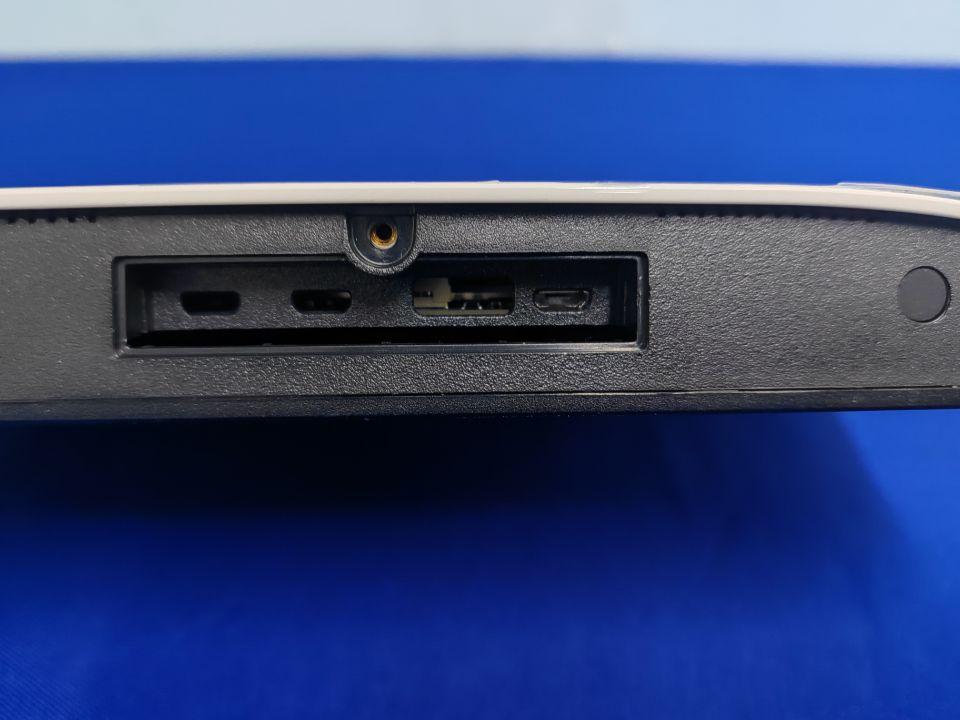

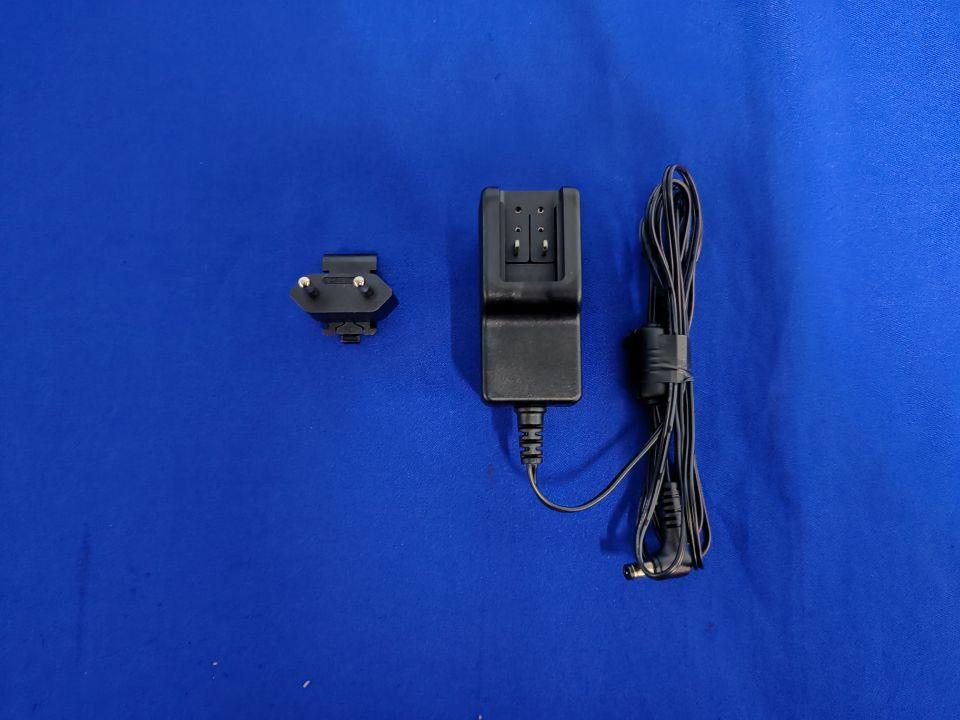

AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Page 1 of 13 Photos of the EUT Product: Smart Singboard Model No.: IAD-18001 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Page 2 of 13 Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Page 3 of 13 Figure 3 Signal Port of the EUT Figure 4 Signal Port of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Page 9 of 13 Figure 15 Figure 16 Adapter AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Page 10 of 13 Figure 17 Adapter Figure 18 Adapter AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Page 11 of 13 Figure 19 Adapter Figure 20 Adapter AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Page 12 of 13 Figure 21 Adapter Figure 22 Adapter AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Page 13 of 13 Figure 23 Adapter Figure 24 Adapter THE END

备註: 1. Rating label材料为50#透明网格PET, 字符50%黑色 Input:12V 2.0A or PoE+(48V 0.5A) XDS-1078 (A12) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Y9E-IAD-18001 IAdea Corporation USB3.0 output: 5V 900mA Input:12V 2.0A or PoE+(48V 0.5A) XDS-1078 (A12) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Y9E-IAD-18001 IAdea Corporation USB3.0 output: 5V 900mA

AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Page 1 of 13 Photos of the EUT Product: Smart Singboard Model No.: IAD-18001 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Page 4 of 13 Figure 5 Inside Configuration of the EUT Figure 6 Inside Configuration of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Page 5 of 13 Figure 7 Inside Configuration of the EUT Figure 8 Inside Configuration of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Page 6 of 13 Figure 9 Inside Configuration of the EUT Figure 10 Inside Configuration of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Page 7 of 13 Figure 11 Label of the Panel z Figure 12 Inside Configuration of the EUT AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Page 8 of 13 Figure 13 Frontside of the Main Board Figure 14 Backside of the Main Board AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Page 9 of 13 Figure 15 LED Board

Audix Technology (Shenzhen) Co., Ltd. Tel: 0755 26639496 No. 6, Kefeng Road, Science & Technology Park, Fax: 0755 26632877 Nanshan District , Shenzhen, Guangdong, China Maximum Permissive Exposure FCC ID: Y9E-IAD-18001 EUT: Smart Signboard M/N: IAD-18001 1. According to FCC CFR 47 §1.1310, the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). Table 1 Limits for Maximum Permissible Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 --- --- f/300 6 1500-100,000 --- --- 5.0 6 (B) Limits for General Population / Uncontrolled Exposures (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 --- --- f/1500 30 1500-100,000 --- --- 1.0 30 Audix Technology (Shenzhen) Co., Ltd. Tel: 0755 26639496 No. 6, Kefeng Road, Science & Technology Park, Fax: 0755 26632877 Nanshan District , Shenzhen, Guangdong, China 2. MPE Calculation IAdea Corporation declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = √(P * G) / (4 * π * S) 2.1. Estimation Result DTS Mode Frequency (MHz) PK Output power (dBm) Output power (mW) antenna Gain (dBi) antenna Gain (linear) MPE (mW/cm 2 ) 11b 2412 12.38 17.30 3.3 2.14 0.0074 2437 12.69 18.58 3.3 2.14 0.0079 2462 12.86 19.32 3.3 2.14 0.0082 11g 2412 12.79 19.01 3.3 2.14 0.0081 2437 13.23 21.04 3.3 2.14 0.0090 2462 13.49 22.34 3.3 2.14 0.0095 11n HT20 2412 12.78 18.97 3.3 2.14 0.0081 2437 13.21 20.94 3.3 2.14 0.0089 2462 13.40 21.88 3.3 2.14 0.0093 UNII-1 Mode Frequency (MHz) PK Output power (dBm) Output power (mW) antenna Gain (dBi) antenna Gain (linear) MPE (mW/cm 2 ) 11a 5180 9.46 8.83 2.3 1.70 0.0030 5200 9.45 8.81 2.3 1.70 0.0030 5240 9.72 9.38 2.3 1.70 0.0032 11n HT20 5180 9.03 8.00 2.3 1.70 0.0027 5200 9.20 8.32 2.3 1.70 0.0028 5240 9.31 8.53 2.3 1.70 0.0029 11n HT40 5190 8.99 7.93 2.3 1.70 0.0027 5230 9.15 8.22 2.3 1.70 0.0028 11ac VHT20 5180 8.99 7.93 2.3 1.70 0.0027 5200 9.05 8.04 2.3 1.70 0.0027 5240 9.25 8.41 2.3 1.70 0.0028 11ac VHT40 5190 9.07 8.07 2.3 1.70 0.0027 5230 9.19 8.30 2.3 1.70 0.0028 11ac VHT80 5210 8.66 7.35 2.3 1.70 0.0025 Audix Technology (Shenzhen) Co., Ltd. Tel: 0755 26639496 No. 6, Kefeng Road, Science & Technology Park, Fax: 0755 26632877 Nanshan District , Shenzhen, Guangdong, China UNII-3 Mode Frequency (MHz) PK Output power (dBm) Output power (mW) antenna Gain (dBi) antenna Gain (linear) MPE (mW/cm 2 ) 11a 5745 9.61 9.14 1.9 1.55 0.0028 5785 8.96 7.87 1.9 1.55 0.0024 5825 7.94 6.22 1.9 1.55 0.0019 11n HT20 5745 9.26 8.43 1.9 1.55 0.0026 5785 8.40 6.92 1.9 1.55 0.0021 5825 7.54 5.68 1.9 1.55 0.0017 11n HT40 5755 9.20 8.32 1.9 1.55 0.0026 5795 8.48 7.05 1.9 1.55 0.0022 11ac VHT20 5745 9.38 8.67 1.9 1.55 0.0027 5785 8.78 7.55 1.9 1.55 0.0023 5825 7.55 5.69 1.9 1.55 0.0018 11ac VHT40 5755 9.21 8.34 1.9 1.55 0.0026 5795 8.56 7.18 1.9 1.55 0.0022 11ac VHT80 5775 8.38 6.89 1.9 1.55 0.0021 Based on safety distance (r) 20cm, the antenna gain (G) is 2.14 Numerical, and the highest power output (P) is 13.49mW, the power density (S) is 0.0095mW/cm 2 .

AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: Y9E-IAD-18001 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F23038 Page 1 of 103 FCC PART 15E TEST REPORT FOR CERTIFICATION On Behalf of IAdea Corporation Smart Signboard Model No.: IAD-18001 FCC ID: Y9E-IAD-18001 Prepared for : IAdea Corporation 3F, No.21, Lane 168, Xingshan Road, Neihu Dist. Taipei, 114 Taiwan Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Kefeng Road, Science & Technology Park, Nanshan District , Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F23038 Date of Test ： Feb.09~Apr.07, 2023 Date of Report ： Apr.07, 2023 AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: Y9E-IAD-18001 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F23038 Page 2 of 103 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ............................................................. 5 1.1. Description of Standards and Results ..................................................................................... 5 2. GENERAL INFORMATION ............................................................................................. 6 2.1. Description of Equipment Under Test .................................................................................... 6 2.2. Feature of Equipment Under Test ........................................................................................... 7 2.3. Test Information ...................................................................................................................... 8 2.4. Tested Supporting System Details .......................................................................................... 9 2.5. Block diagram of connection between the EUT and simulators ............................................. 9 2.6. Test Facility ........................................................................................................................... 10 2.7. Measurement Uncertainty (95% confidence levels, k=2) ..................................................... 10 3. POWER LINE CONDUCTED EMISSION TEST ........................................................ 11 3.1. Test Equipments .................................................................................................................... 11 3.2. Block Diagram of Test Setup ................................................................................................ 11 3.3. Power Line Conducted Emission Test Limits ....................................................................... 11 3.4. Configuration of EUT on Test .............................................................................................. 11 3.5. Operating Condition of EUT ................................................................................................. 12 3.6. Test Procedure ....................................................................................................................... 12 3.7. Power Line Conducted Emission Test Results ..................................................................... 12 4. RADIATED EMISSION TEST........................................................................................ 15 4.1. Test Equipments .................................................................................................................... 15 4.2. Block Diagram of Test Setup ................................................................................................ 16 4.3. Radiated Emission Limits ..................................................................................................... 17 4.4. EUT Configuration on Test ................................................................................................... 18 4.5. Operating Condition of EUT ................................................................................................. 18 4.6. Test Procedure ....................................................................................................................... 18 4.7. Radiated Emission Test Results ............................................................................................ 20 5. BAND EDGE COMPLIANCE TEST.............................................................................. 52 5.1. Test Equipments .................................................................................................................... 52 5.2. Limit ...................................................................................................................................... 52 5.3. Test Procedure ....................................................................................................................... 52 5.4. Test Results ........................................................................................................................... 52 6. 6dB &26dB & 99% Bandwidth Test ............................................................................... 77 6.1. Test Equipments .................................................................................................................... 77 6.2. Limit ...................................................................................................................................... 77 6.3. Test Procedure ....................................................................................................................... 77 6.4. Test Results ........................................................................................................................... 78 7. OUTPUT POWER TEST ................................................................................................. 85 7.1. Test Equipments .................................................................................................................... 85 7.2. Limit ...................................................................................................................................... 85 7.3. Test Procedure .............................................…

Text truncated - open the document above for the full version.

AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: Y9E-IAD-18001 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F23038 Page 88 of 103 U-NII-1 Band: IEEE 802.11a 5180MHz 5200MHz 5240MHz IEEE 802.11n HT20 5180MHz 5200MHz 5240MHz IEEE 802.11n HT40 --- 5190MHz 5230MHz --- --- IEEE 802.11ac VHT20 5180MHz 5200MHz 5240MHz IEEE 802.11ac VHT40 IEEE 802.11ac VHT80 5190MHz 5230MHz 5210MHz AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: Y9E-IAD-18001 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F23038 Page 89 of 103 U-NII-3 Band: IEEE 802.11a 5745MHz 5785MHz 5825MHz IEEE 802.11n HT20 5745MHz 5785MHz 5825MHz IEEE 802.11n HT40 --- 5755MHz 5795MHz --- --- IEEE 802.11ac VHT20 5745MHz 5785MHz 5825MHz IEEE 802.11ac VHT40 IEEE 802.11ac VHT80 5755MHz 5795MHz 5775MHz AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: Y9E-IAD-18001 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F23038 Page 90 of 103 8. EQUIVALENT ISOTROPIC RADIATED POWER TEST 8.1. Limit Use the test method described in FCC Part 15.407(h) (1): Transmit power control (TPC). U-NII devices operating in the 5.25-5.35 GHz band and the 5.47-5.725 GHz band shall employ a TPC mechanism. The U-NII device is required to have the capability to operate at least 6 dB below the mean EIRP value of 30 dBm. A TPC mechanism is not required for systems with an e.i.r.p. of less than 500 mW. 8.2. Test Procedure Use the test method described in ANSI C63.10 Annex G : (1) Connected the EUT’s antenna port to the Spectrum Analyzer by suitable attenuator ,set the Spectrum Analyzer as below: Span: Zero RBW:100KHz VBW:100KHz Read out the duty cycle(X) of the transmitter and record as X (2) The channel power measure function of spectrum Analyzer was used to measure out average output power of transmitter. (3)Calculated e.i.r.p according to the formula: Read + Cable loss + Atten loss + Antenna Gain + 10log(1/x) (4)Repeated test at the lowest, the middle, and the highest frequency of the stated frequency range. AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: Y9E-IAD-18001 Audix Technology (Shenzhen) Co., Ltd. Report…
