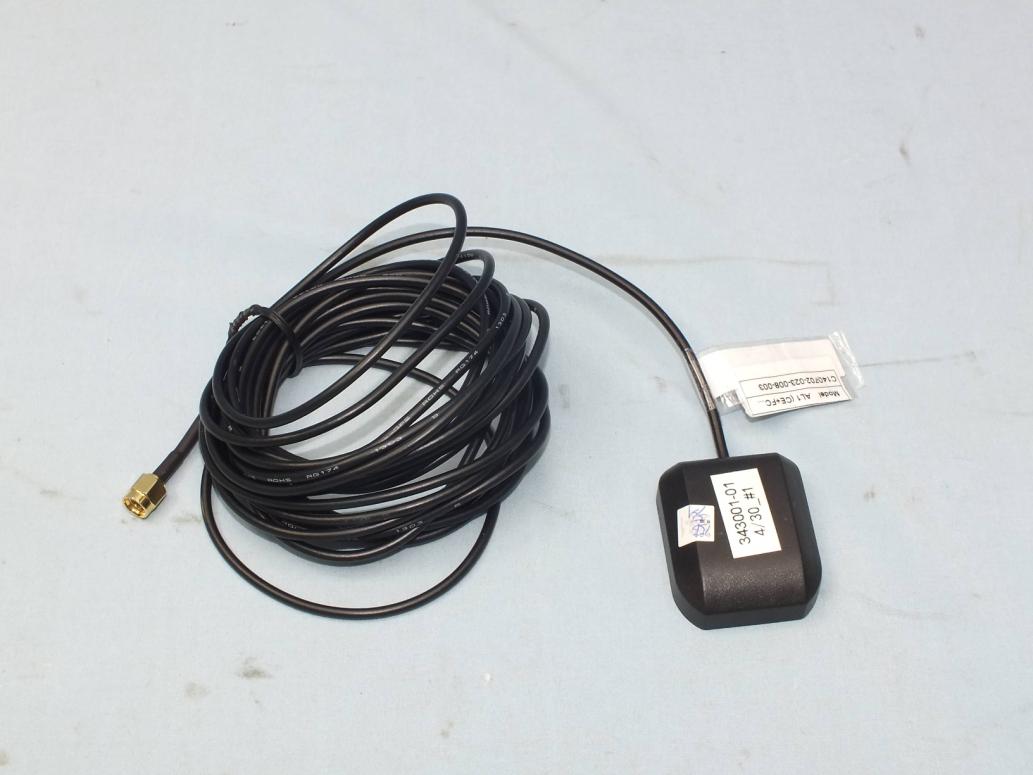

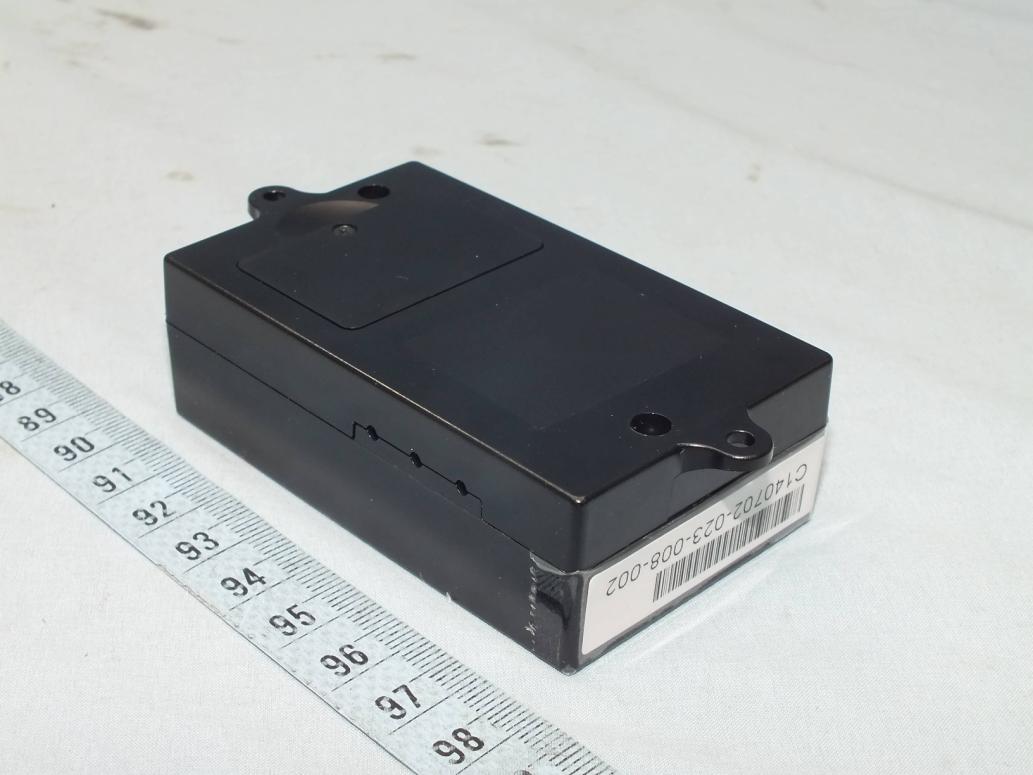

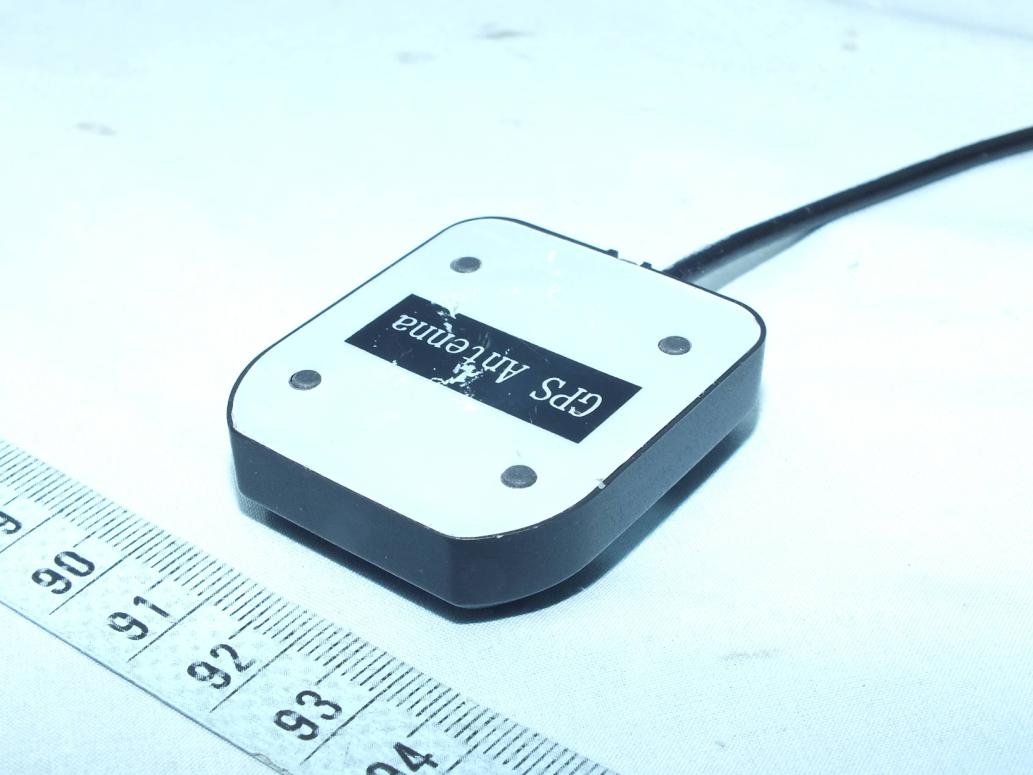

Report No.: 140702C26 1 of 3 CONSTRUCTION PHOTOS OF EUT Report No.: 140702C26 2 of 3 Report No.: 140702C26 3 of 3

AL1 Marking Location AL1 Marking Location FCC ID : YA7-ATVT1423 ATrack Technology Inc. Marking Location

AL1 Label

Report No.: 140702C26 1 of 4 CONSTRUCTION PHOTOS OF EUT Report No.: 140702C26 2 of 4 Report No.: 140702C26 3 of 4 Report No.: 140702C26 4 of 4

FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 1 of 7 Report No. : SA140702C26 Issued Date : Jul. 28, 2014 FCC MPE Evaluation Report Report No. : SA140702C26 Applicant : ATrack Technology Inc. Address : 3F., No. 88, Sec. 1, Neihu Rd., Neihu Dist., Taipei City 11493 Taiwan (R.O.C.) Product : Car Tracker Brand : ATrack Model No. : AL1 Standards : FCC Part 2 (Section 2.1091) KDB 447498 D01 Sample Received Date : Jul. 02, 2014 Date of Evaluation : Jul. 24, 2014 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Gina Liu / Specialist Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 2 of 7 Report No. : SA140702C26 Issued Date : Jul. 28, 2014 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Description of Equipment Under Test ................................................................................................................................. 4 2. MPE (Maximum Permissible Exposure) Assessment ......................................................................................................... 5 2.1 Introduction .................................................................................................................................................................. 5 2.2 RF Radiation Exposure Limits ...................................................................................................................................... 5 2.3 MPE Assessment Method ............................................................................................................................................ 6 2.4 MPE Calculation for Standalone Operations ................................................................................................................ 6 3. Information on the Testing Laboratories ............................................................................................................................. 7 FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 3 of 7 Report No. : SA140702C26 Issued Date : Jul. 28, 2014 Release Control Record Report No. Reason for Change Date Issued SA140702C26 Initial release Jul. 28, 2014 FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 4 of 7 Report No. : SA140702C26 Issued Date : Jul. 28, 2014 1. Description of Equipment Under Test EUT Type Car Tracker Brand Name ATrack Model Name AL1 Tx Frequency Bands (Unit: MHz) GSM850 : 824.2 ~ 848.8 GSM1900 : 1850.2 ~ 1909.8 Uplink Modulations GSM & GPRS : GMSK Antenna Type Fixed Internal Antenna EUT Stage Production Unit Note: 1. The above EUT information is declared by manufacturer and for more detailed features description please refers to the manufacturer's specifications or User's Manual. FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 5 of 7 Report No. : SA140702C26 Issued Date : Jul. 28, 2014 2. MPE (Maximum Permissible Exposure) Assessment 2.1 Introduction According to 47 CFR §2.1091, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitting antenna and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 cm separation requirement. The limits to be used for MPE evaluation are specified in §1.1310. All unlicensed personal communications service (PCS) devices and unlicensed NII devices shall be subject to the limits for general population/uncontrolled exposure. 2.2 RF Radiation Exposure Limits According to 47 CFR §1.1310, th…
