YHEP2401BLUETRIP

QN8006 U5 LPC1313 Bluetooth Chip BC6140A02 XTAL 26MHz Power Circuit MP4459 XTAL 26MHz LCD Display Key 2.4G RF Filter RF Filter IPod Port DC 12V Power Supply Ant. 88.1-107.9MHz Ant. 2402-2480MHz

Ablelink Electronics Limited Model: P2401 REPORT NO.: STR10088161I-1 FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YHEP2401 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Ablelink Electronics Limited Model: P2401 REPORT NO.: STR10088161I-1 FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YHEP2401 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

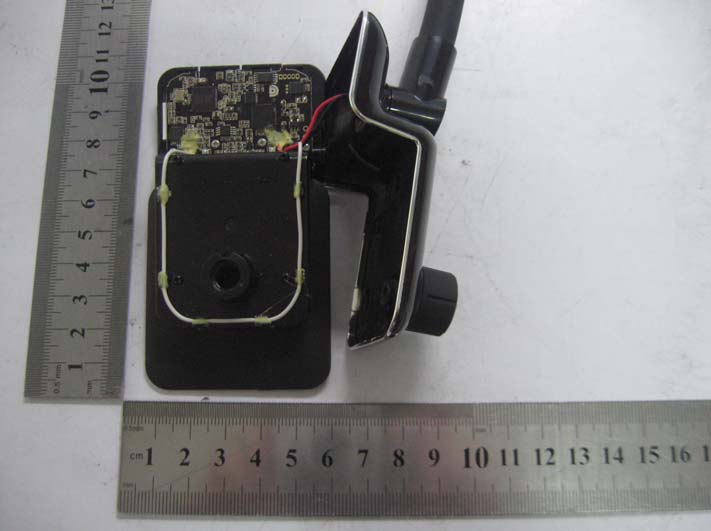

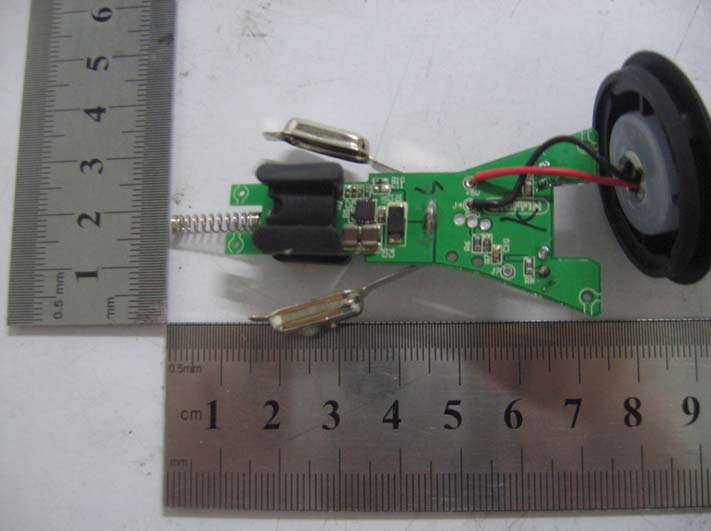

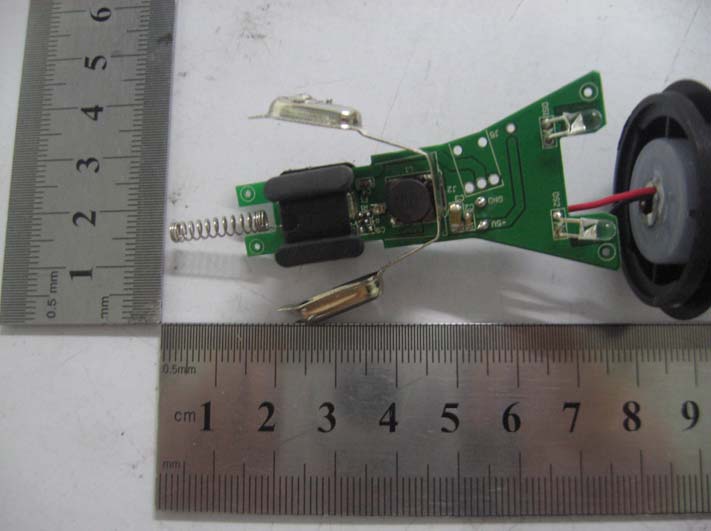

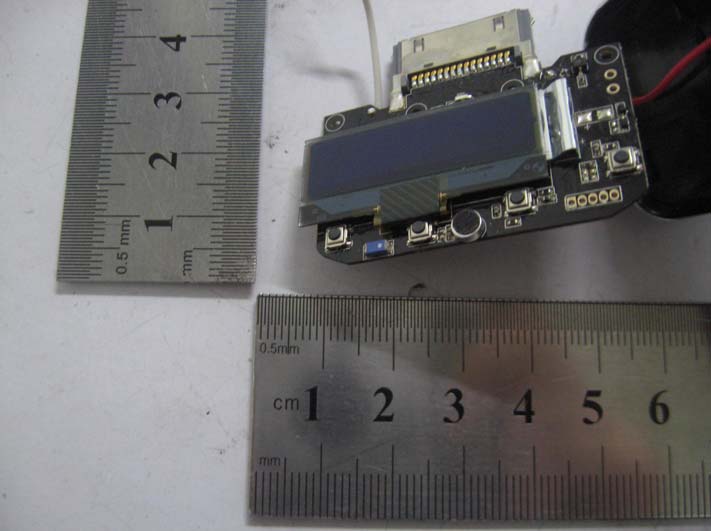

Ablelink Electronics Limited Model: P2401 REPORT NO.: STR10088161I-1 FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Ablelink Electronics Limited Model: P2401 REPORT NO.: STR10088161I-1 FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 Ablelink Electronics Limited Model: P2401 REPORT NO.: STR10088161I-1 FCC PART 15.247 EUT Housing and Board View 2 Solder Board-Component View 4 Ablelink Electronics Limited Model: P2401 REPORT NO.: STR10088161I-1 FCC PART 15.247 Solder Board-Component View 5

The description of the circuitry for P2401 Circuitry function: FM transmitter + BT hand-free Frequency of FM Transmitter: US 88.1-107.9MHz; EU 87.6-107.9MHz. BT Frequency: 2.4GHz Crystal: 26MHz for Main MCU and BT, The circuitry were consist of the U1,U2,U3,U4,U5,U6,U7,U8,J1 and LCD1. which were detailed as below: The MP4459 of the U1 is a high frequency step-down switching regulator with an integrated, internal high-side, high voltage power MOSFET. The TC1015-3.3 of the U2 is a regulator for 3.3v, The QN8006 of the U3 is a FM transmitter, The BC6140A02 of the U4 is a Bluetooth V2.1+ EDR system, The LPC1313 of the U5 is the main MCU to P2401, The MFI1341S2164 of the U6 is APPLE’S certification, The AF24BC32 of the U7 is a EEPROM, The NLAS4684 of the U8 is a dual SPDT Anolog switch, The MFI512S0017 of the J1 is the connector of the IPOD, The GY1303C5FVW6Q of the LCD1 is the display of the P2401. PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

11 22 33 44 55 66 D D C C B B A A B Griffin Technology, Inc 1930 Airlane Dr./ Nashville, Tennessee 37210 phone: 615-399-7000 / fax: 615-367-6468 / www.griffintechnology.com Confidential Information TitleSizeDateFile Document Number Revision Sheet of Drawn By CEB P2401 RoadTrip BT P2401-100 D 7/30/2010 2 1 P2401-100-D P1.SchDoc Eng CEB +3.3Va DGND R3 20K R4 20K R6 20K R1120K R13 20K R1420K DGND C19 1uF C17 1uF C11 1uF C18 1uF C121uF C13 10uF R5 20K R12 20K R10 100R 23 1 + - U1A MCP6002 65 7 + - U1B MCP6002 V+ 8 V- 4 U1C MCP6002 NC 1 NC 2 AUGND 3 ALI 4 ARI 5 AGND 6 RFI 7 RFGND 8 RFO 9 VIO 10 CEN 11 MOD 12 MCK 13 RDS INT 14 WS 15 XCLK 16 XTAL1 17 XTAL2 18 AGND 19 DIN 20 SEB 21 SCL 22 SDA 23 VCC 24 TP 25 U3 QN8006 DNI C20 12pF DNI C21 12pF DGND C15 1uF DGND +3.3Vt QSPI SELECT L2 100nH C25 1000pF DGND J5 Antenna Contact DGND DNIC28100pF R210R0 TXRX R34100K DGND AUTH I2C SDA / SPI MISOAUTH I2C SCL / SPI MOSI AUTH RESET +3.3Vd +3.3Vd R301K0 R291K0 R28 1K0 R31 1K0 DGND LCD BACKLIGHT LCD RESETLCD A0 AUTH MODE0 / SPI CLK AUTH MODE1/ AUTH SEL MENU NEXT FUNCTION PREVIOUS R2 10R C11uF +3.3Va R7 10R C161uF DGND +3.3Vamp C8 100pF +3.3Vamp +3.3Vt AUD RETLOR LOL AUTH MODE1/ AUTH SELAUTH MODE0 / SPI CLK AUTH I2C SDA / SPI MISOAUTH I2C SCL / SPI MOSI AUTH I2C SCL / SPI MOSIAUTH MODE0 / SPI CLK QSPI SELECT LCD SPI SELECT AUTH MODE0 / SPI CLKAUTH I2C SCL / SPI MOSI MENU AUTH RESET LCD A0LCD RESETPREVIOUS LCD SPI SELECT FUNCTION NEXT +3.3Vd DGND DGND USB PWR +3.3Va R1 10R +3.3Vd DNI + C10 100uF 4V DNI C7 10uF C6 2.2uF C4 2.2uF ACC PWR 12345 J2 DGND +3.3Vd IN CIRCUIT PROGRAMMING DGND USB PWR CONNECTIONS TO CLA R25 100K C5 .1uF C3 .1uF C14 .1uF C23.1uF C40 .1uF C33 .1uF C2 .1uF C9 1uF J8 0R0 ACC PWR EN 3 IN 1 BYP 4 GND 2 OUT 5 U2 TC1015-3.3V USB PWR DGND DGND R16100K R17100K R44 1M00 R151K0 R32 75K R20 49K9 R40 49K9 DGND FB4 1000R FB3 1000R FB2 1000R FB1 1000R FB8 1000R FB7 1000R R48 470R R49 470R DGND DGND J4J7 R45 100K Module Power (AWG 28)Module Ground (AWG 28) DS2 QSMT-CW01 DOMELIGHT F/W GND 1 F/W GND 2 TPA+ 3 USB D+ 4 TPA- 5 USB D- 6 TPB+ 7 USB PWR 8 TPB- 9 ACC ID 10 F/W PWR+ 11 F/W PWR+ 12 ACC PWR 13 RESVD 14 USB GND 15 DGND 16 RESVD 17 DOCK TX 18 DOCK RX 19 ACC DETECT 20 VID Y 21 VID C 22 COMP VID 23 RMT SENSE 24 LINE IN L 25 LINE IN R 26 LINE OUT L 27 LINE OUT R 28 AUDIO RET 29 DGND 30 J1MFI512S0017 DNI R51330R SW1 TS-1177 SW2 TS-1177 SW3 TS-1177 SW4 TS-1177 DGND C32 1uF C31 1uF C30 1uF DGND +3.3Vd CS1 1 RES 2 V1 14 CAP2+ 12 CAP1+ 11 CAP1- 10 CAP3+ 9 V2 15 V3 16 VOUT 8 VSS 7 VDD 6 SID 5 SCL 4 A0 3 CAP2- 13 V4 17 V0 18 1920 LCD1 GY1303C5FVW6Q G S D Q1 RJU003N03 R26 3R3 R24 0R0 +3.3Va C26 1000pF +3.3Va DNI = DO NOT INSTALL C35 .1uF C34 .1uF C36 .1uF C37 .1uF C39 .1uF C38 .1uF R8 100K R9 100K R23100K DNI R3610K DNI R35 10K V1 5.5V V35.5V V25.5V V125.5V V11 5.5V V105.5V V95.5V V624V G S D Q2 RJU003N03 R4343K2 FB660R FB560R FB9 60R FB10 60R R50 330R R3810K NC 1 MODE 2 NC 3 /RESET 4 Vcc 5 NC 6 NC 7 NC 8 NC 9 NC 10 Vss 11 I2C SCL 12 I2C SDA 13 I2C ADDR0 14 NC 15 NC 16 NC 17 NC 18 NC 19 NC 20 U6MFI1341S2164 J13J16 PIO2_0/nDTR 1 nRESET/PIO0_0 2 PIO0_1/CLKOUT/32B0_MAT2 3 XTALIN 4 XTALOUT 5 VddIO 6 PIO1_8/16B1_CAP0 7 PIO0_2/SSEL/16B0_CAP0 8 PIO0_3 9 PIO0_4/SCL 10 PIO0_5/SDA 11 PIO1_9/16B1_MAT0 12 PIO3_4 13 PIO3_5 14 PIO0_6/SCK 15 PIO0_7/nCTS 16 PIO0_8/MISO/16B0_MAT0 17 PIO0_9/MOSI/16B0_MAT1/TRACE 18 TCK/PIO0_10/SCK/16B0_MAT2 19 PIO1_10/AD6/16B1_MAT1 20 TDI/PIO0_11/AD0/32B0_MAT3 21 TMS/PIO1_0/AD1/32B1_CAP0 22 TDO/PIO1_1/AD2/32B1_MAT0 23 nTRST/PIO1_2/AD3/32B1_MAT1 24 SWD/PIO1_3/AD4/32B1_MAT2 25 PIO1_4/ADC5/32B1_MAT3/WAKE 26 PIO1_11/AD7 27 PIO3_2 28 VddCORE 29 PIO1_5/nRTS/32B0_CAP0 30 PIO1_6/RXD/32B0_MAT0 31 PIO1_7/TXD/32B0_MAT1 32 GND_PAD 33 U5 LPC1313 DGND TCK TCK SWDnRESET SWD C45 .01uF nRESET +3.3Vd R39 100K +3.3Vd DGND C46 .1uF C29 .01uF +3.3Vd DGND C47 .01uF DGND TP1 TP2 TP3 FMLFMR FMLFMRIPDLIPDR IPDRIPDL AUD_SEL BT_PIO0 BT_PIO1BT_PIO2 AUD_SEL BT_PWR_EN C63.1uF DGND 13 24 X1 26.000 MHz 10ppm FML +3.3Vamp DGND GND 6 VCC 1 NC1 5 NO1 2 COM1 3 IN1 4 NC2 7 IN2 8 COM2 9 NO2 10 PAD 11 U8 NLAS4684 +3.3Va BTAUD P2401-100-00 P2[5B] AREF P2401-100-00 P2[5B] BT_LED P2401-100-00 P2[3B] LCD RESET P2401-100-00 P2[3C] BT_PWR_EN P2401-100-00 P2[2B] BT_PIO0 P2401-100-00 P2[4B] BT_PIO2 P2401-100-00 P2[4B] BT_PIO1 P2401-100-00 P2[4B] ACC DETECT ACC DETECT GOOSENECK WIRES:USB Power - AWG 26DGND - AWG 26 Route FM TX Circuit in one of the PCB Corners 11 22 33 44 55 66 D D C C B B A A B Griffin Technology, Inc 1930 Airlane Dr./ Nashville, Tennessee 37210 phone: 615-399-7000 / fax: 615-367-6468 / www.griffintechnology.com Confidential Information TitleSizeDateFile Document Number Revision Sheet of Drawn By CEB P2401 RoadTrip BT P2401-100 D 7/30/2010 2 2 P2401-100-D P2.SchDoc Eng CEB BT_PIO6BT_PIO7BT_PIO8 BT_PIO6BT_PIO7BT_PIO8 BT_BAT_P BT_BAT_P BT_PWR_EN RFNRFP RFPRFN VCORE TP4TP5TP6TP7TP8 FB111000R TP9 1 3 2 4 X2 26.000 MHz 10ppm 43 1 + - U9A MCP6001 75V D1 1N4148 USB PWR L1 22uH 6.3V C42 4.7uF +1.5V DGND 6.3V C27 10uF DGND +1.8V 5% R182R2 6.3V C43 2.2uF DGND DGND +1.5V 5% R192R2 16V C49 .022uF DGND 6.3V C50 2.2uF DGND 50V C51 15pF 25V C52 47nF DGND 16V C53 0.1uF DGND 16V C54 0.1uF +1.8V DGND 50VC226.8pF 50VC2418pF 16V C48.022uF 5% R46 4K70 5% R52 4K70 DGND DGND 5% R47 4K70 +1.8V 16V C41 0.1uF 16V C59 0.1uF16V C58 0.1uF DGND 16VC612.2uF 5% R422K20 5% R41 2K20 16VC6210uF 50V C60 15pF 12 + - MK1EM4015P V+ 5 V- 2 U9B MCP6001 DGND 10V C57 1uF +3.3Vamp DGND 1% R22 20K 1% R27 20K 1% R33 20K 1% R3720K 10V C55 1uF 10V C56 1uF UNBAL 1 DC 2 NC 3 BAL 4 GND 5 BAL 6 GND 7 GND 8 T1 DBF81F107 DGND L3 15nH +1.5V 50VC4415pF DGND E1 AF216M245001-T RF_P 7 RF_N 8 XTAL_IN 13 XTAL_OUT 14 LO_REF 15 SPI_MOSI 38 SPI_nCS 40 SPI_CLK 39 SPI_MISO 41 UART_TX 19 LED1 28 UART_RX 18 VREGENABLE_H 33 MIC_BIAS 47 AU_REF 5 LED0 29 SPKR_N 3 SPKR_P 4 MIC_N 2 MIC_P 1 PIO1 23 PIO2 22 PIO3 21 PIO6 46 PIO7 45 PIO8 44 PIO11 27 AIO0 17 nRST 26 TEST_EN 25 VREGENABLE_L 10 VREGIN_L 11 VREGIN_H 32 VREGOUT_H 31 VDD_PADS0 20 VDD_PADS1 43 VDD_CORE 30 VDD_RADIO 6 VDD_ANA 12 SPI_DEBUG_EN …

Text truncated - open the document above for the full version.

Ablelink Electronics Limited Model: P2401 REPORT NO.: STR10088161I-1 PAGE 1 OF 29 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Ablelink Electronics Limited Room 506, Remington Centre, 23 Hung To Road, Kwun Tong, Kowloon, Hong Kong FCC ID: YHEP2401 Report Concerns: Original Report Equipment Type: Bluetrip Model: P2401 Report No.: STR10088161I-1 Test Date: 2010-08-25 to 2010-10-22 Issue Date: 2010-11-03 Tested By: Susan Su / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Electronic Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Ablelink Electronics Limited Model: P2401 REPORT NO.: STR10088161I-1 PAGE 2 OF 29 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................4 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. NUMBER OF HOPPING CHANNELS AND CHANNEL SPACING .................................................................7 4.1 STANDARD APPLICABLE.........................................................................................................................................7 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.3 TEST PROCEDURE...................................................................................................................................................7 4.4 ENVIRONMENTAL CONDITIONS..............................................................................................................................7 4.5 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 5. DWELL TIME OF A HOPPING CHANNEL ......................................................................................................10 5.1 STANDARD APPLICABLE.......................................................................................................................................10 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................10 5.3 TEST PROCEDURE.................................................................................................................................................10 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................10 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 6. 20-DB BANDWIDTH ..............................................................................................................................................13 6.1 STANDARD APPLICABLE.......................................................................................................................................13 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................13 6.3 TEST PROCEDURE.................................................................................................................................................13 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................13 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................13 7. POWER OUTPUT..............................................................................................…

Text truncated - open the document above for the full version.

Ablelink Electronics Limited Model: P2401 REPORT NO.: STR10088161I-1 FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
