SEM.Test Compliance Service Co., Ltd. 3/F, Jinbao Commerce Building, Xin’an Fanshen Road, Bao’an District, Shenzhen, P.R.C Statement July 29, 2011 Dear Timco Engineering, Inc., Thank you for cooperation. Job No.: 1677CC11 Produc Description: BlueTrip Dual Connect FCC ID: YHEP2888 Best Regards, We declare that for this product of the case described above, both transmitters were operated simultaneously and the EUT met all pertinent requirements of 47 CFR Part 15 Subpart C Sections 15.205, 15.209, 15.239, 15.247, please be informed. SEM.Test Compliance Service Co., Ltd. ------------------------- (Jandy so/PSQ Manager)

Ablelink Electronics Limited Model: P2888 REPORT NO.: STR10128154I-1 FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YHEP2888 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Ablelink Electronics Limited Model: P2888 REPORT NO.: STR10128154I-1 FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YHEP2888 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

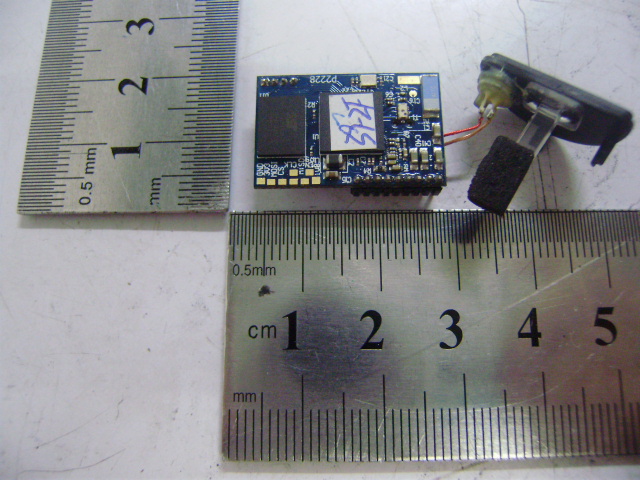

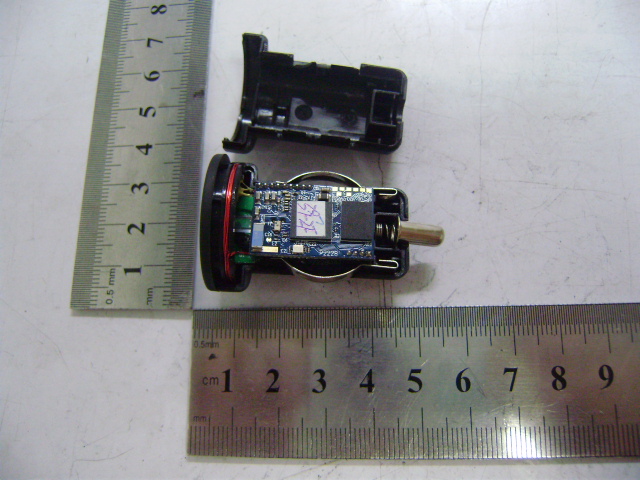

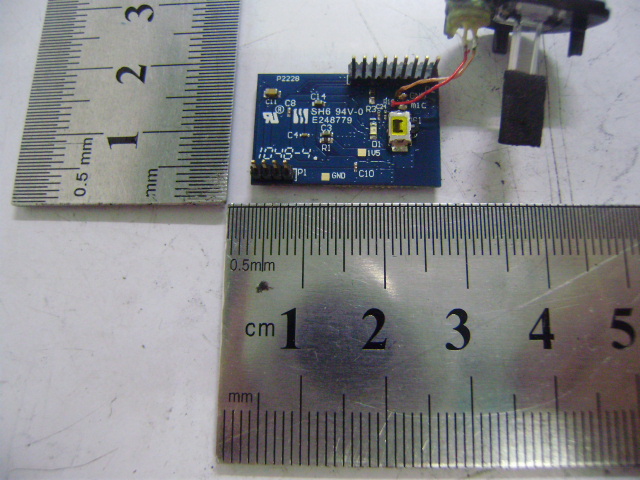

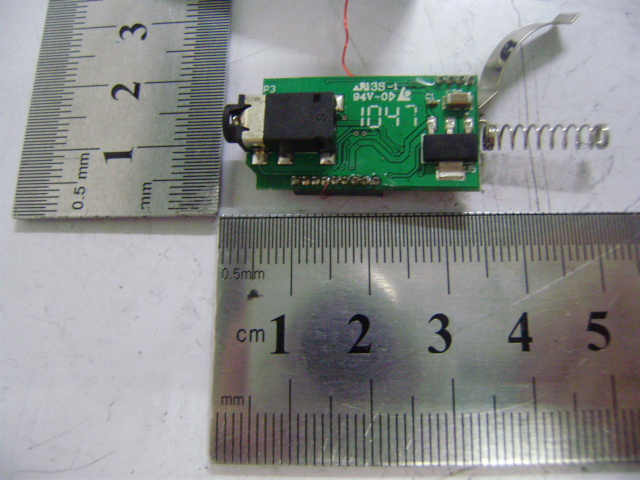

Ablelink Electronics Limited Model: P2888 REPORT NO.: STR10128154I-1 FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Ablelink Electronics Limited Model: P2888 REPORT NO.: STR10128154I-1 FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 Ablelink Electronics Limited Model: P2888 REPORT NO.: STR10128154I-1 FCC PART 15.247 Solder Board-Component View 4

The description of the circuitry for P2888 Circuitry function: FM transmitter + BT Frequency of FM Transmitter: US 88.1-107.9MHz; EU 87.6-107.9MHz. BT Frequency: 2 402-2480MHz Crystal: 26MHz for Main MCU and BT, The circuitry were consisted of the main board and BT board: 1) Main Board has the U1,U3,U4,U5, which details as below: The MCP6002T of the U1 is a “ 1MHz bandwidth Low Power OP Amp”; The QN8006 of the U3 is a FM transmitter, The MFI1341S2164 of the U4 is APPLE’S certification, The NCV4274ST of the U5 a regulator that has capability to drive loads up 450mA at 5.0V. 2) BT Board has the U1 and U11, which details as below: The BC57E687C of U1 is a Bluecore 5-multmedia external. The SST39WF1601 of U11 is a 16Mbit flash.

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA Title NumberRevisionSize B Date:8/24/2010Sheet of File:Z:\electronic\..\bc5board_cig_base.SchDoc Drawn By: CEN SCL 2.2uF C1 1 2 3 4 P1 MHDR1X4 +3.3V GND 1 2 3 4 5 6 7 8 9 P2 MHDR1X9 SDA AUDIOA_N AUDIOA_P AUDIOB_N AUDIOB_P GND 1 2 3 4 5 6 P3 Header 6 QN8006 ALO 1 ARO 2 AUGND 3 ALI 4 ARI 5 AGND 6 RFI 7 RFGND 8 RFO 9 VIO 10 CEN 11 MOD 12 MCK 13 DOUT/INT 14 WS 15 XCLK 16 XTL1 17 XTL2 18 AGND 19 DIN/INT 20 SEB 21 SCL 22 SDA 23 VCC 24 PAD 25 U3 MFI341S2500 MODE1/SPI_nSS 2 nRESET 4 VCC 5 VSS 11 SPI_MOSI/SCL 12 SPI_MISO/SDA 13 MODE0/SPI_CLK 14 U4 +3.3V GNDGND SCL SCL SDA SDA GND +3.3V GNDCEN GND AUDIOA_N AUDIOB_N GND +3.3V GND +3.3VVIN 18pF C3 15pF C2 13 42 Y1 Crystal GND RFO GND 100K R1 100K R3 100K R5 100K R6 220K R2 220K R8 220K R4 220K R7 BYP BYP AUDIOA_N AUDIOA_P AUDIOB_N AUDIOB_P 1uF C4 1uF C5 AUDIO_L AUDIO_R 1uF C7 1uF C8 AUDIO_L AUDIO_R 4.7K R11 4.7K R12 +3.3V 100nF C13 100nF C16 100nF C12 100nF C15 100nF C9 10uF C10 2.2uF C17 120nH L1 100K R14 4.7K R15 VIN 10uF/20V C20 CEN MIC MIC IN 1 2 OUT 3 GND 4 U5 NCV4274ST33T3G ANT GND CTRL INT 3 2 1 8 4 U1A MCP6282-E/MS 7 5 6 8 4 U1B MCP6282-E/MS +3.3V +3.3V GND GNDGNDA GNDA +3.3V GND BSS123 Q1 100K R13 CTRL 0 / DNP R16 100K R9 100K R10 PIC101 PIC102 COC1 PIC201PIC202 COC2 PIC301PIC302 COC3 PIC401PIC402 COC4 PIC501PIC502 COC5 PIC701PIC702 COC7 PIC801PIC802 COC8 PIC901 PIC902 COC9 PIC1001 PIC1002 COC10 PIC1201PIC1202 COC12 PIC1301 PIC1302 COC13 PIC1501 PIC1502 COC15 PIC1601 PIC1602 COC16 PIC1701PIC1702 COC17 PIC2001 PIC2002 COC20 PIL101 PIL102 COL1 PIP101 PIP102 PIP103 PIP104 COP1 PIP201 PIP202 PIP203 PIP204 PIP205 PIP206 PIP207 PIP208 PIP209 COP2 PIP301 PIP302 PIP303 PIP304 PIP305 PIP306 COP3 PIQ101 PIQ102 PIQ103 COQ1 PIR101PIR102 COR1 PIR201PIR202 COR2 PIR301PIR302 COR3 PIR401PIR402 COR4 PIR501PIR502 COR5 PIR601PIR602 COR6 PIR701PIR702 COR7 PIR801PIR802 COR8 PIR901PIR902 COR9 PIR1001PIR1002 COR10 PIR1101 PIR1102 COR11 PIR1201 PIR1202 COR12 PIR1301 PIR1302 COR13 PIR1401PIR1402 COR14 PIR1501 PIR1502 COR15 PIR1601 PIR1602 COR16 PIU101 PIU102 PIU103 PIU104 PIU108 COU1A PIU104 PIU105 PIU106 PIU107 PIU108 COU1B PIU301 PIU302 PIU303 PIU304 PIU305 PIU306 PIU307 PIU308 PIU309 PIU3010 PIU3011 PIU3012 PIU3013 PIU3014 PIU3015PIU3016 PIU3017 PIU3018 PIU3019 PIU3020 PIU3021 PIU3022 PIU3023 PIU3024 PIU3025 COU3 PIU402 PIU404 PIU405 PIU4011 PIU4012 PIU4013 PIU4014 COU4 PIU501 PIU502 PIU503 PIU504 COU5 PIY101 PIY102 PIY103 PIY104 COY1 PIC102 PIC901PIC1002 PIC1201 PIC1302 PIC1502PIC1602 PIP101 PIR1002 PIR1102PIR1202 PIU108 PIU3010 PIU3024 PIU402 PIU405 PIU503 NL0303V PIL102 PIU309 NLANTNLRFO PIC402 PIP305 NLAUDIO0L PIC502 PIP302 NLAUDIO0R PIC802 PIP201PIR102 NLAUDIOA0N PIP202 PIR602 NLAUDIOA0P PIC702 PIP205 PIR502 NLAUDIOB0N PIP206 PIR302 NLAUDIOB0P PIC1701PIR702 PIR802 PIR901 PIR1001 NLBYP PIP103 PIU3011 PIU404 NLCEN PIP102 PIQ102 PIR1301 NLCTRL PIC101 PIC201PIC302 PIC902PIC1001 PIC1202 PIC1301 PIC1501PIC1601 PIC2002 PIL101 PIP104 PIP203 PIQ103 PIR902 PIR1302 PIR1502 PIR1602 PIU104 PIU303 PIU306 PIU308 PIU3012 PIU3019 PIU3021 PIU3025 PIU4011 PIU4014 PIU502PIU504 PIY102PIY104 NLGND PIC1702 PIP306 PIQ101 PIR1601 NLGNDA PIU3014 NLINT PIP204 PIP301 NLMIC PIU3020 PIU3016PIU3015 PIU3013 PIU307 PIU302 PIU301 PIR601 PIR701 PIU103 PIR402PIR501 PIU106 PIR301 PIR801 PIU105 PIR101PIR201 PIU102 PIP304 PIP303 PIP209PIR1402 PIR1501 PIC801 PIU305 PIC701 PIU304 PIC501 PIR202 PIU101 PIC401 PIR401 PIU107 PIC301PIU3018 PIY103 PIC202 PIU3017 PIY101 PIP208 PIR1101 PIU3022 PIU4012 NLSCL PIP207 PIR1201 PIU3023 PIU4013 NLSDA PIC2001 PIR1401 PIU501 NLVIN 1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA Title NumberRevisionSize C Date:4/28/2010Sheet of File:Z:\electronic\..\bc5board_cig.SchDocDrawn By: GND BT_UTX BT_URX BT_URTS SCL GND D1 LED3 BC_XTOUT 470 R3 A0 C9 A1 P12 A2 R12 A3 N11 A4 P11 A5 R11 A6 N10 A7 P10 A8 P7 A9 R7 A10 N6 A11 P6 A12 R6 A13 N5 A14 P5 A15 R5 A16 P9 A17 R10 A18 N9 A19 P8 A20 N12 D0 B11 D1 C10 D2 A9 D3 B8 D4 B7 D5 C6 D6 A6 D7 B5 D8 A11 D9 B10 D10 C8 D11 C7 D12 A7 D13 B6 D14 C5 D15 A5 FLASH_RP R9 OE C11 WE N7 CS A10 U1B BlueCore5MM External RF_P K1 RF_N L1 AUX_DAC H2 XTAL_IN R1 XTAL_OUT R2 LO_REF P3 UART_TX N15 UART_RX N14 UART_RTS R15 UART_CTS P15 USB_DP P14 USB_DN P13 PCM_OUT F15 PCM_IN G15 PCM_SYNC F14 PCM_CLK F13 SPI_MISO D15 SPI_MOSI E13 SPI_CS E15 SPI_CLK E14 PIO0 F1 PIO1 F2 PIO2 G3 PIO3 F3 PIO4 H13 PIO5 H14 PIO6 H15 PIO7 J13 PIO8 J14 PIO9 M14 PIO10 M13 PIO11 L14 PIO12 K13 PIO13 K14 PIO14 J15 PIO15 M15 AIO0 R4 AIO1 N3 RESET G13 TEST_EN G14 MIC_A_P C2 MIC_A_N C1 MIC_B_P B2 MIC_B_N B1 SPKR_A_P E1 SPKR_A_N E2 SPKR_B_P D1 SPKR_B_N D2 MIC_BIAS B3 AU_REF_DCPL E3 LED1 D14 LED0 D13 U1A BlueCore5MM External VREGENABLE_H B14 VREGIN_H A15 VREGOUT_H B15 VREGENABLE_L M2 VREGIN_L N2 VDD_ANA P1 VREGIN_AUDIO A3 VDD_AUDIO A2 VDD_CHG A12 BAT_P B13 VDD_SMP_CORE A14 LX A13 VDD_CORE C15 VDD_CORE K15 VDD_RADIO M1 VDD_LO N1 VDD_USB R14 VDD_PIO G1 VDD_PADS L15 VDD_MEM A4 VDD_MEM A8 VDD_MEM B9 VDD_MEM R8 VDD_MEM R13 VSS_DIG B4 VSS_DIG C4 VSS_DIG C12 VSS_DIG C13 VSS_DIG C14 VSS_DIG H3 VSS_DIG L13 VSS_DIG N4 VSS_DIG N8 VSS_DIG N13 VSS_RADIO J2 VSS_RADIO K2 VSS_RADIO L2 VSS_LO K3 VSS_LO L3 VSS_ANA P2 VSS_AUDIO A1 VSS_AUDIO D3 VSS C3 VSS F6 VSS F7 VSS F8 VSS F9 VSS F10 VSS G6 VSS G7 VSS G8 VSS G9 VSS G10 VSS H6 VSS H7 VSS H8 VSS H9 VSS H10 VSS J3 VSS J6 VSS J7 VSS J8 VSS J9 VSS J10 VSS K6 VSS K7 VSS K8 VSS K9 VSS K10 VSS M3 BAT_N B12 SUBS R3 U1C BlueCore5MM External D0 E2 D1 H2 D2 E3 D3 H3 D4 H4 D5 E4 D6 H5 D7 E5 D8 F2 D9 G2 D10 F3 D11 G3 D12 F4 D13 G5 D14 F5 D15/A-1 G6 A0 E1 A1 D1 A2 C1 A3 A1 A4 B1 A5 D2 A6 C2 A7 A2 A8 B5 A9 A5 A10 C5 A11 D5 A12 B6 A13 A6 A14 C6 A15 D6 A16 E6 A17 B2 A18 C3 A19 D4 VCC G4 VSS H1 VSS H6 RDY A3 WE A4 OE G1 CE F1 BYTE F6 RP B4 A20 D3 VPP B3 U11 M29W160 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 NWE NWE NOENOE NCS NCS D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 RP RP GND +1.8V…

Text truncated - open the document above for the full version.

Ablelink Electronics Limited Model: P2888 REPORT NO.: STR10128154I-1 PAGE 1 OF 29 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Ablelink Electronics Limited Room 506, Remington Centre, 23 Hung To Road, Kwun Tong, Kowloon, Hong Kong FCC ID: YHEP2888 Report Concerns: Original Report Equipment Type: BlueTrip Dual Connect Model: P2888 Report No.: STR10128154I-1 Test Date: 2010-12-24 to 2011-07-15 Issue Date: 2011-07-28 Tested By: Susan Su / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Electronic Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Ablelink Electronics Limited Model: P2888 REPORT NO.: STR10128154I-1 PAGE 2 OF 29 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................4 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. NUMBER OF HOPPING CHANNELS AND CHANNEL SPACING .................................................................7 4.1 STANDARD APPLICABLE.........................................................................................................................................7 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.3 TEST PROCEDURE...................................................................................................................................................7 4.4 ENVIRONMENTAL CONDITIONS..............................................................................................................................7 4.5 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 5. DWELL TIME OF A HOPPING CHANNEL ......................................................................................................10 5.1 STANDARD APPLICABLE.......................................................................................................................................10 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................10 5.3 TEST PROCEDURE.................................................................................................................................................10 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................10 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 6. 20-DB BANDWIDTH ..............................................................................................................................................13 6.1 STANDARD APPLICABLE.......................................................................................................................................13 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................13 6.3 TEST PROCEDURE.................................................................................................................................................13 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................13 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................13 7. POWER OUTPUT...................................................................................................................................................16 7.1 STANDARD APPLICABLE...............................................................…

Text truncated - open the document above for the full version.

Ablelink Electronics Limited Model: P2888 REPORT NO.: STR10128154I-1 FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
