YHEP2798FM TRANSMITTER

1. How does the device Operate? Answer: Power DC 3V is provided by battery. Frequencies are selected by a UP/DOWN button on the EUT. Set the adjust frequency, and then the music can be transmitted out. The frequency range from 88.1MHz to 107.9MHz. 2. Provide information on the device and its antenna. Answer: The antenna is a built-in trace on the circuit board. (Please see the attached: user manual and circuit) 3. How is it installed? Answer: Plug the audio terminal, then input the audio signal. No other installation is required. 4. What test procedure was used? Answer: ANSI C63.4-2003. 5. If tested in a car, how was it configured? Answer: It was not tested in an automobile. It was tested in an 3 meter chamber as shown in the Test Set-Up photographs. 6. Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. Answer: The maximum tuning range is 88.1MHz to 107.9MHz. Test is selected with Lowest(88.1MHz), Middle(98.1MHz), and High(107.9MHz) channel. Please see the test report (Page 3 of 17 and the data showed) and Usermanual. 7. Was the bandwidth properly tested with maximum audio input? Answer: We played a song from audio signal with the maximum audio input. 8. Provide the test report. Answer: Please refer to the attachment.

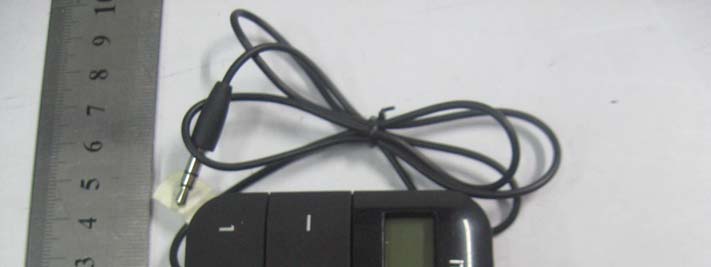

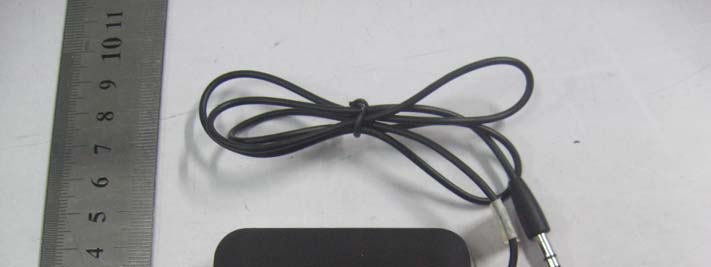

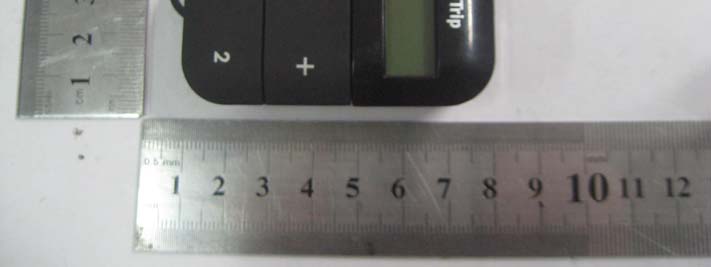

Abelink Electronics Limited Model: P2798 REPORT NO.: STR10098045I FCC PART 15.239 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

Abelink Electronics Limited Model: P2798 REPORT NO.: STR10098045I FCC PART 15.239 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YHEP2798 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Abelink Electronics Limited Model: P2798 REPORT NO.: STR10098045I FCC PART 15.239 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YHEP2798 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Abelink Electronics Limited Model: P2798 REPORT NO.: STR10098045I FCC PART 15.239 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Abelink Electronics Limited Model: P2798 REPORT NO.: STR10098045I FCC PART 15.239 Solder Board-Component View 2

Circuit description This is a FM transmitter with LCD display, US version of the transmission frequency is 88.1MHZ-107.9MHZ, Its circuit is mainly IC.U1. U2. U3. U4. U5. And LCD display, the input voltage 1.8-3V by AAA*2 battery provide, per U2 up voltage 5V, is the U3 EEPROM and U1 MCU power, U4 to U5 FM transmitter IC provides 3.3V power supply , U5 12MHZ clock signal to the crystal M1 and M2 is Memory buttons, UP and DOMN buttons to change the transmitting frequency. J1 is an audio signal input.

RT9166_3.3V 12 3 IN OUT GND SOT23R APPROVED:ECO NO:LTR A B C D 654321 DATE: D C B A REVISION RECORD SCALE:SHEET: OF DRAWING NO: TITLE : P2798 Circuit. COMPANY: RELEASED:DATED: DATED:QUALITY CONTROL: CHECKED:DATED: DATED:DRAWN: CODE:SIZE:REV: BEEP B A T T E R Y T E S T 3 IN 1 GND 2 OUT U4 DHK1332M R9 4.7K R6 4.7K R10 10K R710K C19 472 C13 472 C31 NC C30 NC C18 0.1uF C27 10uF Y1 NC C22 10uF R12 10k S 1 D O W N S 2 U P S 4 M 2 S 5 M 1 1 P74/SEG18/INT0 2 P75INT1/T1OUT 3 P76/INT2/T1CK 4 P77/INT3/T1CAP 5 VDD 6 VSS 7 OSCO 8 OSCI 9 TEST 10 PC2/XIN 11 PC3/XOUT 12 P81/RESET 1 3 P 8 2 / I N T 8 / A D 8 1 4 P 8 3 / I N T 9 / A D 7 1 5 P 8 4 / R E F 1 6 P 8 5 / C O M 6 / A D 6 1 7 P 8 6 / C O M 5 / A D 5 1 8 P 8 7 / C O M 4 / A D 4 1 9 P 9 0 / A D 3 / P W M 2 2 0 P 9 1 / A D 2 / B U Z Z 2 1 P 9 2 / A D 1 2 2 P 9 3 / A D 0 2 3 P 9 4 / C O M 3 2 4 P 9 5 / C O M 2 25 P96/COM1 26 P97/COM0 27 PA0/SEG0 28 PA1/SEG1 29 PA2/SEG2 30 PA3/SEG3 31 PA4/SEG4/SI 32 PA5/SEG5/SO 33 PA6/SEG6/SCK 34 PA7/SEG7/SS 35 PB0/SEG8/INT4 36 PB1/SEG9/INT5 3 7 P B 2 / S E G 1 0 3 8 P B 3 / S E G 1 1 / I N T 7 3 9 P 7 0 / S E G 1 2 4 0 P 7 1 / S E G 1 3 4 1 P 7 2 / S E G 1 4 4 2 P 7 3 / S E G 1 5 4 3 P B 4 / S E G 1 6 / R X 4 4 P B 5 / S E G 1 7 / T X 4 5 P B 6 / S E G 1 9 4 6 P B 7 / S E G 2 0 4 7 P C 0 / S E G 2 1 4 8 P C 1 / S E G 2 2 U1 EM78P520N C 2 9 1 0 3 C3 20pF C2 20pF Y 2 1 2 M H z C 6 1 0 u F C8 1uF C9 1uF R4 1K 1 2 3 4 5 6 J1 Audio_in 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC U3 24C02 R19 4.7K R18 4.7K C24 0.1uF C7 1000pF Q8 SMD-8550 R23 10K R24 10K R 2 5 1 0 K R26 10K 1 COM0 2 COM1 3 COM2 4 SEG0 5 SEG1 6 SEG2 7 SEG3 8 SEG4 9 SEG5 10 SEG6 11 SEG7 12 SEG8 13 SEG9 14 SEG10 L C D R11 1K R28 10k R 3 0 1 0 k R 3 1 1 0 k R32 33K R 3 3 5 1 0 R D 3 L E D R 3 4 N C R15 22R R 1 1 0 k R2 10k C 5 0 . 1 u F L1 10uH C16 NC R3 NC C 4 0 . 0 1 u F 3 IN 1 GND 2 OUT U2 XC6371A501 C23 1 0 u F BAT2 L3 100uH D1 HBAT54 C25 47uF S G D Q2 P沟道场效应管 RQJ0202VGDQA R3633KΩ R 3 9 3 3 K Ω R 4 0 3 3 K Ω R 5 3 3 K Ω D6 1N4148 D7 1N4148 S 6 O N / O F F C 2 6 0 . 1 u F R 8 8 N C C28 0.1uF ALI ARI VIO SDA SCLRFO GND VCC XTAL1 XTAL2 1 2 3 4 56 7 8 9 10 U 5 Q N 8 0 2 7 C1 0.01UF L 2 1 5 0 n h R 1 6 N C R 1 7 3 3 R L4 2.5K@100MHZ L5 2.5K@100MHZ R 1 3 5 1 K R14 2.2M Q3 2N7002 Q5 2 N 7 0 0 2 R 8 3 3 K +5V+3.3V SCK SDA SDA SCKANT L_IN R_IN + 3 . 3 V L_IN R_IN SCK SDA BACKLIGHT COM0 COM1 C O M 2 COM0 COM1 COM2 SEG0 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG0 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 S E G 1 0 +5V M1 M2 UP DOWN BACKLIGHT +5V M 1 M 2 M 3 U P D O W N +5V +5V P82 PWRON +5V P83 PWRON BATT_3.7VVCC+5V P 8 2 P 8 3 + 5 V PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Ablelink Electronics Limited Model: P2798 REPORT NO.: STR10098045I PAGE 1 OF 20 FCC PART 15.239 FCC PART 15.239 MEASUREMENT AND TEST REPORT FOR Ablelink Electronics Limited Room 506, Remington Centre, 23 Hung To Road, Kwun Tong, Kowloon, Hong Kong Report Concerns: Original Report Equipment Type: FM Transmitter Model: P2798 Report No.: STR10098045I Test Date: 2010-09-08 to 2010-10-15 Issue Date: 2010-10-26 Tested By: Susan Su / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn FCC ID: YHEP2798 Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Ablelink Electronics Limited Model: P2798 REPORT NO.: STR10098045I PAGE 2 OF 20 FCC PART 15.239 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.209, §15.239 (B)(C)- RADIATED EMISSION .................................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.4 TEST PROCEDURE...................................................................................................................................................7 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................8 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 5. §15.239(A) EMISSION BANDWIDTH TESTING ...............................................................................................15 5.1 STANDARD APPLICABLE.......................................................................................................................................15 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................15 5.3 TEST PROCEDURE.................................................................................................................................................15 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................15 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................15 6. §15.249(B) OUT OF BAND EMISSIONS .............................................................................................................18 6.1 STANDARD APPLICABLE.......................................................................................................................................18 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................18 6.3 TEST PROCEDURE.................................................................................................................................................18 6.4 ENVIRONMENTAL CONDITIONS........................................................................................…

Text truncated - open the document above for the full version.

Abelink Electronics Limited Model: P2798 REPORT NO.: STR10098045I FCC PART 15.239 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup
