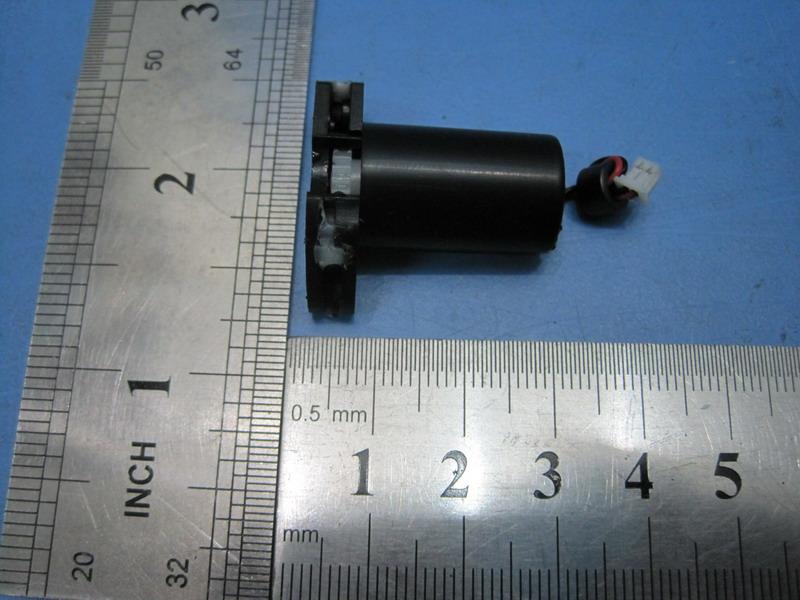

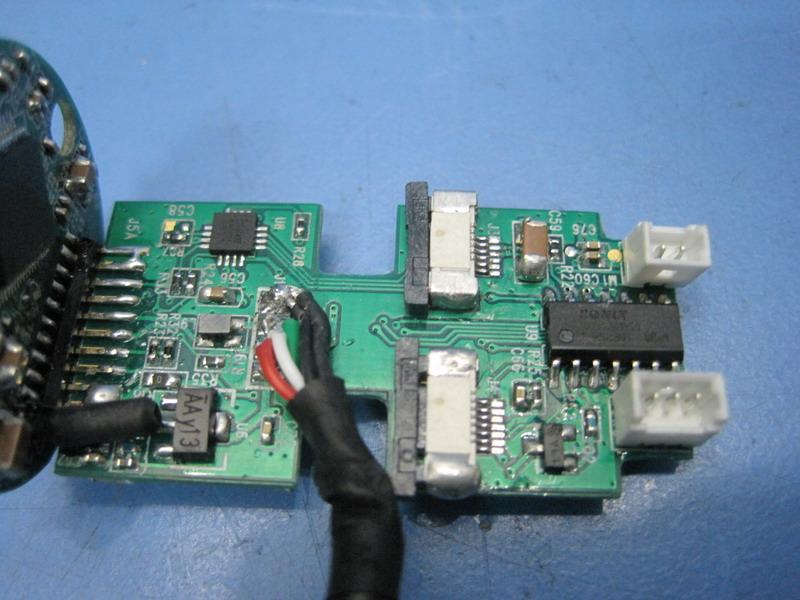

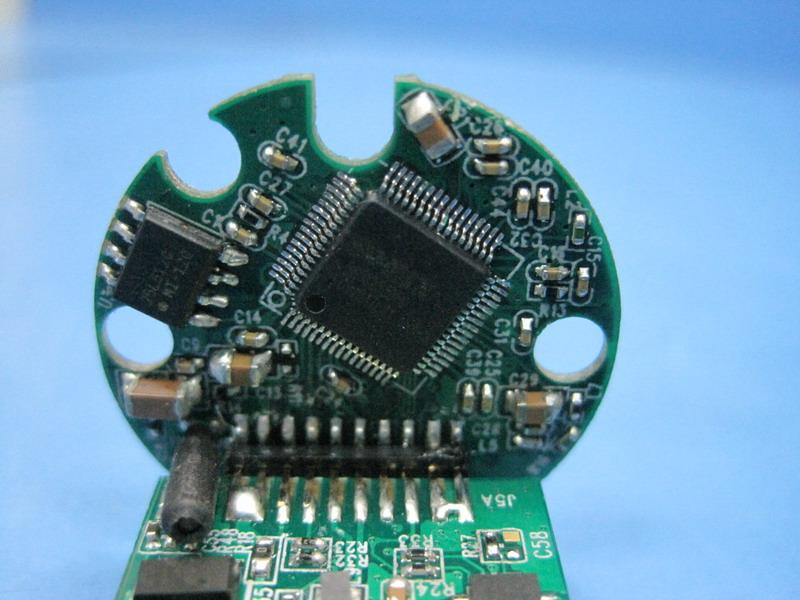

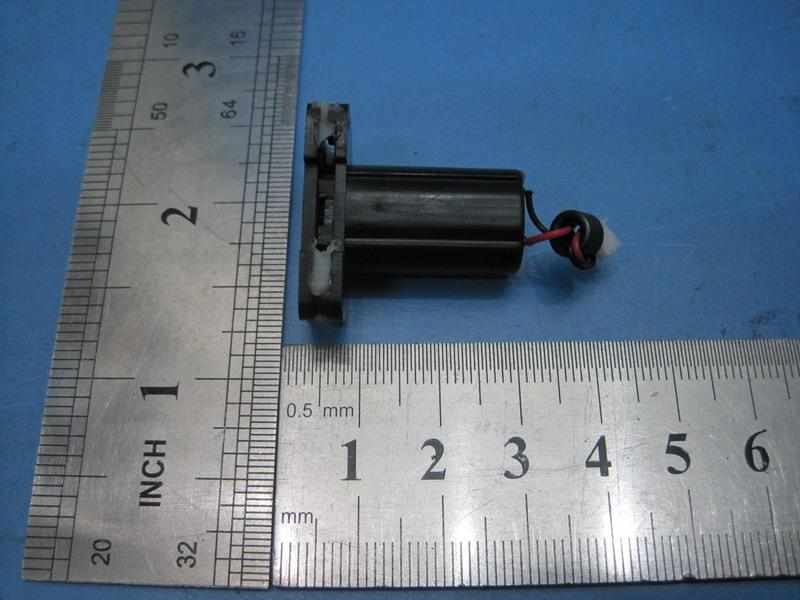

YIGDP-M04Auto focus microscope which connects to PC via USB interface

DP-M04 Auto Focus eScope User Manual Thank you for buying our professional digital microscope. To guarantee the product function into fully play and prolong service life, please read the user manual carefully before installations. And the product should be well clean and maintenance when using it. In line with the policy of continued development, if there are any amendments on the appearance, color or assemblies, please refer to the real object. Our company reserves the right to amend on the the specifications and the manual without prior notification. Contents Warnings and Attentions Warnings.....................................................................3 Attentions....................................................................3 Part lists.......................................................................3 Product Overview...............................................................3 Specifications...................................................................4 Installation Guide Computer System Requirement....................................................4 eScope Software Installations.....................................................4 Auto Focus eScope Hardware Installations...........................................5 Auto Focus eScope Operations.....................................................5 eScope Software Guide Execute Software..............................................................6 Capture Photo................................................................6 Capture Video................................................................6 Time-lapsed Picture / Video.....................................................7 Picture / Video Save as......................................................... 7 Calibration and Measurement Calibration..................................................................8 Measurement................................................................10 Change the Calibration........................................................10 Draw and Text...............................................................11 eScope Software Interface Instructions Main Interface Options instructions...........................................................12 Toolbar Instructions...........................................................13 Picture and Video Saving.......................................................14 Measurement interface instructions...............................................14 2 U s er m anual Warnings and Attentions Warnings Do not modify any accessories, or our company won't responsible for any malfunctions and calamities may cause. Do not put the product into fire, or our company won't responsible for any malfunctions and calamities may cause. Please follow the manual to operate the product, otherwise you have to bear all aftereffect. Attentions Always replace the lens cap to avoid dust and moisture when the device is not in use. Please stop using the product if any abnormal phenomena. Please use dry cloth to gently clean product. Do not use any chemicals to clean it. If the lens gets dirty, clean it with a blower brush or a soft cloth moistened with a little neutral detergent. Be careful not to scratch the lens surface. Park Lists Please check and confirm all the accessories are available before using. a. Auto Focus eScope x 1 b. CD-Rom Driver x 1 c. User Manual x 1 d. Dial for Calibration x 1 Product Overview a. Snap Shot Button b. Auto Focus Button c. Slight Adjustment Button <Up> d. Slight Adjustment Button <Down> e. Magnification Switch 3 3 Specifications CMOS Sensor 1/3〝 CMOS Image Sensor 2.0M Video Capture Resolution 1600x1200, 1280x960, 800x600, 640x480 Video Capture Format AVI Still Image Capture Resolution 1600x1200, 1280x960, 800x600, 640x480 Still Image Format BMP, JPEG Light Frequency 50Hz / 60Hz Frame Rate 30fps@VGA Magnification Rate 65X, 225X Shutter Speed 1 sec. to 1/1000 sec. White Balance Auto Exposure Auto Auto Focus Function Yes Focus Fine Button Yes <Up/Down> Light Source White LED x 8 PC Port USB 2.0 Operated System Windows XP / Vista / Win7 AP Language English, Simplified Chinese Power Supply 5V DC from USB Port Size 132(L)x32(D)mm Weight 105g Installation Guide Computer System Requirement * Microsoft Windows XP, Vista or Win7 * Pentium 4 processor or higher * 200MB or higher hard disk space * 1GB RAM or more * USB 2.0 Port * CD or DVD Drive eScope Software Installations 1. Insert enclosed CD into CD-ROM drive, the installation program will start automatically. If installation program doesn’t start automatically, please browse your CD -ROM drive and execute the “eScopeSetup.exe “ program 2. Select a path for the software. 4 3. Click ‘Next’ to install. 4. Click “finish” to complete the installation. 5. Now the “eScope ” shortcut Icon will show on the desktop automatically. Auto Focus eScope Hardware Installations After the software installation finish, connect Auto Focus eScope to computer by the USB port. Auto Focus eScope Operations To ensure the correct way in using the Auto Focus eScope, please follow below steps to operate. 1. Execute the eScope Software Double click the shortcut icon eScope on desktop, and then the real-time image will show up on screen. 2. Focus Focus the clear cover of eScope on the object. 3. Choose a magnification rate. Use the adjustable switch on the trail to choose a magnification rate. There are two magnification rates of 65X and 225X. 4. Auto Focus Press the AF button to start auto focus. * Make sure the Auto Focus eScope is fixed on the object after pressing the AF button, or it can’t focus well. * The auto focus accuracy rate can’t reach to 100% for all the Auto Focus products. Some colors or objects may affect the focus. In this case, please use the Slight Adjustment Button to help to adjust. * The higher resolution you choose, the longer time it’ll take to auto focus. We suggest use the resolution of 640 x 480 during auto focus and after the fo…
