YIGUSBTVBOXRF Digital Microscope - USB TV Receive Box

P14

55 44 33 22 11 D D C C B B A A Serial Flash +3.3V +2.5V USB Power Power VideoImage USB TV Box Receiver Part USB MONITOR Video Out TV DSP(SN93330) AC ADAPTOR COMMAND VIDEO PC CLIENT RX RF Module A7121 18MHz RF Module A7121 SN93330 L Antenna +2.5V DATA USB TV Box ReceiverSchematic(page1 in the sch. pdf) A7121 Schematic Y1 Microscope Main Unit Microscope Main Unit notincluding in this application RF Module Schematic(page2 in the sch. pdf) PowerManagement 12MHz Y1 When Use TV Mode DATA USB DATA AMIC_SPI_CLKNR_SCK AMIC_MS1 NR_MISO AMIC_SPI_TXD NR_CSN AMIC_SPI_CS AMIC_BB_CLK NR_CE AMIC_MS0 AMIC_RX_SEL AMIC_CD_TXEN AMIC_TX_SEL AMIC_SPI_RXDNR_MOSI NR_IRQ AMIC_TRXD

Certificate of Compliance for the FCC Declaration of Conformity Procedure from the Conformity Assessment Body Hong Kong Standards and Testing Centre Designation Number: HK0001 on the basis of Asia-Pacific Economic Cooperation (APEC) economies' Mutual Recognition Arrangement for Conformity Assessment of Telecommunications Equipment (APEC Tel MRA) scheme sanctioned by the Federal Communications Commission of the United States Government. Certificate Number: Test Laboratory: FCC001718 The Hong Kong Standards and Testing Centre Ltd. Test Report / Issued date: MH184185 / 25 September 2010 Applicant: Netop Industrial Company Limited. Manufacturer: Netop Industrial Company Limited. Type of Equipment: RF Digital Microscope - USB TV Receive Box Brand Name: OITEZ Model Number: DP-M03 Rules and Regulations United States CFR 47 FCC Part 15 Subpart B (Unintentional Radiators). Standards ANSI C63.4-2003, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40 GHz. Remark This certificate shall be used in conjunction with the above mentioned test report. Signed by Dr. LEE Kam Chuen, ElectroMagnetic Compatibility Department For and on behalf of Date: 2010-10-26 The Hong Kong Standards and Testing Centre Ltd. (Conformity Assessment Body CAB under the APEC Tel MRA) 10 Dai Wang St., Tai Po Industrial Estate, N.T., Hong Kong Tel.: (852)26661888 Fax: (852)26644353 http://www.hkstc.org

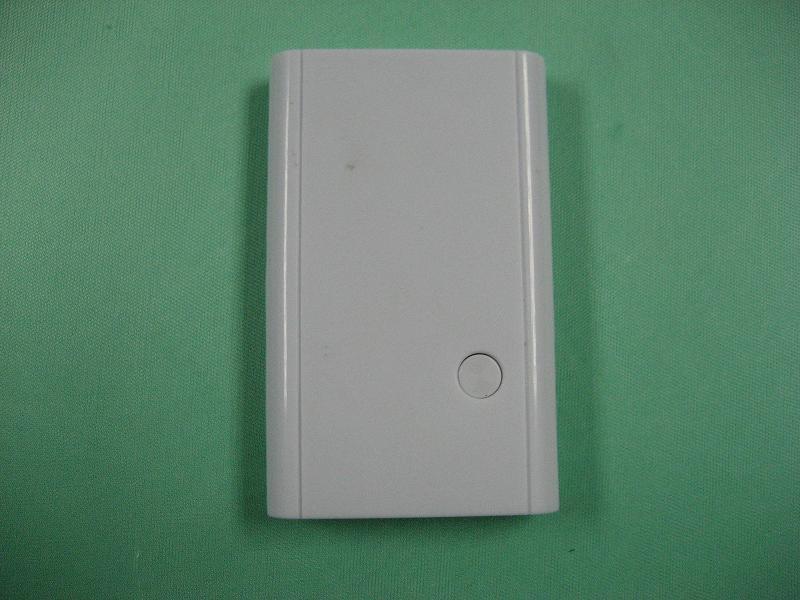

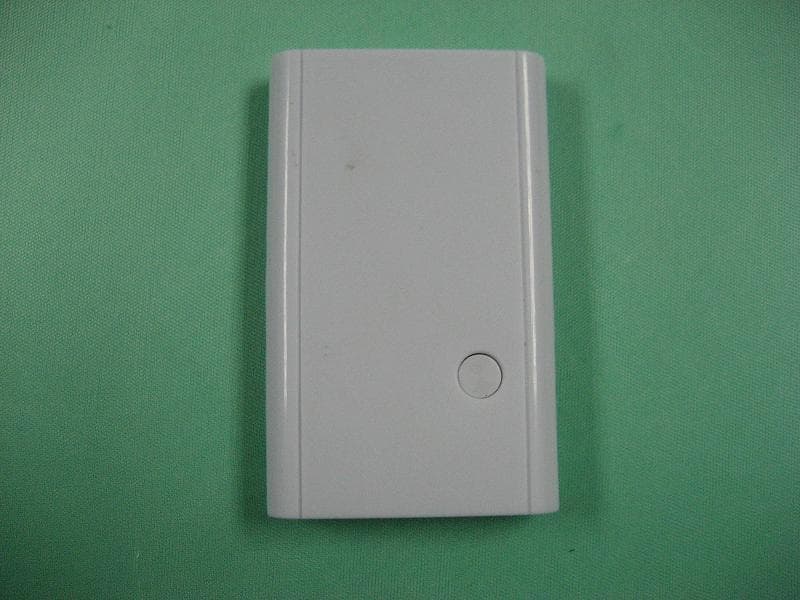

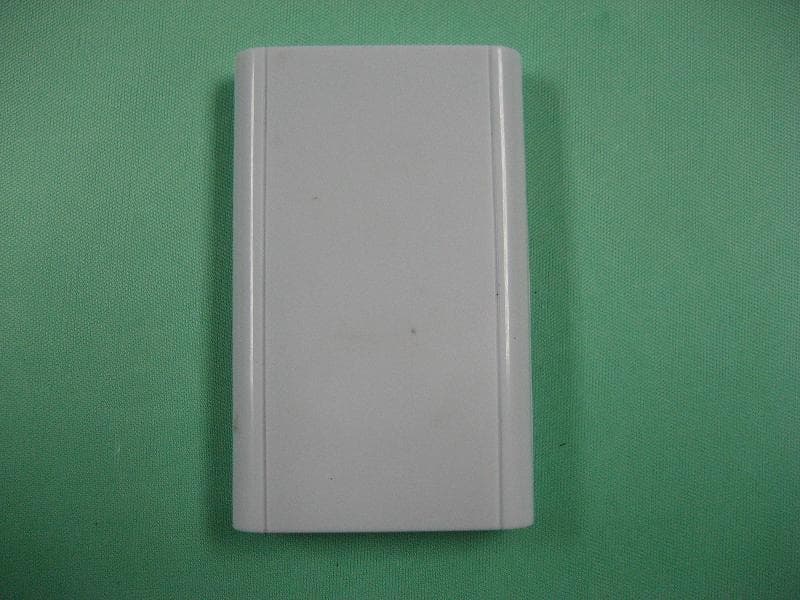

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

FCC ID: YIGUSBTVBOX

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: YIGUSBTVBOX Circuit description 1. USB TV Box Receiver RF module TV-Out DSP RF module – Is a 2.4GHz transceiver (A7121) with power amplifier and LNA is employed. On Rx cycle, data packet received from the camera side, then feed to the DSP for decoding. . On Rx cycle, acknowledge signal with send back to the camera side by 2.4GHz carrier and GFSK modulation. Use L shape on PCB board, no need extra antenna. built-in PCB antenna, F-type, < 0dB, Omni-directional The A7121 use 18MHz Crystal. DSP (SN93330) – is a single chip processor, which video Codec, RF baseband controller and video DAC built-in. Video signal feed from the RF module with be decoded using MJPEG algorithm. At TV out mode, video signal will convert to composite video signal by the video DAC, then output to the TV-out port. At USB mode, video signal will convert to UVC standard data , then feed to the USB interface. The unit will automatically switch to USB mode when a standard USB port is connected. The DSP use 12MHz Crystal. USB port – An USB1.1 interface also built in the DSP. When the USB port connect to a PC, it acted as a UVC compliant device. Video data stream with feed to the PC. Power regulator – The unit is power from the USB port. At TV-out mode operation, a ac adaptor should connected to the USB port to supply a +5V to the unit. At USB (UVC) mode, the USB port should connected to a PC, a +5V will be feed from the PC.

STC Test Report Date : 2010-09-25 Page 1 of 28 No. : MH184185 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (HKS001): Netop Industrial Company Limited Dapu Industrial Zone, Gangzi Village, Changping Town, Dongguan City, Guangdong Province, China Manufacturer: Netop Industrial Company Limited Dapu Industrial Zone, Gangzi Village, Changping Town, Dongguan City, Guangdong Province, China Description of Sample(s): Submitted sample(s) said to be Product: RF Digital Microscope - USB TV Receive Box Brand Name: OITEZ Model Number: DP-M03 FCC ID: YIGUSBTVBOX Date Sample(s) Received: 2010-06-09 Date Tested: 2010-07-02, 2010-08-19 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 and ANSI C63.4:2003 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2010-09-25 Page 2 of 28 No. : MH184185 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 28 Content Page 2-3 of 28 1.0 General Details 1.1 Equipment Under Test [EUT] Page 4 of 28 Description of EUT operation 1.2 Description of EUT Operation 1.3 Date of Order Page 4 of 28 1.4 Submitted Sample Page 4 of 28 1.5 Test Duration Page 4 of 28 1.6 Country of Origin Page 4 of 28 2.0 Technical Details 2.1 Investigations Requested Page 5 of 28 2.2 Test Standards and Results Summary Page 5 of 28 3.0 Test Results 3.1 Emission Page 6-22 of 28 STC Test Report Date : 2010-09-25 Page 3 of 28 No. : MH184185 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 23 of 28 Appendix B Duty Cycle Correction During 100 msec Page 24-25 of 28 Appendix C Photographs Page 26-28 of 28 STC Test Report Date : 2010-09-25 Page 4 of 28 No. : MH184185 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Product: RF Digital Microscope - USB TV Receive Box Manufacturer: Netop Industrial Company Limited. Dapu Industrial Zone, Gangzi Village, Changping Town, Dongguan City, Guangdong Province, China Brand Name: OITEZ Model Number: DP-M03 Input Voltage: 5Vd.c. with Jack The AC/DC adapter was provided by the applicant with following details: Brand name: N/A; Model no.: OH-1048A0500300U1; Input: 100-240Va.c. 50/60Hz 250mA; Output: 5Vd.c. 300mA. 1.2 Description of EUT Operation The Equipment Under Test (EUT) is a Netop Industrial Company Limited, RF Digital Microscope - USB TV Receive Box. The transmission signal is frequency hopping with channel frequency range 2407.5-2475.0MHz during normal use. The EUT was set to fixed frequency test mode by application 1.3 Date of Order 2010-06-09 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2010-07-02, 2010-08-19 1.6 Country of Origin China STC Test Report Date : 2010-09-25 Page 5 of 28 No. : MH184185 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 Regulations and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Field Strength of Fundamental & Harmonics Emissions FCC 47CFR 15.249 ANSI C63.4:2003 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2003 N/A Conducted Emissions FCC 47CFR 15.207 ANSI C63.4:2003 N/A Note: N/A - Not Applicable STC Test Report Date : 2010-09-25 Page 6 of 28 No. : MH184185 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP MEASUREMENT OF CONDUCTED EMISSION TEST SET UP
