YKGHOVBHovercycle Stunt RC Car

Block Diagram ANT 49.860MHz Modulator and amplifier Oscillator 49.860 MHz XT Encoder TXM-TX-2 Control keys Power 3.0VDC AA batteries *2

MINDSCOPE PRODUCTS INC. PO BOX 9525, GLENDALE, CA91226 TEL/FAX: (626) 398 2000 Letter of Agency "I, an officer of MINDSCOPE PRODUCTS INC. do hereby authorize Intertek Testing Services (Mr. Terry Chan / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this ____20___day___March__ of 20_13_ By _____________________________ Signature ________George Balanchi__________ Printed Name ________President ________________ Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base. Nov 2011

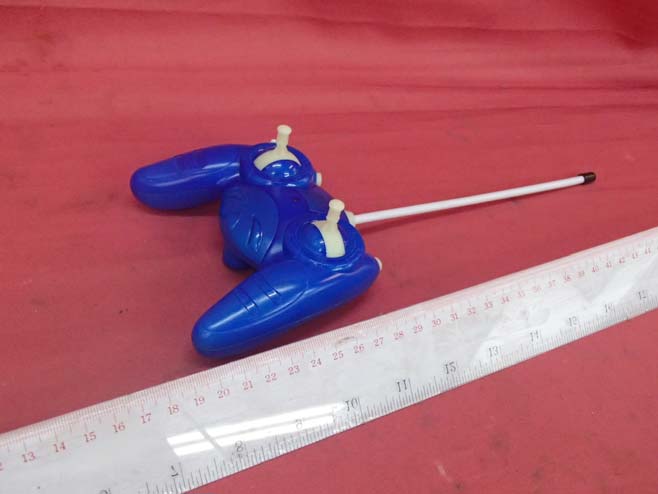

INTERTEK TESTING SERVICE Report No.:: HK13030912-1 FCC ID: YKGHOVB Equipment Photographs Model : HOV (Blue Color Combo) (External)

INTERTEK TESTING SERVICE Report No.: HK13030912-1 FCC ID: YKGHOVB Equipment Photographs Model : HOV (Blue Color Combo) (Internal) INTERTEK TESTING SERVICE Report No.: HK13030912-1 FCC ID: YKGHOVB Equipment Photographs Model : HOV (Blue Color Combo) (Internal) INTERTEK TESTING SERVICE Report No.: HK13030912-1 FCC ID: YKGHOVB Equipment Photographs Model : HOV (Blue Color Combo) (Internal)

Model: HOV(Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.860 MHz, and controls the corresponding receiver to move forward, backward, left, and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: K1,K2,K3,K4, TXM-TX-2 2. A RF Oscillator (49.860MHz) Consisting: XT 3. A Filter Network Consisting: L2,C2,C7,L1 4. A RF Modulator and Amplifier Consisting: Q1, Q2 5. A Power Supply Consisting: 2 x AA size batteries The transmitter uses an external, integral antenna.

Analysis Report Report No.: HK13030912-1 The Equipment Under Test (EUT) is a transmitter of a RC system, which is operating at 49.860MHz as dictated by a crystal. The EUT is powered by 2 x 1.5V AA size batteries. The EUT has a pair of control key and a red LED indicator. After switching ON the corresponding car(i.e. receiver), activating the control key on the EUT can control the car moving forward, backward, left and right. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 69.7dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 72.7dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.006mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.006mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: HK13030912-1 i FCC ID: YKGHOVB Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Mindscope Products Inc. BRAND NAME: N/A, MODEL: HOV (Blue Color Combo), HOV (Graphite Color Combo) FCC ID: YKGHOVB Grantee: Mindscope Products Inc. Grantee Address: PO Box 9525, Glendale, California CA91226, United States Contact Person: George Balanchi Tel: 626.398.2000 Fax: 626.398.2000 e-mail: [email protected] Manufacturer: Lianxing Plastic Toys Factory Manufacturer Address: The North of Chengjiang Road, Chenghai District, Shantou City, Guangdong Province,China Brand Name: N/A Model: HOV (Blue Color Combo) Additional Model: HOV (Graphite Color Combo) Type of EUT: Transmitter Description of EUT: Hovercycle Stunt RC Car Serial Number: N/A FCC ID: YKGHOVB Date of Sample Submitted: March 20, 2013 Date of Test: March 20, 2013 to March 23, 2013 Report No.: HK13030912-1 Report Date: April 17, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: HK13030912-1 ii FCC ID: YKGHOVB Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT Mindscope Products Inc. BRAND NAME: N/A, MODEL: HOV (Blue Color Combo) HOV (Graphite Color Combo) FCC ID: YKGHOVB TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.235 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: HK13030912-1 iii FCC ID: YKGHOVB Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment List and Description ........................................................... 3 3.0 Emission Results........................................................................................... 3 3.1 Field Strength Calculation................................................................................. 3 3.2 Radiated Emission Configuration Photograph................................................... 4 3.3 Radiated Emission Data ................................................................................... 4 4.0 Equipment Photographs ................................................................................ 6 5.0 Product Labelling........................................................................................... 6 6.0 Technical Specifications................................................................................ 6 7.0 Instruction Manual ......................................................................................... 6 8.0 Miscellaneous Infor…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No:HK13030912-1 FCC ID: YKGHOVB Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : HOV (Blue Color Combo) INTERTEK TESTING SERVICE Report No:HK13030912-1 FCC ID: YKGHOVB Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : HOV (Blue Color Combo)
