YKGTTT147Twister/Neo Tracks Train Series

Mindscope Products Inc PO Box 9525 Glendale, CA 91226 TEL (626)398-2000 Made in Shantou, Guangdong, China Date of Manufacture: 06/06/2012 Batch #: 060612 Item #: TTT147 CAUTION: • Remove old batteries and replace with new batteries. Be sure to insert batteries correctly according to (+) and (-) symbols located in the battery compartment. • Be sure to insert batteries correctly with adult supervision and always follow the toy and battery manufacturer's instructions. • Do not mix old and new batteries. • Do not mix alkaline, standard (carbo-zine), or rechargeable (nickel-cadmium) batteries. • Rechargeable batteries are to be removed from the toy before being charged. • Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are only to be charged under adult supervision. • Only batteries of the same equivalent type as recommended are to be used. • The supply terminals are not to be short-circuited. • Always remove weak or dead batteries from the product. • Remove batteries if the product will be stored for an extended period of time. Please retain these instructions for future reference. Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOT Remote Control requires 3 AAA batteries (not included) TOTAL OF 3AAA + 2AA BATTERIES REQUIRED (NOT INCLUDED) 2 AA batteries (not included) insert in compartment. OFF POSSITION: OFF MIDDLE POSITION: RC ON (TURNS ON THE RC FUNCTION) AUTO POSITION: RC OFF, TRAIN RUNS CONTINUOUSLY OFF POSSITION: OFF MIDDLE POSITION: RC ON (TURNS ON THE RC FUNCTION) AUTO POSITION: RC OFF, TRAIN RUNS CONTINUOUSLY TIGHTEN SCREW TO SECURE BATTERY COVER TIGHTEN SCREW TO SECURE BATTERY COVER AUTOOFF USE 3 AAA SIZE BATTERIES (NOT INCLUDED AAA AAA AAA AAAAAAAAA forward reverse 27MHZ 603625760221

Block Diagram Filter RF power amplifier and Modulator Oscillator 27.145MHz Encoder Control key 27.145MHz U 2 (TX2)

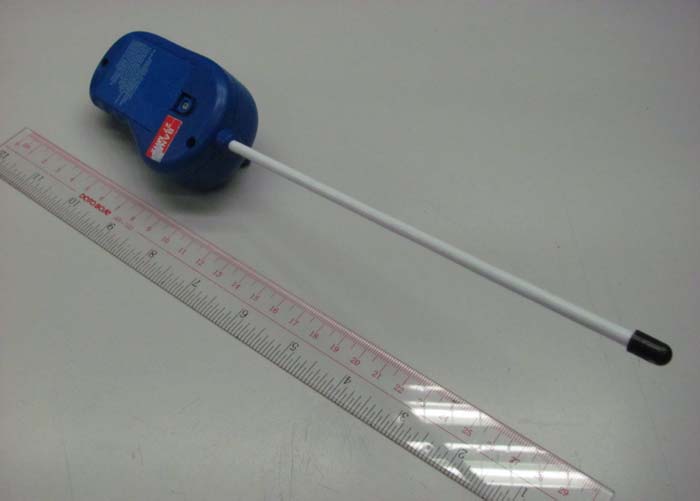

INTERTEK TESTING SERVICE Report No.: HK12051013-1 FCC ID: YKGTTT147 Equipment Photographs Model : TTT147 (External)

INTERTEK TESTING SERVICE Report No.: HK12051013-1 FCC ID: YKGTTT147 Equipment Photographs Model: TTT147 (Internal) INTERTEK TESTING SERVICE Report No.: HK12051013-1 FCC ID: YKGTTT147 Equipment Photographs Model: TTT147 (Internal) INTERTEK TESTING SERVICE Report No.: HK12051013-1 FCC ID: YKGTTT147 Equipment Photographs Model: TTT147 (Internal)

FCC ID: LU9513049 Model: TTT147 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls a receiver to move forward and backward. The circuit of the transmitter comprises of, 1. An Encoding circuit consisting: U2 2. A RF Oscillator (27.145MHz) consisting: XT 3. A Filter Network consisting: C7, C2, L2 4. A RF Modulator and Amplifier consisting: Q1, Q2 5. A Power Supply consisting: 3 X 1.5V "AAA" batteries The transmitter uses an external, integral and non-detachable antenna.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 8-May-2012 Sheet of File: C:\PROGRAM FILES\DESIGN EXPLORER 99 SE\EXAMPLES\GD-12201A.DDB Drawn By: 8 8 9 9 10 10 11 11 12 12 13 13 14 14 7 7 6 6 5 5 4 4 3 3 2 2 1 1 TX-2 VCC Q1 9018 Q2 945 L2 8.2UH L1 5.6UH L3 2.2UH XT 27.145MHZ R2 10K C1100P C4 56P C356P R4 10 0 R R3 150K C2 100P C5 104P R1 200K TX-2B C6 104P C7 39P 4.5V GD-12201A-FCC 原理图

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12051013-1 Mindscope Products Inc. Application For Certification (Original Grant) (FCC ID: YKGTTT147) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Chan Chi Hung, Terry Assistant Supervisor Date: May 29, 2012 INTERTEK TESTING SERVICES Report No.: HK12051013-1 FCC ID: YKGTTT147 i GENERAL INFORMATION Mindscope Products Inc. BRAND NAME: N/A, MODEL: TTT147 FCC ID: YKGTTT147 Grantee: Mindscope Products Inc. Grantee Address: PO Box 9525, Glendale, CA 91226, U.S.A. Contact Person: George Balanchi Tel: 626.398.2000 Fax: 626.398.2000 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: TTT147 Additional Model: TTT77 Type of EUT: Transmitter Description of EUT: Twister/Neo Tracks Train Series Serial Number: N/A FCC ID : YKGTTT147 Date of Sample Submitted: May 16, 2012 Date of Test: May 24, 2012 Report No.: HK12051013-1 Report Date: May 29, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12051013-1 FCC ID: YKGTTT147 ii SUMMARY OF TEST RESULT Mindscope Products Inc. BRAND NAME: N/A, MODEL: TTT147 FCC ID: YKGTTT147 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12051013-1 FCC ID: YKGTTT147 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 2 2.6 Support Equipment List and Description ................................................................ 3 3.0 Emission Results .............................................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK12051013-1 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass/Fail)

INTERTEK TESTING SERVICE Report No: HK12051013-1 FCC ID: YKGTTT147 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: TTT147 HK12051013-1 INTERTEK TESTING SERVICE Report No: HK12051013-1 FCC ID: YKGTTT147 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: TTT147 HK12051013-1
