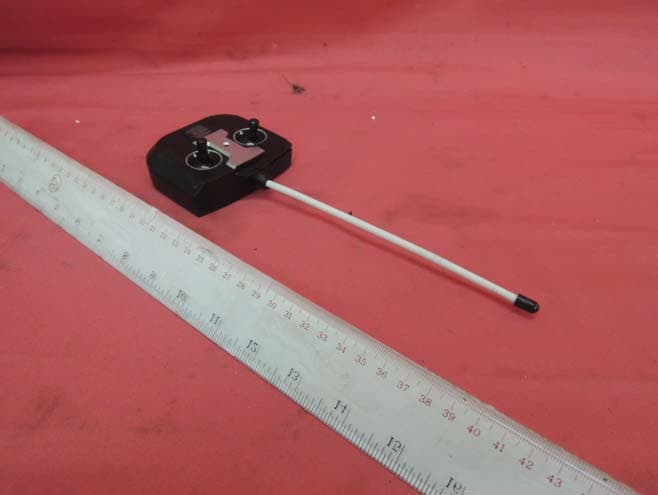

INTERTEK TESTING SERVICE Report No.: 13061152HKG-001 FCC ID: YKGMOONB Equipment Photographs Model: MOON (External)

1.6 cm 1.5 cm

INTERTEK TESTING SERVICE Report No.: 13061152HKG-001 FCC ID: YKGMOONB Equipment Photographs Model: MOON (Internal) INTERTEK TESTING SERVICE Report No.: 13061152HKG-001 FCC ID: YKGMOONB Equipment Photographs Model: MOON (Internal) INTERTEK TESTING SERVICE Report No.: 13061152HKG-001 FCC ID: YKGMOONB Equipment Photographs Model: MOON (Internal)

FCC ID: YKGMOONB Model: MOON (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.860 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: K1, K2, K3 , K4, TXM-TX-2 2. A RF Oscillator (49.860MHz) Consisting: XT 3. A Filter Network Consisting: L2, C2, C7 4. A RF M o dulator and Amplifier Consisting: Q1, Q2 5 . A Power Supply Consisting: 3.0VDC (2 X 1.5V "AA" battery) Antenna Gain: 0dBi No minal rated field strength: 69.1dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and integral antenna.

Analysis Report Report No.: 13061152HKG-001 The Equipment Under Test (EUT) is a transmitter of a RC Car operating at 49.860 MHz as dictated by a crystal. The EUT is powered by a 3.0 V DC source (2 x 1.5V "AA" batteries). The EUT has a forward or backward control lever and a left or right control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward, left or right. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 69.1dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 72.1dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.0049mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.0049mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:8-May-2013 Sheet of File:E:\临 时 保 存 图\摩 托 车 27M发射 原 理 图.DDB Drawn By: 8 8 9 9 10 10 11 11 12 12 13 13 14 14 7 7 6 6 5 5 4 4 3 3 2 2 1 1 VCC Q1 J3Y Q2 945 L2 2 .7UH L1 2.2UH L3 1.5UH XT 49.860MHZ R2 10K C1 56P C4 20P C3 10P R4 47R R3 33K C2 56P . C5 104P R1 180K TXM-TX-2 C6 104P C7 68P 3V 摩托 车发射FCC原理图 K1 K2 K3 K4 . . LED R5 1K

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13061152HKG-001 i FCC ID: YKGMOONB Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Mindscope Products Inc BRAND NAME: MOON THUMPER, MODEL: MOON FCC ID: YKGMOONB Grantee: Mindscope Products Inc Grantee Address: PO Box 9525, Glendale, CA 91226 Contact Person: George Balanchi Tel: 626.398.2000 Fax: 626.398.2000 e-mail: [email protected] Supplier: Mindscope Products Inc Buyer: QVC Inc Manufacturer: Lianxing Plastic Toys Factory Manufacturer Address: The North of Chengjian Road, Chenghai District, Shantou City, Guangdong Province, China. Brand Name: MOON THUMPER Model: MOON Type of EUT: Transmitter Description of EUT: Blue Color Moon Thumper RC Car Serial Number: N/A FCC ID: YKGMOONB Date of Sample Submitted: June 24, 2013 Date of Test: July 03, 2013 Report No.: 13061152HKG-001 Report Date: July 23, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13061152HKG-001 ii FCC ID: YKGMOONB Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT Mindscope Products Inc BRAND NAME: MOON THUMPER, MODEL: MOON FCC ID: YKGMOONB TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.235 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13061152HKG-001 iii FCC ID: YKGMOONB Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 4 1.1 Product Description ........................................................................................... 4 1.2 Related Submittal(s) Grants ............................................................................... 4 1.3 Test Methodology .............................................................................................. 4 1.4 Test Facility ....................................................................................................... 4 2.0 System Test Configuration ................................................................................. 5 2.1 Justification........................................................................................................ 5 2.2 EUT Exercising Software ................................................................................... 5 2.3 Special Accessories........................................................................................... 5 2.4 Equipment Modification...................................................................................... 5 2.5 Measurement Uncertainty .................................................................................. 5 2.6 Support Equipment List and Description............................................................. 5 3.0 Emission Results ................................................................................................ 6 3.1 Field Strength Calculation .................................................................................. 6 3.2 Radiated Emission Configuration Photograph .................................................... 7 3.3 Radiated Emission Data .................................................................................... 7 4.0 Equipment Photographs ..................................................................................... 9 5.0 Product Labelling................................................................................................ 9 6.0 Technical Specifications ..................................................................................... 9 7.0 Instruction Manual .............................................................................................. 9 8.0 Miscellaneous Information .......................................…
