YNE-CP300334908.42/908.40MHz Z-Wave Wireless DC Controller

1 Instruction Manual for Kichler Design Pro LED Controller 15DC100, 15DC200 and 15DC300 2 Table of Contents Kichler Design Pro LED Controller page Controller power supply component diagram 3 Control Pad layout and functions 4 Locating the power supply 5 Mounting the power supply 5 Connection of fixtures 6 Manually operating the power supply 7 Quick Start Set-up 7 Reviewing and Customizing Schedules 8 System settings 9 Z-Wave Network settings 10 Adding Kichler Z-Wave accessories to the Network 11 Important Notes and Troubleshooting 13 Specifications 14 Compliance 15 Warranty 15 Menu Tree 16 3 1. Control pad 6. LCD display 2. PSU modules 7. Power cord 3. Mounting bosses 8. Wire routing adaptor 4. Terminal block 9. Housing cover latches 5. Security lock tab 10. Reset button 11. Zone ports 12. Conduit knock-out 13. Wire adaptor catch 14. Cover 15. Tapered keyhole mounting slot 1 6 1 5 4 5 7 1 2 8 9 1 0 1 3 1 4 1 1 3 2 4 LCD Display Reset button "Enter" button Navigation buttons Left arrow also functions as "Go Back" to previous menu "Home" menu button LCD Display – Graphical interface for user input and feedback Reset button – Resets all hardware and software to factory settings "Enter" button – User button for sending input to the CPU Navigation buttons – User buttons for navigation of menu(s) "Home" button – User button for return to beginning of main menu from any point 5 Installing the Kichler Design Pro LED Controller Read these instructions carefully before installing this unit. • This power supply is for use with landscape lighting systems only. • Do not submerge power supply. • This device is accepted as a component of a landscape lighting system where the suitability of the combination shall be determined by National Electric Code or local authorities having jurisdiction. • WARNING: • RISK OF ELECTRIC SHOCK: use only with low voltage landscape fixtures and accessories. DO NOT use with swimming pool or spa lighting fixtures. • Do not connect two or more power supplies in parallel. • Suitable for indoor or outdoor use. • For use in dwellings only with provided conduit connection for secondary wiring. • National Electrical Code requires that wiring where concealed or extended through a building wall must be enclosed in conduit. • Power supply should be mounted close to power source. Extension cords should not be used with this unit. WARNING: • RISK OF ELECTRIC SHOCK. Install power unit 5 feet (1.5m) or more from the pool, spa, or fountain where the power unit is installed (a) indoor within 10 feet (3.0m) of a pool, spa, or fountain, or (b) outdoor, connect power to unit to a receptacle protected by a GFCI. • This outdoor power unit shall be connected to a 115/120 volt covered GFCI receptacle marked “Wet Location” while in use. • Mount the rain-tight power supply at least one foot above ground level with the wire terminals facing down. NOTE: Do not energize power supply until installation of system is complete. • Direct burial rated wire is to be buried a minimum of 6” (152mm) beneath the surface of the ground. NOTE: If additional Direct Burial wire is needed, contact your local Kichler® landscape distributor. • 12 GA wire can be purchased in lengths of 100’ (30 M), 15501BK; 250’ (76 M), 15502BK; 500’ (152M), 15505BK; and 1000’ (304 M), 15506BK. 14 GA wire can be purchased in lengths of 250’ (76 M), 16088BK; 16 GA wire can be purchased in lengths of 250’ (76 M), 16089BK Installation guidelines for locating the Kichler Design Pro LED Controller 1) Determine desired location for mounting the power supply. NOTE: When deciding location for mounting consideration should be taken for the requirements listed above. 2) The mounting location should be in a well ventilated area that is away from sprinklers and irrigation spray. 3) The mounting location should be such that it promotes efficient routing to the various zones of a property, but minimizes excessive wire runs. 4) The power supply has a 66” [1.7 m] #18 ga. supply cord. It should be mounted near a 115/120 volt covered GFCI receptacle marked for wet location while in use. Do not use an extension cord with this lighting system product. If a 115/120V branch circuit power source is not available, it must be installed by a qualified electrician according to the NEC and local electric codes. Mounting the Kichler Design Pro LED Controller 1) The power supply must be installed a minimum of 12" [30 cm] above the surface of the ground when measured to the point where the secondary wire exits the unit. 2) On the mounting surface, mark the desired position of top keyhole mounting slot (approx 1/2" [1.5 cm] below the desired location of the top edge of the power supply.) 3) If mounting to a solid surface such as wood, siding, etc; A) Drill 1/8” diameter pilot holes at position marked in Step 2. B) Drive mounting screw into hole until approximately 3/8" [1 cm] of thread remains. If mounting to drywall or masonry: A) Drill 1/4” diameter holes at positions marked in Step 2. B) Push plastic anchors into holes and tap until flush. C) Drive mounting screw into plastic anchors until approximately 3/8" [1 cm] of thread remains. 4) Slip tapered keyhole mounting slot over head of top screw and allow power supply to slide down and snug against the surface. Adjust screw as necessary to ensure screw head is properly seated. 5) With power supply in place, mark locations for lower mounting screws. If mounting to a post or narrow surface, use bottom center mounting hole; for a sturdier install when mounting on a structure or wider surface, use two outer mounting holes and leave center hole open. 6) Drill pilot holes or install bottom anchors as in step 3. 7) Replace power supply on top mounting screw and install bottom screws securely. 8) Plug power supply cord into standard 115/120 volt receptacle. NOTE: The power supply cord must be plugged into a weather tight receptacle equipped with a Ground Fault Circuit Interrupter (GFCI). 9) Remove protective cover from LCD …

Text truncated - open the document above for the full version.

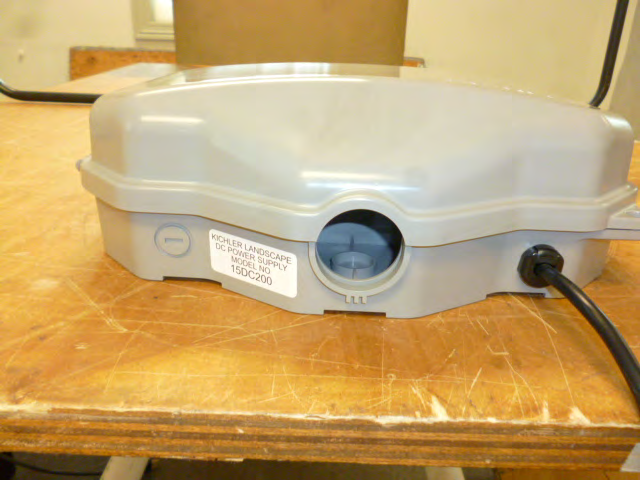

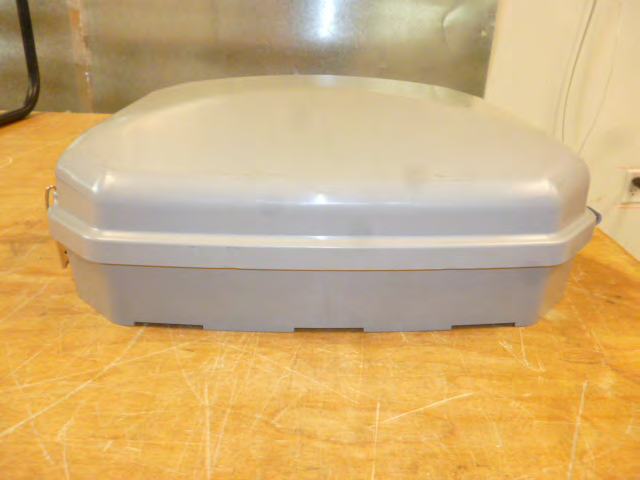

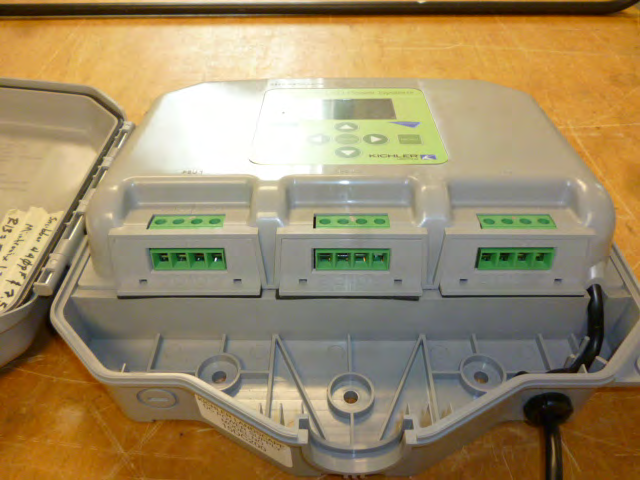

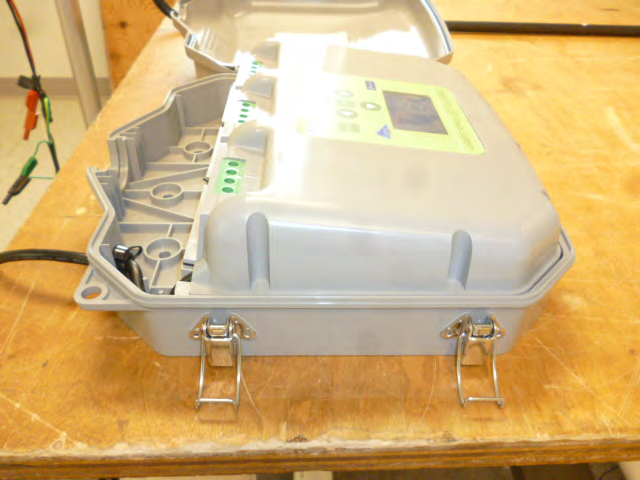

F2LQ5984A Page 1 of 8 Aug. 7, 2014 PHOTOGRAPHS: EXTERNAL The L.D. Kichler Company Model: CP300334 100W 200W Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 2 of 2 Aug. 7, 2014 300W Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 3 of 2 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 4 of 2 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 5 of 2 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 6 of 2 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 7 of 2 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 8 of 2 Aug. 7, 2014

MODEL 15DC100 (CP300336) BACK OF UNIT MODEL 15DC100 (CP300336) INSIDE COVER OF UNIT MODELS 15DC200 AND 15DC300 (CP300335 AND CP300334) BACK OF UNIT MODELS 15DC200 AND 15DC300 (CP300335 AND CP300334) INSIDE COVER OF UNIT

2.2557 1.0025 4X R.1253.175 MANUFACTURERS MODEL NO THIS LOCATION USING ARIAL FONT .203 TALL BLACK CHARACTERS ARIAL FONT .125 TALL BLACK CHARACTERS NOTES: 1. BACKGROUND COLOR: WHITE 2. TEXT COLOR: BLACK 3. SUITIBLE FOR OUTDOOR LOCATION USE 4. SUITABLE FOR SUBSTRATE: POLYMERIC MATERIAL (PVC) 5. SUITABLE FOR 150°C SURFACE TEMPERATURE 6. MATERIAL: AVERY PRINTLOK LP WITH N28 OR WIN LABEL #WIN-C1-200-W OR ENGINEERING APPROVED EQUIVALENT 7. THIS COMPONENT TO BE RoHS COMPLIANT -.02 PRELIM. REV DESCRIPTIONDATE CHANGED BY -.01RELEASED FOR QUOTE09/28/2012DJS -.02 DEFINED MODEL NUMBER 15DC100. 12/03/2012DJS - ± 1/32± 1/2° DNS CP NO.REV .X NONE .XXX .XX DATE 09/28/2012 ±.031 ±.015 ±.005 ±.010 APPROVED BYCHECKED BY JJADJS DRAWN BY PART NO. XXX -.02 REV NOTICE: ANY DESIGN OR OTHER INFORMATION HEREON DEVELOPED BY THIS COMPANY IS CONFIDENTIAL MATERIAL AND EXCLUSIVE PROPERTY OF THE L.D. KICHLER CO. DISCLOSURE OR REPRODUCTION REQUIRES THE WRITTEN CONSENT OF THE L.D. KICHLER CO. "mm" DIMENSION INDICATED IN [ ] DIMENSION IN [ ] OR ( ) IS FOR REF. ONLY TOLERANCES (EXCEPT AS NOTED) DECIMAL ANGULAR SCALEFRACTIONAL TITLE - A KICHLER R 7711 E. PLEASANT VALLEY ROAD CLEVELAND, OHIO 44131-5552 TM ENG DENOTES A INSPECTION ITEM xx LABEL, MODEL NO, 100W LB120772

2.2557 1.0025 4X R.1253.175 MANUFACTURERS MODEL NO THIS LOCATION USING ARIAL FONT .203 TALL BLACK CHARACTERS ARIAL FONT .125 TALL BLACK CHARACTERS NOTES: 1. BACKGROUND COLOR: WHITE 2. TEXT COLOR: BLACK 3. SUITIBLE FOR OUTDOOR LOCATION USE 4. SUITABLE FOR SUBSTRATE: POLYMERIC MATERIAL (PVC) 5. SUITABLE FOR 150°C SURFACE TEMPERATURE 6. MATERIAL: AVERY PRINTLOK LP WITH N28 OR WIN LABEL #WIN-C1-200-W OR ENGINEERING APPROVED EQUIVALENT 7. THIS COMPONENT TO BE RoHS COMPLIANT -.02 PRELIM. REV DESCRIPTIONDATE CHANGED BY -.01RELEASED FOR QUOTE09/28/2012DJS -.02 DEFINED MODEL NUMBER 15DC200. 12/03/2012DJS - ± 1/32± 1/2° DNS CP NO.REV .X NONE .XXX .XX DATE 09/28/2012 ±.031 ±.015 ±.005 ±.010 APPROVED BYCHECKED BY JJADJS DRAWN BY PART NO. XXX -.02 REV NOTICE: ANY DESIGN OR OTHER INFORMATION HEREON DEVELOPED BY THIS COMPANY IS CONFIDENTIAL MATERIAL AND EXCLUSIVE PROPERTY OF THE L.D. KICHLER CO. DISCLOSURE OR REPRODUCTION REQUIRES THE WRITTEN CONSENT OF THE L.D. KICHLER CO. "mm" DIMENSION INDICATED IN [ ] DIMENSION IN [ ] OR ( ) IS FOR REF. ONLY TOLERANCES (EXCEPT AS NOTED) DECIMAL ANGULAR SCALEFRACTIONAL TITLE - A KICHLER R 7711 E. PLEASANT VALLEY ROAD CLEVELAND, OHIO 44131-5552 TM ENG DENOTES A INSPECTION ITEM xx LABEL, MODEL NO, 200W LB120773

2.2557 1.0025 4X R.1253.175 MANUFACTURERS MODEL NO THIS LOCATION USING ARIAL FONT .203 TALL BLACK CHARACTERS ARIAL FONT .125 TALL BLACK CHARACTERS NOTES: 1. BACKGROUND COLOR: WHITE 2. TEXT COLOR: BLACK 3. SUITIBLE FOR OUTDOOR LOCATION USE 4. SUITABLE FOR SUBSTRATE: POLYMERIC MATERIAL (PVC) 5. SUITABLE FOR 150°C SURFACE TEMPERATURE 6. MATERIAL: AVERY PRINTLOK LP WITH N28 OR WIN LABEL #WIN-C1-200-W OR ENGINEERING APPROVED EQUIVALENT 7. THIS COMPONENT TO BE RoHS COMPLIANT -.02 PRELIM. REV DESCRIPTIONDATE CHANGED BY -.01RELEASED FOR QUOTE09/28/2012DJS -.02 DEFINED MODEL NUMBER 15DC300. 12/03/2012DJS -.03RELEASED FOR TOOLING04/03/2013DJS - ± 1/32± 1/2° DNS CP NO.REV .X NONE .XXX .XX DATE 09/28/2012 ±.031 ±.015 ±.005 ±.010 APPROVED BYCHECKED BY JJADJS DRAWN BY PART NO. XXX -.03 REV NOTICE: ANY DESIGN OR OTHER INFORMATION HEREON DEVELOPED BY THIS COMPANY IS CONFIDENTIAL MATERIAL AND EXCLUSIVE PROPERTY OF THE L.D. KICHLER CO. DISCLOSURE OR REPRODUCTION REQUIRES THE WRITTEN CONSENT OF THE L.D. KICHLER CO. "mm" DIMENSION INDICATED IN [ ] DIMENSION IN [ ] OR ( ) IS FOR REF. ONLY TOLERANCES (EXCEPT AS NOTED) DECIMAL ANGULAR SCALEFRACTIONAL TITLE - A KICHLER R 7711 E. PLEASANT VALLEY ROAD CLEVELAND, OHIO 44131-5552 TM ENG DENOTES A INSPECTION ITEM xx LABEL, MODEL NO, 300W LB120774

5.25 133 2.0051 R.25 XXXXXXX FCC ID: YNE-CP300334 IC: 9434A-CP300334 CONFORMS TO ANSI/UL STD. 1838 CERTIFIED TO CSA STDS C22.2 NO.250.0 & NO. 250.7 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. SUITABLE FOR INDOOR OR OUTDOOR USE ETL CONTROL NUMBER OBTAIN FROM ETL AGENCY AUTHORIZED TO MARK DOCUMENT .12 ARIAL BOLD .08 ARIAL BOLD .25 ARIAL BOLD .08 ARIAL BOLD LB125666 xx DENOTES A INSPECTION ITEM ENG NOTES: 1. MATERIAL: AVERY PRINTLOK LP 3N28 OR: WIN LABEL 3WIN-C1-200-W OR: KING INDUSTRIAL #100S (CTP100S) OR: ACME DECAL #SP-23G 2. BACKGROUND COLOR: WHITE 3. TEXT COLOR: BLACK 4. LABEL STOCK MUST BE "UL - TYPE P" IN ACCORDANCE WITH CSA 22.2 OR UL 969. 5. THIS COMPONENT IS TO BE RoHS COMPLIANT. D C B A REVREVISION RECORDDATEREV BYCHK BYECO REVDESCRIPTIONDATE BY -.01RELEASED FOR QUOTE12/19/14TJT ± 1/32± 1/2°FULL CP NO.REV .X NONE .XXX .XX DATE 12/19/14 ±.031 ±.015 ±.005 ±.010 APPROVED BYCHECKED BY JJA TJT DRAWN BY PART NO. JJA LB125666 -.01 REV NOTICE: ANY DESIGN OR OTHER INFORMATION HEREON DEVELOPED BY THIS COMPANY IS CONFIDENTIAL MATERIAL AND EXCLUSIVE PROPERTY OF THE L.D. KICHLER CO. DISCLOSURE OR REPRODUCTION REQUIRES THE WRITTEN CONSENT OF THE L.D. KICHLER CO. "mm" DIMENSION INDICATED IN [ ] DIMENSION IN [ ] OR ( ) IS FOR REF. ONLY TOLERANCES (EXCEPT AS NOTED) DECIMAL ANGULAR SCALEFRACTIONAL TITLE - A DC POWER SUPPLY LABEL 7711 E. PLEASANT VALLEY ROAD CLEVELAND, OHIO 44131-5552 KICHLER

F2LQ5984A Page 1 of 54 Aug. 7, 2014 PHOTOGRAPHS: INTERNAL The L.D. Kichler Company, Model CP300334 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 2 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 3 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 4 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 5 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 6 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 7 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 8 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 9 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 10 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 11 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 12 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 13 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 14 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 15 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 16 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 17 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 18 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 19 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 20 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 21 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 22 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 23 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 24 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 25 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 26 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 27 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 28 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 29 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 30 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 31 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 32 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 33 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 34 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 35 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 36 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 37 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 38 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 39 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 40 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 41 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 42 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 43 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 44 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 45 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 46 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 47 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 48 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 49 of 54 Aug. 7, 2014 Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 50 of 54 Aug. 7, 2014

EXAMPLE OPERATIONAL DESCRIPTION – not for duplication 1. Overview This equipment operates as a low voltage power supply intended to supply power to landscape lighting fixtures. The power supply has an on-board control board which allows for individual control of the output taps, output current monitoring of each tap, build-in timer functions to automatically schedule the taps, output diagnostics and fault protection, and Z-Wave wireless control & monitoring. The equipment is a transceiver operating at 908.42/908.40MHz. The wireless control enables synchronization of time/date/location, ON/OFF control of output taps, diagnostics & monitoring of the power supply between other wireless devices which follow the Z-Wave protocol. The equipment is powered via 120Vac line voltage, and the user is able to manually setup and control the unit via a keypad and an LCD screen which has a graphic user interface (GUI). 2. Operational Details The control board of the power supply has an integrated Z-Wave radio frequency (RF) wireless module which enables wireless control and monitoring of the power supply unit. The antenna for the wireless module is an integral monopole PCB antenna. The control board is power via 120Vac line voltage. The wireless module is a transceiver and is able to send basic Z-Wave commands when prompted. 2.1 Regulation reference FCC CFR47 part 15 2.2 Nominal transmit frequency 908.42/908.40MHz Maximum Continuous Duty Cycle of 100% Rated output power of -22dBm to -2.0dBm 2.3 Modulation scheme and power averaging factor Modulation scheme: FSK Data Rate(s): 9.6kbps/40kbps Number of Channels: 1 Occupied Bandwidth: Single Carrier Maximum Duty 100% 2.4 Maximum RF output power: -22dBm to -2.0dBm

021414 Report Number: F2LQ5984A-01E Page 1 of 33 Issue Date: July 21, 2014 F2 Labs 16740 Peters Road Middlefield, Ohio 44062 United States of America www.f2labs.com CERTIFICATION TEST REPORT Manufacturer: Cal-Comp Indiana 1 Technology Way Logansport, Indiana 46947 United States of America Applicant: The L.D. Kichler Co. 7711 East Pleasant Valley Road Cleveland, Ohio 44131 Product: Design Pro LED Controller Models: 15DC100, 15DC200, 15DC300* *Denotes actual model tested as worst case of product family. FCC ID: YNE-CP300334 Testing Commenced: Mar. 20, 2014 Testing Ended: July 8, 2014 Summary of Test Results: Page 5 Standards:  FCC Part 15 Subpart C, Section 15.249  FCC Part 15 Subpart C, Section 15.215(c) – Additional provisions to the general radiated emission limitations  FCC15.207 - Conducted Limits  FCC Part 15 Subpart A, Section 15.31(e) – Measurement Standards Order Number: F2LQ5984 Client: The L.D. Kichler Company Model: 15DC300 021414 Report Number: F2LQ5984A-01E Page 2 of 33 Issue Date: July 21, 2014 Evaluation Conducted by: Michael Toth, Senior EMC Eng. Ken Littell, EMC Tech. Mgr. Report Reviewed by: Wendy Fuster, President F2 Labs F2 Labs 26501 Ridge Road 16740 Peters Road Damascus, MD 20872 Middlefield, OH 44062 Ph 301.253.4500 Ph 440.632.5541 Fax 301.253.5179 Fax 440.632.5542 This test report may be reproduced in full; partial reproduction only may be made with the written consent of F2 Labs. The results in this report apply only to the equipment tested. Order Number: F2LQ5984 Client: The L.D. Kichler Company Model: 15DC300 021414 Report Number: F2LQ5984A-01E Page 3 of 33 Issue Date: July 21, 2014 TABLE OF CONTENTS Section Title Page 1 ADMINISTRATIVE INFORMATION 4 2 SUMMARY OF TEST RESULTS/MODIFICATIONS 5 3 TABLE OF MEASURED RESULTS 6 4 ENGINEERING STATEMENT 7 5 LIST OF MEASUREMENT INSTRUMENTATION 8 6 EUT INFORMATION AND DATA 9 7 FCC Part 15.215(c) – 20dB OCCUPIED BANDWIDTH 10 8 FCC Part 15.249(a)(d) – FIELD STRENGTH OF EMISSIONS 13 9 FCC PART 15.207 – CONDUCTED EMISSIONS 27 10 PHOTOS/EXHIBITS – PRODUCT PHOTOS, TEST SETUPS 33 Order Number: F2LQ5984 Client: The L.D. Kichler Company Model: 15DC300 021414 Report Number: F2LQ5984A-01E Page 4 of 33 Issue Date: July 21, 2014 1 ADMINISTRATIVE INFORMATION 1.1 Measurement Location: F2 Labs in Middlefield, Ohio. Site description and attenuation data are on file with the FCC's Sampling and Measurement Branch at the FCC Laboratory in Columbia, MD. 1.2 Measurement Procedure: All measurements were performed according to the 2009 version of ANSI C63.4 and recommended FCC procedure of measurement of DTS operating under Section 15.249. A list of the measurement equipment can be found in Section 6. 1.3 Uncertainty Budget: Radiated Emission • Combined Uncertainty (+ or -) 2.67 dB • Expanded Uncertainty (+ or -) 5.35 dB Conducted Emissions • Combined Uncertainty (+ or -) 1.88 dB • Expanded Uncertainty (+ or -) 3.75 dB This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. 1.4 Document History: Document Number Description Issue Date Approved By F2LQ5984A-01E First Issue July 21, 2014 W. Fuster Order Number: F2LQ5984 Client: The L.D. Kichler Company Model: 15DC300 021414 Report Number: F2LQ5984A-01E Page 5 of 33 Issue Date: July 21, 2014 2 SUMMARY OF TEST RESULTS Test Name Standard(s) Results -20dB Occupied Bandwidth CFR 47 Part 15.215(c) Complies Field Strength of Emissions CFR 47 Part 15.249(a)(d) Complies Conducted Emissions CFR 47 Part 15.207(a) Complies Voltage Variation CFR 47 Part 15.31(3)(e) Complies Note: Voltage Variation testing in 15.31(3)(e) was performed at the nominal voltage, and then the 85% and 115% of that voltage was tested also. The output power at the frequency was measured to verify how much the power and frequency was affected by the variation of the input power. No shift in frequency or power was measured at either of the varied voltages on any of the channels. Modifications Made to the Equipment None Order Number: F2LQ5984 Client: The L.D. Kichler Company Model: 15DC300 021414 Report Number: F2LQ5984A-01E Page 6 of 33 Issue Date: July 21, 2014 3 TABLE OF MEASURED RESULTS Test Unloaded 908.4MHz Loaded 908.4MHz Field Strength of Fundamental 80.5dBμV/m 75.5dBμV/m Limit for Fundamental 50 millivolts/meter (93.98 dBμV/m) 50 millivolts/meter (93.98 dBμV/m) -20dB Occupied Bandwidth 58.2979kHz 59.6145kHz The 20 dB bandwidth of the emission shall be contained within the frequency band designated in the rule section under which the equipment is operated. Order Number: F2LQ5984 Client: The L.D. Kichler Company Model: 15DC300 021414 Report Number: F2LQ5984A-01E Page 7 of 33 Issue Date: July 21, 2014 4 ENGINEERING STATEMENT This report has been prepared on behalf of The L.D. Kichler Company to provide documentation for the testing described herein. This equipment has been tested and found to comply with part 15.249 of the FCC Rules using ANSI C63.4 2009 standard. The test results found in this test report relate only to the items tested. Order Number: F2LQ5984 Client: The L.D. Kichler Company Model: 15DC300 021414 Report Number: F2LQ5984A-01E Page 8 of 33 Issue Date: July 21, 2014 5 EUT INFORMATION AND DATA 5.1 Equipment Under Test: Product: Design Pro LED Controller Model: 15DC300 Serial No.: None Spec. FCC ID: YNE-CP300334 5.2 Trade Name: The L.D. Kichler Co. 5.3 Power Supply: 120 Volts AC 5.4 Applicable Rules: CFR 47, Part 15.249 5.5 Equipment Category: Radio Transmitter-DTS 5.6 Antenna: 0dBi Gain Integral Antenna 5.7 Accessories: N/A 5.8 Test Item Condition: The equipment to be tested was received in good condition. 5.9 Testing Algorithm: The EUT was set up in a normal operating mode supplying voltage to landscaping lights. The EUT was also outfitted with a Z-Wave wireless module which enables the user to send and received basic ON/OFF commands, synchronize date/time/location, and other useful information with other devices containing a Z-Wave wire…

Text truncated - open the document above for the full version.

F2LQ5984A Page 1 of 2 Aug. 7, 2014 PHOTOGRAPHS: TEST SETUP The L.D. Kichler Company Model: CP300334 Spurious Emissions, Loaded Spurious Emissions, Unloaded Order Number: F2LQ5984A Client: The L.D. Kichler Company Model: CP300334 F2LQ5984A Page 2 of 2 Aug. 7, 2014 Field Strength of Emissions, Occupied Bandwidth Conducted Emissions
