YNKPG532USHouse Party Wireless Portable Bluetooth speaker

HouseParty ® Portable Wireless User Manual Notice d’utilisation | Benutzerhandbuch Thank you for buying the GEAR4 HouseParty Portable Wireless, wireless app-enhanced home speaker for iPod touch, iPhone and iPad. Please read over this manual before use and retain it for future reference. Merci d’avoir choisi le système GEAR4 HouseParty Portable Wireless, haut-parleur domestique sans fil avec une app pour iPod touch, iPhone et iPad. Veillez à lire attentivement cette notice d’utilisation avant de l’utiliser, et conservez-la pour vous y référer par la suite. Wir freuen uns, dass Sie sich für den Kauf des GEAR4 HouseParty Portable Wireless, Kabelloser, durch App optimierter Heimlautsprecher für iPod touch, iPhone und iPad, entschieden haben. Lesen Sie sich dieses Benutzerhandbuch vor der Verwendung bitte sorgfältig durch, und bewahren Sie es zum späteren Nachschlagen auf. open BACK COVERCOVERINNER FLAP OUTER Title: GEAR4 PG532 HouseParty Portable Date: 16 Feb 2012 Version: V1.1 Artwork Owner: [email protected] Finished Dimensions: Height: 124mm Width: 124mm Model No: PG532 Power adapter: KSAS0251200250D5 S032BM1200250 INPUT: 100V-240V ~50/60Hz 900mA Output: 12V / 2.5A Made in China. V1.1 HouseParty Portable Wireless controls:Box contents: Contenu du coffret | Packungsinhalt Made for iPod touch (3rd and 4th generation only) Made for iPhone 4S, iPhone 4 and iPhone 3GS Made for iPad 2 and iPad Software supported: iOS 5.0 and higher. HouseParty Portable Wireless USER MANUAL User manual Notice d’utilisation Benutzerhandbuch INNER FLAP INNERINNER COVERINNER BACK COVER Power supply (UK & EU) Alimentation (EU & GB) Netzteil (EU & GB) Carry case Sacoche de transport Tragetasche 13 FIRMWARE PORT ➍ BLUETOOTH POWER ➊ USB CHARGING PORT ➏➐ FIRMWARE PORT VOLUME - ➋ DC IN ➎ ➌ VOLUME + ➑ AUX IN 13 43 2 19 48 25 7 31 37 53 2GEAR4 / HouseParty Portable Wireless / User Manual HouseParty Portable Wireless Please read before use Product features: ■Wireless app-enhanced portable speaker ■Rechargeable lithium-ion battery ■Customisable power management ■Case friendly dock ■Charges iPod / iPhone / iPad ■USB port for charging other mobile devices ■Line-in port for use with other music players ■Includes travel carry case ■Up to 20 hours battery life* Wireless app-enhanced: Smarter than your average speaker, free app available from the App Store; ■Use your iPod touch, iPhone or iPad to control the speaker, wirelessly. Simply pair your device with the speaker via Bluetooth and launch the Smartlink Wireless app. ■Stream music wirelessly from the iPod touch, iPhone or iPad in your hand over Bluetooth, without having to dock. You can do this from the music library on your device or through the SmartLink Wireless app. ■Power Management controls let you switch to different power modes to save battery life. A battery status indicator tells you how much speaker play time remains or time to full charge (when mains powered). For more information on Bluetooth features, please see the SmartLink Starter Guide. This is located within the app’s settings menu. Getting started: ■Plug the power cable into the back of the unit and then into the mains supply. ■To activate the speaker, press the POWER button ( ). Note: When docking your iPod touch, iPhone or iPad to HouseParty Portable Wireless for the first time, your device will display a notification that your accessory requires an application. Tap OK to go to the App Store download page and proceed to install the SmartLink Wireless app, free of charge. *Wireless app-enhanced features require GEAR4 SmartLink app for iPhone 4S, iPhone 4, iPhone 3GS, iPod touch (3rd and 4th generation only), iPad 2 or iPad with iOS 5.0 or higher. Bluetooth connectivity requires iOS 5.0 or higher. Bluetooth range up to 20m, depending on line of sight. App screens correct at time of print. Extended power mode requires you to dock your iPhone / iPod touch / iPad and will deliver lower volume output. 3 GEAR4 / HouseParty Portable Wireless / User Manual To pair your iPod touch, iPhone or iPad with the speaker: ■On your iPod touch / iPhone / iPad, go to Settings > General > Bluetooth. ■Turn Bluetooth ON. ■Press and hold the Bluetooth button on the speaker ( ) until the Bluetooth icon flashes quickly and an audio tone is played (about 6 seconds). This indicates the speaker has entered pairing mode. ■“HouseParty Portable” will appear under devices within the Bluetooth menu. Select this to pair. ■Your iPod touch / iPhone / iPad will then pair with the speaker after several seconds. ■To pair any additional devices, please follow the above process again. Connecting your paired iPod touch / iPhone / iPad to the speaker: ■When the speaker is switched on, it will automatically connect to the last paired or docked device. ■If connection to that device is not made, you can manually connect another paired device. ■On your iPod touch / iPhone / iPad, go to Settings > General > Bluetooth. ■Tap on ‘HouseParty Portable’. The Bluetooth connection between the speaker and chosen device will now be made. Note: Only one device can be connected to the speaker at any given time. Switching connected devices: ■To switch the connection with another paired device, dock your chosen device onto the speaker and undock. Your chosen device will now be automatically connected to the speaker. ■To switch the connection manually, short press the Bluetooth button ( ) on the speaker. This will drop the connection to any connected device. ■On your iPod touch / iPhone / iPad, go to Settings > General > Bluetooth. ■Tap on ‘HouseParty Portable’. The Bluetooth connection between the speaker and chosen device will now be made. ■If no connection is made within 30 seconds of the Bluetooth button ( ) being pressed, the speaker will automatically connect to the last paired or docked device. Note: Connections between speaker and devices are only possible if devices have previously been paired. 4GEAR4 / HouseParty Portable Wireless / User Manual For use wi…

Text truncated - open the document above for the full version.

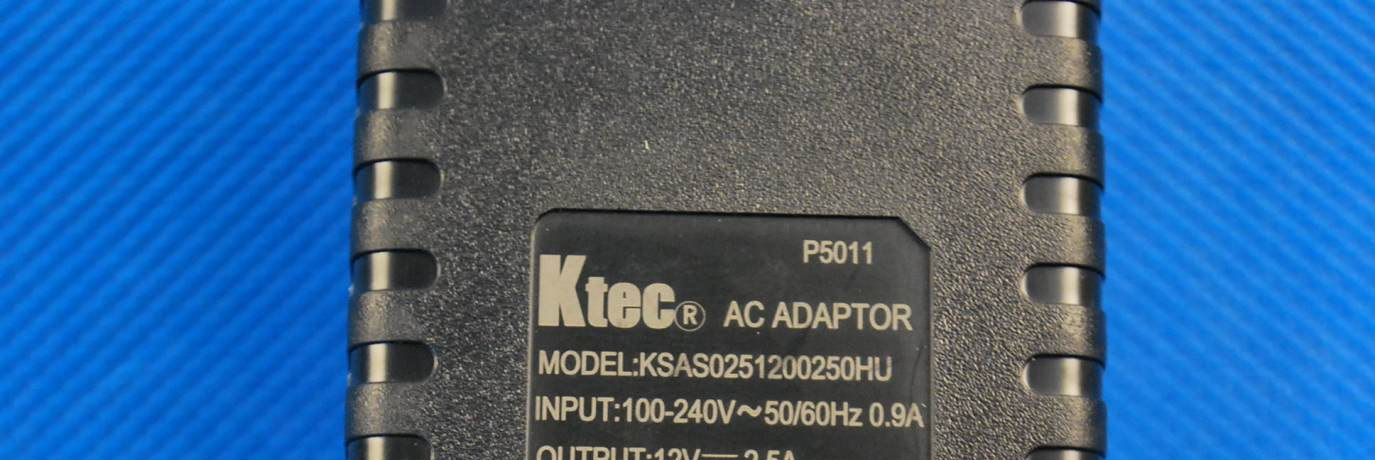

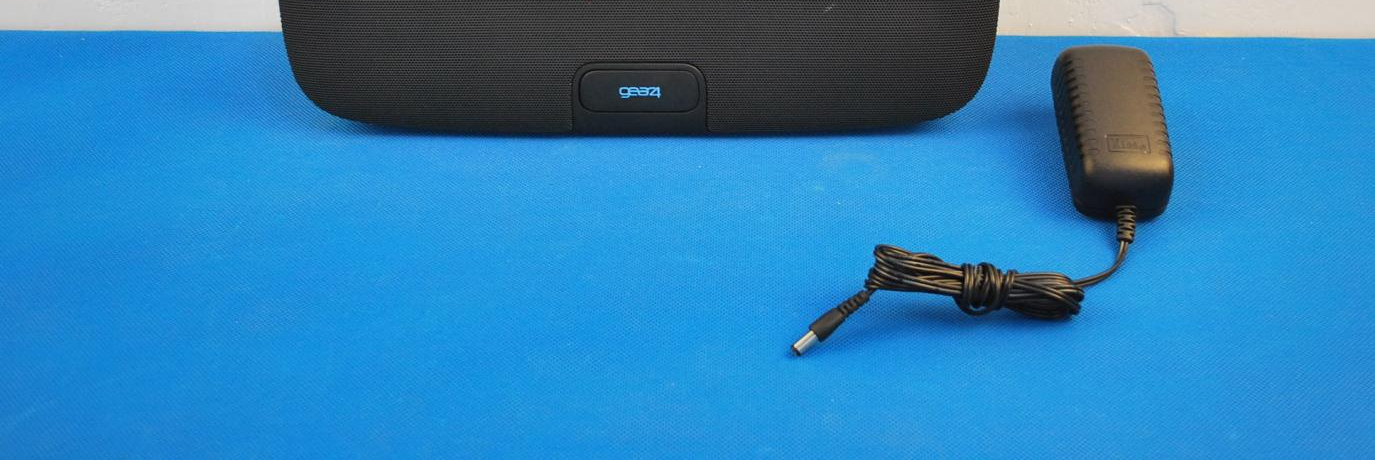

1 Photographs - EUT Constructional Details Test Model No.: PG532 House Party Wireless Portable Adapter

DO NOT PRINT FROM THIS PDF

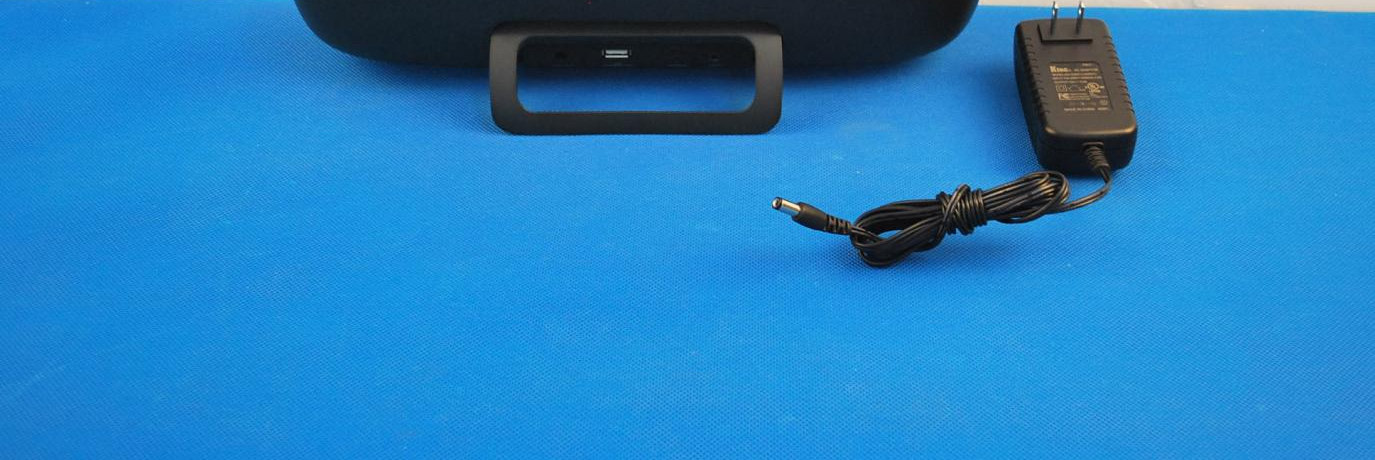

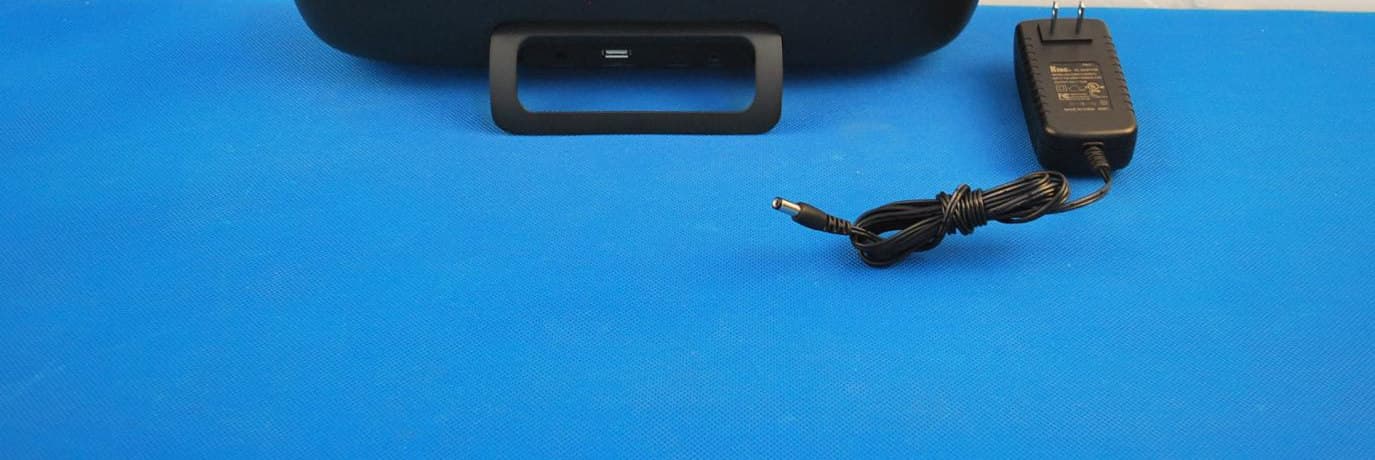

1 Photographs - EUT Constructional Details Test Model No.: PG532 House Party Wireless Portable Adapter

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Nanshan District, Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Page: 1 of 1 FCC ID: YNKPG532US “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1.1 RF Exposure Compliance Requirement 1.1.1 Standard requirement 15.247(b)(4) requirement: (4) The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section. if transmitting antennas of directional gain greater than 6 dBi are used. the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1). (b)(2). and (b)(3) of this section. as appropriate. by the amount in dB that the directional gain of the antenna exceeds 6 dBi. 1.1.2 EUT RF Exposure The Max Conducted Peak Output Power is 2.61dBm(1.824mW) in lowest channel; The best case gain of the antenna is 2.6dBi. 2.6dB logarithmic terms convert to numeric result is nearly 1.820. According to the formula. calculate the EIRP test result: EIRP= P x G = 1.824mW x 1.820= 3.320mW ① SAR requirement: S= 60 / f(GHz) = 60/2.402= 24.98mW ② ; ① < ②. So the SAR report is not required.

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM120200041201 Page: 1 of 71 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page FCC REPORT Application No: SZEM1202000412RF Applicant: Disruptive Ltd. Product Name: House Party Wireless Portable Bluetooth speaker Operation Frequency: 2.402GHz to 2.480GHz FCC ID: YNKPG532US Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2010 Date of Receipt: 2012-02-10 Date of Test: 2012-02-13 to 2012-02-23 Date of Issue: 2012-02-24 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM120200041201 Page: 2 of 71 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS.............................................................................................................................................................. 2 3 TEST SUMMARY.................................................................................................................................................... 3 4 GENERAL INFORMATION................................................................................................................................... 4 4.1 CLIENT INFORMATION.......................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 4 4.3 E.U.T OPERATION MODE...................................................................................................................................... 6 4.4 DESCRIPTION OF SUPPORT UNITS......................................................................................................................... 6 4.5 TEST FACILITY..................................................................................................................................................... 7 4.6 TEST LOCATION................................................................................................................................................... 7 4.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER........................................................................................ 7 4.8 TEST INSTRUMENTS …

Text truncated - open the document above for the full version.

1 Photographs-test setup photo Test Model No.: PG532 House Party Wireless Portable Radiated Emission Test Setup Conducted Emission Test Setup
