YPG-011813HPBluetooth Headset

OP0118-13-HP/BM 880 bluetooth headset operations manual Thank you for using this Bluetooth headset from our company，this product is made by an advanced Bluetooth wireless technology and ergonomic design . For better understanding of the operations of the product, please read the following instructions carefully. Range of use： 1. In compliance with Bluetooth enabled cellphone, enjoys the music and answers phone calls wirelessly 2. Pairing with PC（built in Bluetooth function or with USB dongle for Bluetooth）, listening the music from internet. 2. Pairing with PC（built in Bluetooth function or with USB dongle for Bluetooth）enjoying the web chatting (supporting with ICQ, MSN, SKYPE and etc.) 3. In compliance with IPAD\ MID, compatible for streaming music 4.LINE IN I.Buttons and socket function（Please refer to the drawing in button sequence for an overview of your headset） S1：Next song, volume up S2：Play/Pause, S3：Previous song, volume down S4；Answer/hang up/reject the call and last number redial S5：ON/OFF, pairing, switch microphone(switch microphone between mobile phone and headset) LED：Dual color led indicator MIC：Microphone USB ：MINI USB charging socket LINE IN: Audio Line in II.Charging This product is with built-in rechargeable battery，however, this headset battery is not fully powered. Before you use the headset for the first time, please charge it at least 4 hours. After that，charging would be taken approximately 2-3 hours. When the LED turns red, charging is carried on; whereas the LED red lights off, charging is completed. III.Pairing Before you use the Bluetooth headset with mobile phone, pair it with mobile phone. 1. Long press S5 button about 5 seconds. When your headset LED will flash the red and blue alternately, ceased to press the button. The Headset emits “beep”sound for twice, then the headset had been entered into the pairing mode. 2. Search the Bluetooth headset on your mobile phone (please study the user manual of your mobile phone); after the search, your phone should indicate that it has found the “BM-880” on the list. 3. Select BM-880 on the list, pairing with your mobile phone. When the headset is paired with your mobile phone, the headset emits a “beep” sound, blue light turns into flash slowly at about once per 2.5 seconds. Attention: When pairing with your mobile phone，some mobile phone models required to input a pairing code，please input“0000”(4 zeros). If the headphone has not paired the device within 3 minutes, the headphone will automatically be turned off. If the Bluetooth headset is not in the pairing mode, the headset cannot be searched by your mobile phone or other Bluetooth device. Please set your headset into pairing mode and search again. IV.Power On/Off and Reconnection 1. POWER ON（reconnect to the device） Long press S5 button about 1 second，the LED turns purple for one second，the headphone emit a“beep” sound, the LED flashes quickly, about twice a second, the headset will automatically connect to the device; when the headset is reconnected with your Bluetooth device, the headset emits a“beep”sound, blue light flash slowly at about once per 2.5 seconds. Remark：Reconnection can only be connected with the headset which paired with Bluetooth devices If the headphone is not reconnected to the device within 5 minutes, the headset will automatically be turned off. 2. POWER OFF Long press S5 button about 3 seconds, the LED turns purple for one second, the headset emits a“beep” sound, then power off. V.Making phone calls with your Bluetooth headset When the Bluetooth headset and your mobile phone has been completed the pairing connection, you can use the headset to answer a call or enjoy the stereo music over the cell phone. （1）Dialing, answering and ending a call 1. Dialing a call 1.1 Use your mobile phone to dial as usual, you will hear a notice voice after dialing, then the call has been connected，the call will automatically be switched to the Bluetooth headset. (Some smart phone may to switch manually) 1.2 Redial the last number: press S4 button once to dial the last dialed number. 2. Answering and ending a call *When a call comes in, you will hear a notice voice. 2.1 When a call comes in, press S4 button once for answering the call 2.2 When you are in an active call, press S5 button to transfer the call to the phone; press again S5 to transfer back the active call from the phone to the headset. (some mobile phones may not support this function） 2.3 When a call comes in, to reject a call, long press S4 button about 1 second 2.4 Long press S3 button to decrease the volume, long press S1 button to increase the volume. 2.5 To end a call, press S4 button once VI.Play music *The mobile phone should support the Bluetooth A2DP profile 1．For next song, press S1 button once 2．For pervious song, press S3 button once 3．For play or pause, press S2 button once. 4. Long press S3 button, decrease the volume; long press S1 button, increases the volume. 5. Press S1, end up a call or the counterpart who ends the call. After ending the call, music will resume automatically. VII.LINE IN If there ant’t any Bluetooth device to pair with or the battery power depletion. Use a LINE IN cable plug into a 3.5mm audio jack, the Bluetooth headset will work as a wired one. VIII.Low battery indication – Switch off automatically When there is sensed with battery power lower than 3.3V, the red light of headset flashes twice at every 10 seconds, the headset emits a twice “beep” sound. If the power is lower than 3.3V, it should shut down automatically; please recharge the power. IX.Package Contains 1. BM 880 Bluetooth headset 1 pc 2. USB charging cable 1pc 3. Operations manual 1pc X.The product maintenance — Using unoriginal accessories may cause performance degradation, personal injury, an electrical short circuit and warranty failure . — Disassemble the product can damage it and void your warranty. — Do not place the headset in dusty environment. — Use a clean, soft, dry cloth to clean you…

Text truncated - open the document above for the full version.

Oregon Scientific Global Distribution Limited Block C, 9/F., Kaiser Estate, Phase 1, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong . FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Oregon Scientific Global Distribution Limited Addresss Block C, 9/F., Kaiser Estate, Phase 1, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong . City Hong Kong Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: YPG - 011813HP of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) ■ Operational Description ■ Block Diagrams ■ Schematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hong Kong China 2013-7-12 Guobao.Liu Assistant Project Manager

Oregon Scientific Global Distribution Limited Block C, 9/F., Kaiser Estate, Phase 1, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong . FCC Authorization Letter Number: CF304 Version: V01 Date: 01-02-2010 . We, (the approval holder) Company name Oregon Scientific Global Distribution Limited Addresss Block C, 9/F., Kaiser Estate, Phase 1, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong . City Hong Kong. Country China declare that the following representative (agent): Name (person) Ruby Zhang Function Supervisor Company name Compliance Certification Services (Shenzhen) Inc. Addresss No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Bluetooth headset Type or Model(s) OP0118-13-HP/BM-880 Tradename or Brand(s) N/A We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hong Kong . China 2013-7-12 Guobao.Liu Assistant Project Manager

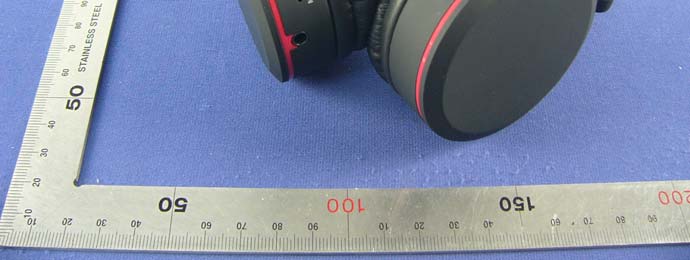

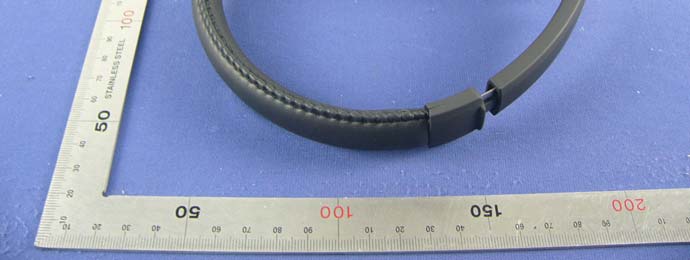

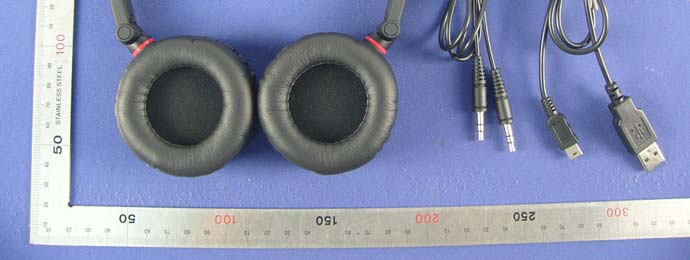

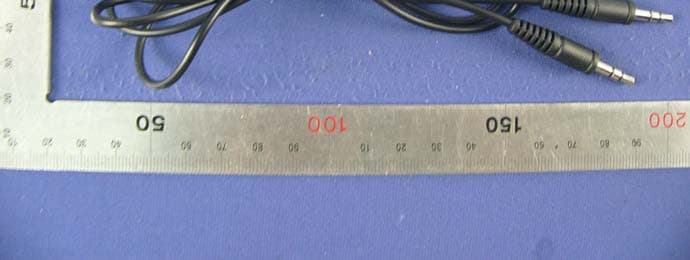

Report No: C130509Z01-RP1 Page 1 / 3 External Photos of EUT Report No: C130509Z01-RP1 Page 2 / 3 Report No: C130509Z01-RP1 Page 3 / 3

Label and Location FCC ID: YPG-011813HP

Report No: C130509Z01-RP1 Page 1 / 3 Internal Photos of EUT Report No: C130509Z01-RP1 Page 2 / 3 Report No: C130509Z01-RP1 Page 3 / 3

Report No: C130509Z01-RP1 FCC ID: YPG-011813HP Page 1/34 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C for Bluetooth headset Model: OP0118-13-HP/BM-880 Brand: N/A Test Report Number: C130509Z01-RP1 Issued for Oregon Scientific Global Distribution Limited Block C, 9/F., Kaiser Estate,Phase 1, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong Issued by: COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: June 26, 2013 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. Report No: C130509Z01-RP1 FCC ID: YPG-011813HP Page 2/34 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 C130509Z01-RP1 Initial Issue ALL Anna Liu Report No: C130509Z01-RP1 FCC ID: YPG-011813HP Page 3/34 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION ...........................................................................................4 2 EUT DESCRIPTION ................................................................................................5 3 TEST METHODOLOGY ..........................................................................................6 3.1. DESCRIPTION OF TEST MODES.......................................................................................6 4 TEST METHODOLOGY ..........................................................................................7 4.1. EUT EXERCISE ...................................................................................................................7 4.2. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS............................................7 5 INSTRUMENT CALIBRATION ................................................................................8 6 SETUP OF EQUIPMENT UNDER TEST .................................................................8 6.1. DESCRIPTION OF SUPPORT UNITS .................................................................................8 6.2. CONFIGURATION OF SYSTEM UNDER TEST..................................................................8 7 FACILITIES AND ACCREDITATIONS....................................................................9 7.1. FACILITIES ..........................................................................................................................9 7.2. ACCREDITATIONS ..............................................................................................................9 7.3. MEASUREMENT UNCERTAINTY .......................................................................................9 8 FCC PART 15.249 REQUIREMENTS ...................................................................10 8.1. BAND EDGES MEASUREMENT .......................................................................................10 8.2. POWER LINE CONDUCTED EMISSIONS MEASUREMENT ...........................................20 8.3. SPURIOUS EMISSIONS MEASUREMENT .......................................................................24 Report No: C130509Z01-RP1 FCC ID: YPG-011813HP Page 4/34 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product Bluetooth headset Model OP0118-13-HP/BM-880 Brand N/A Tested May 9~June 25, 2013 Applicant Oregon Scientific Global Distribution Limited Block C, 9/F., Kaiser Estate,Phase 1, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong Manufacturer iLike Electronics Co., Ltd Industrial Areas of iLike, Ju Ling old village, Da Shui Keng, Guanlan, Longhua New District, Shenzhen. China APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted DEVIATION FROM APPLICABLE STANDARD None We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.249. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No: C130509Z01-RP1 FCC ID: YPG-011813HP Page 5/34 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 EUT DESCRIPTION Product Bluetooth headset Model Number OP0118-13-HP/BM-880 Trade Name N/A Model Discrepancy Just the model name are different. Identify Number C130509Z01-RP1 Power Supply DC3.7V Supplied by the Battery or DC5V Supplied by the PC Frequency Range 2402 ~ 2480 MHz Transmit Power Peak: 92.09dBuV/m (Max.) Average: 77.25dBuV/m (Max.) Modulation Technique FHSS (GFSK for 1Mbps, π/4-DQPSK for 2Mbps, 8DPSK for 3Mbps) Number of Channels 79 Channels Antenna Specification PCB antenna with 1dBi gain(Max) Temperature Range -25°C ~ +55°C Note: 1. The sample selected for test was engineering sample that approximated to…

Text truncated - open the document above for the full version.

Report No.: C130509Z01-RP1 FCC ID : YPG-011813HP Page 1 / 2 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST Report No.: C130509Z01-RP1 FCC ID : YPG-011813HP Page 2 / 2 CONDUCTED EMISSION TEST
