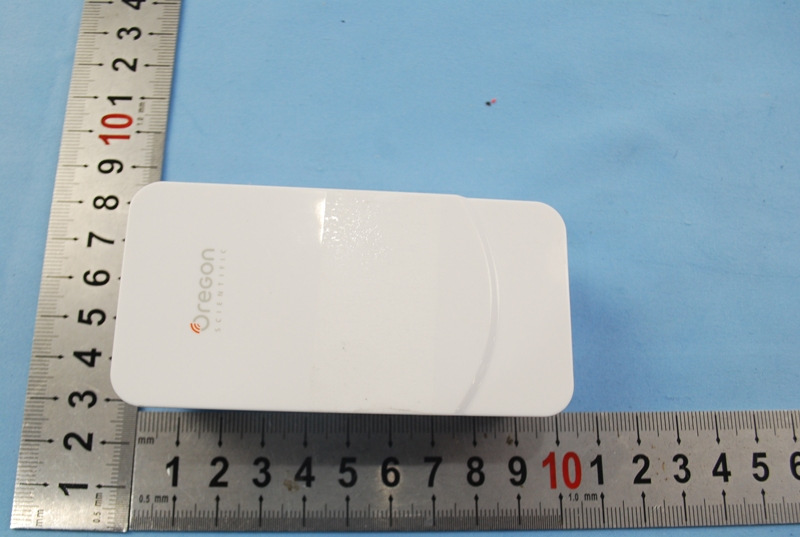

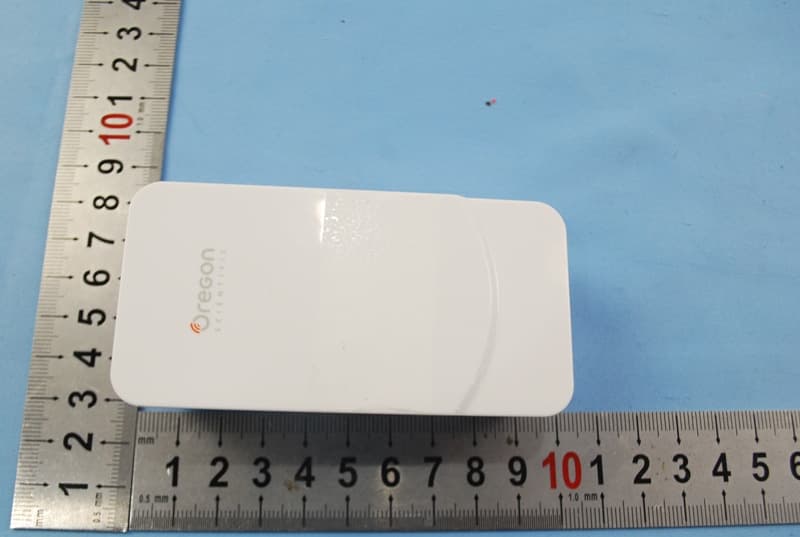

EN 1 Jumbo Wall Clock Model: JW108 USER MANUAL JW108_M_EN.indd 114-7-10 1:27 EN 2 Jumbo Wall Clock Model:JW108 USER MANUAL CONTENTS Overview .....................................................................3 Front View ...............................................................3 Rear View ................................................................3 Remote Sensor .......................................................4 Getting started ...........................................................4 Insert Batteries ........................................................4 Remote Sensor ..........................................................4 Sensor Data Transmission ......................................5 Clock ...........................................................................5 Clock Reception ......................................................5 Set The Clock Manually ..........................................6 Weather Forecast ......................................................6 Temperature ...............................................................6 Precautions ................................................................7 Specifications ............................................................7 About Oregon Scientific ...........................................8 EU - Declaration Of Conformity ................................8 FCC Statement ...........................................................9 Declaration Of Conformity ......................................10 JW108_M_EN.indd 214-7-10 1:27 EN 3 OvERviEW FRONT viEW 1 2 7 8 6 3 45 1. Current time, weather display 2. Current weekday display 3. Current date display 4. Current indoor temperature reading 5. Current outdoor temperature and sensor reception indication 6. : Main unit low battery display 7. : Outdoor remote sensor low battery display 8. : Clock signal reception indication REAR viEW 111213 9 10 14 15 16 17 18 9. Battery compartment 10. Battery compartment door 11. : Manually adjust current time and date 12. +/- Increase/decrease settings 13. SENSOR: Enable/disable searching sensor signal 14. Wall mounting hole 15. EU/UK/US: Slide to select desired clock reception; time and date setting 16. °C/°F: Slide to select desired temperature unit 17. RCC: Enable/disable clock signal reception 18. RESET: Reset the unit to default settings JW108_M_EN.indd 314-7-10 1:27 EN 4 REMOTE SENSOR 20 23 21 1 2 3 Reset 22 19 19. LED status indicator 20. Wall mount hole 21. CHANNEL switch 22. RESET: Reset the unit to default settings 23. Battery compartment GETTiNG STARTED iNSERT bATTERiES 1. Remove the battery compartment. 2. Insert the batteries, matching the polarities (+/-). 3. Press RESET after each battery replacement. LOCATiON MEANiNG Clock/alarm areaMain unit batteries low Outdoor temperature area ensor batteries low REMOTE SENSOR The main unit can collect data from up to 1 sensor. To set up the sensor: 1. Open the battery compartment. 2. Slide the CHANNEL switch to 1, then press RESET. 3. Close the battery door. 4. Place the sensor within 98 ft (30 m) of the main unit using the wall mount. TiP Ideal placements for the sensor would be in any location on the exterior of the home at a height of not more than 5 ft (1.5 m) and which can shield it from direct sunlight or wet conditions for an accurate reading. JW108_M_EN.indd 414-7-10 1:27 EN 5 The sensor reception icon in the remote sensor area shows the status: Screen displayDescription Main unit is searching for sensor(s). The channel has been found. The sensor cannot be found. TiP The transmission range may vary depending on many factors. You may need to experiment with various locations to get the best results. CLOCK CLOCK RECEPTiON This clock is designed to synchronize its clock automatically with a clock signal. Slide to select the desired region (EU/UK/US). RegionSignal EUDCF UKMSF USWWVB 1.5m (5ft) NOTE Use alkaline batteries for longer usage and consumer grade lithium batteries in temperatures below freezing. SENSOR DATA TRANSMiSSiON To search for a sensor: Press and hold SENSOR. Press and hold again to stop searching. JW108_M_EN.indd 514-7-10 1:27 EN 6 Clock signal reception indicator: Screen displayDescription Searching for clock signal reception Excellent signal Weak signal No clock signal reception NOTE It takes 2-10 minutes to receive the clock signal. If the signal is weak, it could take up to 24 hours to receive a valid signal. To enable/disable signal reception: Press and hold RCC. SET THE CLOCK MANUALLy 1. Press and hold RCC in the battery compartment to disable the clock signal reception. 2. Press and hold . 3. Press +/- to change the settings. 4. Press to confirm. 5. Press once or press and hold +/- to adjust the setting. For EU/UK, the time-zone offset sets the clock up to +/- 23 hours from the received clock signal time. For US, the time-zone setting is 0 (P), 1 (M), 2 (C), 3 (E). 6. Press to confirm. 7. The settings order is: 12/24 hour format, hour, minute, year, calendar format (day-month/month-day), month, day and language. 8. Press once or press and hold +/- to adjust the setting. NOTE The language options are English (E), Spanish (S), Italian (i), German (D) and French (F). WEATHER FORECAST This product forecasts the next 12 hours of weather within a 19-31 mile (30-50 km) radius. Screen displayDescription Sunny Cloudy Rainy Snowy TEMPERATURE To select temperature unit: • Slide to °C or °F for temperature readings in the battery compartment of the main unit. JW108_M_EN.indd 614-7-10 1:27 EN 7 PRECAUTiONS • Do not subject the unit to excessive force, shock, dust, temperature or humidity. • Do not cover the ventilation holes with any items such as newspapers, curtains etc. • Do not immerse the unit in water. If you spill liquid over it, dry it immediately with a soft, lint-free cloth. • Do not clean the unit with abrasive or corrosive materials. • Do not tamper with the unit’s internal components. This invalidates the war…
