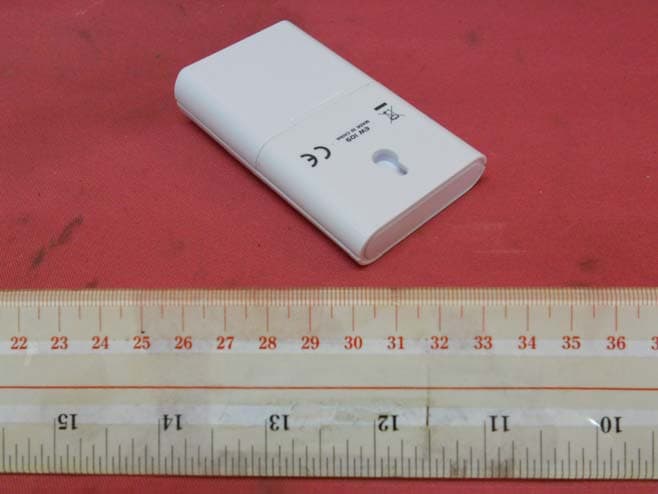

YPG-EW109Easy Fix Thermometer Pad with Ice Alert

EN 1 Easy Fix Thermometer Pad with Ice Alert Model: EW102 USER MANUAL INDEX Overview ........................................................................2 Front view ................................................................2 Back view .................................................................2 Sensor ......................................................................3 Getting started ...............................................................3 Main unit installation ................................................3 Sensor installation ....................................................3 Synchronising with sensor .......................................3 Temperature and humidity ...........................................5 Ice warning ...............................................................5 Placing of unit ...............................................................5 Reset ..............................................................................6 Troubleshooting ............................................................6 Specifications ................................................................6 Precautions ....................................................................7 About Oregon Scientific ...............................................7 EU Declaration of conformity .......................................8 FCC Statement ..............................................................8 EN 2 OvERvIEW FRONT vIEW 1. CHANNEL: toggle between indoor and outdoor channels (1-3); activate / deactivate / auto-toggle 2. : indoor temperature / humidity is displayed 3. : main unit batteries low 4. MIN/MAX: indicates type of data being displayed 5. : sensor batteries low 6. : remote sensor reception indicator and outdoor channel selected 7. MIN.MAX.: view current, maximum and minimum indoor / outdoor temperature and humidity; clear records 8. Temperature 9. Humidity 10. Ice alert LED indicator BACk vIEW 1. Magnets for mounting 2. Wall mount hole 1 2 3 4 5 6 7 8 9 10 +-+- 1 2 3 4 5 6 7 EN 3 3. °C / °F: select temperature unit 4. RESET: reset unit to default settings 5. SENSOR: initiate search for sensor 6. Pole compartment 7. Battery compartment SENSOR 1 2 5 3 4 +- 1. LED indicator: flashes when remote unit transmits a reading 2. Wall mount hole 3. RESET: reset unit to default settings 4. CHANNEL switch 5. Battery compartment GETTING STARTED MAIN UNIT INSTALLATION Insert batteries: 1. Slide open the battery compartment cover. 2. Insert the batteries, matching the polarities. 3. Press RESET after each battery change. 4. Replace the battery compartment cover. NOTE Batteries should not be exposed to excessive heat such as sunshine or fire. SENSOR INSTALLATION 1. Slide open the battery compartment cover. 2. Insert the batteries matching the polarities (+/-). SyNCHRONISING WITH SENSOR 1. Press CHANNEL on main unit to select a channel. 2. On sensor, slide channel switch to corresponding channel. (For additional sensors, select a different channel). Press RESET. 3. Press SENSOR on main unit to initiate search. EN 4 The sensor reception icon shows the status: ICONSMEANING Main unit is searching for sensor(s) A sensor channel has been found and logged on and “--.-” No sensor found 4. Secure the sensor in the desired location using the wall mount hole. TIP Ideal placements for the sensor would be in any location on the exterior of the home at a height of not more than 1.5 m (5 ft) and which can shield it from direct sunlight or wet conditions for an accurate reading. For best results: • Place the sensor within 30m (100 ft) of the main unit. • Place the sensor out of direct sunlight and moisture. • Position the sensor so that it faces the main unit, minimizing obstructions such as doors, walls and furniture. • Place the sensor in a location with a clear view to the sky, away from metallic / electronic objects. EN 5 • Position the sensor close to the main unit during cold winter months as below-freezing temperatures may affect battery performance and signal transmission. TIP The transmission range may vary depending on many factors. You may need to experiment with various locations to get the best results. NOTE Use alkaline batteries for longer usage and consumer grade lithium batteries in temperatures below freezing. TEMPERATURE AND HUMIDITy To select temperature unit: Slide °C / °F switch. To toggle between each sensor’s readings: Press CHANNEL repeatedly OR Press and hold CHANNEL for 2 seconds to initiate auto toggle of channel readings. To end, press CHANNEL. To toggle between current, minimum and maximum records for the past 24 hours: Press MIN. MAX. repeatedly. To clear the records: Press and hold MIN. MAX. ICE WARNING If temperature recorded falls between -2°C to 3°C (29°F to 37°F), LED indicator will flash and will stop flashing once the temperature is out of this range. PLACING OF UNIT Mounting on metallic surface: Place onto surface. Mounting on wall: Use wall mount hole. Placing on a flat surface: 1. Remove battery compartment cover. 2. Remove pole from casing. 3. Replace battery compartment cover. 4. Insert pole through hole and place in desired position. EN 6 RESET Press RESET to return to default settings. TROUBLESHOOTING DISPLAyAREAPROBLEM LL.LTemperatureReading is below range LLHumidity HH.HTemperatureReading is above range HHHumidity -- HumidityTemperature is out of range for calculating relative humidity; sensor does not have humidity function SPECIFICATIONS MAIN UNIT TyPEDESCRIPTION L x W x H105 x 16 x 112 mm (4.1 x 0.6 x 4.4 in) Weight136g (4.8 oz) without battery Temperature range -5°C to 50°C (23°F to 122°F) Humidity range20% - 90% Signal frequency433 MHz Power2 x UM-4 (AAA) 1.5 V batteries SENSOR TyPEDESCRIPTION L x W x H57 x 27 x 100 2.2 x 1.1 x 3.9 in Weight54g (1.9 oz) without battery EN 7 Temperature range -20°C to 60°C (-4°F to 140°F) Humidity range20% - 90% Transmission range 30 m (100 ft) unobstructed Power2 x UM-4 (AAA) 1.5 V batt…
