YPG-OP0118MEEP!

Quick Start Guide How to start default content You can now enjoy the MEEP’s default content. If you wish to experi- ence the full power of MEEP!, you need the help of a grown-up to setup Wi-Fi access and register accounts! Main Menu Slide the power button until the light turns blue. This may take a few seconds. 111 1 2 11 222 1 2 3 Press the right wheel button. Tap on 'Settings'. Tap on Wi-Fi to turn it on. Then select the available Wi-Fi Source. Setting up a Wi-Fi Connection A 22 Ask the MEEP! owner (a grown-up) to register an owner’s account by visiting https://portal.meeptablet.com 1 2 3 Create a new MEEP! Account on the MEEP! Together Parent Portal. Enter your MEEP! Product Code(Serial Number) and personal data . Finally, enter your payment to meet the certain age requirements. Setting up an Account B 33 How to Unleash 4 5 6 7 8 Check your email and click on the provided link to conf i r m the registration. Login to MEEP! Together. Register the MEEPer Account (Kid Account). Invite another grown-up to become the MEEPervisor (kid supervisor). Setup the control settings on MEEP! 44 How to charge 333 Plug the adaptor to the MEEP! 1 Ask a grown-up to plug the other end of the adaptor to a wall outlet. 2 55 The red light on the top of the MEEP! indicates that the MEEP! is charging. It will be turned of f after it is fully charged. 3 If you charge the MEEP! when it is ON, you should see a battery icon on the screen. 4 If you charge the MEEP! when it is OFF, a charging icon will promptly be shown on the screen. 5 66 How to connect monitors Ask a grown-up to plug the TV cable (not included) to the MEEP! before connecting it to a monitor / TV that supports HDMI functions. 1 77 How to Use the Headphone Plug the headphone (not included / sold separately) to the MEEP! 1 88 How to Use the Microphone Plug the microphone (not included / sold separately) to the MEEP! 1 99 How to Plug In the Memory Card The memory card (not included) has already been plugged into the memory card slot under the cover of the MEEP! 1 The memory card is exchangeable with any other memory card up to 32 GB. Ask a grown-up to press the card to release it and replace it. 2 Syst em Hang-Ups Others Ask a grown-up to use a pin or any other narrow it em to press on the 'Reset' button. Please remember that any unsaved progresses will be lost during the reset. 1 MEEP! again. 2 1010 Please visit http://www.meeptablet.c om for more instructions. 1212 Troubleshooting At Oregon Scientif i c, we take our passion for developing new learning products seriously. Every appropriateness of the information behind the core of every product. Nonetheless, errors can sometimes occur. We stand behind our innovations, and we encourage you to call our Consumer Services Department with any problems and/or suggestions you might have. Our service representatives are always on hand to respond to your needs. Before contacting our authorised service representative at 0871 222 1966, you may wish to try following our troubleshooting guide below. It contains quick solutions to some of the most common issues our users encounter. In an environment prone to static discharge, the unit may malfunction. To reset, press the reset button at the back of the laptop. 1111 1313 Conforms to safety requirements of ASTM F963, EN71 Parts 1, 2 & 3 and EN62115. In an e improve our products, the actual screen display on the product may di Please retain this manual for future reference. 14141515 - DISPOSAL Do not dispose of this product as unsorted municipal waste. Such waste should be collected separately for special treatment. P/N: 300103191-00001-10 C M Y CM MY CY CMY K QuickStartGuide_OP0118-12(US)_R1.pdf 1 6/20/12 4:04 PM Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • Warning! Not suitable for children under 36 months. Small parts. Choking hazard. Oregon Scientic (UK) Ltd. Unit 1, Switchback, Gardner Road, Maidenhead, Berkshire SL6 7RJ. Hotline number: 0871 222 1966 Email: [email protected] Website: www.oregonscientic.co.uk • CAUTIONS : Children 8 years old and below should not be permitted to access the battery charger. Before allowing a child to use the battery charger, always ensure that they receive thorough explanations on how to handle the device in the safest manner. Please explain that the battery charger is not a toy and must only be used for its intended purpose. • Instruct the child not to recharge non- rechargeable batteries because of the danger of eruption; • Examine the battery charger regularly for damage, especially the cord, plug and enclosure. If the battery charger is damaged, it must not be used until it has been repaired. • The toy must only be used with the recommended transformer. Maximum output voltage < 150mV

FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. RF Exposure: A distance of 20 cm shall be maintained between the antenna and users, and the transmitter module may not be co-located with any other transmitter or antenna.

Oregon Scientific Global Distribution Limited Block C, 9/F, Kaiser Estate, Phase 1, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Oregon Scientific Global Distribution Limited Addresss Block C, 9/F, Kaiser Estate, Phase 1, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong City Hong Kong Country Hong Kong FF request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: Y P G OP0118-12 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) Operational Description Block Diagrams Schematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hong Kong 20-Aug-2012 Kelvin Ngan Engineering Manager FCC ID: YPG -OP0118

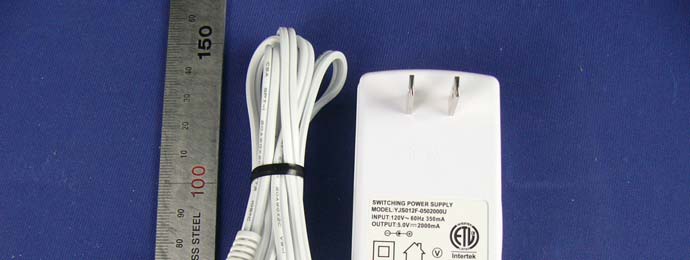

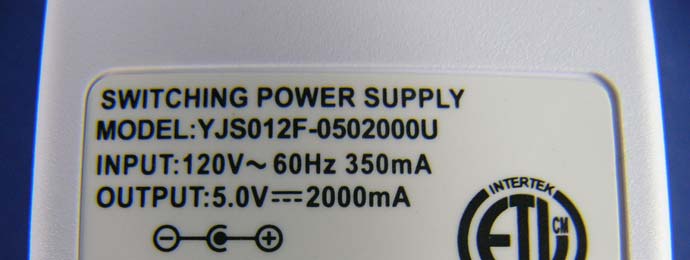

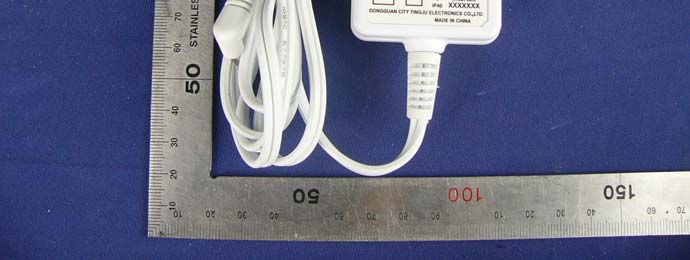

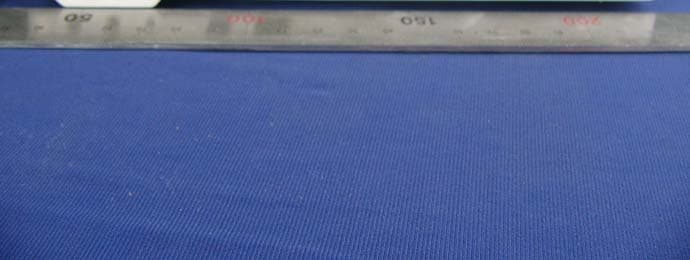

Report No: C120820Z03-RP1 Page 1 / 5 External Photos of EUT Report No: C120820Z03-RP1 Page 2 / 5 Report No: C120820Z03-RP1 Page 3 / 5 Report No: C120820Z03-RP1 Page 4 / 5 Report No: C120820Z03-RP1 Page 5 / 5 Adapter 1: Dongguan City Yingju Electronics Co., Ltd. / YJS012F-0502000U

PMS144C PMS425C With light background OS Logo Silkscreen OS | Innovation Product Design Department KAMIS | 13 June 2012OP0118-12 Cosmetic Document REV: 06 12.3mm 6mm Rating Information - US/EU/AU/CA/BR Global Version OS | Innovation Product Design Department KAMIS | 13 June 2012OP0118-12 Cosmetic Document REV: 06 RATING INFO 6mm 79.6mm 4.2mm 20.4mm 9mm 1.3mm

Report No: C120820Z03-RP1 Page 1 / 7 Internal Photos of EUT Report No: C120820Z03-RP1 Page 2 / 7 Report No: C120820Z03-RP1 Page 3 / 7 Report No: C120820Z03-RP1 Page 4 / 7 Report No: C120820Z03-RP1 Page 5 / 7 Report No: C120820Z03-RP1 Page 6 / 7 Report No: C120820Z03-RP1 Page 7 / 7

Compliance Certification Services Inc. Report No: C120820Z03_MPE FCC ID:YPG-OP0118 Date of Issue: August 21, 2012 1 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT Specification EUT MEEP! Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 11.92dBm (15.56mW) Antenna gain (Max) 1.00dBi (Numeric gain:1.26) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 11.92dBm (15.56mW) at 2412MHz (with 1.26 numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULT No non-compliance noted. Compliance Certification Services Inc. Report No: C120820Z03_MPE FCC ID:YPG-OP0118 Date of Issue: August 21, 2012 2 Calculation Given d GP E ×× = 30 & 3770 2 E S= Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Equation 1 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm 2 Maximum Permissible Exposure EUT Output Power=15.56mW Numeric antenna gain=1.26 Substituting the MPE safe distance using d=20 cm into Equation 1 : Yields The power density S = 30 × 15.56 × 1.26/ (3770 × 400) cm 2 =3.900X 10 -4 mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm 2 even if the calculation indicates that the power density would be larger.)

Report No.: C120820Z03-RP1 FCC ID: YPG-OP0118 Page 1 / 87 FCC TEST REPORT for MEEP! MODEL: OP0118-12 Brand: Oregon Scientific Test Report Number: C120820Z03-RP1 Issued Date: August 21, 2012 Issued for Oregon Scientific Global Distribution Limited Block C, 9/F, Kaiser Estate, Phase 1, 41 Man Yue Street, Hung Hom, Kowloon. Issued by: Compliance Certification Services (Shenzhen) Inc. No.10-1 Mingkeda Logistics park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No.: C120820Z03-RP1 FCC ID : YPG-OP0118 Page 2 / 87 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 C120820Z03-RP1 Initial Issue ALL Nancy Fu Report No.: C120820Z03-RP1 FCC ID : YPG-OP0118 Page 3 / 87 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION.................................................................................................. 4 2 TEST RESULT SUMMARY............................................................................................ 5 3 EUT DESCRIPTION ....................................................................................................... 6 4 TEST METHODOLOGY ................................................................................................. 7 4.1. DESCRIPTION OF TEST MODES ...................................................................................... 7 5 SETUP OF EQUIPMENT UNDER TEST........................................................................ 8 5.1. DESCRIPTION OF SUPPORT UNITS................................................................................. 8 5.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 8 6 FACILITIES AND ACCREDITATIONS .......................................................................... 9 6.1. FACILITIES .......................................................................................................................... 9 6.2. ACCREDITATIONS ............................................................................................................. 9 6.3. MEASUREMENT UNCERTAINTY....................................................................................... 9 7 FCC PART 15.247 REQUIREMENTS.......................................................................... 10 7.1. POWER LINE CONDUCTED EMISSIONS MEASUREMENT........................................... 10 7.2. SPURIOUS EMISSIONS MEASUREMENT....................................................................... 14 7.3. 6dB BANDWIDTH MEASUREMENT ................................................................................. 46 7.4. PEAK OUTPUT POWER ................................................................................................... 54 7.5. BAND EDGES MEASUREMENT:...................................................................................... 56 7.6. PEAK POWER SPECTRAL DENSITY MEASUREMENT.................................................. 80 Report No.: C120820Z03-RP1 FCC ID : YPG-OP0118 Page 4 / 87 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product MEEP! Model OP0118-12 Brand Oregon Scientific Tested August 18~ August 20, 2012 Applicant Oregon Scientific Global Distribution Limited Block C, 9/F, Kaiser Estate, Phase 1, 41 Man Yue Street, Hung Hom, Kowloon. APPLICABLE STANDARDS Standard Test Type Standard Test Type 15.207(a) Power Line Conducted Emissions 15.247(d) 15.209(a) z Spurious Emissions z Conducted Measurement z Radiated Emissions 15.247(a)(2) 6dB Bandwidth Measurement 15.247(b)(3) 15.247(b)(4) Peak Power Measurement 15.247(d) Band Edges Measurement 15.247(e) Peak Power Spectral Density We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Aven Zhou Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C120820Z03-RP1 FCC ID : YPG-OP0118 Page 5 / 87 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 TEST RESULT SUMMARY APPLICABLE STANDARDS Standard Test Type ResultRemark 15.247(a)(2) 6dB Bandwidth Measurement PassMeet the requirement of limit. 15.247(b)(3) 15.247(b)(4) Peak Power Measurement PassMeet the requirement of limit. 15.247(d) Band Edges Measurement PassMeet the requirement of limit. 15.247(e) Peak Power Spectral Density PassMeet the requirement of limit. 15.247(d) 15.209(a) z Spurious Emissions z Conducted Measurement z Radiated Emissions PassMeet the requirement of limit. 15.207(a) Power line Conducted Emissions PassMeet the requirement of limit. Note: 1. The statements of test result on the above are decided by the request of test standard only; the measuremen…

Text truncated - open the document above for the full version.

Report No.: C120820Z03-RP1 Page 1 / 2 FCC ID:YPG-OP0118 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: SZ110915B10-RP FCC ID: PY312100183 Page 2/2 . RADIATED EMISSION TEST Below 1GHz Above 1GHz
