YPS-GM91329211Mini RC-Mario

Block Diagram Filter RF power amplifier and Modulator Oscillator 27.145MHz Encoder Control key 27.145MHz ANT1 U1, 128KHZ Power supply 4.5Vdc Charge circuit 2.4Vdc

Shawn Xing

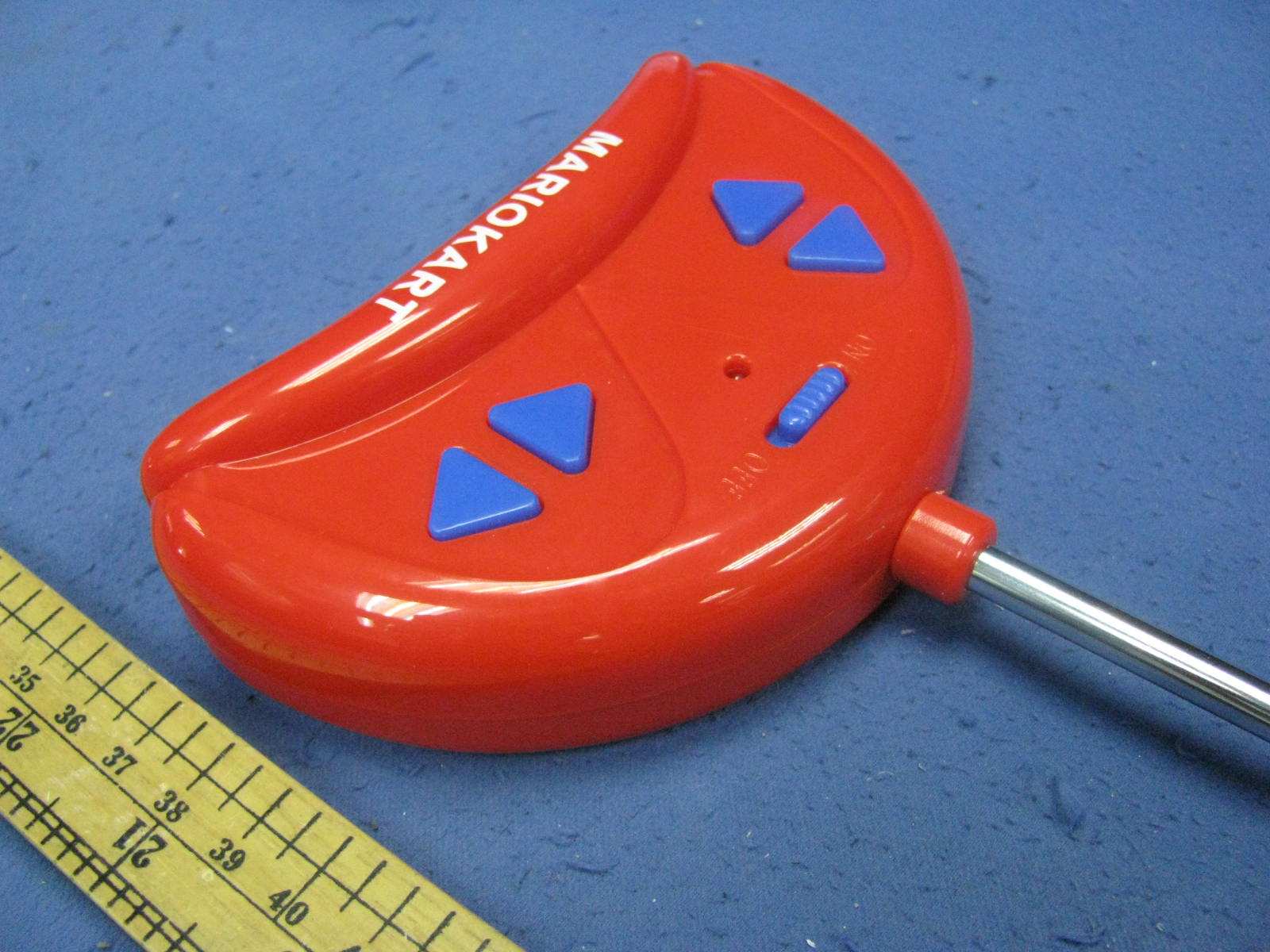

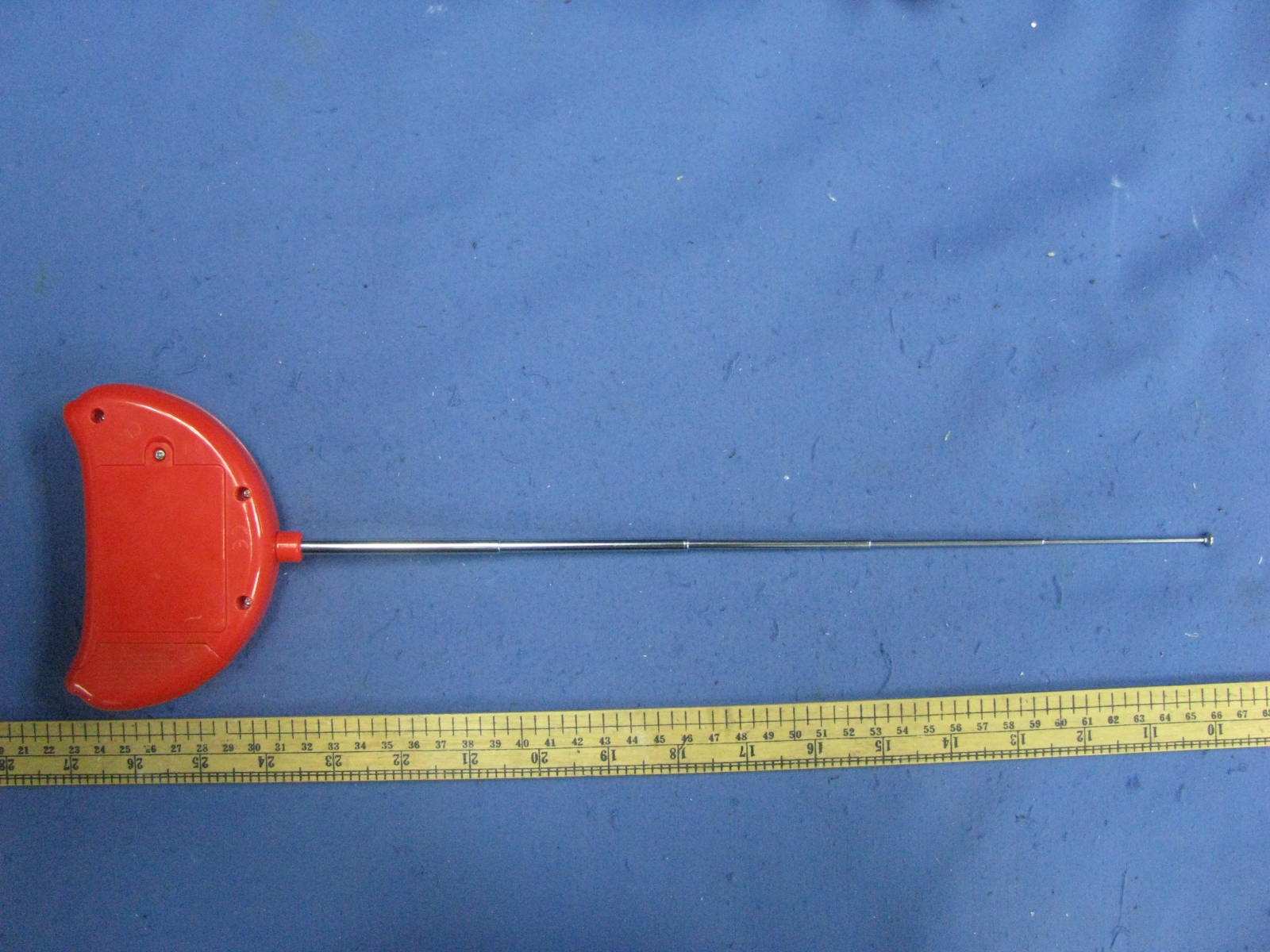

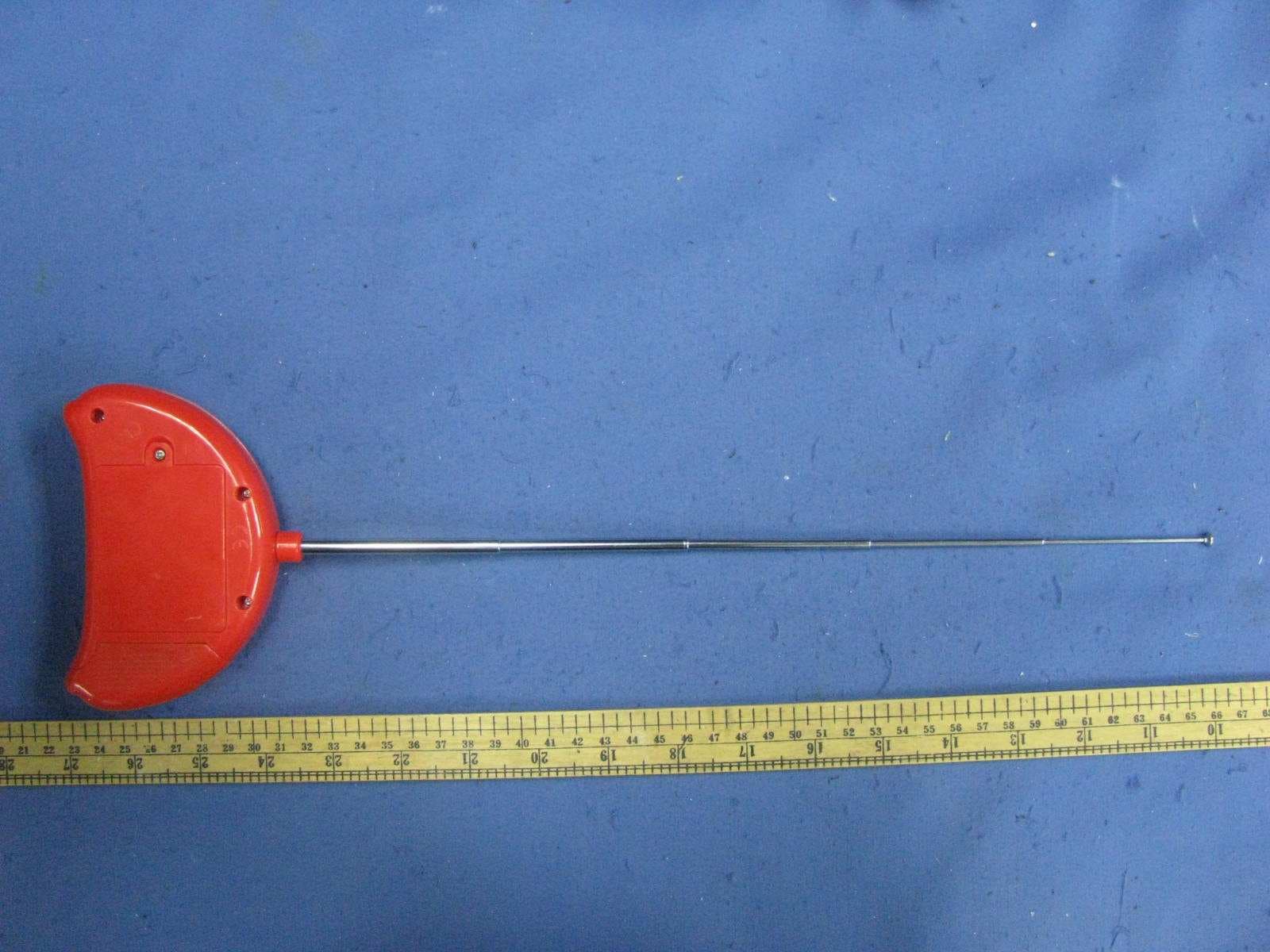

External Photos

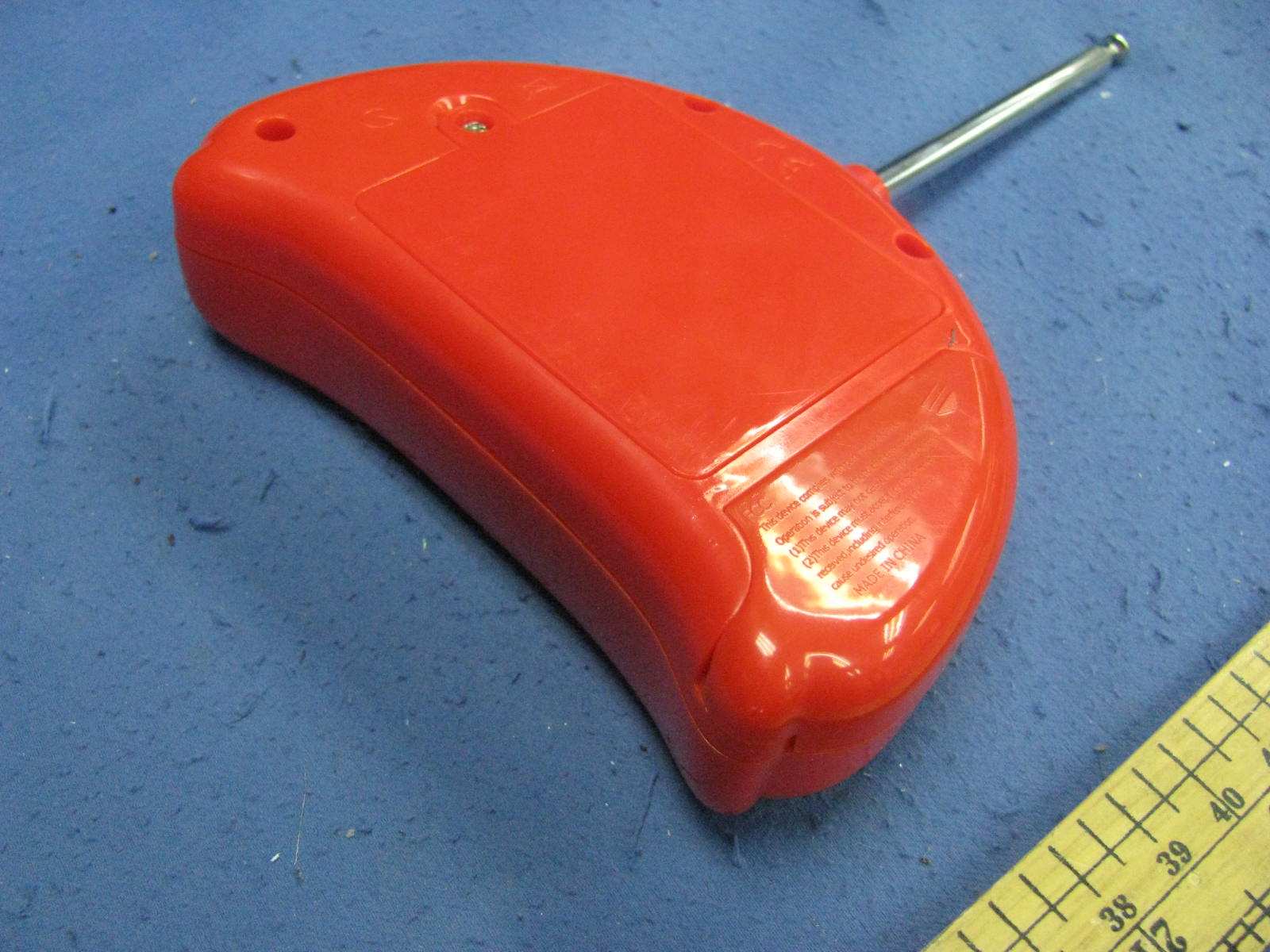

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT1 Filter Suppression of spurious emissions L3, T1, C3, C5, C9 RF power amplifier and modulation Modulate the carrier and amplify the modulated RF signal Q1 Oscillator Generate 27.145 MHz carrier Q2, X1 Encoder IC Generate code signal to modulator U1 Charge circuit Charge for the batteries in the Car receiver Q4, Q5, U2A, U2B Type of antenna: Telescope antenna with unique antenna connector Type of modulation: Pulse modulation

1234 A B C D 4321 D C B A BT1 4.5V S1 S2 C11 105 R2 150K R3 22K R1 100R C1 104 R4 680K Q2 SL6 C7 30P R6 30R X1 27.145MHZ L2 2.2uH C6 30P C4 22P Q1 SL6 C8 100P L1 2.2uH C3 47P C9 100P C5 30P L3 3.3uH T1 1.8uH ANT1 RF:27MHZ 27MHz TX Circuit Diagram C2 104 VCC S3 S4 R5 30R C12 103 R 1 TEST 2 GND 3 B 4 F 5 T 6 SC 7 NC 8 NC 9 SO 10 VDD 11 PC 12 OSCO 13 OSCI 14 FOSC 15 L 16 U1 TX-2BS C10 103 BT2 2.4V R85.6K R9 100R R10 1K R7 10K C13 10UF R14 1.2K R11 1K LED1 RED V1=0.4V V0=2.9V D1 1N4148C15 104 C14 105 CH+ 2 3 1 U2A LM358 6 5 7 V+ 8 V- 4 U2B LM358 Z1 NC Q4 8550D R17 100K S5 SW SPST Q5 SL6 R15 4.3K R16 1.2K D2 1N5817 MINI RC-Mario Corporate Name ADDRESS Product Name PREPARED BY: CHEN GUOAPPROVED BY: Steven Chow GOLDIE MARKETING PTY. LTD UNIT 1,51-53 POWER RD., BAYSWATER VIC 3153 MELBOURNE,AUSTARLIA
