YPS-RCIS201327TSmurf Mini Radio Controlled Vehicle

Project Name：SPORTY LOG RACER，PAPA SMURFS OLD JALOPY，VANITY'S BUG BUGGY Project No： 27.145MHz-Ch 1 ，27.145MHz-Ch 2，27.145MHz-Ch 3 Date： 2013-2-27 -----Page 1 of 2----- 1,Block diagram （XHY12312T TX） Modulator and amplifier Control keys high-frequency oscillator 27.145Mhz POWER 3.0ｖ Encoder IC SCTX8 ANT Matching circuit Oscillator455Khz Code Switch PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

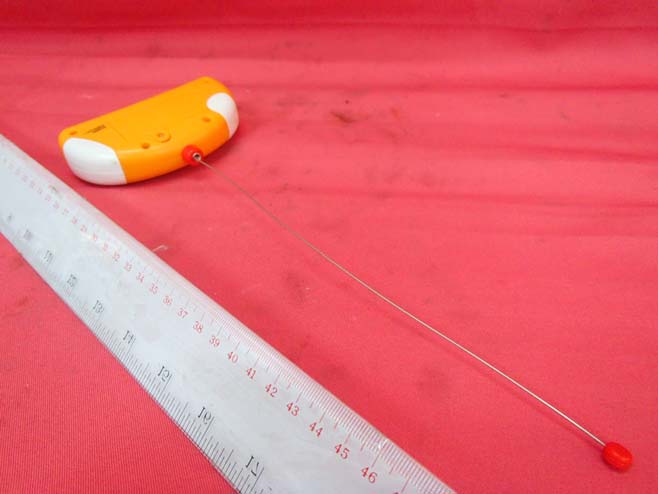

INTERTEK TESTING SERVICE Report No.: HK13030927-1 FCC ID: YPS-RCIS201327T Equipment Photographs Model : SMR011 (External)

INTERTEK TESTING SERVICE Report No.: HK13030927-1 FCC ID: YPS-RCIS201327T Equipment Photographs Model: SMR011 (Internal) INTERTEK TESTING SERVICE Report No.: HK13030927-1 FCC ID: YPS-RCIS201327T Equipment Photographs Model: SMR011 (Internal) INTERTEK TESTING SERVICE Report No.: HK13030927-1 FCC ID: YPS-RCIS201327T Equipment Photographs Model: SMR011 (Internal) INTERTEK TESTING SERVICE Report No.: HK13030927-1 FCC ID: YPS-RCIS201327T Equipment Photographs Model: SMR011 (Internal)

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Matching Network Suppression of spurious emissions L2,L3,L4,C8 RF power amplifier and modulation Modulate the carrier and amplify the modulated RF signal Q1,Q2 Oscillator Generate 27.145 MHz carrier Y1 Encoder IC Generate code signal to modulator U1,Y2 Type of antenna: External, Integral Type of modulation: Pulse modulation

Analysis Report Report No.: 13030927HKG-001 The Equipment Under Test (EUT) is a transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 3.0 V DC source (2 x 1.5V AA batteries). The EUT has a forward, backward, left and right control levers. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right. Antenna Type: External integral Antenna Gain: 0dBi Nominal rated field strength: 64.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 67.5dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.002mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.002mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:16-Apr-2013Sheet of File:D:\工程资料\振泰\12312无充电同频三通\改版单面板遥控车\供客人资料\FCC文件27MHZ\12312-27 无充电开模Drawn By: B 1 C 2 E 3 Q1 C1815 S4 R3 563 R2 000 R6 103 L2 2.2UH C6 47P C4 47P C1 104 C14 103 C8 47P Q2 SS8050 BATT 3.0V E1 ANT L3 1.2UH 1 2 3 4 5 6 78 9 10 11 12 13 14 U1 SC TX8 S1 S2 S3 C3 10P model no: TX27MHZ L1 2.2UH so pc Y1 27.145MHZ R4 47R C9 105 L4 6.8UH Y1 455KHZ A1 A0 1 2 3 Sw1 SW SPDT C14 103 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK13030927-1 Goldie Marketing Pty. Ltd. Application For Certification (Original Grant) (FCC ID: YPS-RCIS201327T) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: April 25, 2013 INTERTEK TESTING SERVICES Report No.: HK13030927-1 FCC ID: YPS-RCIS201327T i GENERAL INFORMATION Goldie Marketing Pty. Ltd. BRAND NAME: Goldie Marketing Pty. Ltd., MODEL: SMR011 SMR013, SMR014; ASST: SMR010 FCC ID: YPS-RCIS201327T Grantee: Goldie Marketing Pty. Ltd. Grantee Address: Unit 6A, 841 Mountain Highway, Bayswater VIC 3153, Melbourne, Australia. Contact Person: Mr. Stephen Goldsworthy Tel: 61-3-97206186 Fax: 61-3-97202659 e-mail: N/A Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: SMR011 Additional Model: SMR013, SMR014 Asst. No.: SMR010 Type of EUT: Transmitter Description of EUT: Smurf Mini Radio Controlled Vehicle Smurf 5in RC Log Racer (SMR011) Smurf 5in RC Bug Buggy (SMR013) Smurf 5in RC Old Jalopy (SMR014) Serial Number: N/A FCC ID: YPS-RCIS201327T Date of Sample Submitted: March 20, 2013 Date of Test: March 20, 2013 to April 12, 2013 Report No.: HK13030927-1 Report Date: April 25, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK13030927-1 FCC ID: YPS-RCIS201327T ii SUMMARY OF TEST RESULT Goldie Marketing Pty. Ltd. BRAND NAME: Goldie Marketing Pty. Ltd., MODEL: SMR011, SMR013, SMR014; ASST: SMR010 FCC ID: YPS-RCIS201327T TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength (for 27MHz) 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK13030927-1 FCC ID: YPS-RCIS201327T iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 2 2.6 Support Equipment List and Description ................................................................ 3 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation...................................................................................... 3 3.2 Radiated Emission Configuration Photograph........................................................ 4 3.3 Radiated Emission Data ........................................................................................ 4 4.0 Equipment Photographs ..................................................................................... 6 5.0 Product Labelling................................................................................................ 6 6.0 Technical Specifications ..................................................................................... 6 7.0 Instruction Manual .............................................................................................. 6 8.0 Miscellaneous Information..…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.:HK13030927-1 Sample No.: 1/2 Code: LFT-FCC15C_g / Effective Date: 01 Mar 2013 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass/Fail)

INTERTEK TESTING SERVICE Report No: HK13030927-1 FCC ID: YPS-RCIS201327T Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: SMR011 INTERTEK TESTING SERVICE Report No: HK13030927-1 FCC ID: YPS-RCIS201327T Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: SMR011
