YPS-RCIS201349RSmurf 5in RC Gargamobile

Project Name：SMUFETTE'S LEAF COUPE ，MINI GARGAMOBILE ， Project No： 49.860MHz-Ch 1，49.860MHz-Ch 2， Date： 2013-2-27 Block diagram （XHY12312R RX） intermittent oscillation (&demodulation) Driver1 Control audio amplifier Decode (SCRX8) Motor1 Driver2 Control Motor2 ANT Oscillator455Khz Code Switch

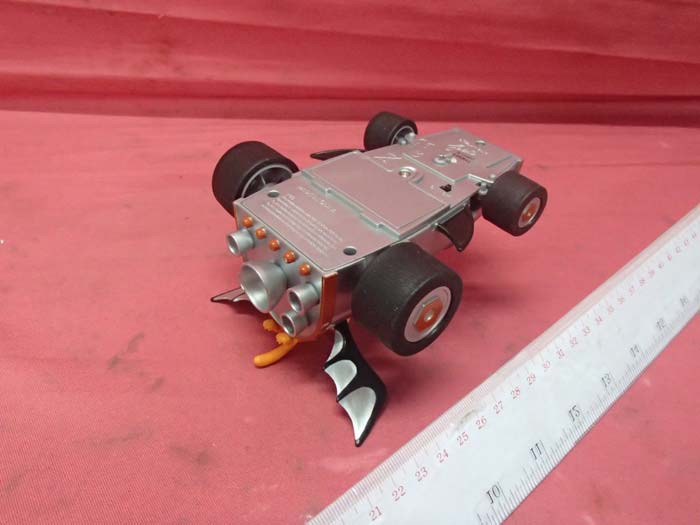

INTERTEK TESTING SERVICE Report No.: HK13020622-3 Equipment Photographs Model: SMR015 (External) FCC ID: YPS-RCIS201349R

INTERTEK TESTING SERVICE Report No.: HK13020622-3 FCC ID: YPS-RCIS201349R Equipment Photographs Model: SMR015 (Internal) INTERTEK TESTING SERVICE Report No.: HK13020622-3 FCC ID: YPS-RCIS201349R Equipment Photographs Model: SMR015 (Internal)

Model:SMR015 (Receiver portion) Technical Description of Receiver The receiver operates at 49.860 MHz, and controls by the corresponding transmitter to move forward, backward, left and right. The circuit of the receiver comprises of, 1. Super-regenerative circuit Consisting: L2, C2, C1, L1 ,Q1 2 . Decoder Consisting: U1 (SCRX8) 3. Drive Motor Circuit Consisting: U3, U4 4. A Power Supply Con s isting: 2*1.5V AAA batteries 5. Clock Frequency Generator Consisting: Y1 (455KHz) The receiver uses an internal and integral ante nna.

Project Name：SMUFETTE'S LEAF COUPE ，MINI GARGAMOBILE ， Project No： 49.860MHz-Ch 1，49.860MHz-Ch 2， Date： 2013-2-27 RX Circuit （XHY12312R RX） R7 222 R6 475 R8 475 R9 222 C7 103 C8 221 C9 103 C10 102 C12 100UF 12345678 9 10111213141516 U1 SC RX8 R5 222 RL FB Q1 C2712 R1 681 R2 184 R3 332 C1 10P C2 22P C3 12P C4 332P C6 103P L2 3.3UH ANT BATTERY 3.0V S1 SW- SP DT C5 475 VDDBT VI1VO1VI2 VO2SI L3 100K L1 0.7UH 1 2 3 45 6 7 8 U3 HEADER 4X2 1 2 3 45 6 7 8 U4 HEADER 4X2 A -+ M2 MOTOR SERVO A -+ M1 MOTOR SERVO R11 000 R1 2 000 R14 101 R13 101 C1 4 104 C1 5 104 VDD A1 A0 3 3 GND 1 2 2 S2 VOL2 Y1455KHZ C17C16

INTERTEK TESTING SERVICES Report No.:HK13020622-3 (15C), HK13020622-4 (RSS) Sample No.: 1/2 Code: LFT-FCC15C_g / Effective Date: 01 Mar 2013 ( of ) superreg Plot – Pursuant to FCC Part 15 Requirement (Pass/Fail)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK13020622-3 Goldie Marketing Pty. Ltd. Application For Certification (Original Grant) (FCC ID: YPS-RCIS201349R) Superregenerative Receiver Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: April 05, 2013 INTERTEK TESTING SERVICES Report No.: HK13020622-3 FCC ID: YPS-RCIS201349R i GENERAL INFORMATION Goldie Marketing Pty. Ltd. BRAND NAME: Smurf 5in R/C Vehicle Assortment, MODEL: SMR015 FCC ID: YPS-RCIS201349R Grantee: Goldie Marketing Pty. Ltd. Grantee Address: Unit 6A, 841 Mountain Highway, Bayswater VIC 3153, Melbourne, Australia. Contact Person: Mr. Stephen Goldsworthy Tel: 61-3-97206186 Fax: 61-3-97202659 Brand Name: Smurf 5in R/C Vehicle Assortment Model: SMR015 Additional Model: SMR012 Asst. No.: SMR010 Type of EUT: Superregenerative Receiver Description of EUT: Smurf 5in RC Gargamobile (SMR015) Smurf 5in RC Leaf Coupe (SMR012) Serial Number: N/A FCC ID: YPS-RCIS201349R Date of Sample Submitted: February 25, 2013 Date of Test: February 25, 2013 to March 13, 2013 Report No.: HK13020622-3 Report Date: April 05, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK13020622-3 FCC ID: YPS-RCIS201349R ii SUMMARY OF TEST RESULT Goldie Marketing Pty. Ltd. BRAND NAME: Smurf 5in R/C Vehicle Assortment, MODEL: SMR015 FCC ID: YPS-RCIS201349R TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 Pass Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK13020622-3 FCC ID: YPS-RCIS201349R iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...............................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK13020622-3 FCC ID: YPS-RCIS201349R Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: SMR015 INTERTEK TESTING SERVICE Report No: HK13020622-3 FCC ID: YPS-RCIS201349R Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: SMR015
