Project Name：SMUFETTE'S LEAF COUPE ，MINI GARGAMOBILE ， Project No： 49.860MHz-Ch 1，49.860MHz-Ch 2， Date： 2013-2-27 Block diagram （XHY12312T TX） Modulator and amplifier (Q1, Q2) Control keys (S1, S2, S3, S4) High-frequency Oscillator 49.860MHz (Y1) POWER 3.0ｖ Encoder IC SCTX8 (U1) ANT Matching circuit (L2, L3, L4, C14, C15) Oscillator455Khz (Y1) Code Switch (SW1, SW-SDPT) 49.860MHz

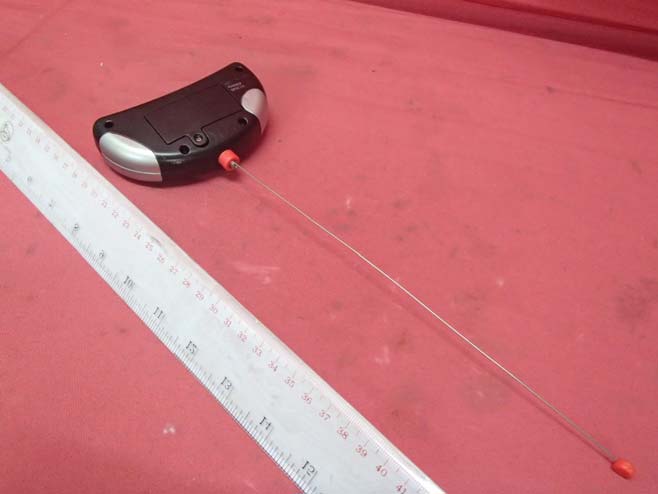

INTERTEK TESTING SERVICE Report No.: HK13020622-1 FCC ID: YPS-RCIS201349T Equipment Photographs Model: SMR015 (External)

INTERTEK TESTING SERVICE Report No.: HK13020622-1 FCC ID: YPS-RCIS201349T Equipment Photographs Model: SMR015 (Internal) INTERTEK TESTING SERVICE Report No.: HK13020622-1 FCC ID: YPS-RCIS201349T Equipment Photographs Model: SMR015 (Internal)

Technical Description of Transmitter The circuit of the transmitter comprises of 1. An Encoding circuit Consisting: U1 2. A RF Oscillator (49.860MHz) Consisting: Y1 3. Matching Circuit Consisting: L2, L3, L4, C14, C15 4. A RF Modulator and Amplifier Consisting: Q1, Q2 5. A Power Supply Consisting: 2 x AAA size batteries Type of antenna: External Integral antenna Type of modulation: Pulse modulation The nominal rated field strength is 96.0dBμV/m @ 3m Production tolerance of field strength is +3dB / -18dB Antenna gain is 0dBi

Analysis Report Report No.: HK13020622-1 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 49.860 MHz as dictated by a crystal. The EUT is powered by a 3.0 V DC source (2 x 1.5V AAA battery). The EUT has a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 96.0dBμV/m at 3m Maximum allowed field strength of production tolerance: +3dB and -18dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 99.0dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 2.38mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 2.38mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

Project Name：SMUFETTE'S LEAF COUPE ，MINI GARGAMOBILE ， Project No： 49.860MHz-Ch 1，49.860MHz-Ch 2， Date： 2013-2-27 B 1 C 2 E 3 Q1 C1815 S4 R3 563 R2 000 R6 103 L2 1.0UH C6 15P C4 15P C1 104 C14 104 C8 15P Q2 SS8050 BATT 3.0V E1 ANT L3 1.2UH 1 2 3 4 5 6 78 9 10 11 12 13 14 U1 SC TX8 S1 S2 S3 C3 15P L1 1.0UH so pc Y1 49.860MHZ R4 47R C9 105 L4 1.0UH Y1 455KHZ A1 A0 C15 104 SW1 SW- SP DT

INTERTEK TESTING SERVICES Report No.:HK13020622-1 (15C), HK13020622-2 (RSS-310) Sample No.: 1/2 Code: LFT-FCC15C_g / Effective Date: 01 Mar 2013 ( of ) Average factor – Pursuant to FCC Part 15 INTERTEK TESTING SERVICES Report No.:HK13020622-1 (15C), HK13020622-2 (RSS-310) Sample No.: 1/2 Code: LFT-FCC15C_g / Effective Date: 01 Mar 2013 ( of ) Average factor – Pursuant to FCC Part 15

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK13020622-1 Goldie Marketing Pty. Ltd. Application For Certification (Original Grant) (FCC ID: YPS-RCIS201349T) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: April 05, 2013 INTERTEK TESTING SERVICES Report No.: HK13020622-1 FCC ID: YPS-RCIS201349T i GENERAL INFORMATION Goldie Marketing Pty. Ltd. BRAND NAME: Smurf 5in R/C Vehicle Assortment, MODEL: SMR015 FCC ID: YPS-RCIS201349T Grantee: Goldie Marketing Pty. Ltd. Grantee Address: Unit 6A, 841 Mountain Highway, Bayswater VIC 3153, Melbourne, Australia. Contact Person: Mr. Stephen Goldsworthy Tel: 61-3-97206186 Fax: 61-3-97202659 Brand Name: Smurf 5in R/C Vehicle Assortment Model: SMR015 Additional Model: SMR012 Asst. No.: SMR010 Type of EUT: Transmitter Description of EUT: Smurf 5in RC Gargamobile (SMR015) Smurf 5in RC Leaf Coupe (SMR012) Serial Number: N/A FCC ID: YPS-RCIS201349T Date of Sample Submitted: February 25, 2013 Date of Test: February 25, 2013 to March 13, 2013 Report No.: HK13020622-1 Report Date: April 05, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK13020622-1 FCC ID: YPS-RCIS201349T ii SUMMARY OF TEST RESULT Goldie Marketing Pty. Ltd. BRAND NAME: Smurf 5in R/C Vehicle Assortment, MODEL: SMR015 FCC ID: YPS-RCIS201349T TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK13020622-1 FCC ID: YPS-RCIS201349T iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 2 2.6 Support Equipmen…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.:HK13020622-1 (15C), HK13020622-2 (RSS-310) Sample No.: 1/2 Code: LFT-FCC15C_g / Effective Date: 01 Mar 2013 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 235 Requirement (Pass/Fail)

INTERTEK TESTING SERVICE Report No: HK13020622-1 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: SMR015 FCC ID: YPS-RCIS201349T INTERTEK TESTING SERVICE Report No: HK13020622-1 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: SMR015 FCC ID: YPS-RCIS201349T
