YPS-GM91329213Mini RC-Yoshi

Block Diagram Filter RF power amplifier and Modulator Oscillator 49.860MHz Encoder Control key 49.860MHz ANT1 U1, 128KHZ Power supply 4.5Vdc Charge circuit 2.4Vdc

Shawn Xing

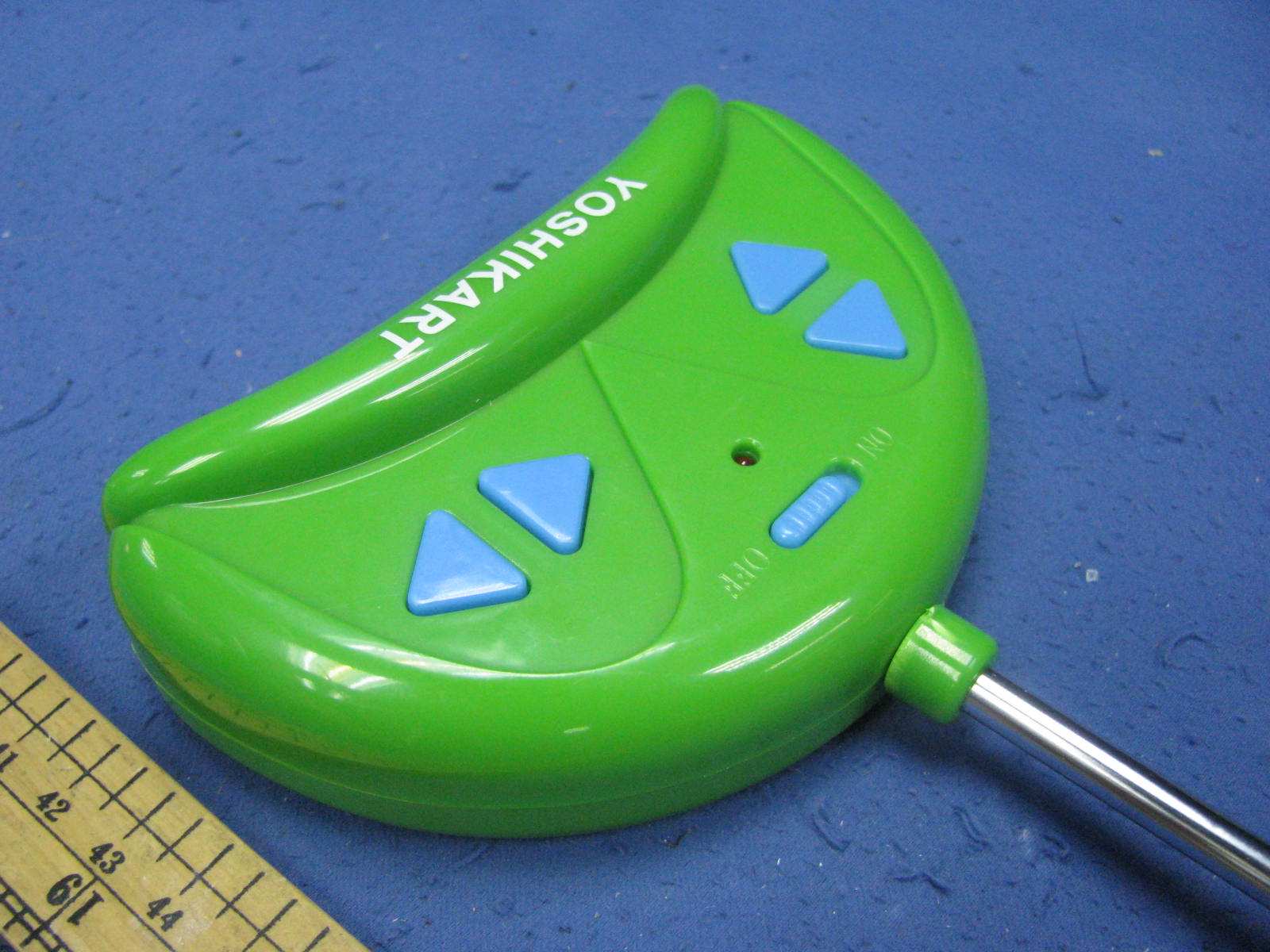

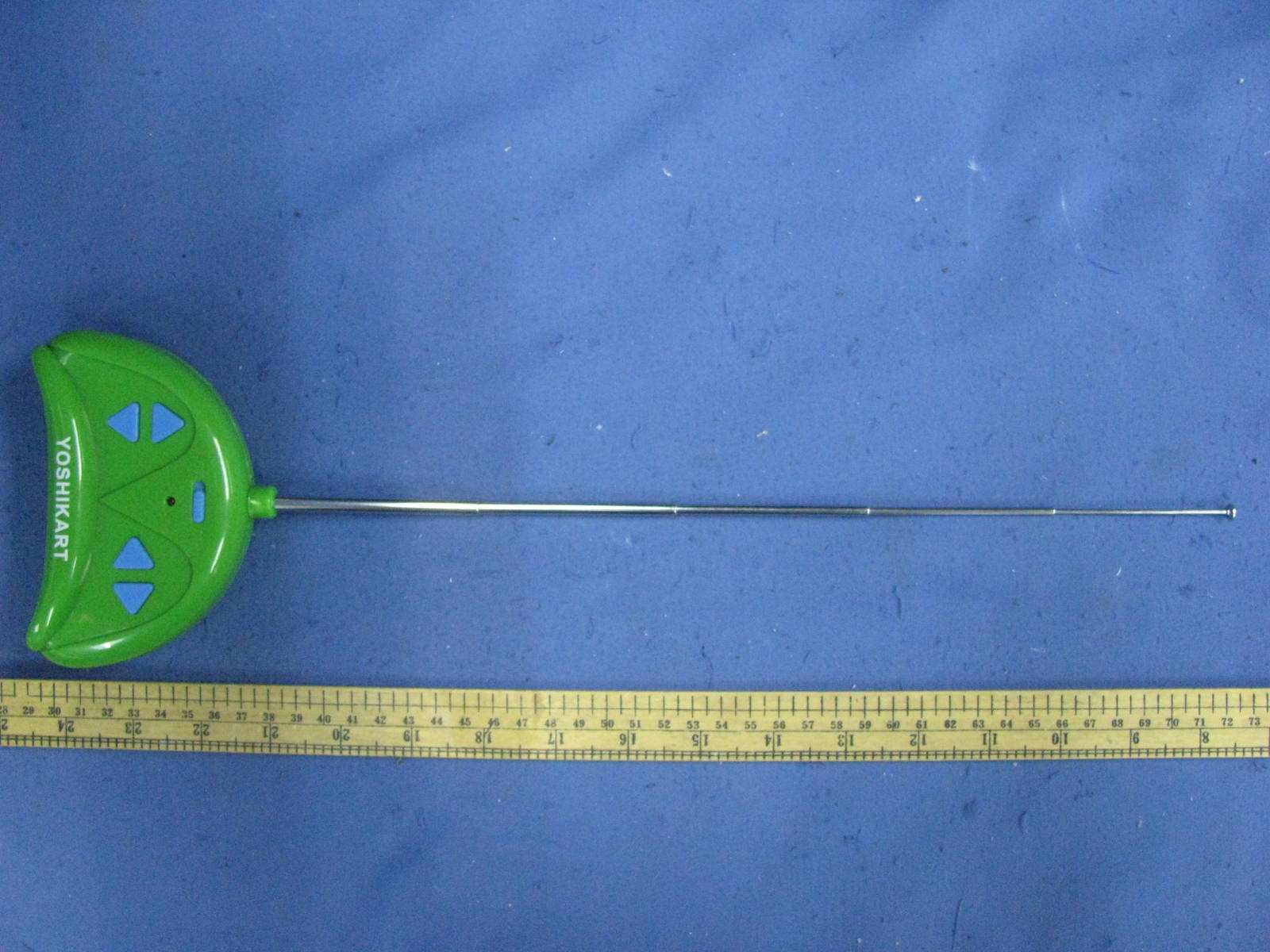

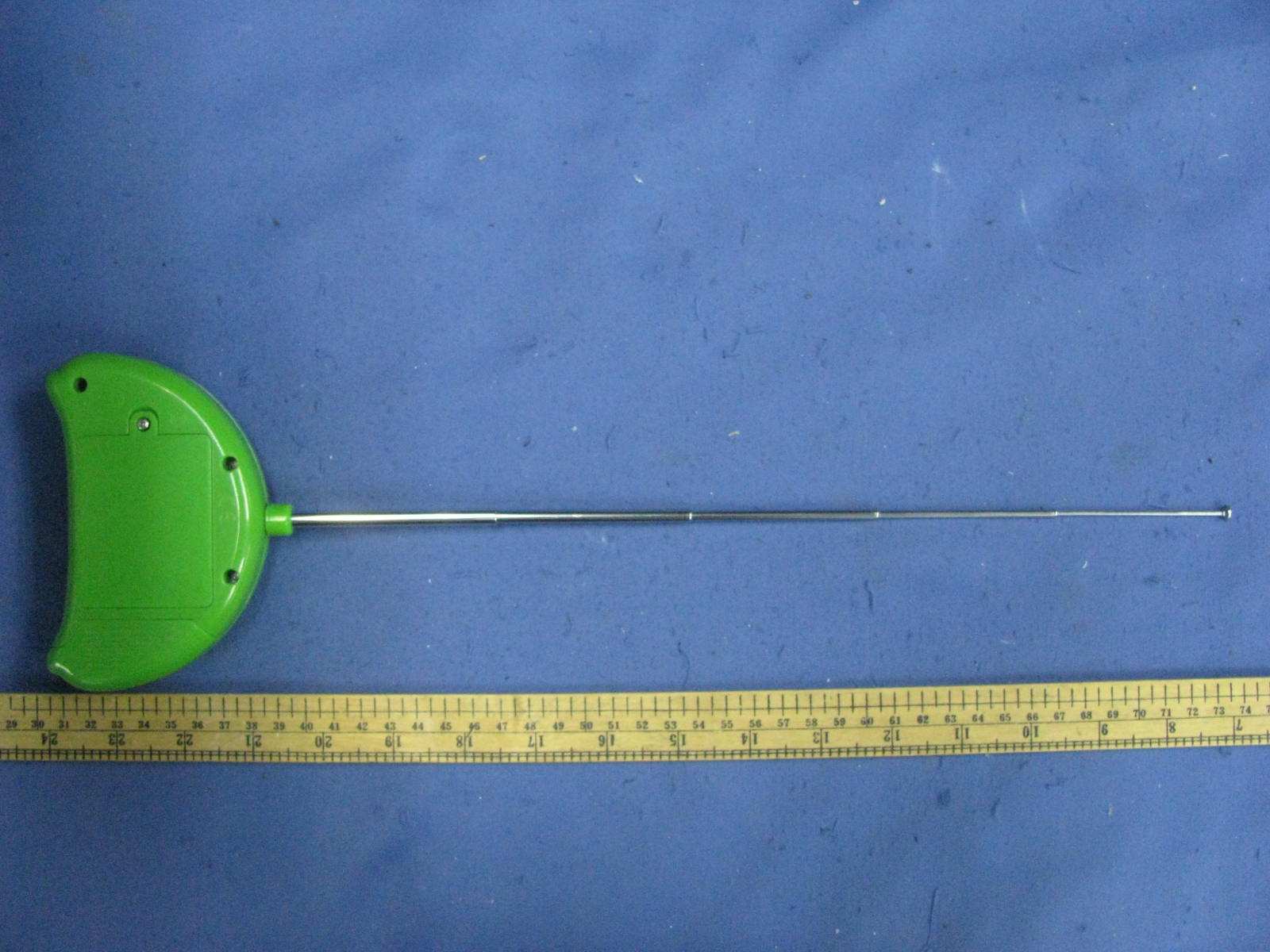

External Photos

Label Artwork and Location Label Size: 29mm(W)×15mm(H)

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT1 Filter Suppression of spurious emissions L3, T1, C3, C5, C9 RF power amplifier and modulation Modulate the carrier and amplify the modulated RF signal Q1 Oscillator Generate 49.860 MHz carrier Q2, X1 Encoder IC Generate code signal to modulator U1 Charge circuit Charge for the batteries in the Car receiver Q4, Q5, U2A, U2B Type of antenna: Telescope antenna with unique antenna connector Type of modulation: Pulse modulation

1234 A B C D 4321 D C B A BT1 4.5V S1 S2 C11 105 R2 150K R3 22K R1 100R C1 104 R4 390K Q2 SL6 C7 22P R6 30R X1 49.860MHZ L2 1.0uH C6 12P C4 22P Q1 SL6 C8 47P L1 1.0uH C3 22P C9 47P C5 12P L3 2.2UH T1 1.8uH ANT1 RF:49MHZ 49MHz TX Circuit Diagram C2 104 VCC S3 S4 R5 30R C12 103 R 1 TEST 2 GND 3 B 4 F 5 T 6 SC 7 NC 8 NC 9 SO 10 VDD 11 PC 12 OSCO 13 OSCI 14 FOSC 15 L 16 U1 TX-2BS C10 103 BT2 2.4V R85.6K R9 100R R10 1K R7 10K C13 10UF R14 1.2K R11 1K LED1 RED V1=0.4V V0=2.9V D1 1N4148C15 104 C14 105 CH+ 2 3 1 U2A LM358 6 5 7 V+ 8 V- 4 U2B LM358 Z1 NC Q4 8550D R17 100K S5 SW SPST Q5 SL6 R15 4.3K R16 1.2K D2 1N5817 MINI RC-Mario Corporate Name ADDRESS Product Name PREPARED BY: CHEN GUOAPPROVED BY: Steven Chow GOLDIE MARKETING PTY. LTD UNIT 1,51-53 POWER RD., BAYSWATER VIC 3153 MELBOURNE,AUSTARLIA

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TRF No.: FCC IC_C_a Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 TEST REPORT Report No.: SZ11040323-1 GOLDIE MARKETING PTY. LTD. Application For Certification (FCC ID: YPS-GM91329213) Transmitter Prepared and Checked by: Approved by: Billy Li Project Engineer Shawn Xing Manager Date: May 28, 2011 INTERTEK TESTING SERVICES Report No.: SZ11040323-1 FCC ID: YPS-GM91329213 TRF No.: FCC IC_C_a i GENERAL INFORMATION GOLDIE MARKETING PTY. LTD. MODEL: NIN-R257-B FCC ID: YPS-GM91329213 Grantee: GOLDIE MARKETING PTY. LTD. Grantee Address: Unit 1, 51-53 Power Road, Bayswater VIC 3153, Melbourne, Australia Contact Person: Stephen Goldsworthy Tel: 61-3-97206186 Fax: 61-3-97202659 e-mail: [email protected] Manufacturer: GOLDIE MARKETING PTY. LTD. Manufacturer Address: Unit 1, 51-53 Power Road, Bayswater VIC 3153, Melbourne, Australia Model: NIN-R257-B Type of EUT: Transmitter Description of EUT: Mini RC-Yoshi Serial Number: N/A FCC ID : YPS-GM91329213 Date of Sample Submitted: April 20, 2011 Date of Test: May 28, 2011 Report No.: SZ11040323-1 Report Date: May 28, 2011 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: SZ11040323-1 FCC ID: YPS-GM91329213 TRF No.: FCC IC_C_a ii SUMMARY OF TEST RESULT GOLDIE MARKETING PTY. LTD. Model: NIN-R257-B FCC ID: YPS-GM91329213 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a Telescope-type antenna (with unique antenna connector) which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: SZ11040323-1 FCC ID: YPS-GM91329213 TRF No.: FCC IC_C_a iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment List and Description ...........................................................3 3.0 Emission Results ......................................................…

Text truncated - open the document above for the full version.

Radiated Photos
