YPS-GM91329214Mini RC-Yoshi

RX Block Diagram ANTENNA Super-regenerative receiver Decoder U1 (Clock frequency 128k Hz) 49.860MHz MOTOR1 Motor Driver Motor (F & B) MOTOR2 Motor Driver Motor (R & L)

Shawn Xing

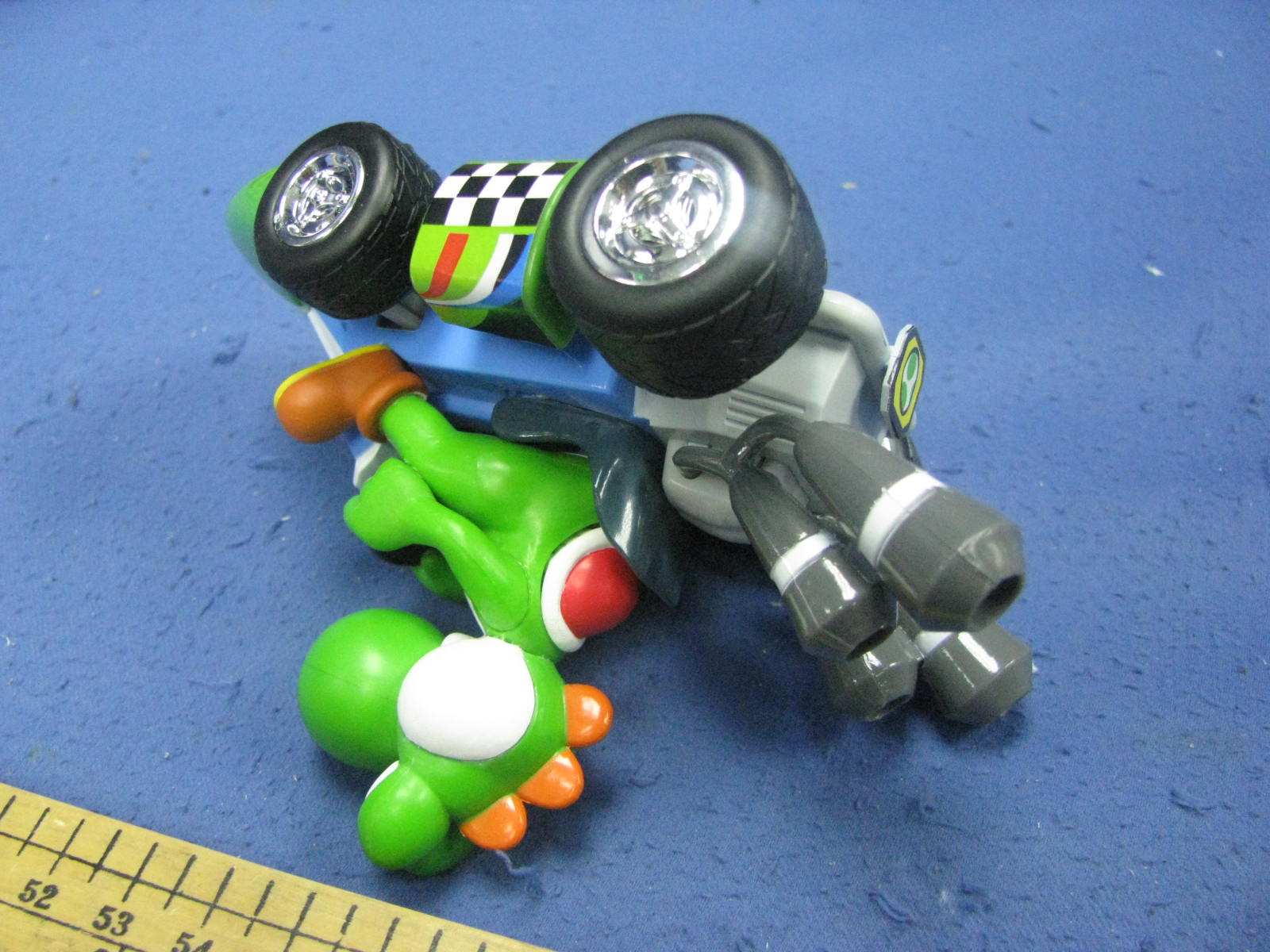

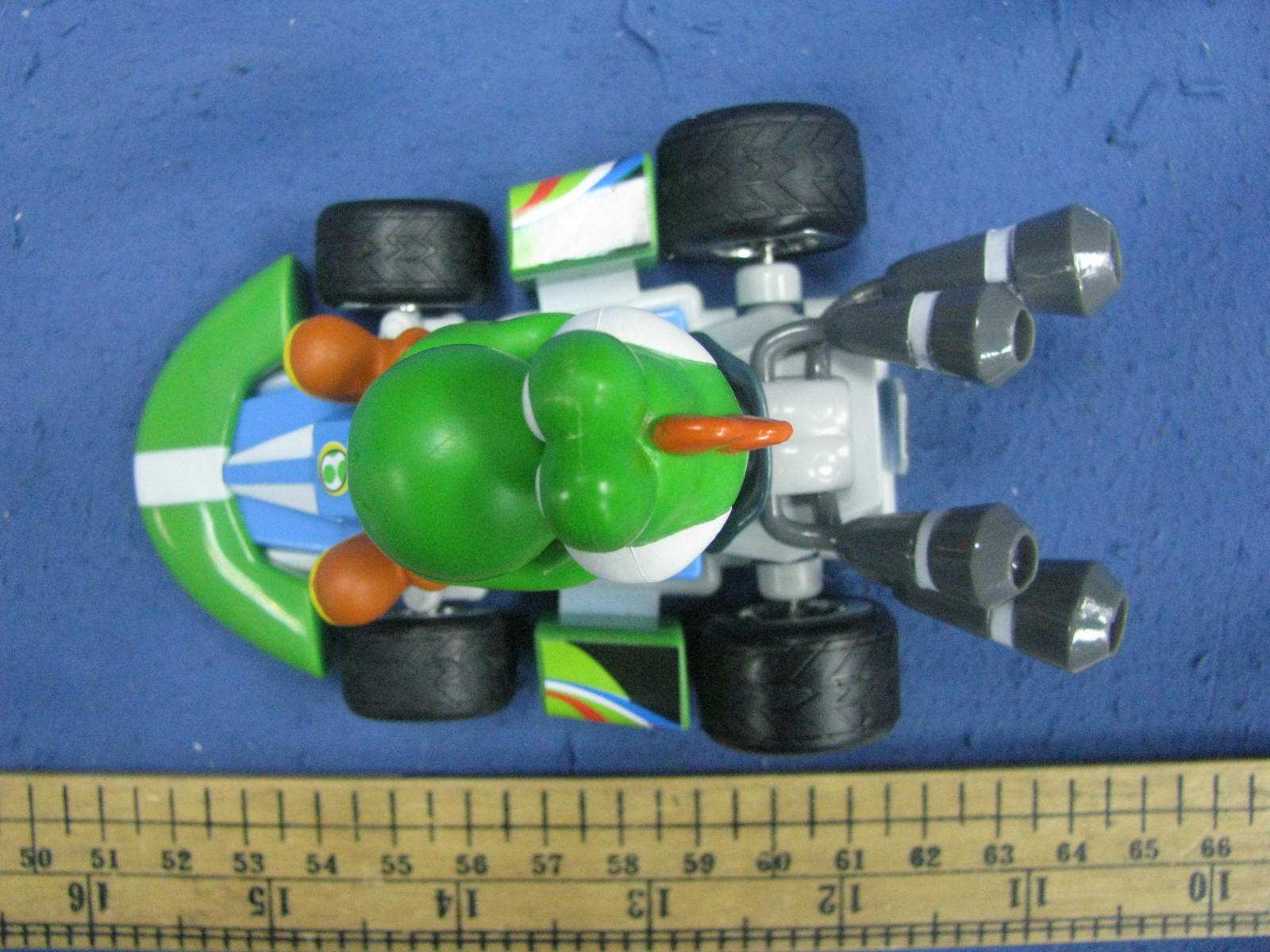

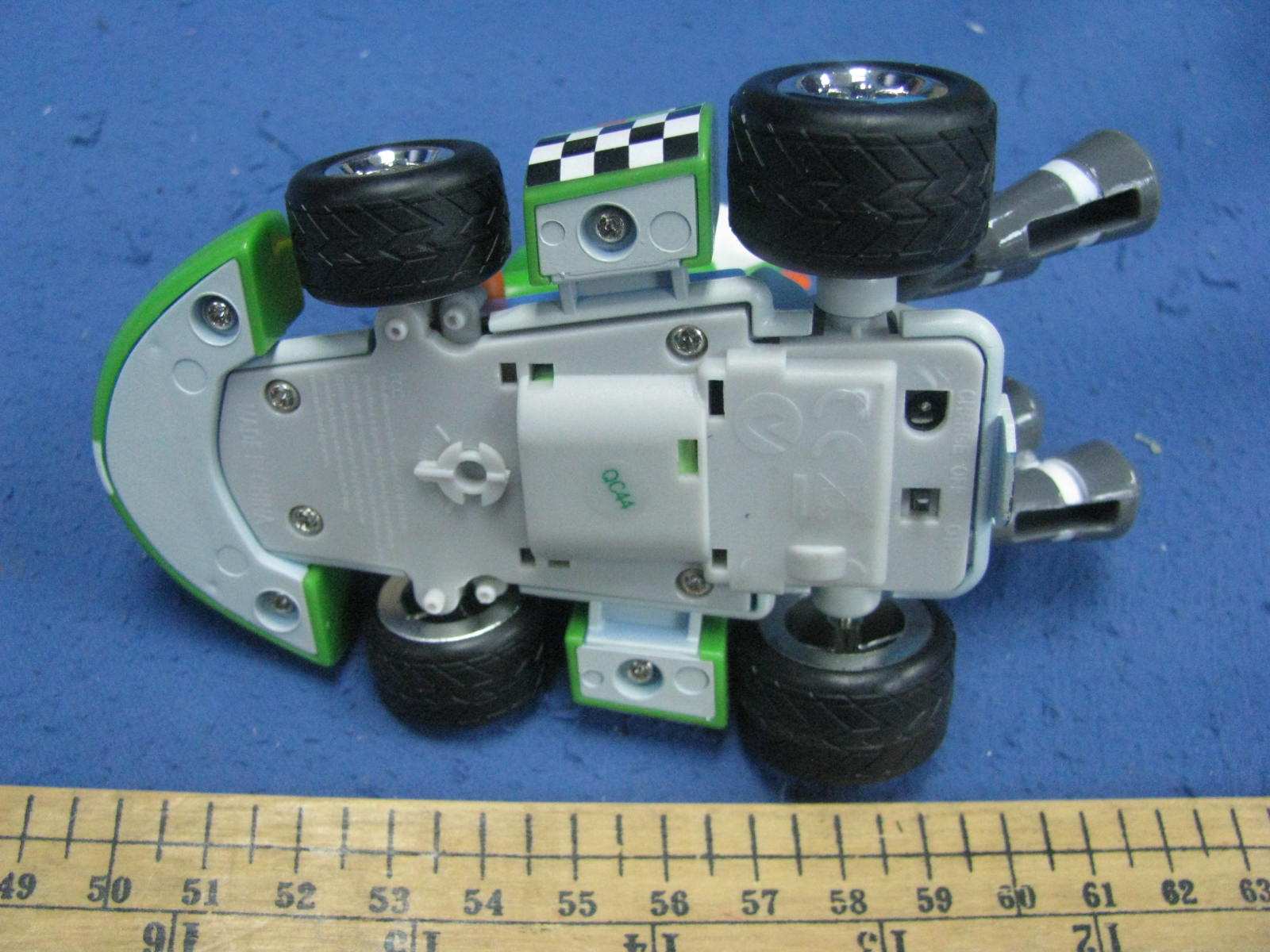

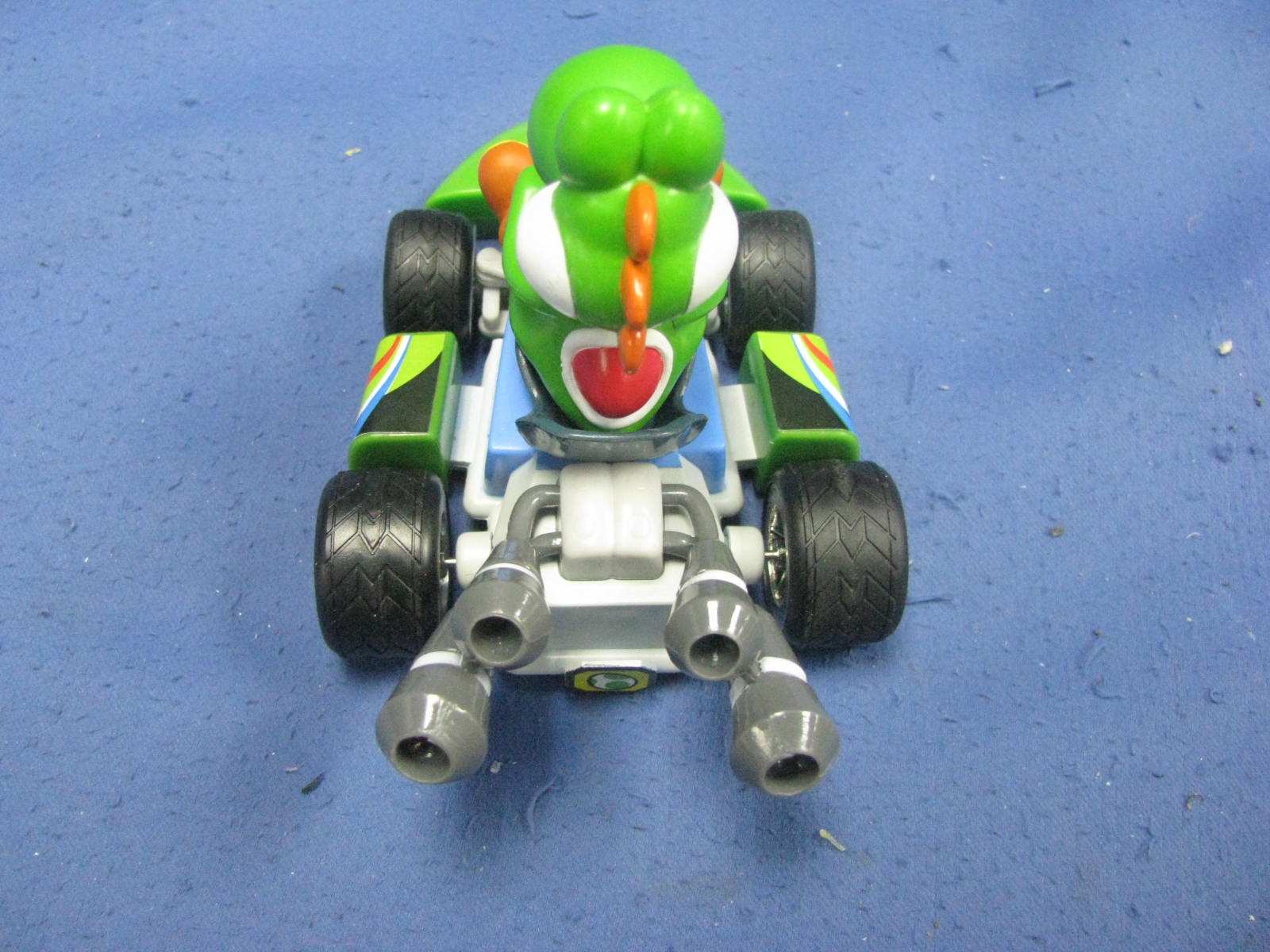

External Photos

Label Artwork and Location Label Size: 23mm(W)×12mm(H)

Internal Photos

RX Technical description Description Function Component Antenna Receive the RF signal ANTENNA Super-regenerative receiver Select the RF signal Q1 and associated circuit RF IC Decode the RF signal to Motor Driver U1 Motor Driver (F & B) Drive the Motor(F & B) Q3, Q4, Q5, Q6, Q7, Q8 and associated circuit Motor Driver (R & L) Drive the Motor(R & L) Q9, Q10, Q11, Q12 and associated circuit Type of antenna: Integral

1234 A B C D 4321 D C B A Q1 C1815-8G ANTENNA L1 2.2UH C9 2P T1 0.6UH C10 16P L2 3.3UH C11 332 R11 560R R8 150K R4 3.3K R5 2.2K C8 103 R1 100R C3 104 C13470P R7 330R R10 4.7M C4 104 R9 4.7M R6 2.2K C14 202 R12 180K C12 100uF Q8 KEY Q7 KEY R2 100R R3 100R MOTO1 C5104 R14 1K R15 1K Q11 EY1 Q12 EY1 MOTO2 C6104 R16 1K R17 1K BT1 2.4V S1 NO CHAGRE F/B MOTOR L/R MOTOR C7 12p C2 105 C1 105 VO2 1 GND 2 SI 3 OSCI 4 OSCO 5 R 6 L 7 LX 8 MOD 9 B 10 F 11 T 12 VDD 13 VI1 14 VO1 15 VI2 16 U1 RX-2C M1+M1- M2-M2+ ANT VDD GND VCC DATA Q9 IY Q10 IY PREPARED BY: CHEN GUOCHECK BY:APPROVED BY: Steven Chow 49MHz RX Circuit Diagram L3 100UH Q2 SL6 R13 1K D1 1N5817 R18 100R R19 100R 1 2 Q5 EY1 Q6 EY1 Q3 KIY Q4 KIY MINI RC-Mario Corporate Name ADDRESS Product Name PREPARED BY: CHEN GUOAPPROVED BY: Steven Chow GOLDIE MARKETING PTY. LTD UNIT 1,51-53 POWER RD., BAYSWATER VIC 3153 MELBOURNE,AUSTARLIA
