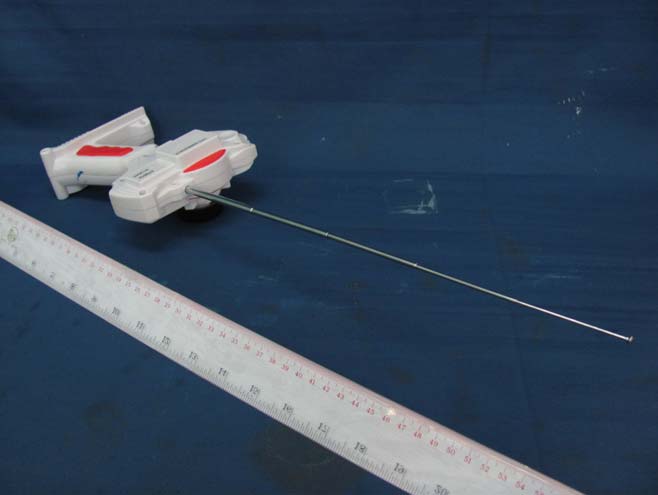

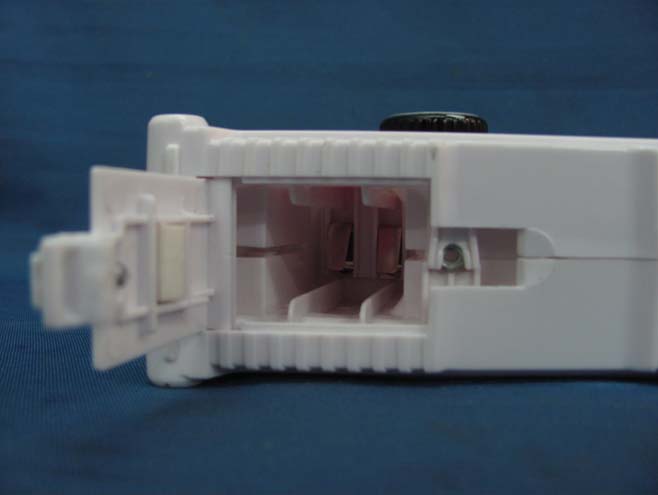

INTERTEK TESTING SERVICE Report No.: HK12060769-1 FCC ID: YPS-LRC201227T Equipment Photographs Model : NINR236 (External) INTERTEK TESTING SERVICE Report No.: HK12060769-1 FCC ID: YPS-LRC201227T Equipment Photographs Model : NINR236 (External)

Size in mm FCC ID: YPS-LRC201227T

INTERTEK TESTING SERVICE Report No.: HK12060769-1 FCC ID: YPS-LRC201227T Equipment Photographs Model : NINR236 (Internal) INTERTEK TESTING SERVICE Report No.: HK12060769-1 FCC ID: YPS-LRC201227T Equipment Photographs Model : NINR236 (Internal) INTERTEK TESTING SERVICE Report No.: HK12060769-1 FCC ID: YPS-LRC201227T Equipment Photographs Model : NINR236 (Internal) INTERTEK TESTING SERVICE Report No.: HK12060769-1 FCC ID: YPS-LRC201227T Equipment Photographs Model : NINR236 (Internal) INTERTEK TESTING SERVICE Report No.: HK12060769-1 FCC ID: YPS-LRC201227T Equipment Photographs Model : NINR236 (Internal)

FCC ID: YPS-LRC201227T Model: NINR236 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: Left, Right , Back, Front, TX10 2. A RF Oscillator (27.145MHz) Consisting: Y1 3. A Filter Network Consisting: C13,C14, L3, L4 4. A RF Modulator and Amplifier Consisting: Q1, Q2 5. A Power Supply Consisting: 9V Alkaline battery 6. Regulator Consisting: ZD1, EC1, C1 7. Clock frequency Consisting :X1 The transmitter uses an external, unique dedicate.
