YPS-MRC201249RNintendo Mini Mario Kart R/C

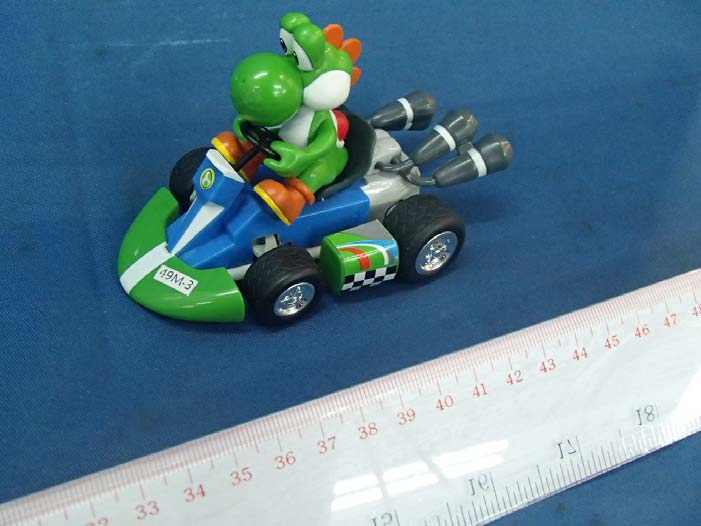

INTERTEK TESTING SERVICE Report No.: HK12060784-3 FCC ID: YPS-MRC201249R Equipment Photographs Model : NINR257 (External)

Size in mm FCC ID: YPS-MRC201249R

INTERTEK TESTING SERVICE Report No.: HK12060784-3 FCC ID: YPS-MRC201249R Equipment Photographs Model : NINR257 (Internal) INTERTEK TESTING SERVICE Report No.: HK12060784-3 FCC ID: YPS-MRC201249R Equipment Photographs Model : NINR257 (Internal) INTERTEK TESTING SERVICE Report No.: HK12060784-3 FCC ID: YPS-MRC201249R Equipment Photographs Model : NINR257 (Internal) INTERTEK TESTING SERVICE Report No.: HK12060784-3 FCC ID: YPS-MRC201249R Equipment Photographs Model : NINR257 (Internal) INTERTEK TESTING SERVICE Report No.: HK12060784-3 FCC ID: YPS-MRC201249R Equipment Photographs Model : NINR257 (Internal) INTERTEK TESTING SERVICE Report No.: HK12060784-3 FCC ID: YPS-MRC201249R Equipment Photographs Model : NINR257 (Internal) INTERTEK TESTING SERVICE Report No.: HK12060784-3 FCC ID: YPS-MRC201249R Equipment Photographs Model : NINR257 (Internal)

Model:NINR257 (Receiver portion) Technical Description of Receiver The receiver operates at 49.860 MHz, and controls by the corresponding transmitter to move forward, backward, left, right and carry out charging. The circuit of the receiver comprises of, 1. Super-regenerative circuit Consisting: L2, C1, C2, C3, C5, C6, C13, Q1, T1, R1, R3 2. Decoder Consisting: TX10 3. Drive Motor Circuit Consisting: C14 4. Steer Motor Circuit Consisting: C13 5. A Power Supply Consisting: 1 x 2.4V Ni-MH battery pack 6. Regulator and Charging Circuit Consisting: 1N5819, C12, C16, C17, EC1, D1, L2 7. Clock Frequency Consisting: Y1 The receiver uses an internal, integral and non-detachable antenna. FCC ID: YPS-MRC201249R
