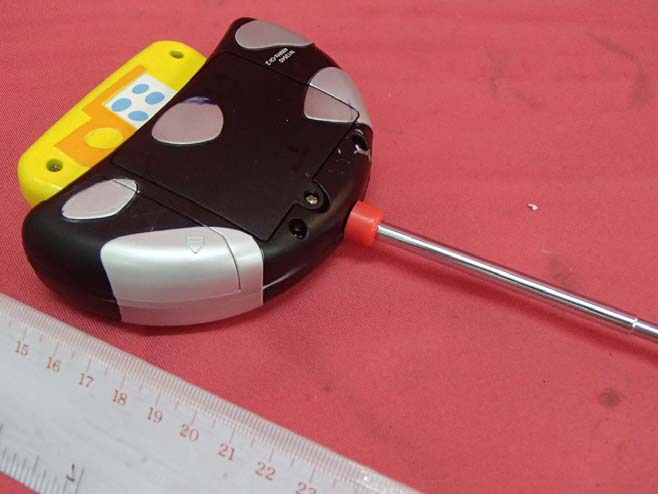

INTERTEK TESTING SERVICE Report No.: HK12081216-1 FCC ID: YPS-SRC201249T Equipment Photographs Model : SMR005 (External) INTERTEK TESTING SERVICE Report No.: HK12081216-1 FCC ID: YPS-SRC201249T Equipment Photographs Model : SMR005 (External)

21mm (W) x 16mm(H) 19mm (W) X 6mm (H) 27mm (W) X 4mm (H)

INTERTEK TESTING SERVICE Report No.:HK12081216-1 Equipment Photographs Model : SMR005 (Internal) FCC ID: YPS-SRC201249T INTERTEK TESTING SERVICE Report No.:HK12081216-1 Equipment Photographs Model : SMR005 (Internal) FCC ID: YPS-SRC201249T INTERTEK TESTING SERVICE Report No.:HK12081216-1 Equipment Photographs Model : SMR005 (Internal) FCC ID: YPS-SRC201249T INTERTEK TESTING SERVICE Report No.:HK12081216-1 Equipment Photographs Model : SMR005 (Internal) FCC ID: YPS-SRC201249T

Model: SMR005 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.860 MHz, and controls the corresponding receiver to move forward, backward, left, right and carry out charging. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: S1, S2 ,S3 S4, U1 2. A RF Oscillator (49.860MHz) Consisting: Y1 3. A Filter Network Consisting: C14, C15, L2, C8, L3, L4, C9 4. A RF Modulator and Amplifier Consisting: Q1, Q2 5. A Power Supply Consisting: 3 x AA size batteries 6. Regulator Consisting: IC2A,IC2B 7. Charging Circuit Consisting: Q5, J1-2,J1-1 8. Clock Frequency Consisting: Y2 The antenna used: An external, unique dedicated- telescope type antenna has been used.

INTERTEK TESTING SERVICES Report No.: HK12081216-1 Sample No.: 1/4 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) TDS Att 10 dB ** A PS AC * RBW 1 kHz VBW 3 kHz Ref 102 dBμV Start 49.81 MHzStop 49.91 MHz10 kHz/ SWT 100 ms 3DB * 1 PK VIEW 10 20 30 40 50 60 70 80 90 100 1 Marker 1 [T1 ] 68.95 dBμV 49.860200000 MHz 2 Delta 2 [T1 ] -34.58 dB -49.200000000 kHz 1 Delta 1 [T1 ] -33.41 dB 49.800000000 kHz Date: 30.AUG.2012 12:37:00 Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 235 Requirement (Pass)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12081216-1 Goldie Marketing Pty. Ltd. Application For Certification (Original Grant) (FCC ID: YPS-SRC201249T) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: October 10, 2012 INTERTEK TESTING SERVICES Report No.: HK12081216-1 FCC ID: YPS-SRC201249T i GENERAL INFORMATION Goldie Marketing Pty. Ltd. BRAND NAME: Goldie Marketing Pty. Ltd., MODEL: SMR005 FCC ID: YPS-SRC201249T Grantee: Goldie Marketing Pty. Ltd. Grantee Address: Unit 6A, 841 Mountain Highway, Bayswater VIC 3153, Australia. Contact Person: Stephen Goldsworthy Tel: 61-3-97206189 Fax: 61-3-97202659 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: Goldie Marketing Pty. Ltd. Model: SMR005 Additional Model: SMR002 Type of EUT: Transmitter Description of EUT: Smurfs 5in RC Vehicle (Gargamobile) (SMR005) Smurfs 5in RC Vehicle (Leaf Coupe) (SMR002) Serial Number: N/A FCC ID: YPS-SRC201249T Date of Sample Submitted: August 27, 2012 Date of Test: August 27, 2012 to August 31, 2012 Report No.: HK12081216-1 Report Date: October 10, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12081216-1 FCC ID: YPS-SRC201249T ii SUMMARY OF TEST RESULT Goldie Marketing Pty. Ltd. BRAND NAME: Goldie Marketing Pty. Ltd., MODEL: SMR005 FCC ID: YPS-SRC201249T TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12081216-1 FCC ID: YPS-SRC201249T iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 2 2.6 Suppo…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK12081216-1 FCC ID: YPS-SRC201249T Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : SMR005 INTERTEK TESTING SERVICE Report No: HK12081216-1 FCC ID: YPS-SRC201249T Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : SMR005
